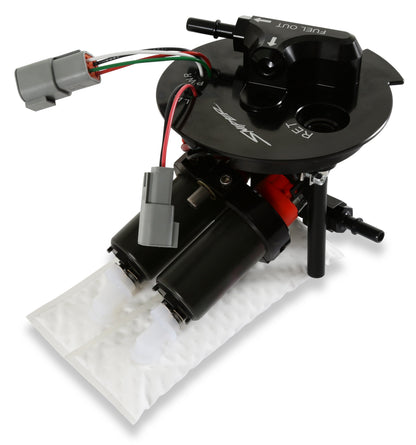

DUAL 340 LPH PUMP MODULE SYSTEM,10-15 CAMARO

BRAND NEW HOLLEY DUAL 340 LPH PUMP MODULE SYSTEM (PART #12-350).

IF YOU ARE ADDING NITROUS OR BOOST TO YOUR 2010-2015 CAMARO RACE CAR, HOLLEY HAS THE FUEL PUMP UPGRADES FOR YOU! THE FUEL PUMP MODULE DESIGN STARTS WITH A BILLET PUMP FLANGE ASSEMBLY AND CONNECTS IT TO DUAL 340 LPH FUEL PUMPS FOR MAXIMUM FUEL DELIVERY OF GASOLINE OR E85.

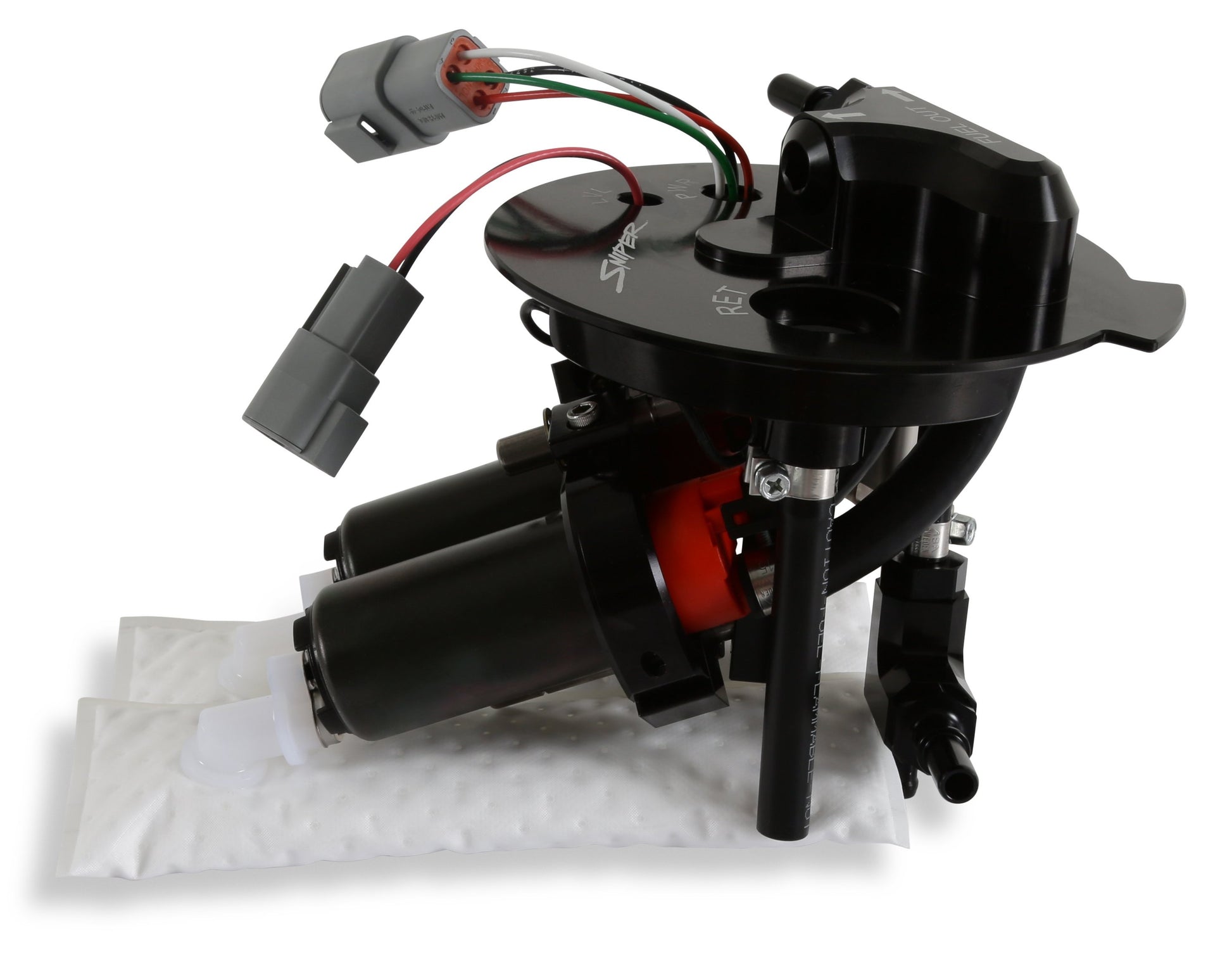

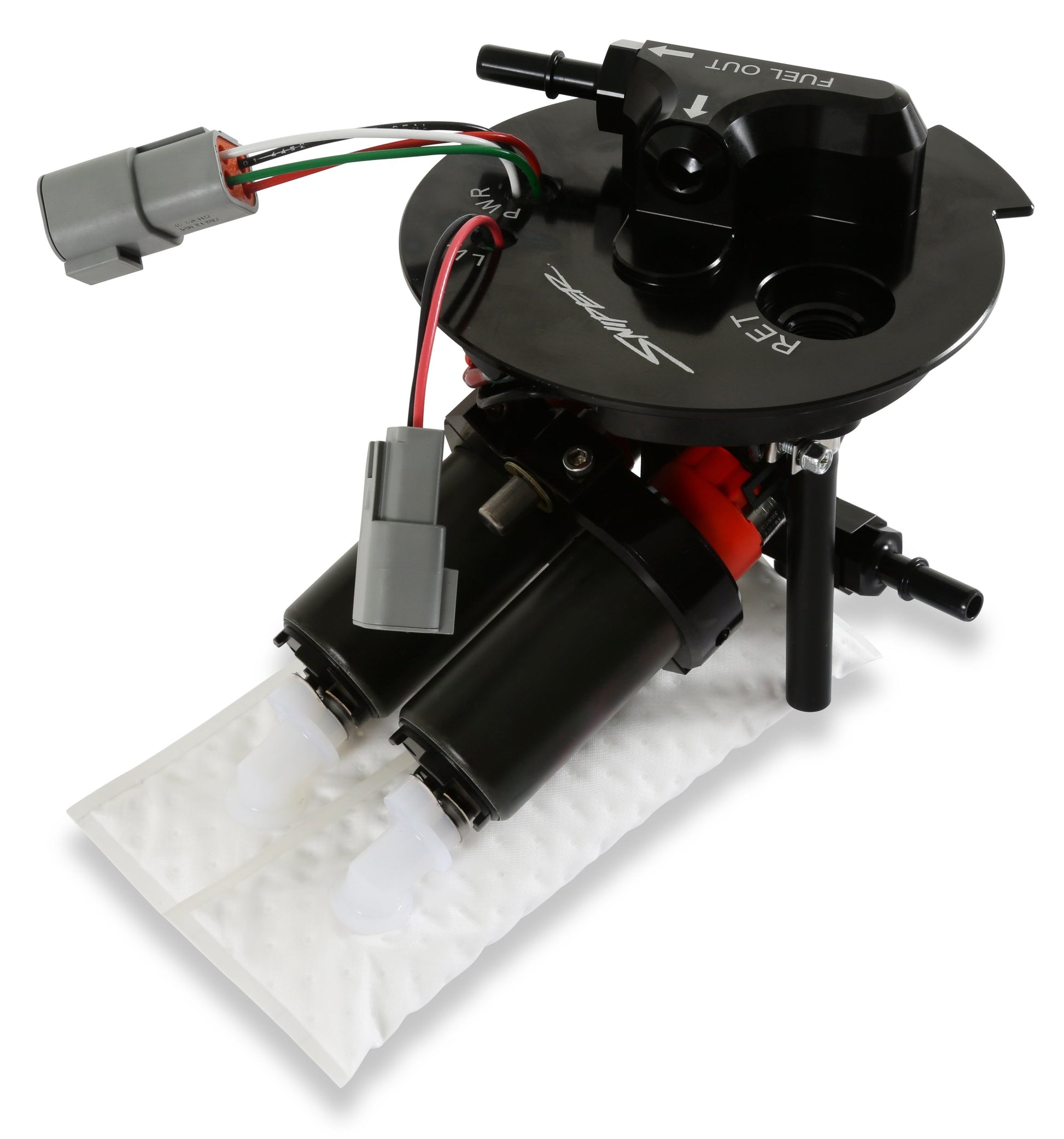

THE FUEL PUMP MODULE DESIGN STARTS WITH A BILLET PUMP FLANGE ASSEMBLY AND CONNECTS IT TO DUAL 340 LPH FUEL PUMPS FOR MAXIMUM FUEL DELIVERY. THE MODULE ALSO INCLUDES TWO HYDRAMATS TO ELIMINATE FUEL STARVATION UNDER HARD ACCELERATION OR CORNERING. THE INTEGRATED JET PUMP ASSEMBLY ALLOWS RETENTION OF FACTORY DRIVERS SIDE FUEL PICKUP.

COMPATIBLE WITH:

• CHEVROLET:
  • 2010-2015 CAMARO

FEATURES:

• -8AN ORB INLETS AND OUTLETS (RETURN FITTING INCLUDED)
• DUAL 340 (1400 HP) @ 60 PSI AT 13.5 VOLTS / 14.5 AMP DRAW

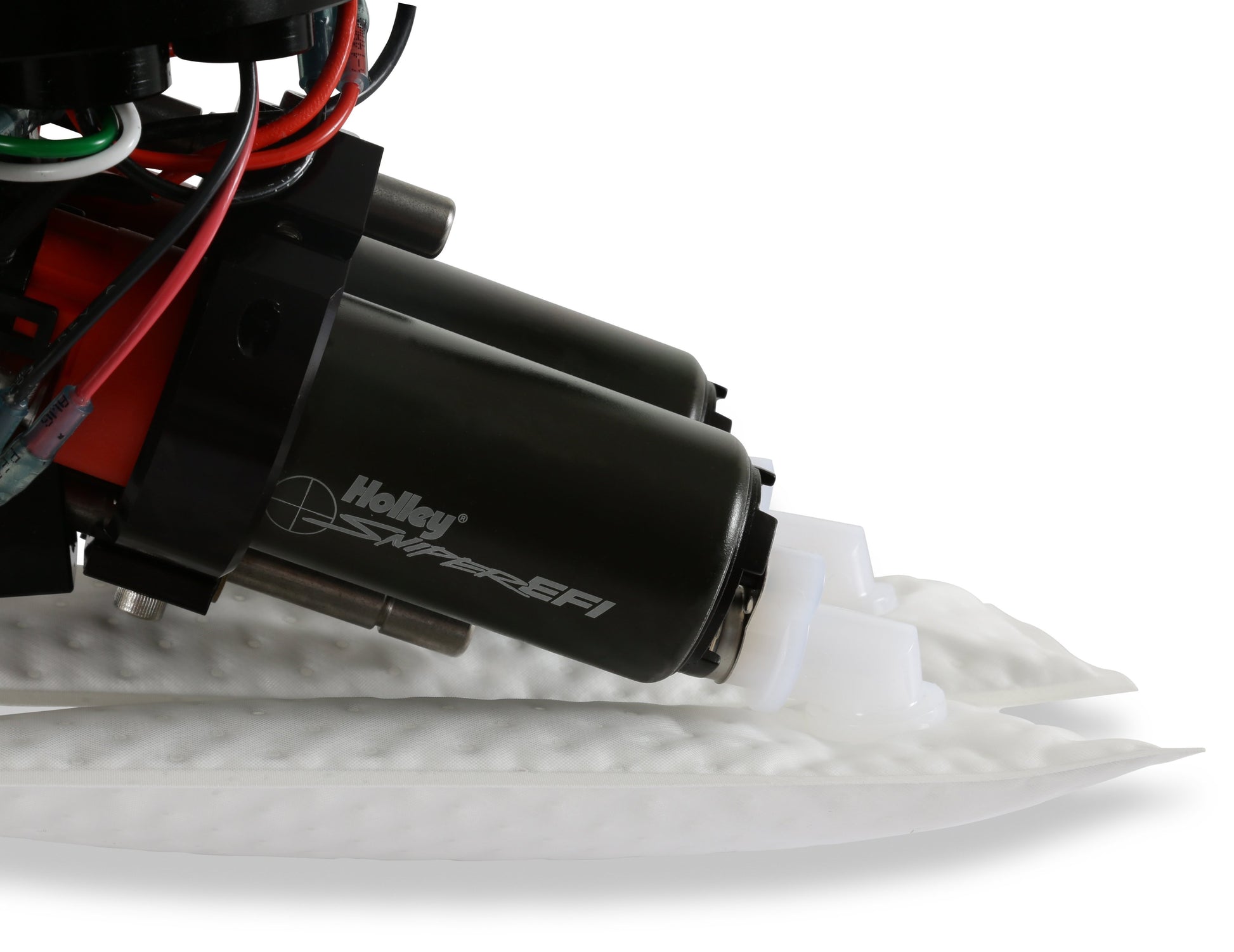

• TWO HYDRAMATS, ONE FOR EACH PUMP
• INTEGRATED JET PUMP ASSEMBLY ALLOWS RETENTION OF FACTORY DRIVERS SIDE FUEL PICKUP
• HAVE BEEN TESTED TO DELIVER STABLE FUEL PRESSURE DOWN TO LOW FUEL INDICATOR WARNING LIGHT

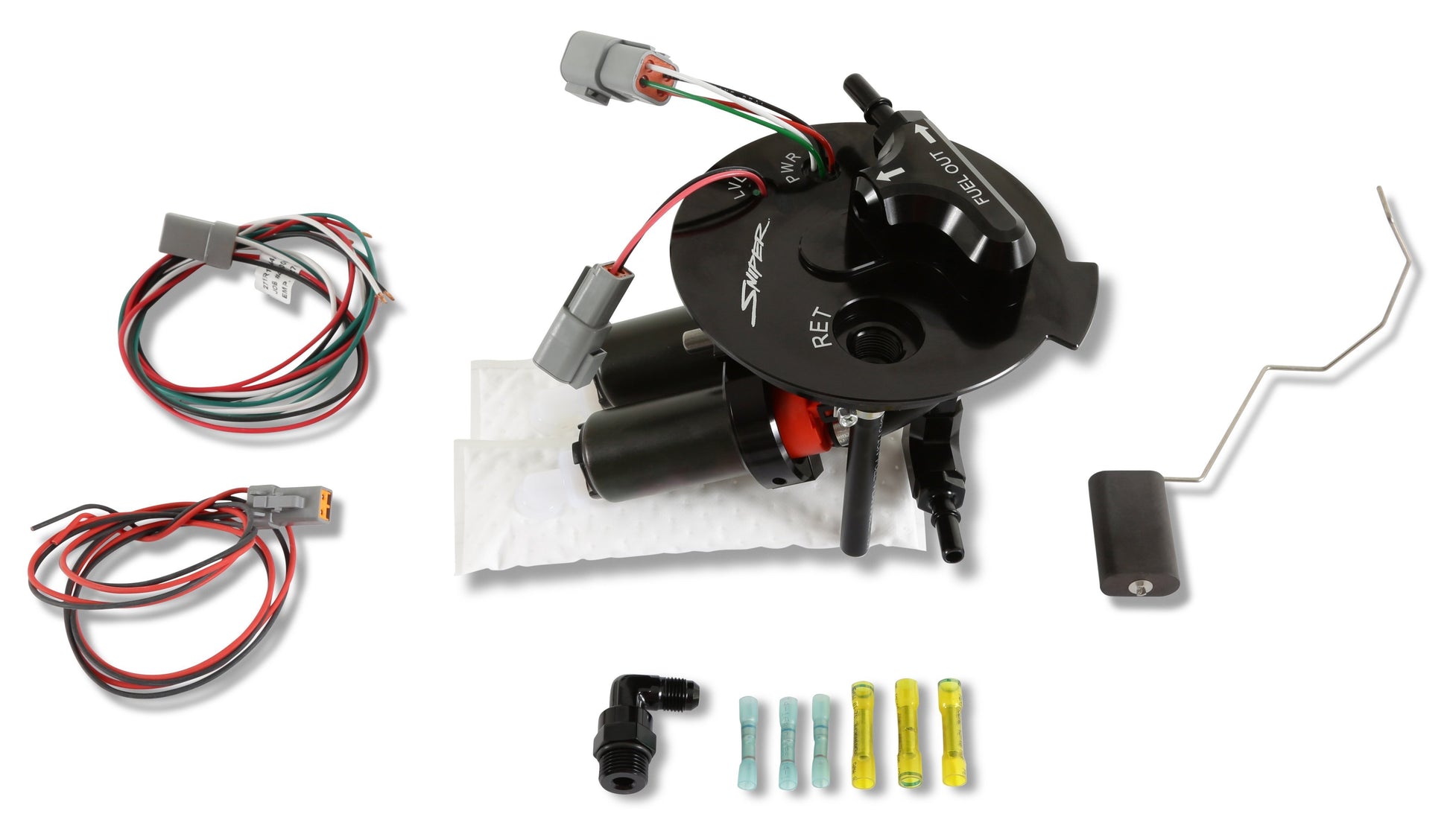

• BRAND NEW LEVEL SENSOR INCLUDED AND PRE-INSTALLED. INSTALLATION IS AS SIMPLE AS REMOVING FACTORY MODULE AND REPLACING WITH HOLLEY MODULE
• OUTLET FITTING INCLUDED TO CONNECT TO FACTORY FEED LINE. SECONDARY ORB PORT MACHINED INTO FLANGE FOR EASY AN PLUMBING OF FEED LINE
• MODULE IS RETURN STYLE ONLY SO A REGULATOR MUST BE INSTALLED
• MACHINED, BILLET, ANODIZED, LASER ETCH COMPONENTS FOR DURABILITY AND GOOD LOOKS

SPECS:

• BRAND: HOLLEY
• FREE FLOW GPH: 180
• FREE FLOW LPH: 680
• FUEL SYSTEM: EFI
• FUEL TYPE: GASOLINE/E85 COMPATIBLE
• MATERIAL: BILLET ALUMINUM / STEEL
• PRODUCT TYPE: FUEL PUMP MODULE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
