FUEL TANK MODULE KIT,OE STYLE,255LPH,78-82 CORVETTE

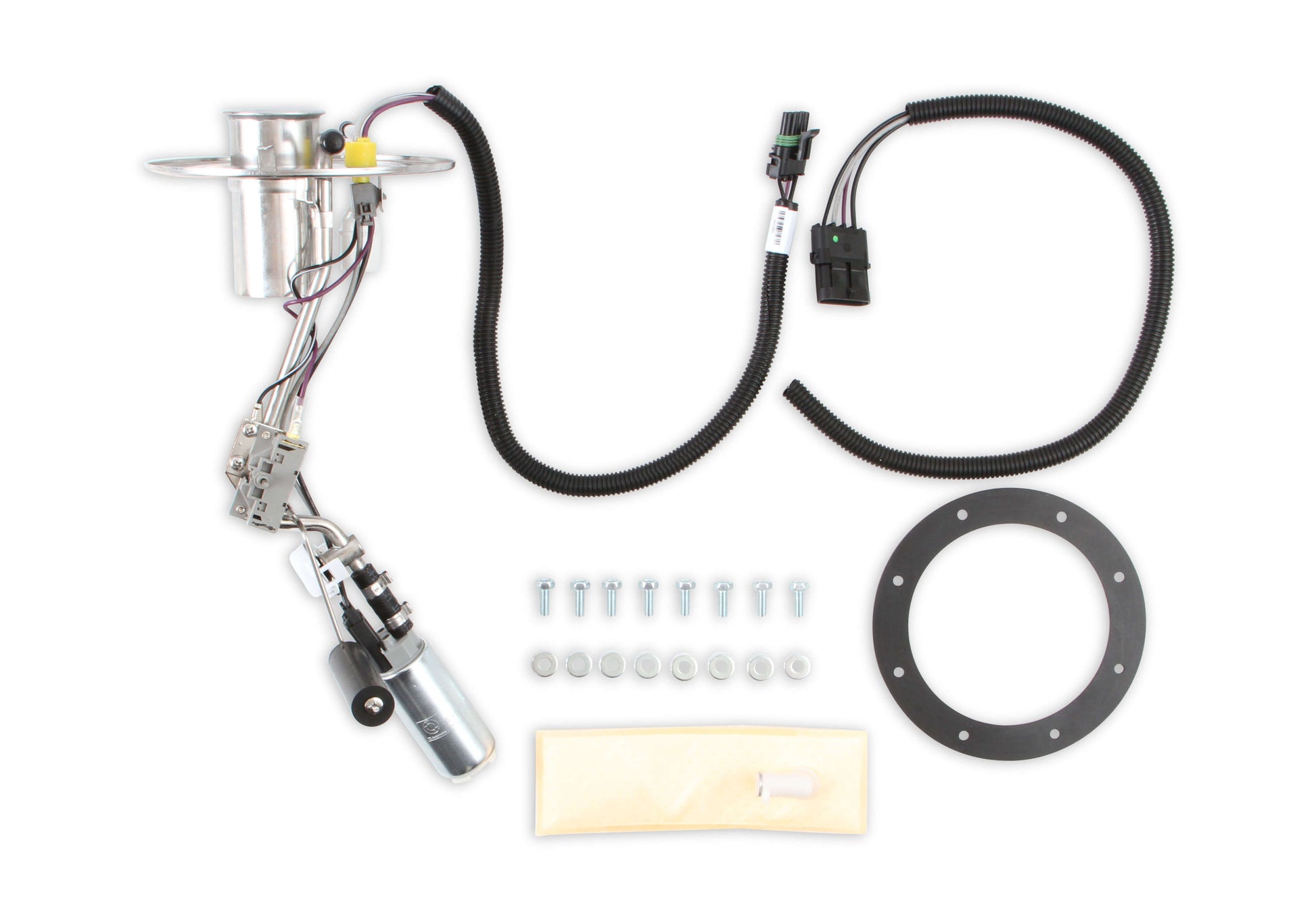

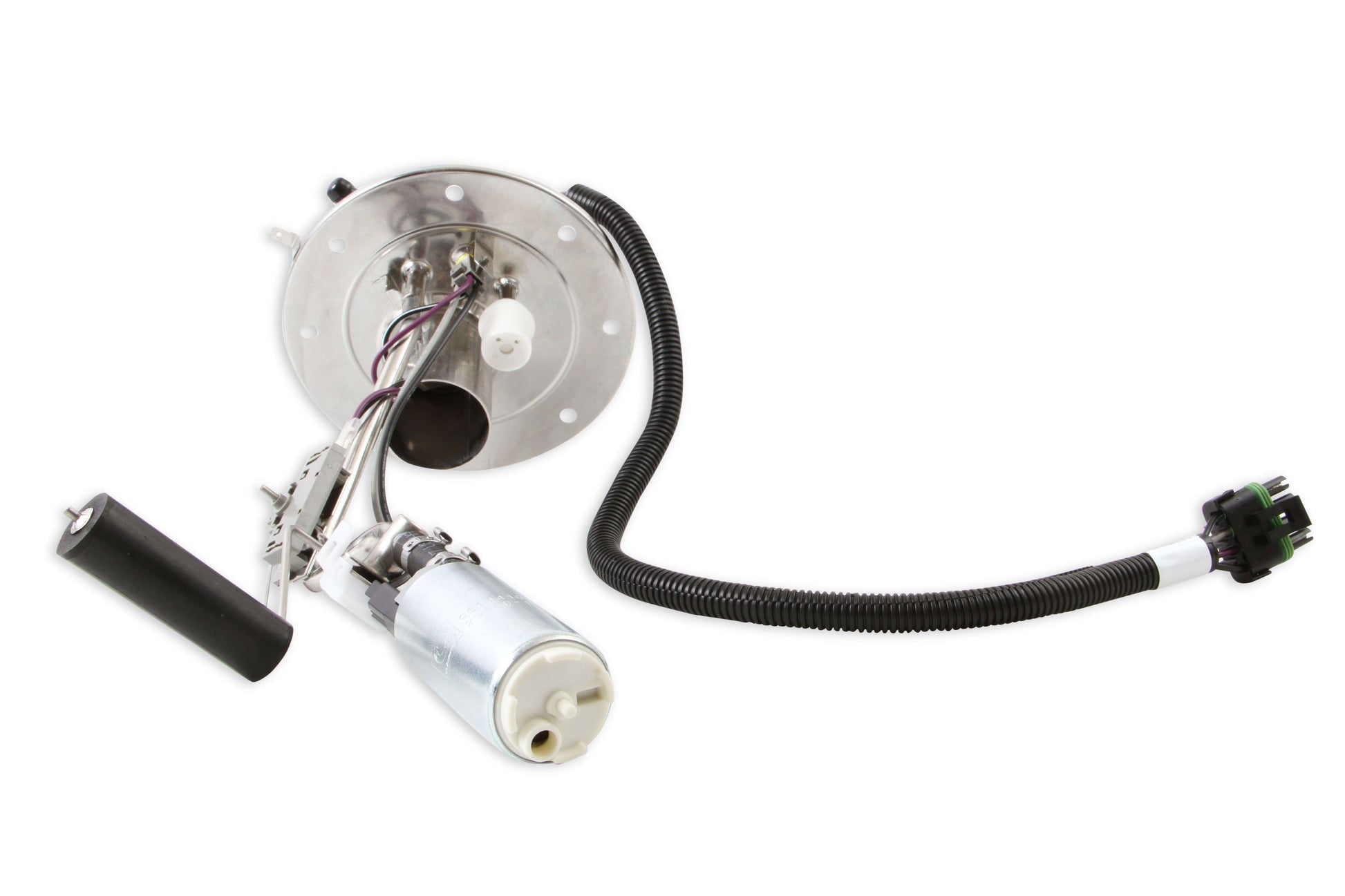

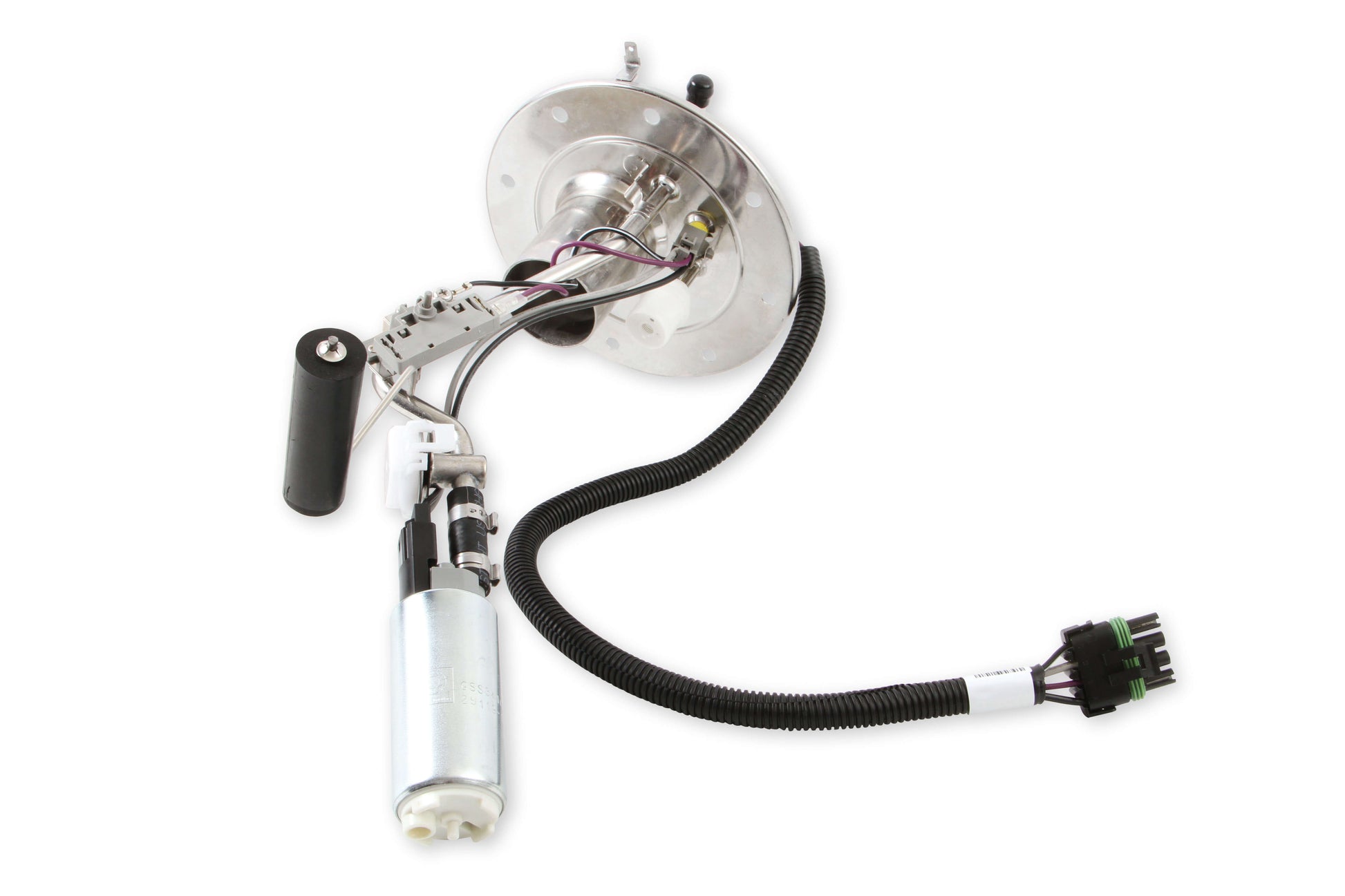

BRAND NEW HOLLEY EFI FUEL TANK MODULE, 255 LPH, 5/16" INLET DIAMETER (PART #12-313).

THIS 1978-1982 CHEVROLET CORVETTE MUSCLE CAR EFI FUEL PUMP MODULES ARE DESIGNED AS A DIRECT REPLACEMENT FOR YOUR FACTORY PICK-UP AND SENDING UNIT. THERE IS NO NEED TO PURCHASE A CUSTOM EFI FUEL TANK. YOU CAN EVEN RETAIN THE FACTORY FUEL HARD LINE, JUST CONNECT THE OUTLET OF THE PUMP MODULE TO THE HARD LINE ON YOUR VEHICLE WITH EFI-RATED FUEL HOSE AND HOSE CLAMPS AVAILABLE IN THE EARLS VAPOR GUARD LINE. THIS MUSCLE CAR EFI MODULE INCLUDES A 255 LPH FUEL PUMP AND A HOLLEY HYDRAMAT. HYDRAMAT IS AN AMAZING PATENT-PENDING FUEL RESERVOIR SYSTEM THAT REDUCES FUEL STARVATION ISSUES THAT MIGHT OTHERWISE OCCUR WHILE CORNERING, ACCELERATING, STOPPING, TRAVERSING INCLINES, AND DURING LOW FUEL CONDITIONS.

APPLICATIONS:

• CHEVROLET:
  • 1978-1982 CORVETTE

FEATURES:

• THIS IN-TANK FUEL PUMP MODULE IS A HIGH-PRESSURE UNIT THAT FLOWS 255 LITERS PER HOUR (LPH) AND IS CAPABLE OF SUPPORTING EFI (ELECTRONIC FUEL INJECTION) ENGINES PRODUCING UP TO 550 HORSEPOWER
• FUEL PRESSURE IS INTERNALLY REGULATED TO 58 PSI ELIMINATING THE ADDED EXPENSE AND EFFORT OF PURCHASING AND INSTALLING AN EXTERNAL FUEL PRESSURE REGULATOR
• A PRE-CALIBRATED FUEL-LEVEL SENDING UNIT DESIGNED TO WORK WITH THE FACTORY FUEL GAUGE FOR THIS APPLICATION IS INCLUDED

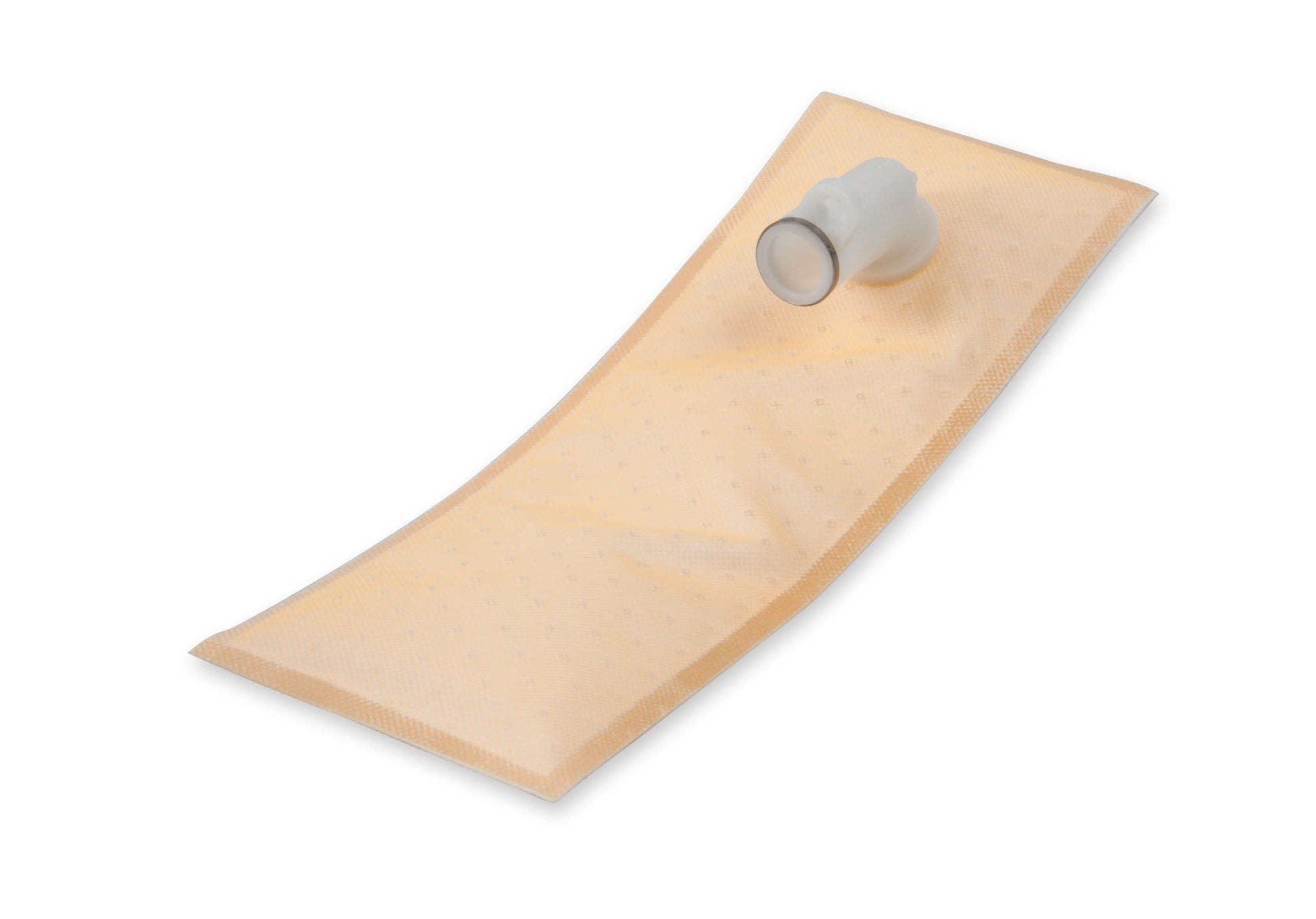

• THIS MODULE ALSO FEATURES A HYDRAMAT FILTER WHICH HAS A UNIQUE INTERNAL RESERVOIR THAT KEEPS FUEL AVAILABLE AT THE PICK-UP AND ALSO PROVIDES PROTECTION FROM CONTAMINANTS

SPECS:

• BRAND: HOLLEY SNIPER EFI
• ENGINE: 350/5.7L V8
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL TYPE: GASOLINE
• INLET DIAMETER (IN): 5/16"
• MATERIAL: STEEL & PLASTIC
• PRODUCT TYPE: FUEL PUMP MODULE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
