FUEL TANK MODULE KIT,OE STYLE,255LPH,75-77 CORVETTE

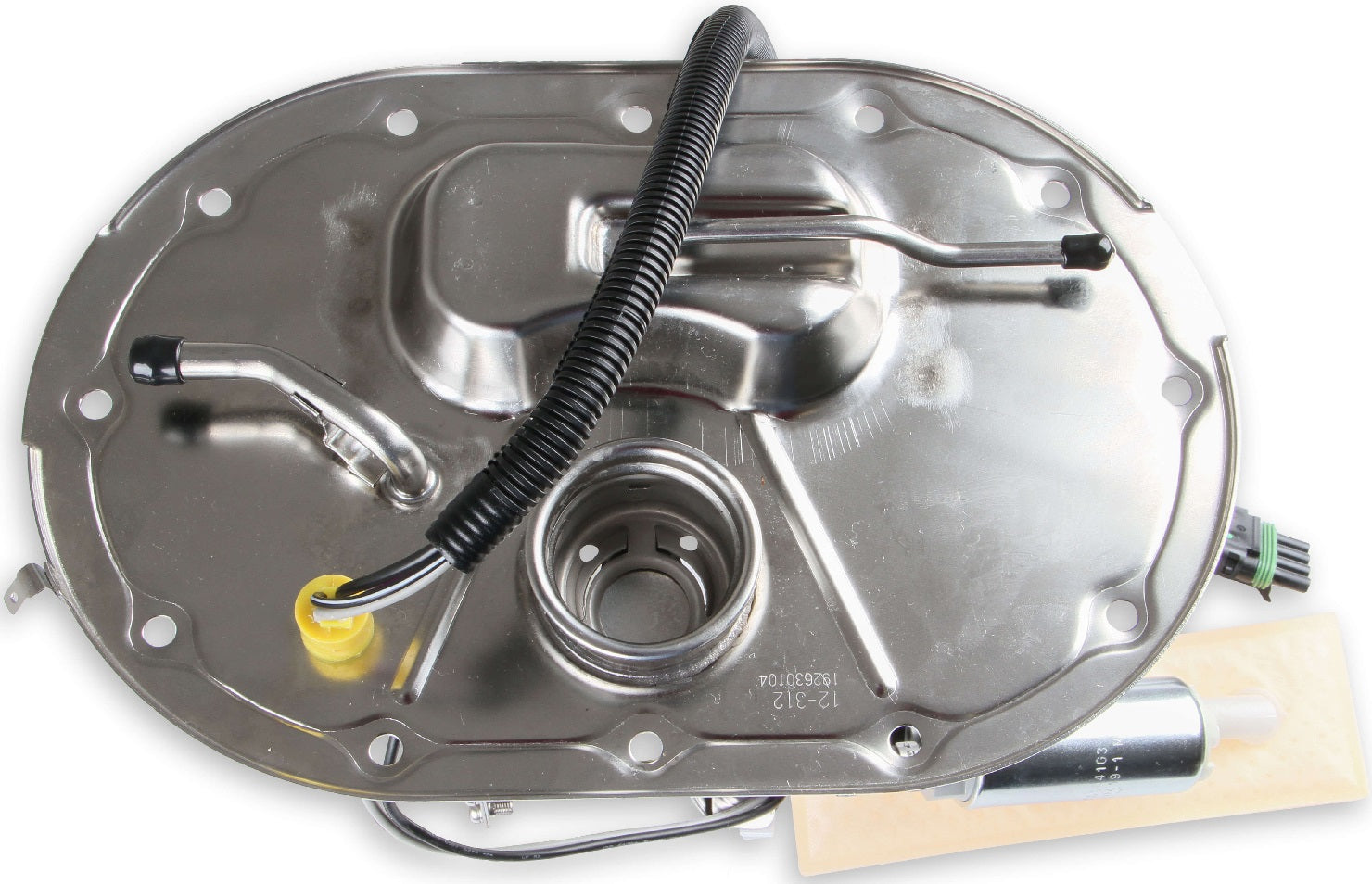

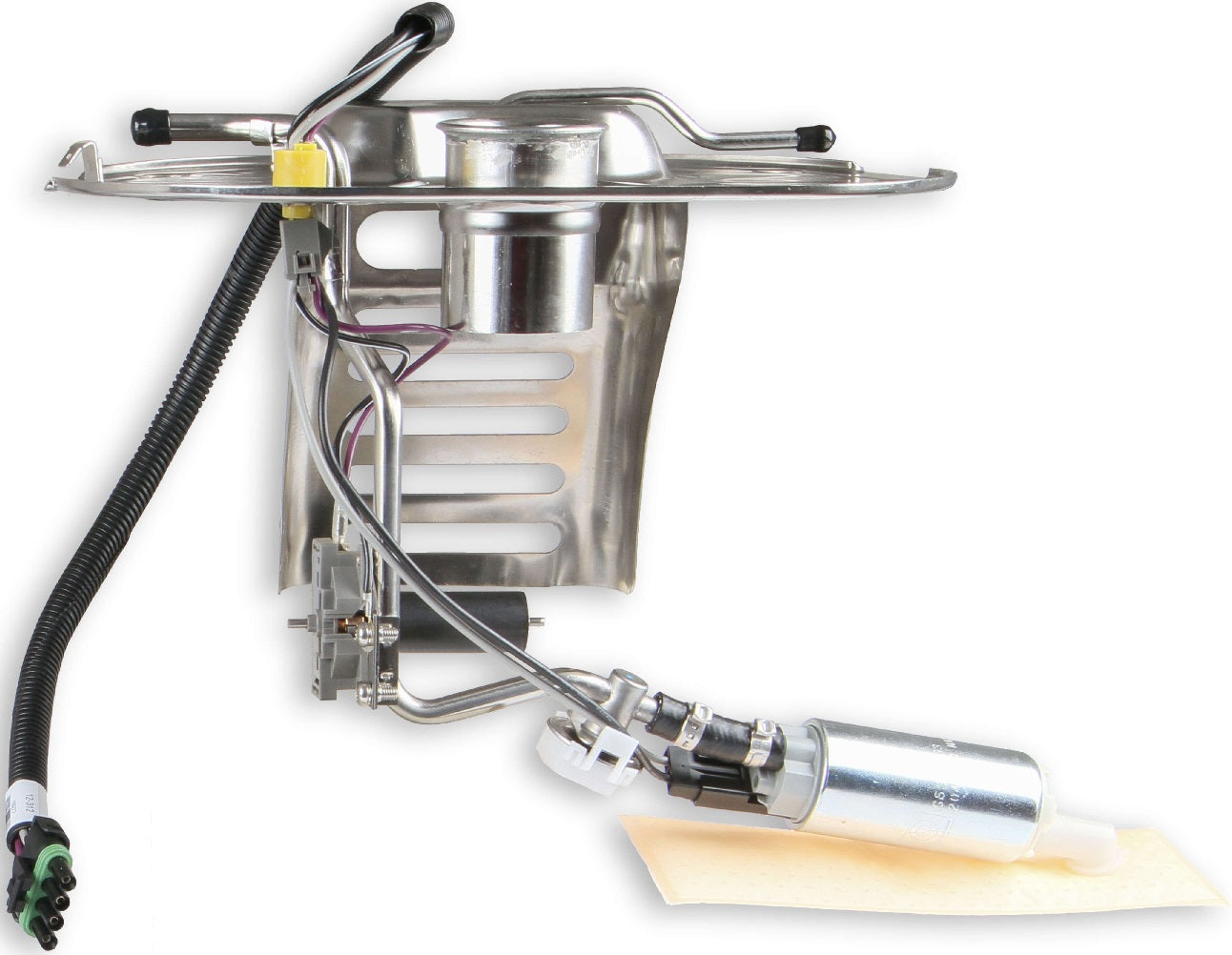

BRAND NEW HOLLEY 255 LPH OE STYLE EFI FUEL TANK MODULES, COMPATIBLE WITH 1975-1977 CHEVY CORVETTE

THIS IN-TANK FUEL PUMP MODULE IS A HIGH-PRESSURE UNIT THAT FLOWS 255 LITERS PER HOUR (LPH) & IS CAPABLE OF SUPPORTING ELECTRONIC FUEL INJECTION (EFI) ENGINES PRODUCING UP TO 550 HP. A PRE-CALIBRATED FUEL-LEVEL SENDING UNIT DESIGNED TO WORK WITH THE FACTORY FUEL GAUGE FOR THIS APPLICATION IS INCLUDED. ALSO FEATURES A HYDRAMAT FILTER WHICH HAS A UNIQUE INTERNAL RESERVOIR THAT KEEPS FUEL AVAILABLE AT THE PICK-UP AND ALSO PROVIDES PROTECTION FROM CONTAMINATES.

FUEL PRESSURE IS INTERNALLY REGULATED TO 58 PSI ELIMINATING THE ADDED EXPENSE AND EFFORT OF PURCHASING AND INSTALLING AN EXTERNAL FUEL PRESSURE REGULATOR - NO SEPARATE RETURN LINE IS REQUIRED BECAUSE THIS MODULE RETURNS EXCESS FUEL RIGHT INSIDE THE TANK!

THIS 1975-77 CORVETTE MUSCLE CAR EFI FUEL PUMP MODULE WAS DESIGNED AS A DIRECT REPLACEMENT FOR YOUR FACTORY PICK-UP AND SENDING UNIT. THERE IS NO NEED TO PURCHASE A CUSTOM EFI FUEL TANK. YOU CAN EVEN RETAIN THE FACTORY FUEL HARD LINE, JUST CONNECT THE OUTLET OF THE PUMP MODULE TO THE HARD LINE ON YOUR VEHICLE WITH EFI-RATED FUEL HOSE & HOSE CLAMPS AVAILABLE IN THE EARLS VAPOR GUARD LINE.

NOTE: THE PUMP IS NOT COMPATIBLE FOR USE WITH PWM (PULSE-WIDTH MODULATION).

SPECS:

• APPLICATION: 1975-77 CHEVROLET CORVETTE
• BRAND: HOLLEY
• EMISSION CODE: 5
• ENGINE: 350/5.7L V8
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 0-90 OHMS
• FUEL TYPE: GASOLINE
• INLET DIAMETER (IN): 5/16"
• PRODUCT TYPE: FUEL PUMP MODULE
• VENT SIZE: N/A
