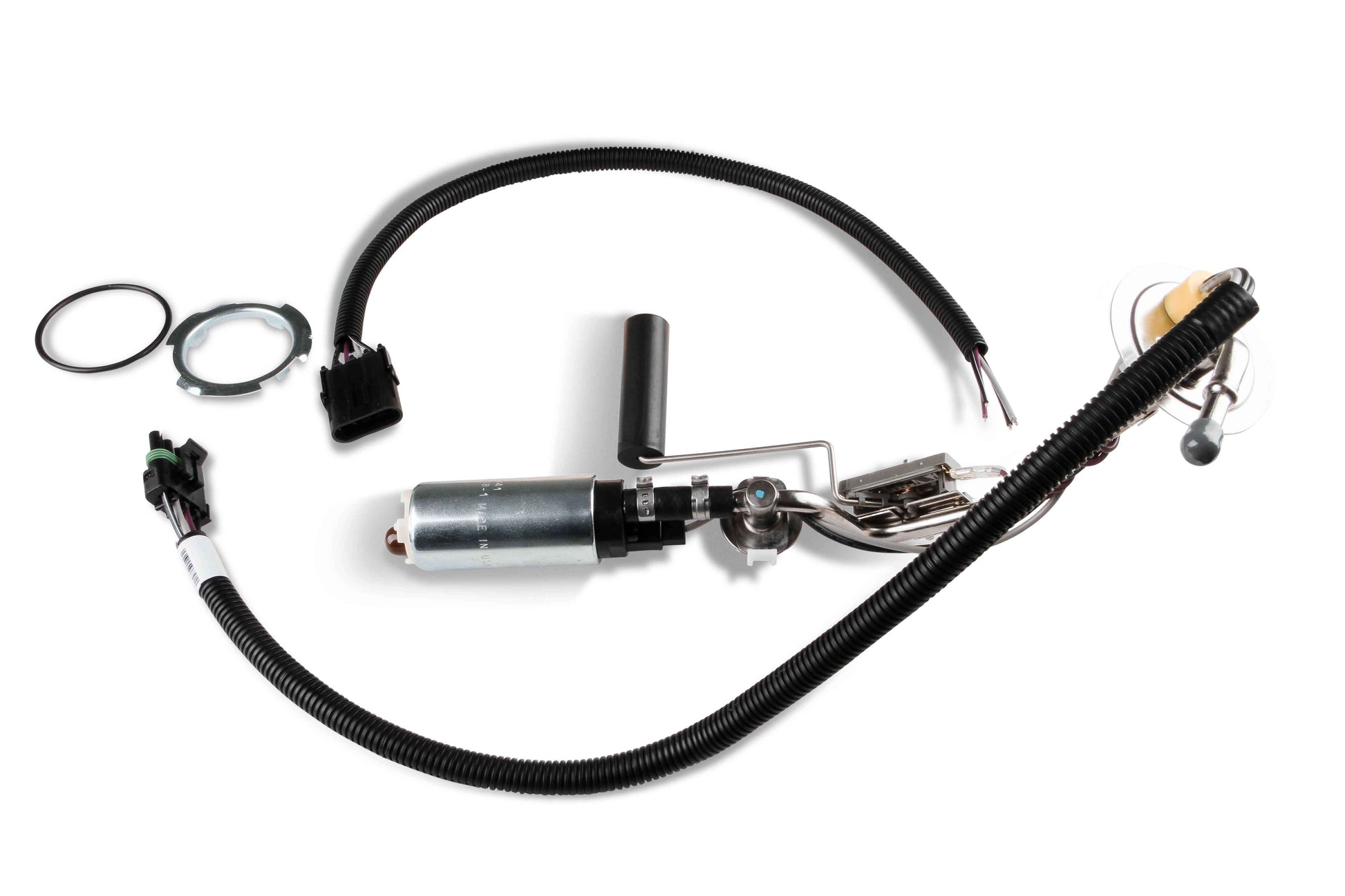

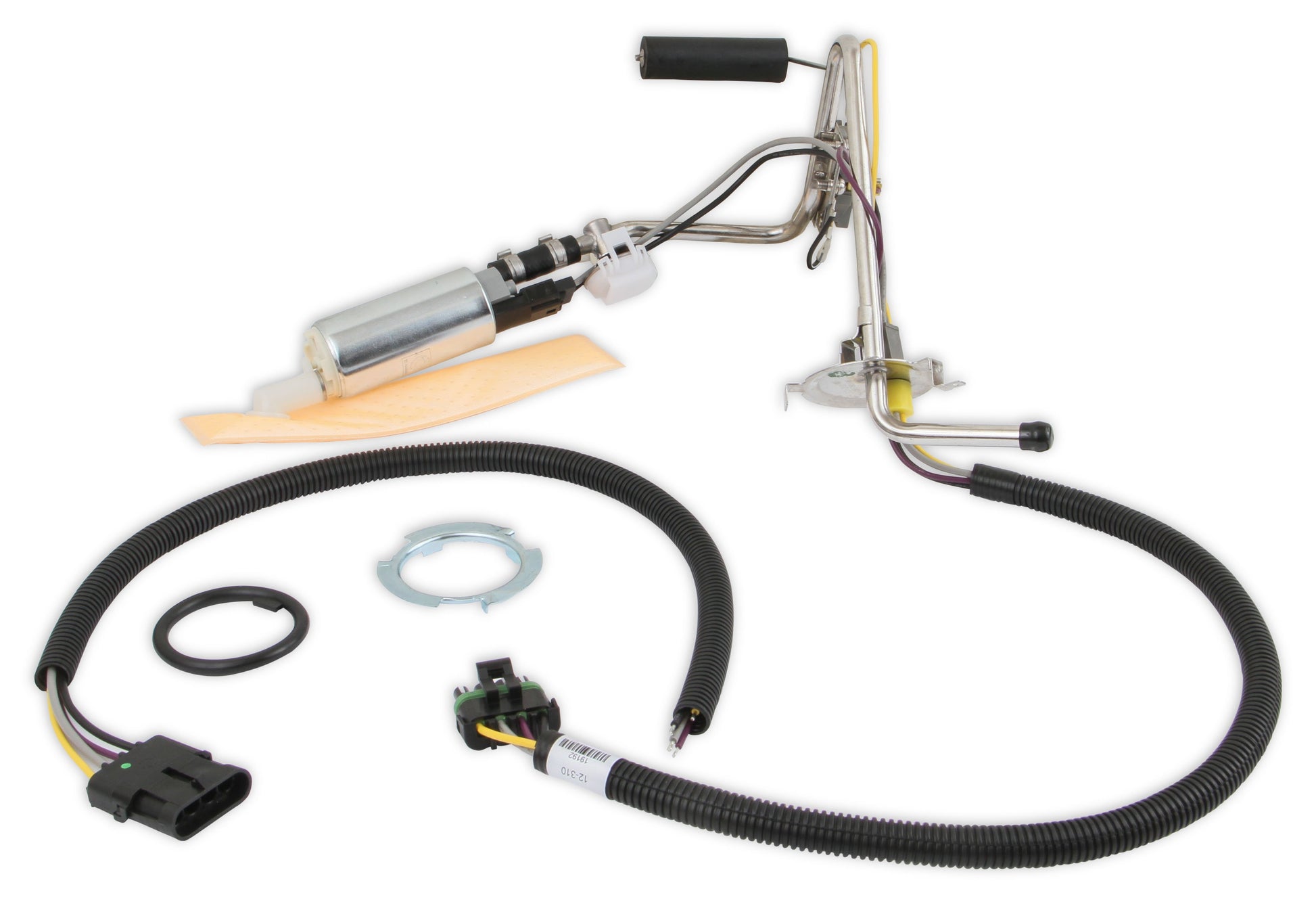

FUEL TANK MODULE KIT,OE SYTLE,255LPH,68-74 CORVETTE

BRAND NEW HOLLEY 255 LPH EFI FUEL PUMP MODULE, COMPATIBLE WITH 1968-1974 CORVETTE (PART #12-311).

FUEL PRESSURE IS INTERNALLY REGULATED TO 58 PSI ELIMINATING THE ADDED EXPENSE AND EFFORT OF PURCHASING AND INSTALLING AN EXTERNAL FUEL PRESSURE REGULATOR - NO SEPARATE RETURN LINE IS REQUIRED BECAUSE THIS MODULE RETURNS EXCESS FUEL RIGHT INSIDE THE TANK! THIS 1968-74 CORVETTE MUSCLE CAR EFI FUEL PUMP MODULE WAS DESIGNED AS A DIRECT REPLACEMENT FOR YOUR FACTORY PICK-UP AND SENDING UNIT. THERE IS NO NEED TO PURCHASE A CUSTOM EFI FUEL TANK. YOU CAN EVEN RETAIN THE FACTORY FUEL HARD LINE - JUST CONNECT THE OUTLET OF THE PUMP MODULE TO THE HARD LINE ON YOUR VEHICLE WITH EFI-RATED FUEL HOSE AND HOSE CLAMPS AVAILABLE IN THE EARLS VAPOR GUARD LINE. THIS MUSCLE CAR EFI MODULE INCLUDES A 255 LPH FUEL PUMP AND A HOLLEY HYDRAMAT. HYDRAMAT IS AN AMAZING PATENT-PENDING FUEL RESERVOIR SYSTEM THAT REDUCES FUEL STARVATION ISSUES THAT MIGHT OTHERWISE OCCUR WHILE CORNERING, ACCELERATING, STOPPING, TRAVERSING INCLINES, AND DURING LOW FUEL CONDITIONS.

NOTE: THE PUMP IS NOT COMPATIBLE FOR USE WITH PWM (PULSE-WIDTH MODULATION)

COMPATIBLE WITH:

• CHEVROLET:
  • 1968-1974 CORVETTE

FEATURES:

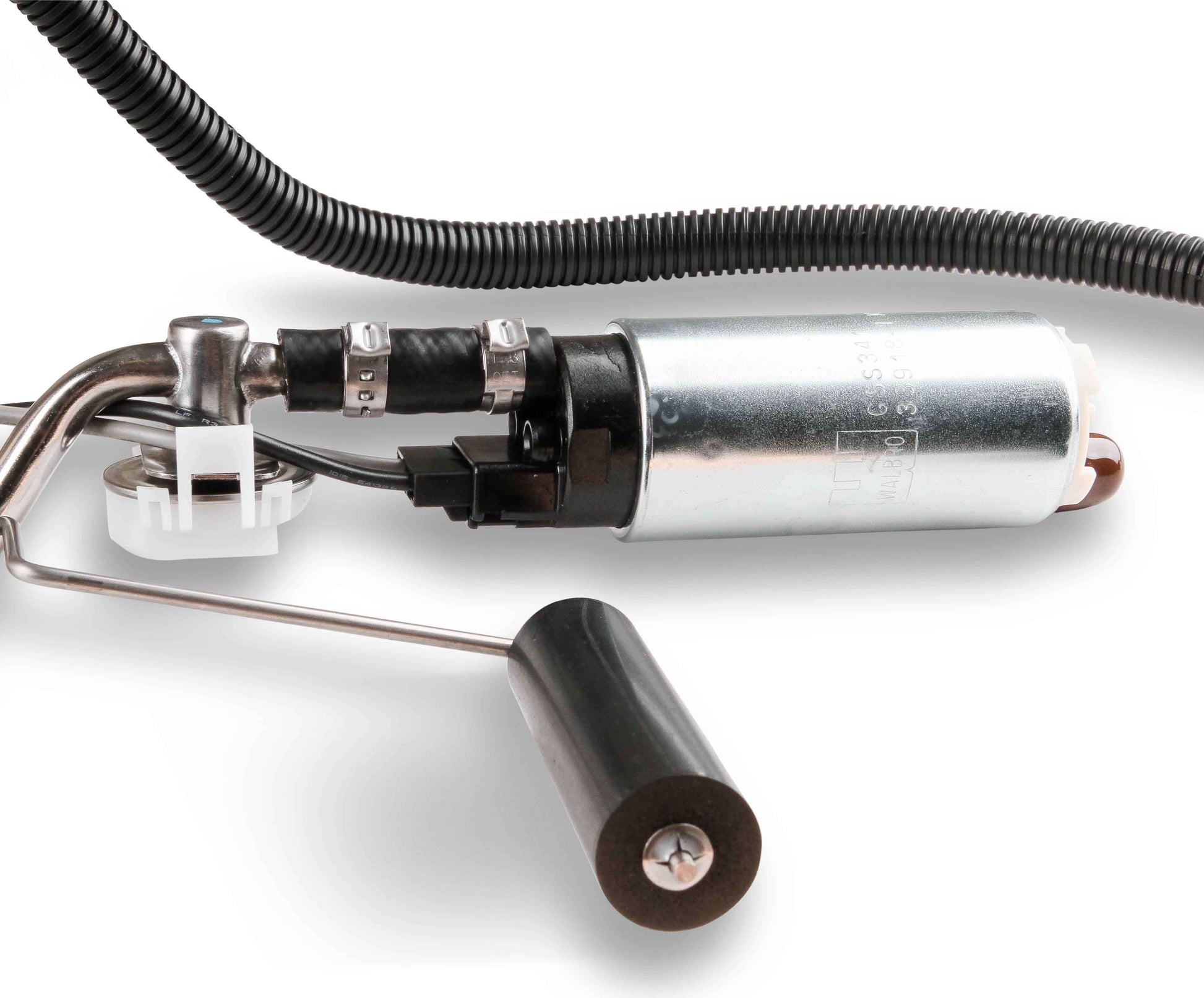

• THIS IN-TANK FUEL PUMP MODULE IS A HIGH-PRESSURE UNIT THAT FLOWS 255 LITERS PER HOUR (LPH) AND IS CAPABLE OF SUPPORTING EFI ENGINES PRODUCING UP TO 550 HORSEPOWER
• A PRE-CALIBRATED FUEL-LEVEL SENDING UNIT DESIGNED TO WORK WITH THE FACTORY FUEL GAUGE FOR THIS APPLICATION IS INCLUDED
• THIS MODULE ALSO FEATURES A HYDRAMAT FILTER WHICH HAS A UNIQUE INTERNAL RESERVOIR THAT KEEPS FUEL AVAILABLE AT THE PICK-UP AND ALSO PROVIDES PROTECTION FROM CONTAMINATES

SPECS:

• BRAND: HOLLEY
• FREE FLOW LPH: 255
• FUEL TYPE: GASOLINE
• INLET DIAMETER (IN): 5/16"
• MATERIAL: STEEL AND PLASTIC
• PRODUCT TYPE: FUEL PUMP MODULE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
