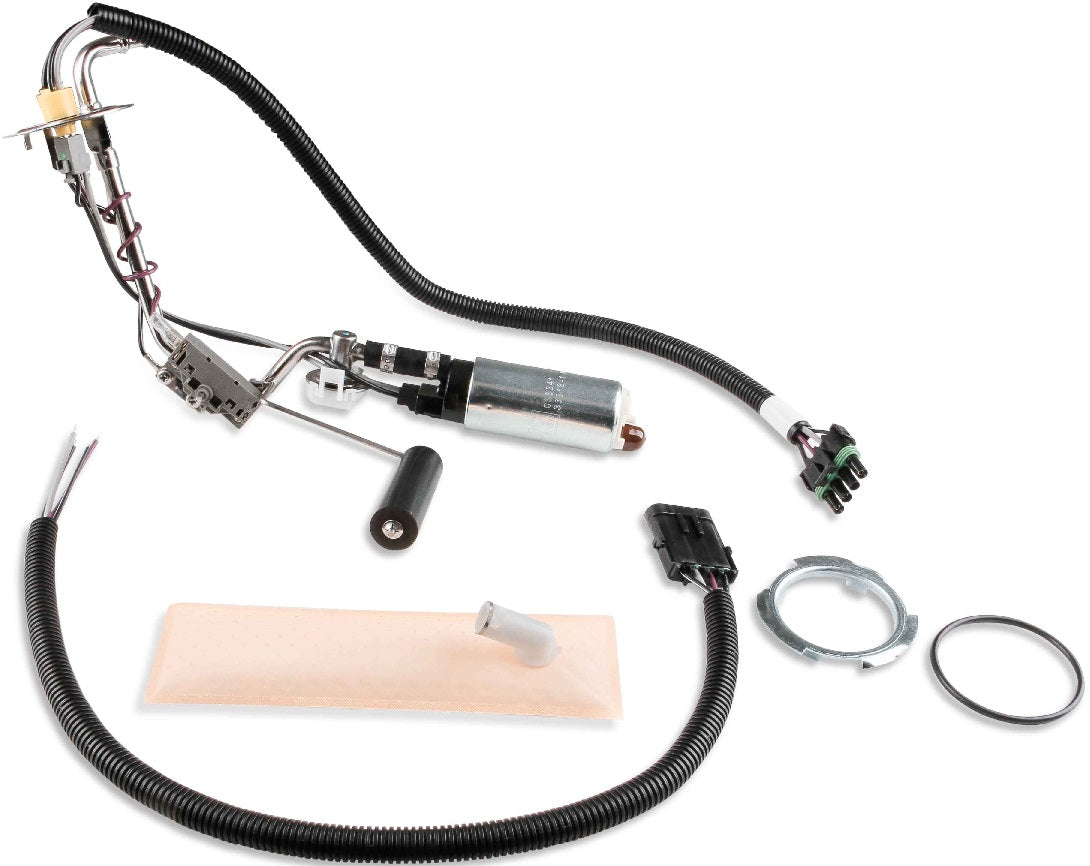

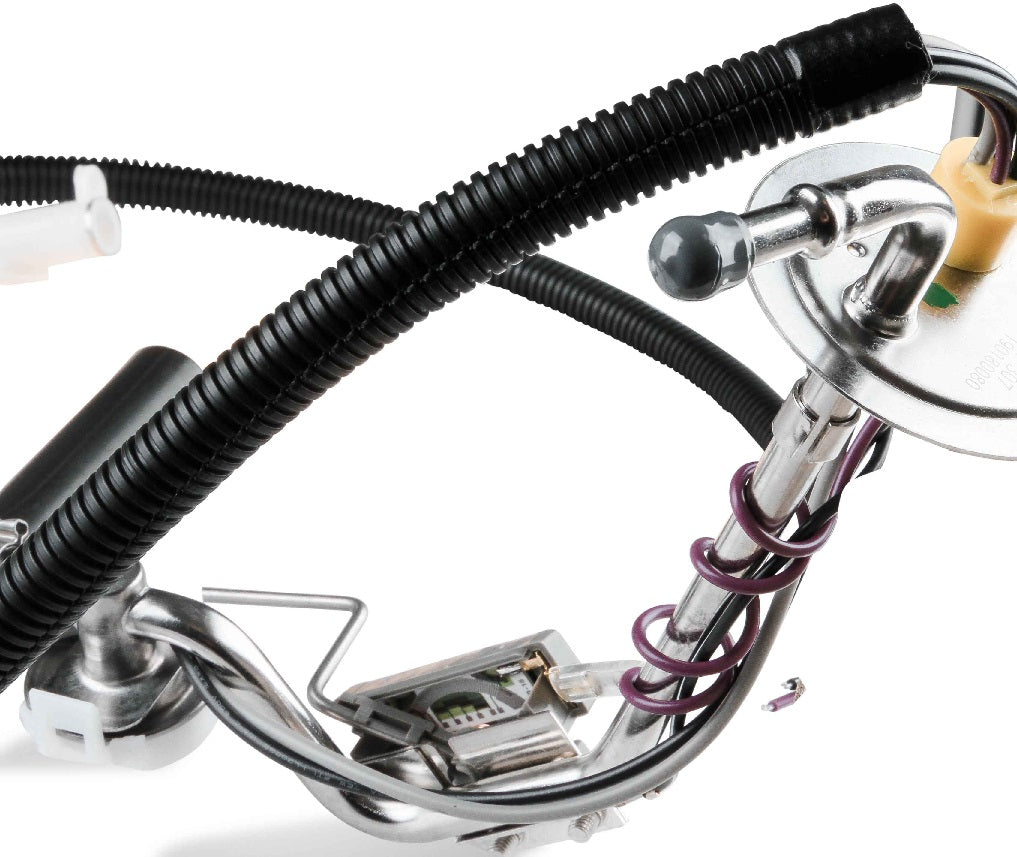

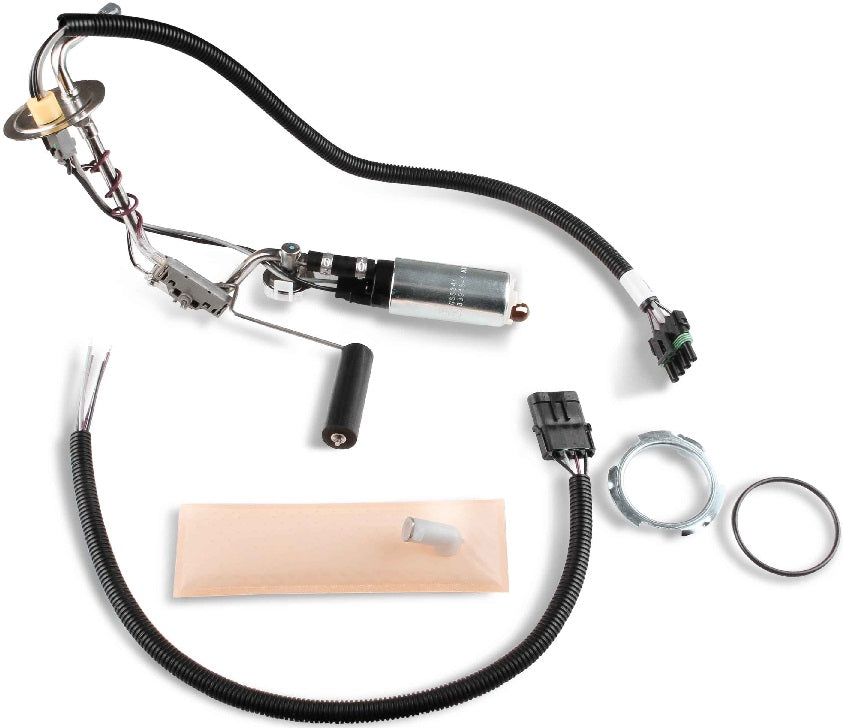

EFI FUEL TANK MODULE,255 LPH,73-86 JEEP CJ

BRAND NEW HOLLEY EFI FUEL TANK MODULES, 255 LPH, 5/16" INLET DIAMETER, COMPATIBLE WITH 1973-1986 JEEP CJ

FUEL PRESSURE IS INTERNALLY REGULATED TO 58 PSI ELIMINATING THE ADDED EXPENSE AND EFFORT OF PURCHASING AND INSTALLING AN EXTERNAL FUEL PRESSURE REGULATOR - NO SEPARATE RETURN LINE IS REQUIRED BECAUSE THIS MODULE RETURNS EXCESS FUEL RIGHT INSIDE THE TANK! DESIGNED AS A DIRECT REPLACEMENT FOR YOUR FACTORY PICK-UP AND SENDING UNIT. THERE IS NO NEED TO PURCHASE A CUSTOM EFI FUEL TANK.

YOU CAN EVEN RETAIN THE FACTORY FUEL HARD LINE - JUST CONNECT THE OUTLET OF THE PUMP MODULE TO THE HARD LINE ON YOUR VEHICLE WITH EFI-RATED FUEL HOSE AND HOSE CLAMPS AVAILABLE IN THE EARLS VAPOR GUARD LINE. INCLUDES A 255 LPH FUEL PUMP AND A HOLLEY HYDRAMAT. HYDRAMAT IS A FUEL RESERVOIR SYSTEM THAT REDUCES FUEL STARVATION ISSUES THAT MIGHT OTHERWISE OCCUR WHILE CORNERING, ACCELERATING, STOPPING, TRAVERSING INCLINES, AND DURING LOW FUEL CONDITIONS.

NOTE: THE PUMP IS NOT COMPATIBLE FOR USE WITH PWM (PULSE-WIDTH MODULATION).

COMPATIBLE WITH:

• JEEP:
• 1973-1983 WRANGLER CJ5
• 1973-1975 WRANGLER CJ6
• 1976-1986 WRANGLER CJ7

FEATURES:

• THIS IN-TANK FUEL PUMP MODULE IS A HIGH-PRESSURE UNIT THAT FLOWS 255 LITERS PER HOUR (LPH) AND IS CAPABLE OF SUPPORTING ELECTRONIC FUEL INJECTION (EFI) ENGINES PRODUCING UP TO 550 HORSEPOWER

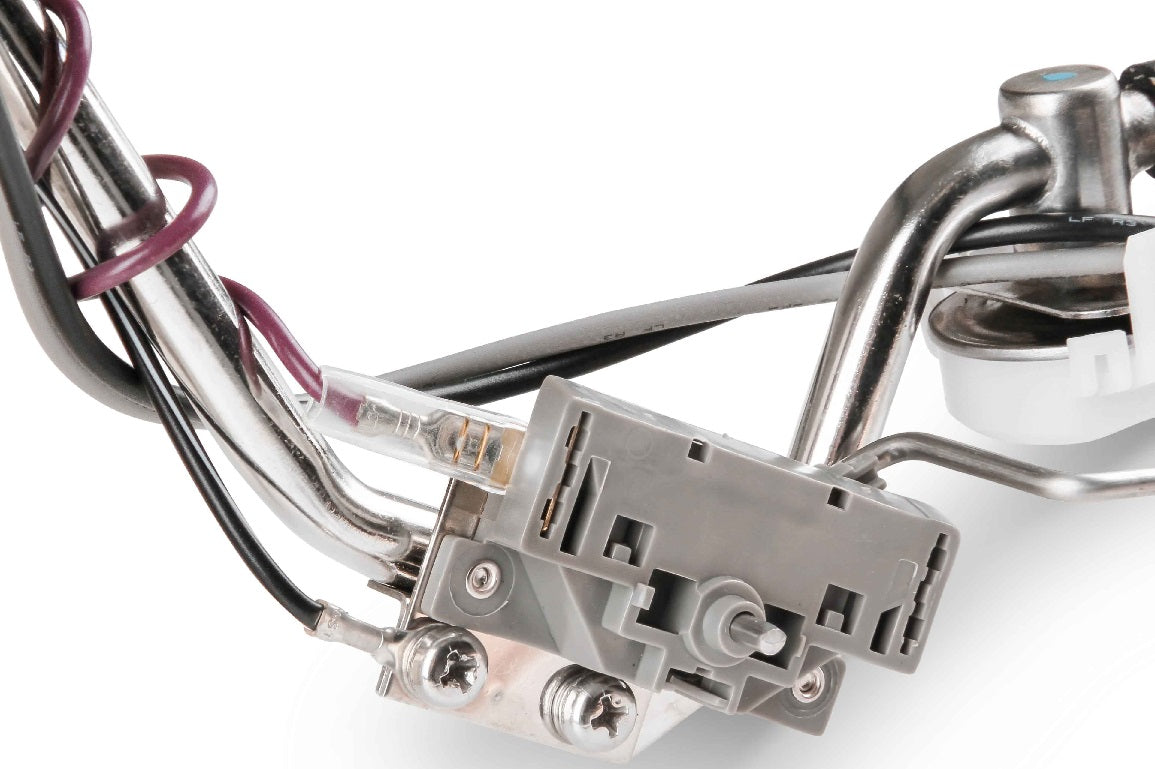

• A PRE-CALIBRATED FUEL-LEVEL SENDING UNIT DESIGNED TO WORK WITH THE FACTORY FUEL GAUGE FOR THIS APPLICATION IS INCLUDED
• THIS MODULE ALSO FEATURES A HYDRAMAT FILTER WHICH HAS A UNIQUE INTERNAL RESERVOIR THAT KEEPS FUEL AVAILABLE AT THE PICK-UP AND ALSO PROVIDES PROTECTION FROM CONTAMINATES

SPECS:

• APPLICATION: 1973-86 JEEP CJ MODELS
• BRAND: HOLLEY SNIPER EFI
• FREE FLOW LPH: 255
• FUEL SENDING UNIT OHMS: 73-10 OHMS
• FUEL TYPE: GASOLINE
• INLET DIAMETER (IN): 5/16"
• MATERIAL: STEEL
• PRODUCT TYPE: FUEL PUMP MODULE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP MODULE HERE.
