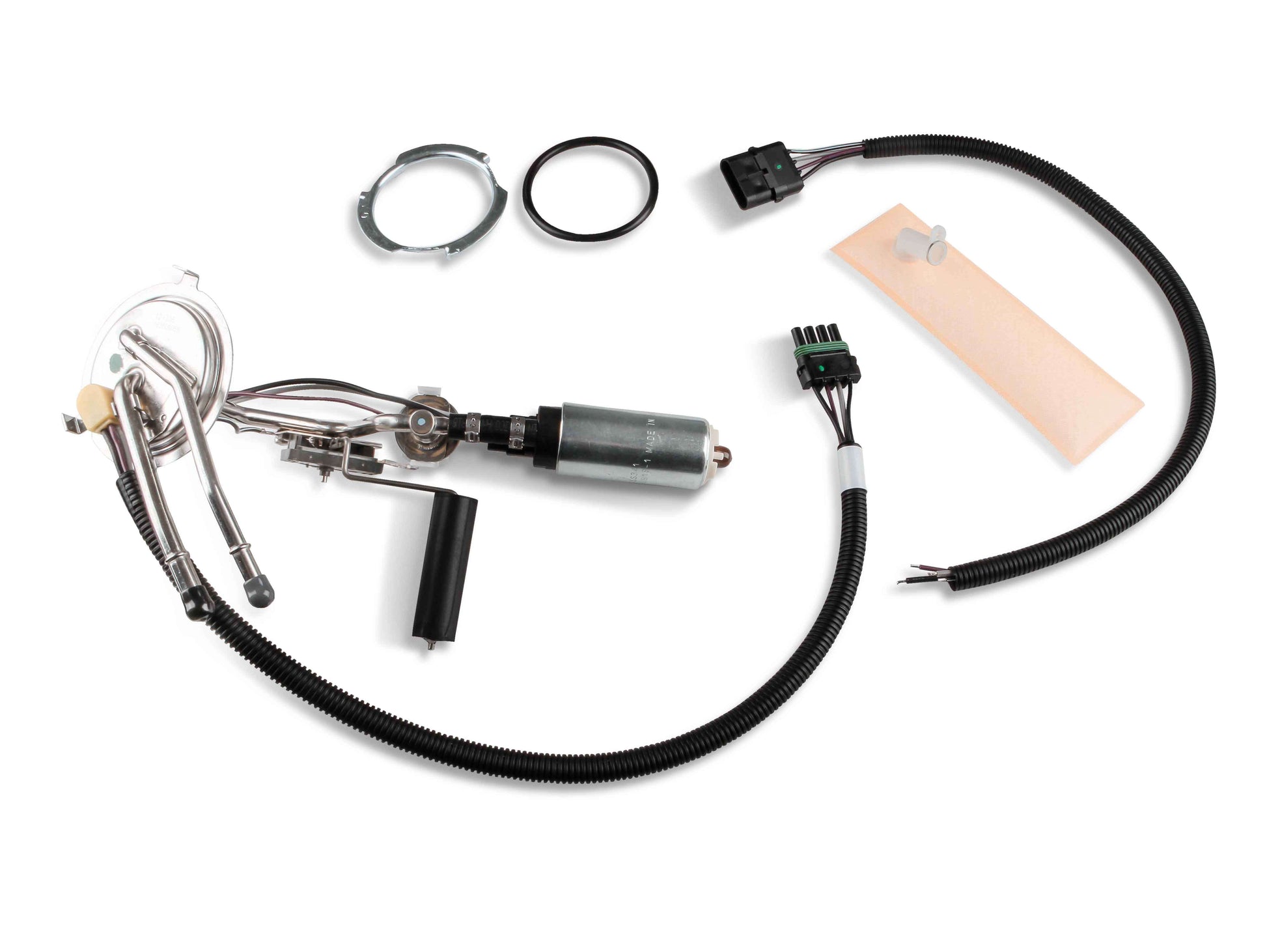

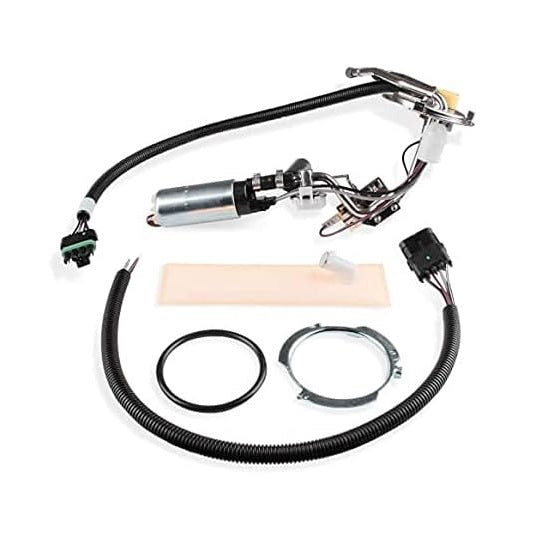

FUEL TANK MODULE KIT,OE STYLE,255LPH,78-87 G-BODY

Brand New Holley 255 LPH OE Style EFI Fuel Tank Module, Compatible with 1978-1987 Chevrolet Malibu/Monte Carlo/Regal/Grand Prix/Cutlass (Part #12-306).

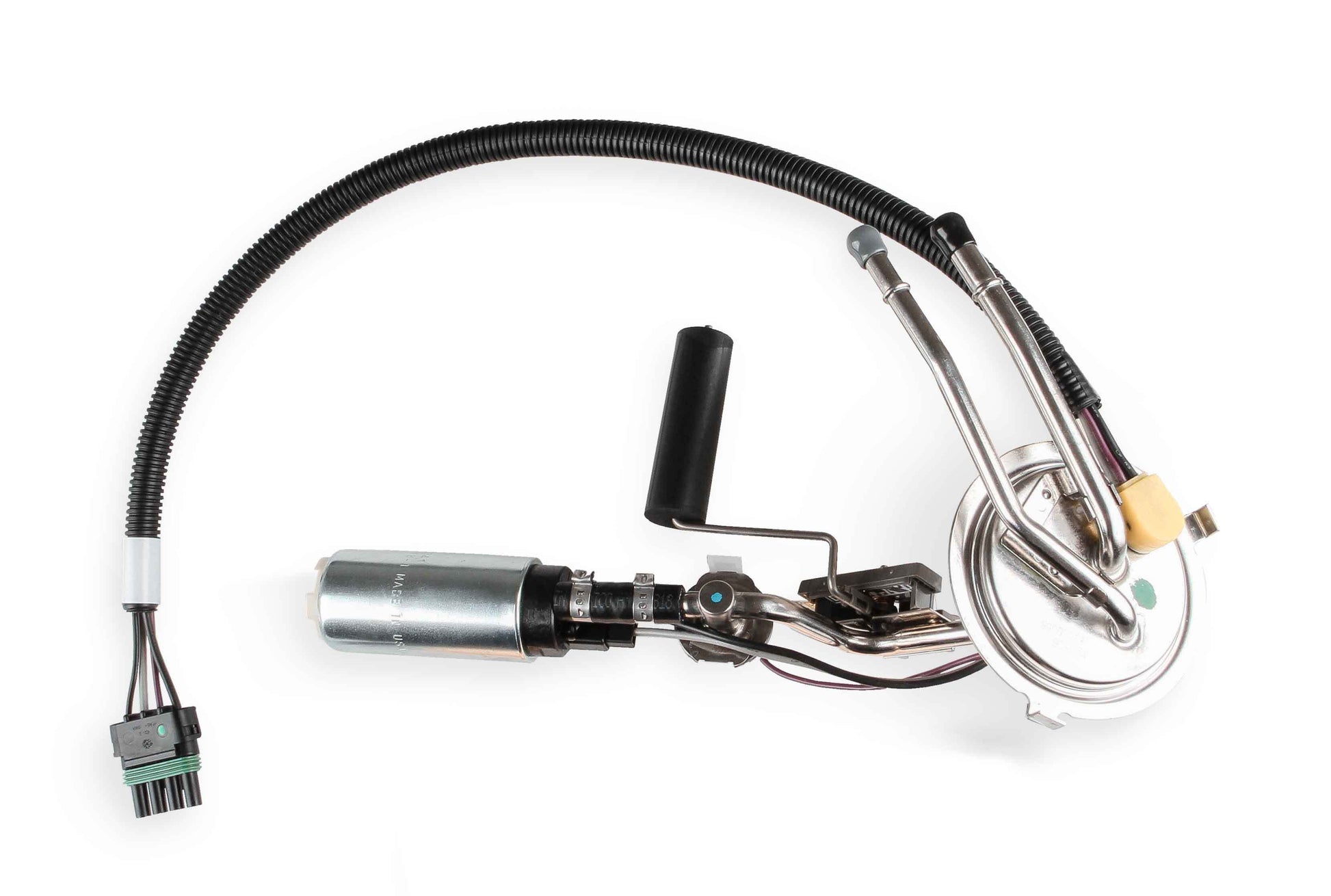

Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1978-87 G-body Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank.

You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, & during low fuel conditions.

NOTE: Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit Part #12-753 recommended. These should be used with 12 volt systems only.

Compatible with:

• Chevrolet:
  • 1978-1983 Malibu
  • 1978-1987 Monte Carlo
• Buick:
• 1978-1981 Century
• 1978-1987 Regal
• Pontiac:
  • 1982-1987 Bonneville
  • 1978-1980 Grand Am
  • 1978-1981 Grand Lemans
  • 1978-1988 Grand Prix
  • 1978-1981,1988 Lemans
• Oldsmobile:
• 1978-1987 Cutlass
• 1978-1984,1988 Cutlass Calais
• 1982-1988 Cutlass Ciera
• 1978-1980,1985-1987 Cutlass Salon
• 1978-1987 Cutlass Supreme

Features:

• This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower

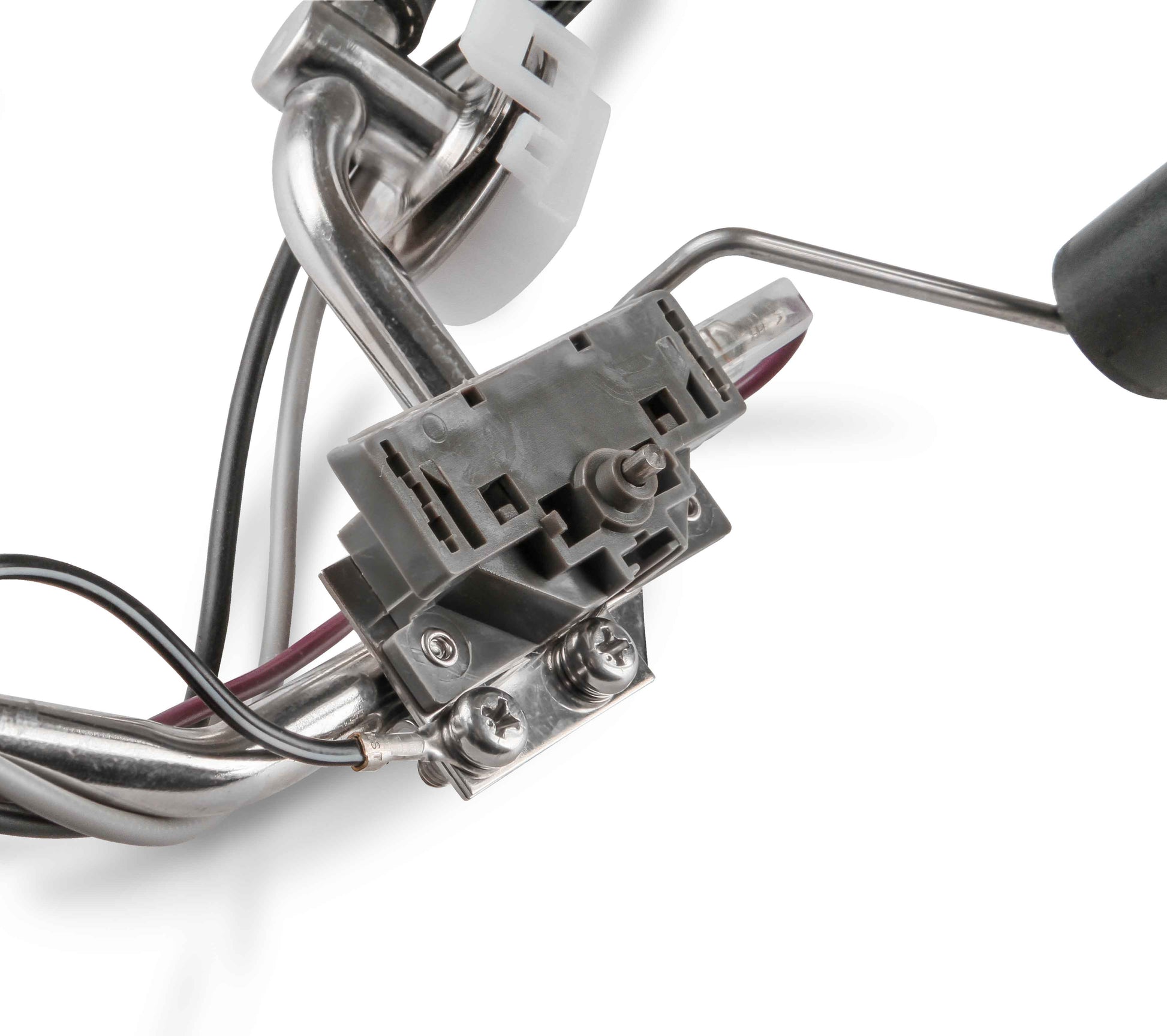

• A pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included

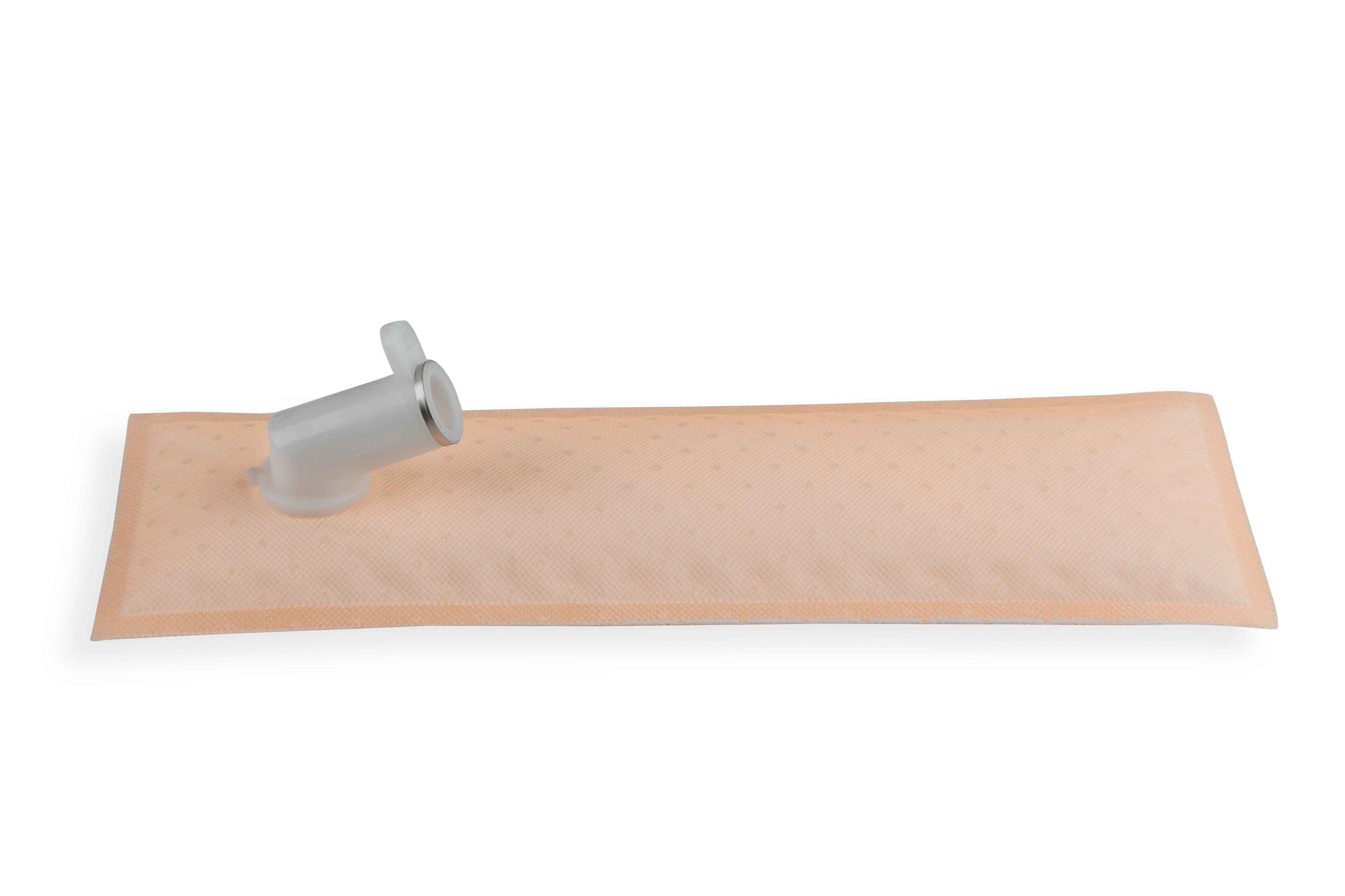

• This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates

Specs:

• Free Flow LPH: 255
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel Type: Gas
• Inlet Diameter: 5/16"
• Material: Steel & Plastic
• Vent Size: 1/4"

You can view and download the complete assembly instruction booklet here.
