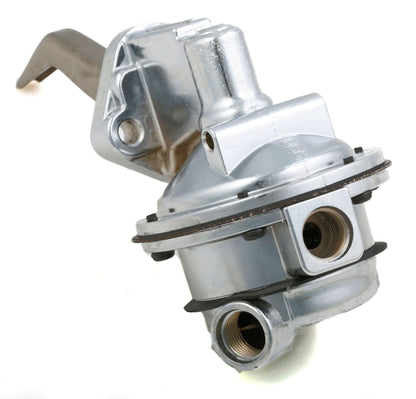

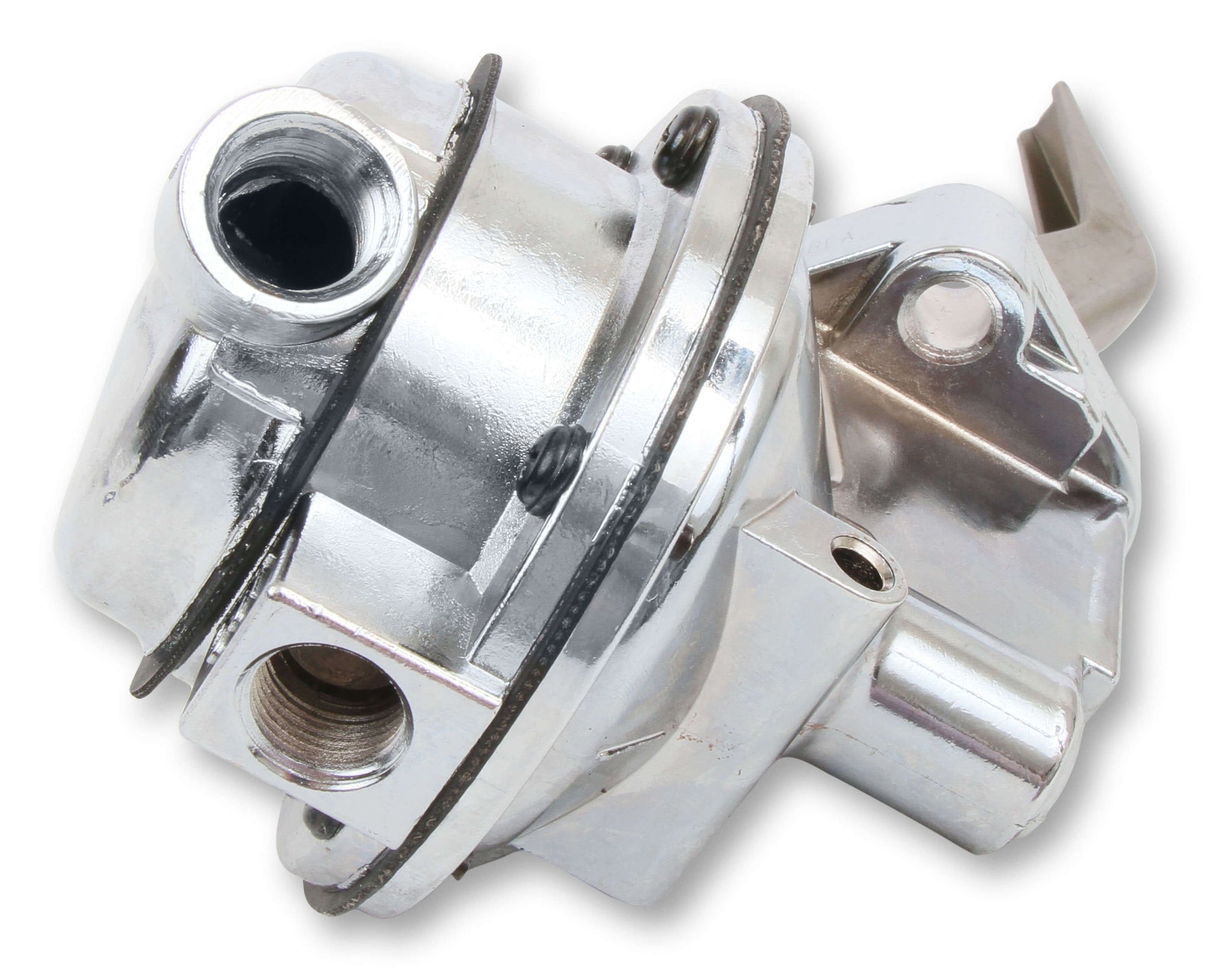

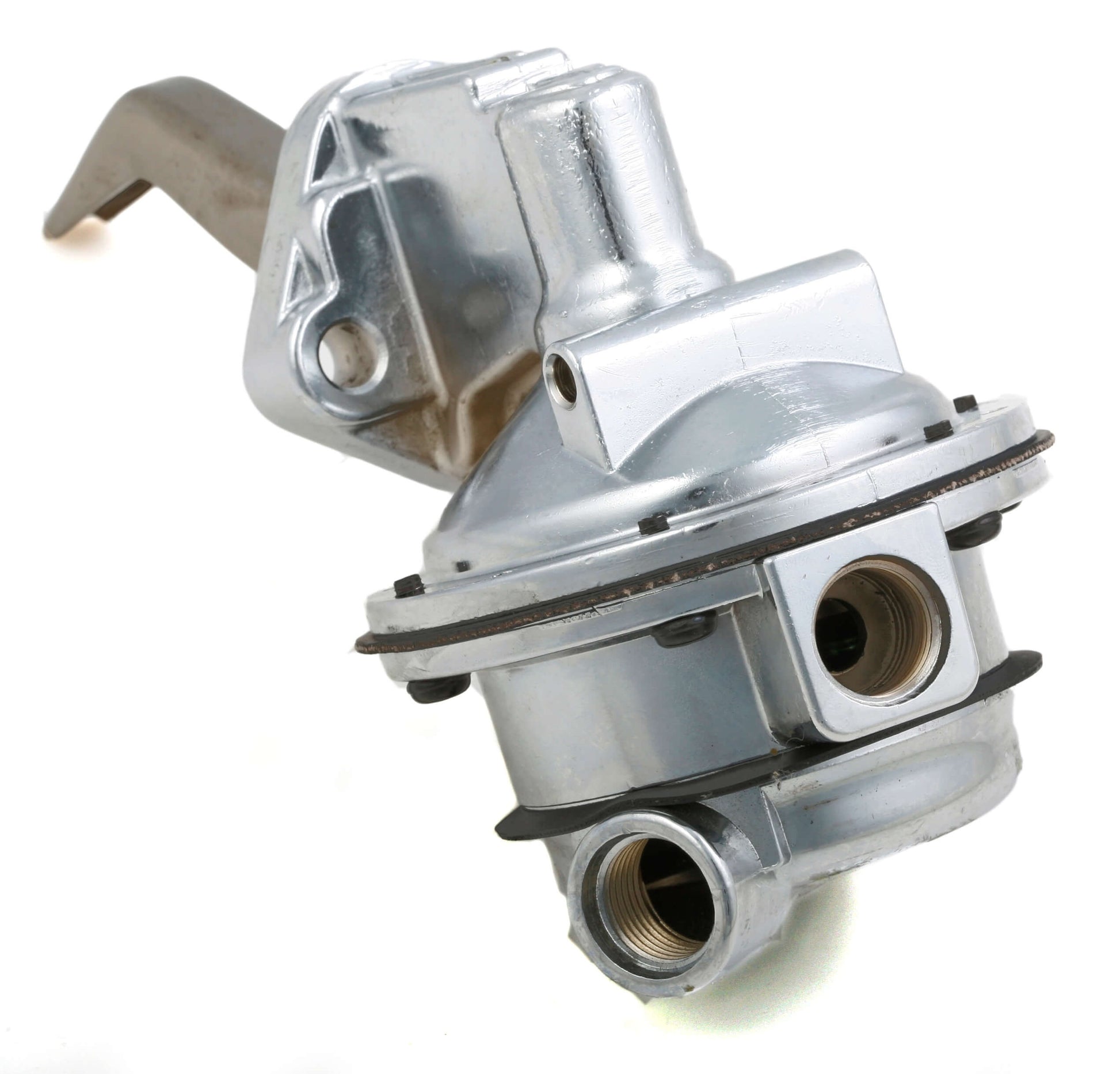

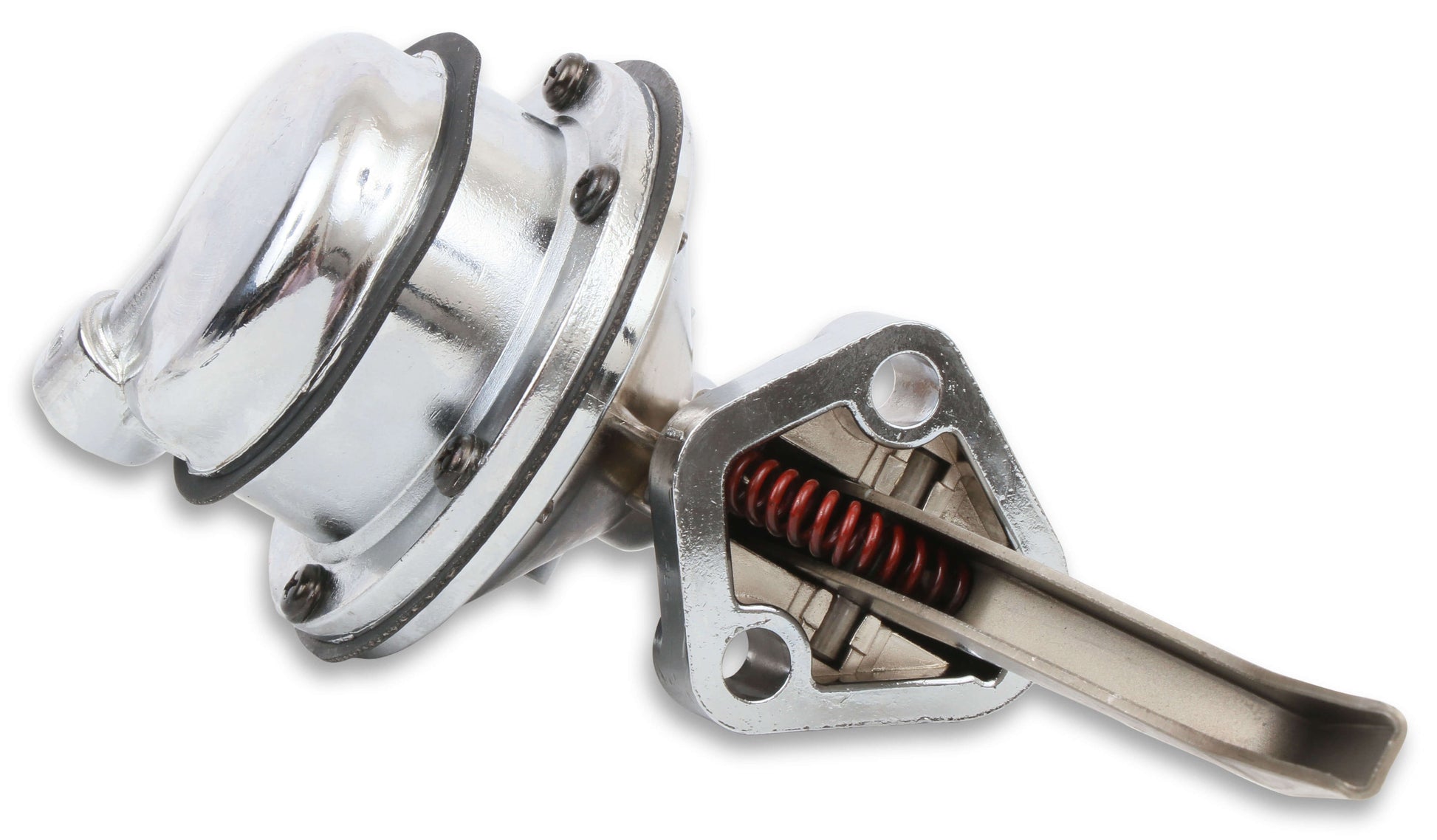

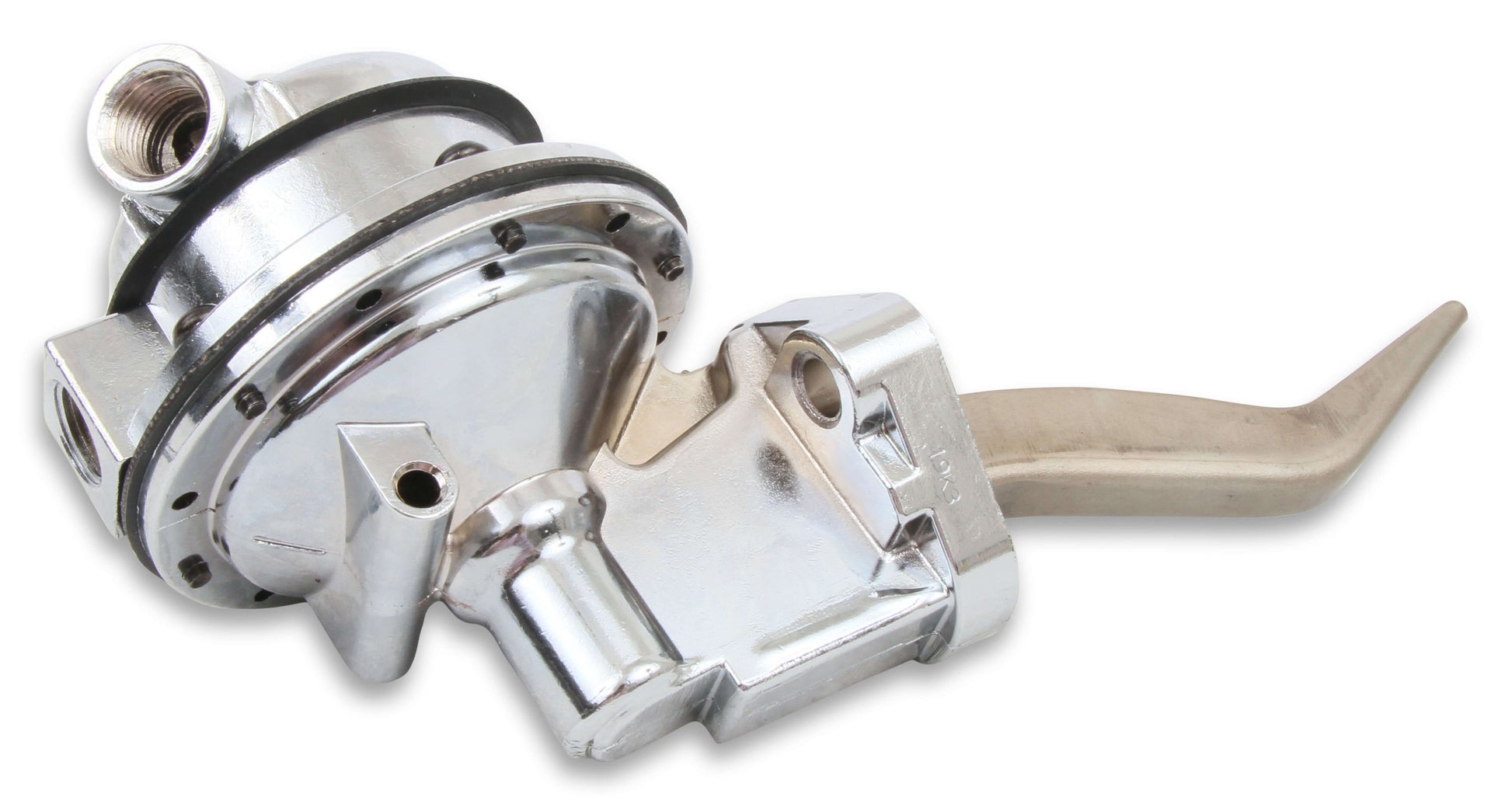

FUEL PUMP,SBF,MECHANICAL,GAS,170+GPH,-8AN O-RING

BRAND NEW HOLLEY 170+ GPH MECHANICAL FUEL PUMP, FITS FORD V8, COMPATIBLE WITH GASOLINE (PART #12-289-20)

HOLLEY MECHANICAL FUEL PUMPS RANGE FROM 80 GPH TO 225 GPH IN MANY VARIOUS APPLICATIONS TO MEET THE FUEL DEMANDS OF MOST ENGINES. WHETHER YOU ARE LOOKING FOR A STREET PERFORMANCE OR AN ALL OUT RACE MECHANICAL FUEL PUMP, HOLLEY HAS THE PUMP YOU NEED.

FITS:

• FORD 289/302/351W V8, COMPATIBLE WITH GASOLINE

FEATURES:

• HIGH OUTPUT FUEL FLOW
• FLOWS 170+ GPH FREE FLOW
• SHUTOFF PRESSURE PRE-SET AT 8 PSI
• FUEL PRESSURE REGULATOR IS REQUIRED (RECOMMEND HOLLEY P/N 12-704)
• HEAVY DUTY CONSTRUCTION FOR CONTINUOUS HIGH RPM OPERATION
• REDESIGNED HIGH FLOW VALVES ALWAYS ENSURE ADEQUATE FUEL DELIVERY
• FUEL BODY CASTING CAN BE ROTATED TO ACCOMMODATE VARIOUS PLUMBING SITUATIONS
• 8AN O-RING (3/4"-16 SAE) INLET & OUTLET PORTS
• FITTINGS "NOT" INCLUDED

SPECS:

• APPLICATION: SMALL BLOCK FORD
• COLOR: SILVER
• FREE FLOW GPH: 170
• FREE FLOW LPH: 644
• FUEL TYPE: GASOLINE
• INLET SIZE: 8 AN O-RING - 3/4-16 SAE
• MATERIAL: ALUMINUM
• OUTLET SIZE: 8 AN O-RING - 3/4-16 SAE
• PRODUCT TYPE: FUEL PUMP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
