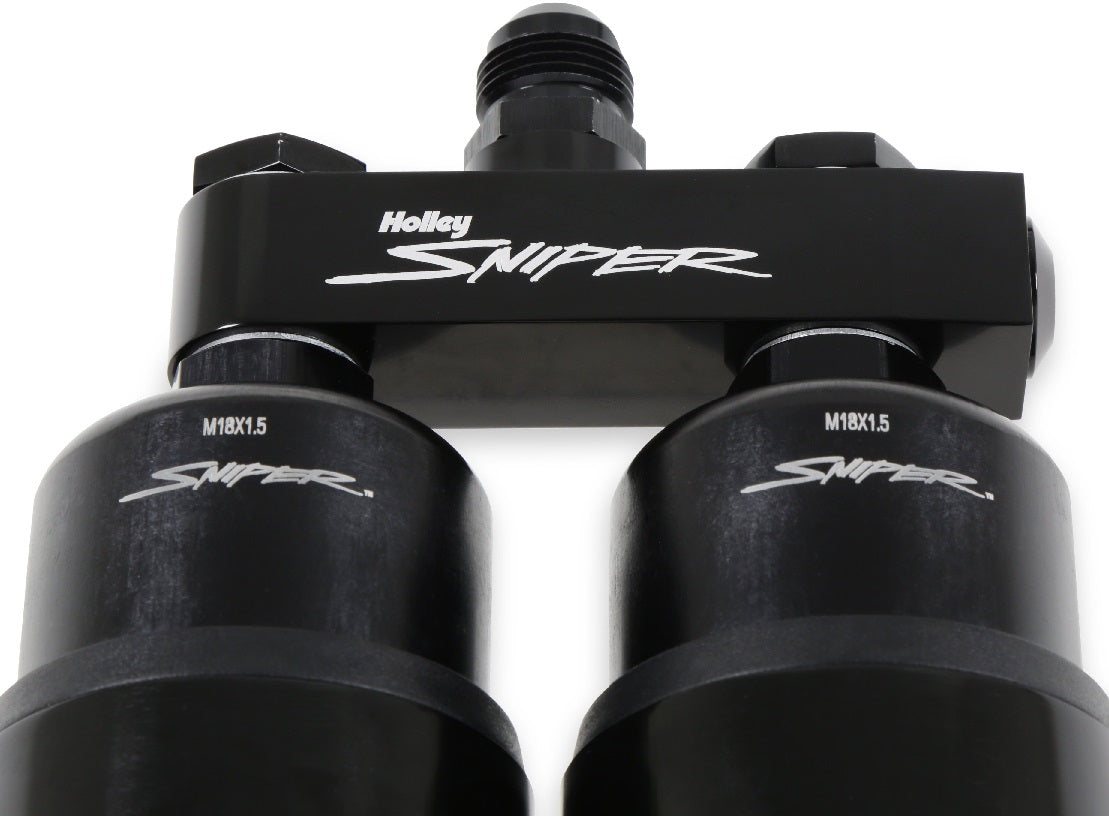

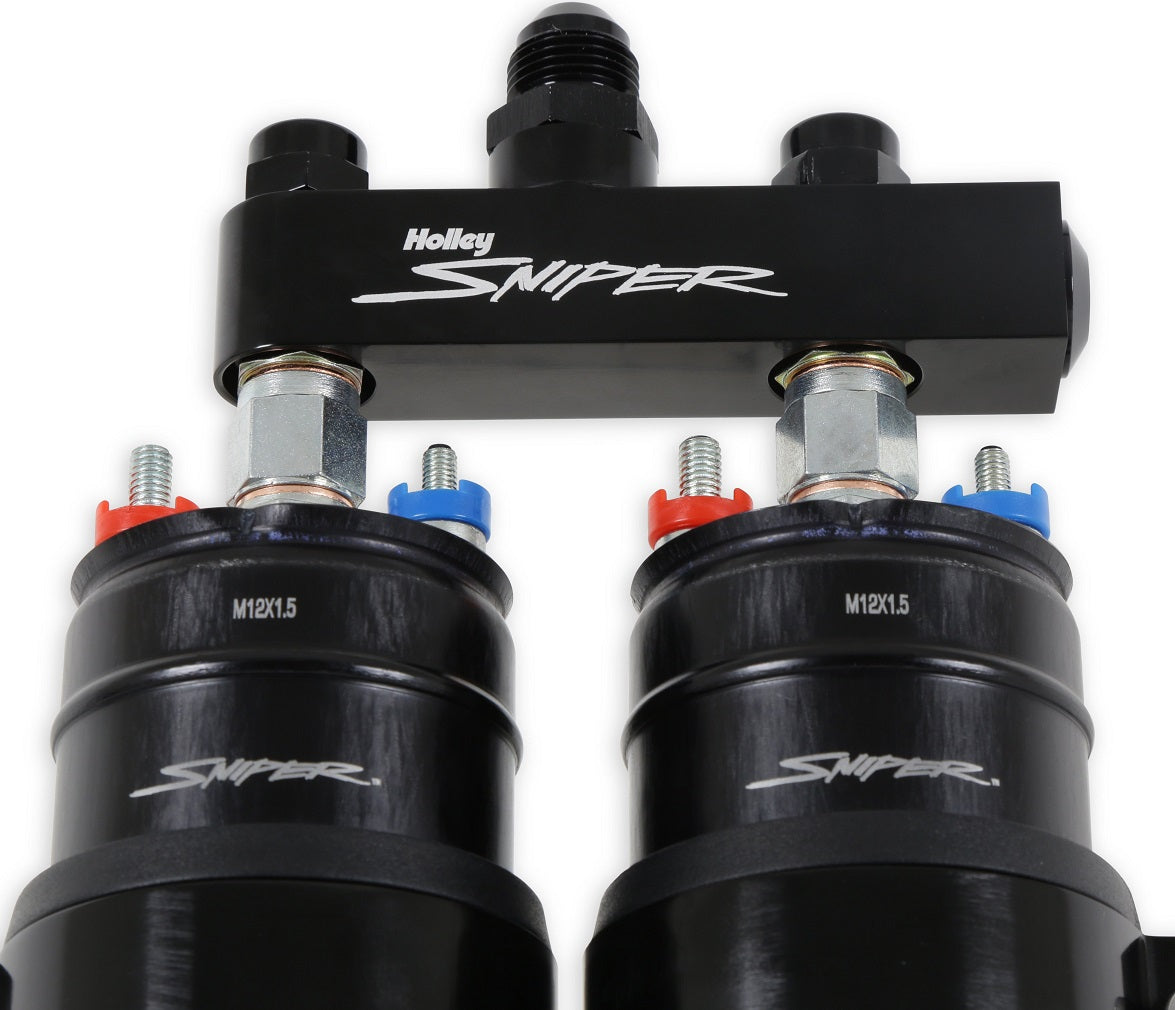

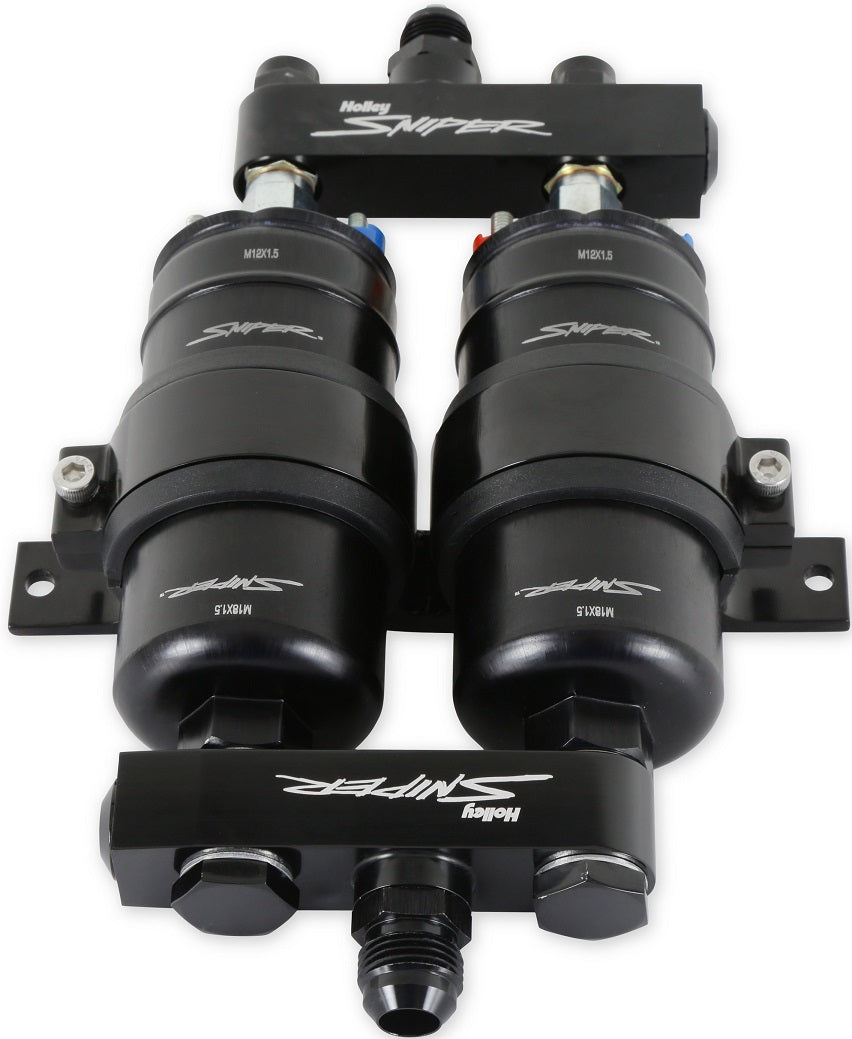

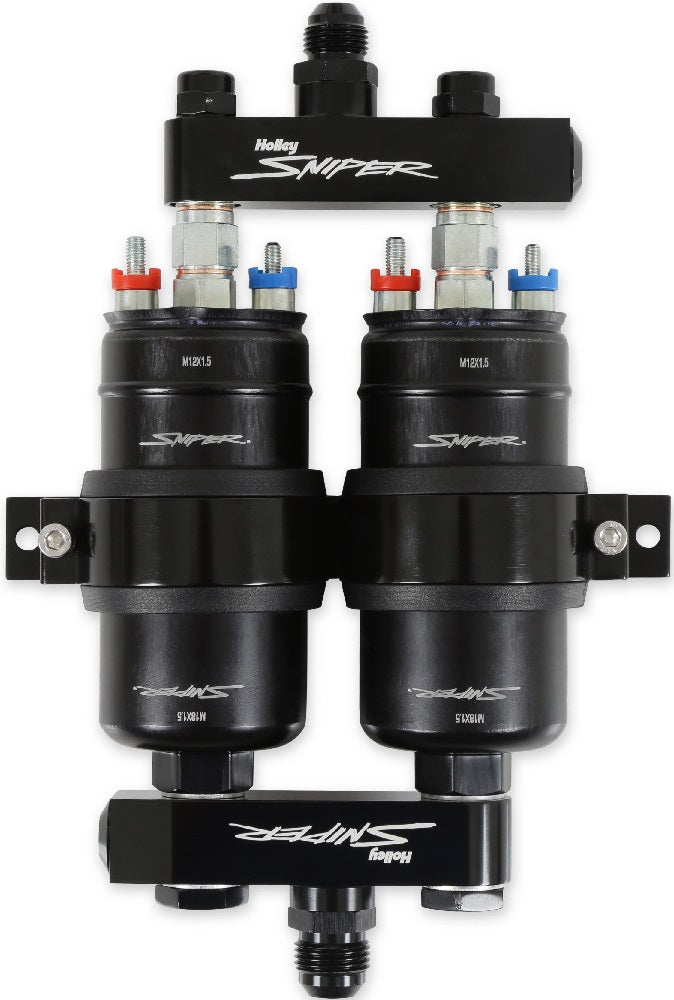

HOLLEY SNIPER TWIN PUMP & MANIFOLD KIT,3.5 GPM

BRAND NEW HOLLEY SNIPER 3.5 GPM TWIN PUMP & MANIFOLD KIT, BLACK ANODIZED FINISH, 10 AN O-RING OUTLET & OUTLET SIZE, COMPATIBLE WITH GASOLINE OR E85

HOLLEY SNIPER 3.5 GPM (GALLONS PER MINUTE) FUEL PUMP IS DESIGNED FOR HIGH PERFORMANCE NATURALLY ASPIRATED AND FORCED INDUCTION EFI VEHICLES. THE TWIN PUMP MANIFOLD UTILIZES -10 AN MALE INLET AND -8 AN MALE OUTLET CONNECTIONS FOR EASY INSTALLATION ON NEW APPLICATIONS AND FOR QUICK REPLACEMENT OF EXISTING COMPETITOR FUEL PUMPS. SUPPORTS OVER 1000 HP COMPATIBLE WITH GASOLINE OR E85. THE MAX FLOW IS 3.5 GPM @13.5V & 4 GPM @18V.

THE PUMP MANIFOLD ASSEMBLY IS MADE FROM BILLET, ANODIZED & LASER ETCHED FOR GOOD LOOKS. THE MANIFOLD INLET AND OUTLET MANIFOLDS HAVE 2 ORB PORTS EACH TO ACCOMMODATE FOR DIFFERENT MOUNTING AND PLUMBING SITUATIONS. PLUGS ARE INCLUDED TO SEAL OFF UNUSED PORTS. INCLUDES CONNECTORS, SEALS AND DETAILED ASSEMBLY INSTRUCTIONS.

NOTE: PROPER FUEL SYSTEM ENGINEERING IS CRITICAL FOR MAX PERFORMANCE. SEE HOLLEY FUEL SYSTEM CHART FOR INFORMATION ABOUT PROPER INSTALLATION OF YOUR FUEL SYSTEM.

FEATURES:

• MAX AMPERAGE: 20A (PER PUMP)
• RATED FOR GAS & E-85, PUMP LIFE WILL BE DIMINISHED IF USED WITH 100% ETHANOL FUELS
• BILLET, ANODIZED, LASER ETCHED COMPONENTS
• MANIFOLD -10 AN MALE INLET FITTING & -8 AN MALE OUTLET FITTING INCLUDED, OTHERS MUST BE PURCHASED SEPARATELY
• PUMP I/O: -8 AN ORB
• PUMPS CAN BE STAGED OR RAN IN PARALLEL
• INLET AND OUTLET MANIFOLDS HAVE 2 ORB PORTS EACH TO ACCOMMODATE FOR DIFFERENT MOUNTING & PLUMBING SITUATIONS. PLUGS ARE INCLUDED TO SEAL OFF UNUSED PORTS
• WIRING KITS FOR EACH PUMP THAT CONTAIN CONNECTORS & SEALS INCLUDED
• DETAILED ASSEMBLY INSTRUCTIONS INCLUDED
• CAN BE USED IN BOTH EFI AND CARBURETED FUEL SYSTEMS

SPECS:

• APPLICATION: UNIVERSAL
• BRAND: HOLLEY
• FUEL SYSTEM: CARBURETED | EFI
• FUEL TYPE: GASOLINE/E85
• INLET SIZE: 10 AN O-RING
• MATERIAL: ALUMINUM AND STEEL
• OUTLET SIZE: 8 AN O-RING
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: BLACK ANODIZED

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PUMP HERE.
