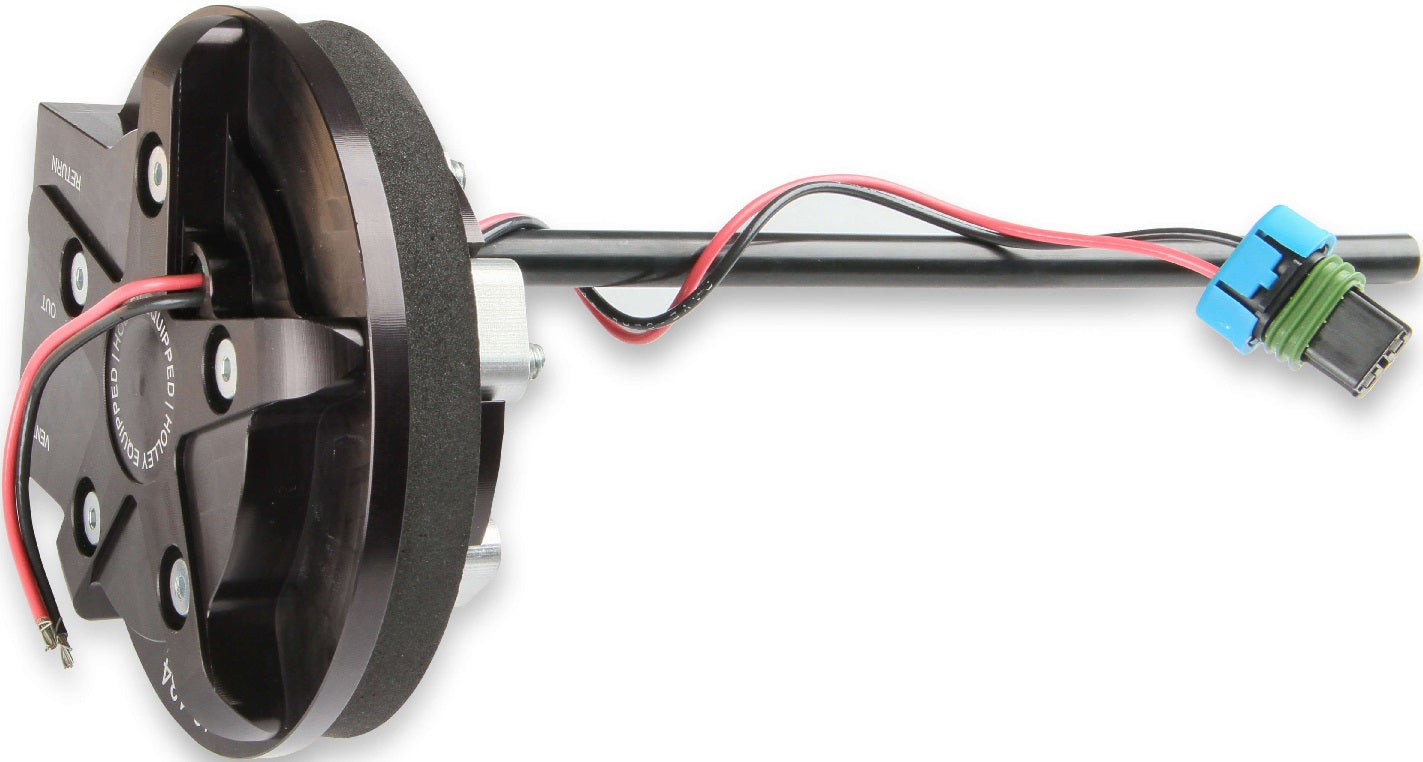

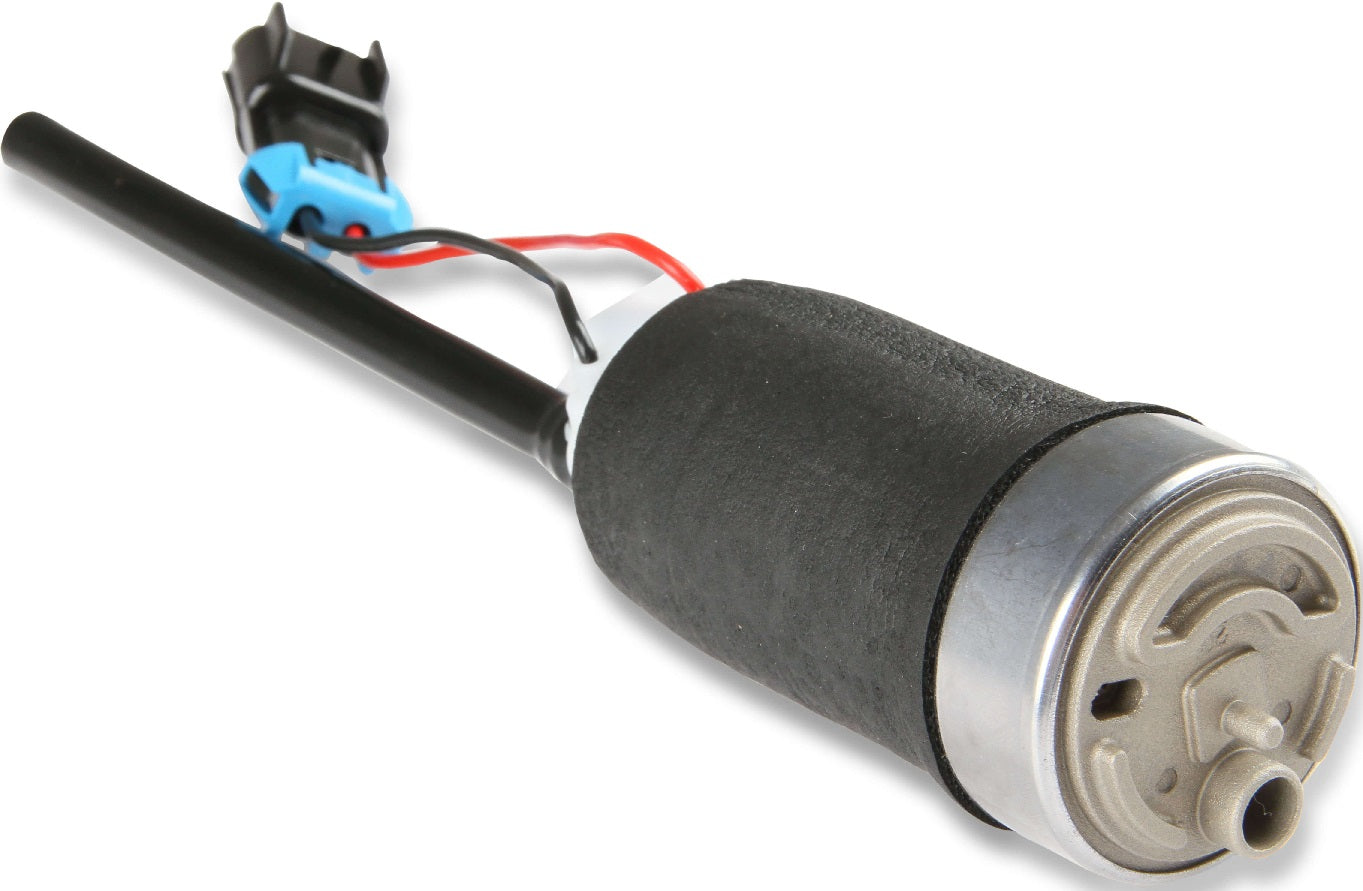

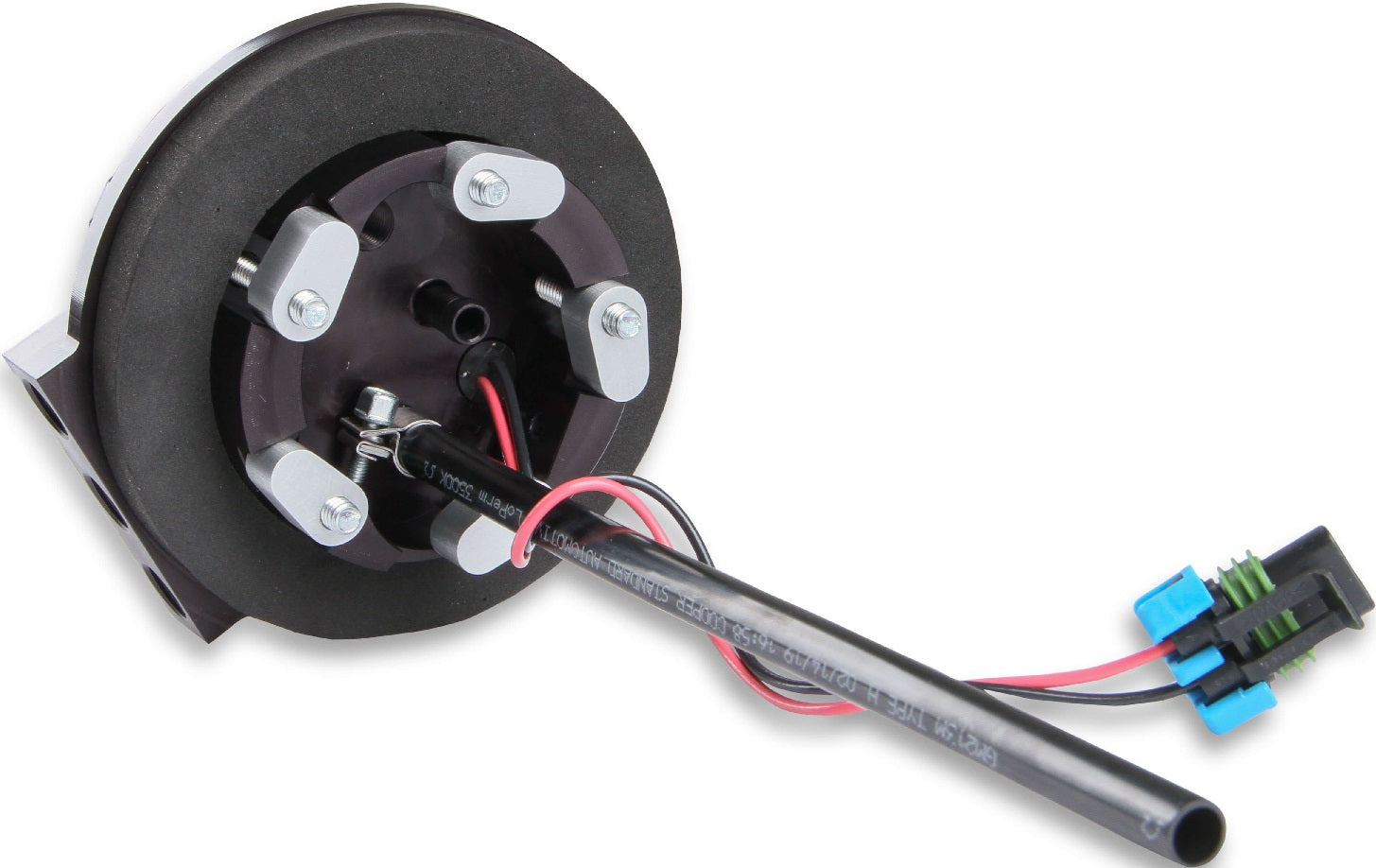

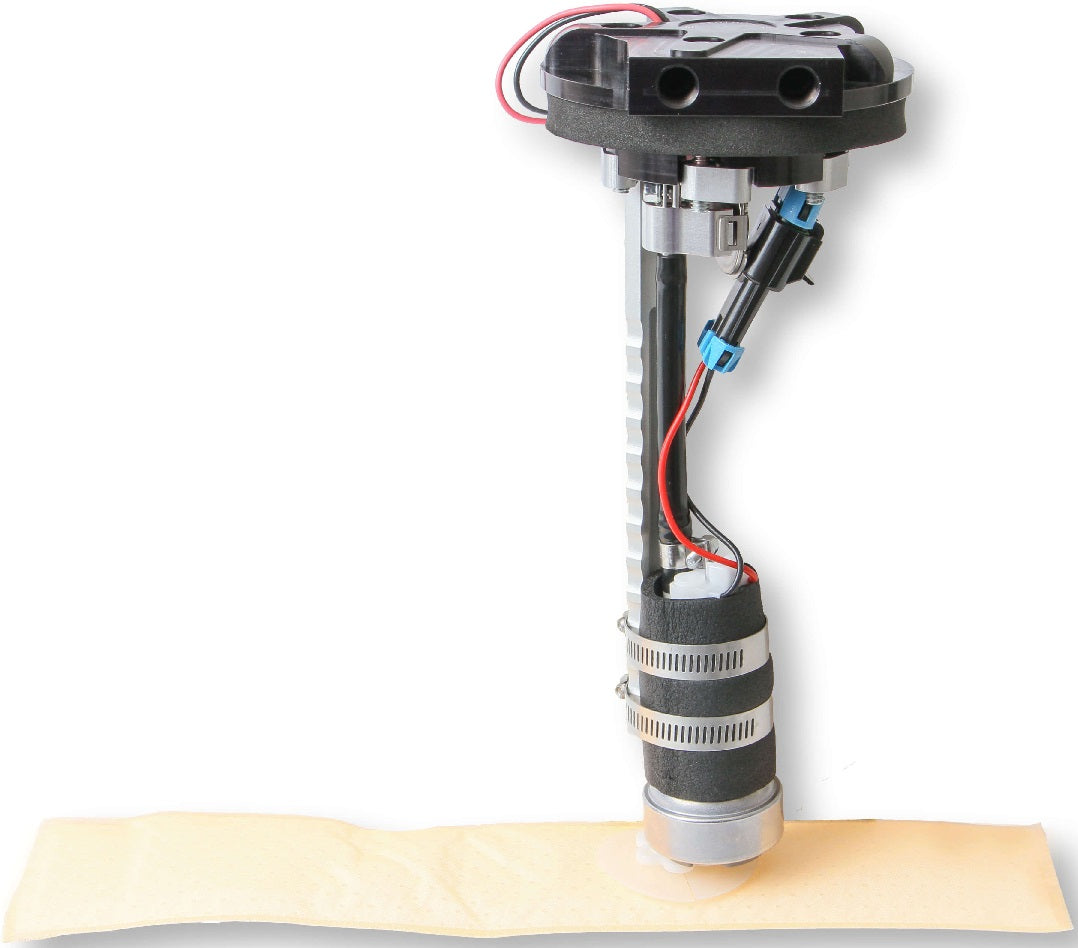

IN-TANK RETRO-FIT FUEL MODULE 525 LPH RE

BRAND NEW HOLLEY 525 LPH RETURNLESS STYLE IN-TANK RETROFIT FUEL MODULE WITH HYDRAMAT, 1200 EFI OR 1450 CARB HP @ 60 PSI AT 13.5 VOLTS, 16.9 AMP DRAW

CONVERT YOUR FACTORY TANK OR FUEL CELL TO AN IN-TANK EFI FUEL SYSTEM QUICKLY & EASILY & ADD THE BENEFITS OF A HOLLEY HYDRAMAT IN THE PROCESS! THE CONVERSION REQUIRES NO WELDING OR FABRICATION. THE BILLET ALUMINUM MODULE DESIGN INCLUDES A BILLET PUMP HANGER BRACKET TO CONTROL PUMP VIBRATION WHILE ALSO PROVIDING A LOW PROFILE DESIGN. THE HOLLEY INNOVATIVE CLAMPING SYSTEM & INTEGRATED FUEL PUMP MAKES IT EASY.

SUPPORTS UP TO 1200 EFI OR 1450 CARB HP (@ 60 PSI AT 13.5 VOLTS / 16.9 AMP DRAW) ESTIMATES ARE BASED ON GASOLINE. INDIVIDUAL SYSTEMS WILL VARY BASED ON FUEL SYSTEM DESIGN, REGULATOR TYPE, FUEL CELL LOCATION, ETC.

NOTE: RECOMMENDED TO USE A HOLLEY PART # 12-753 30 AMP FUEL PUMP RELAY ALONG WITH A MINIMUM SIZE OF 12 GAUGE WIRE FOR YOUR INSTALLATION

NOTE: MAXIMUM 6AN LINE & FITTING SIZE DUE TO SPACE LIMITATIONS BETWEEN UNIT & FUEL TANK.

FEATURES:

• RETROFIT FUEL MODULE 525 LPH- RETURNLESS STYLE
• INSTALLS IN ANY FUEL TANK FROM 7.5" TO 12" DEEP
• LOW PROFILE DESIGN IS ONLY 1.275" THICK ABOVE THE TANK MOUNTING SURFACE FOR ADDED CLEARANCE
• CLAMPING SYSTEM ALLOWS YOU TO LOCATE THE MODULE ANYWHERE IN THE TANK BESIDE YOUR EXISTING SENDING UNIT, AND ALLOWS YOU TO ROTATE THE UNIT 360 DEGREES FOR EASIER CLOCKING OF THE PLUMBING & WIRING LOCATIONS UNDER YOUR RIDE
• INCLUDES INNOVATIVE HOLLEY HYDRAMAT TO ENSURE CONSISTENT FUEL SUPPLY. THE 3" X 15" HYDRAMAT MOUNTING FLANGE HAS 6 CLOCKING PIN LOCATIONS TO ALLOW FOR 360 DEGREE ADJUSTMENT TO CLEAR SENDING UNIT LEVELS OR ANY TANK FLOOR RESTRICTIONS THAT YOU MIGHT ENCOUNTER
• BLACK ANODIZED ALUMINUM CONSTRUCTION FOR CORROSION RESISTANCE & LONG LASTING GOOD LOOKS
• 1/4" NPT PORTS

SPECS:

• APPLICATION: UNIVERSAL
• BRAND: HOLLEY
• DIAMETER: 4.8"
• EMISSION CODE: 5
• FREE FLOW LPH: 525
• FUEL TYPE: E85, GASOLINE
• MATERIAL: BILLET ALUMINUM
• NPT THREAD: 1/4 NPT
• PRODUCT TYPE: FUEL PUMP MODULE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL MODULE HERE.
