EFI DOMINATOR THROTTLE BODY,4500,BIG DUA

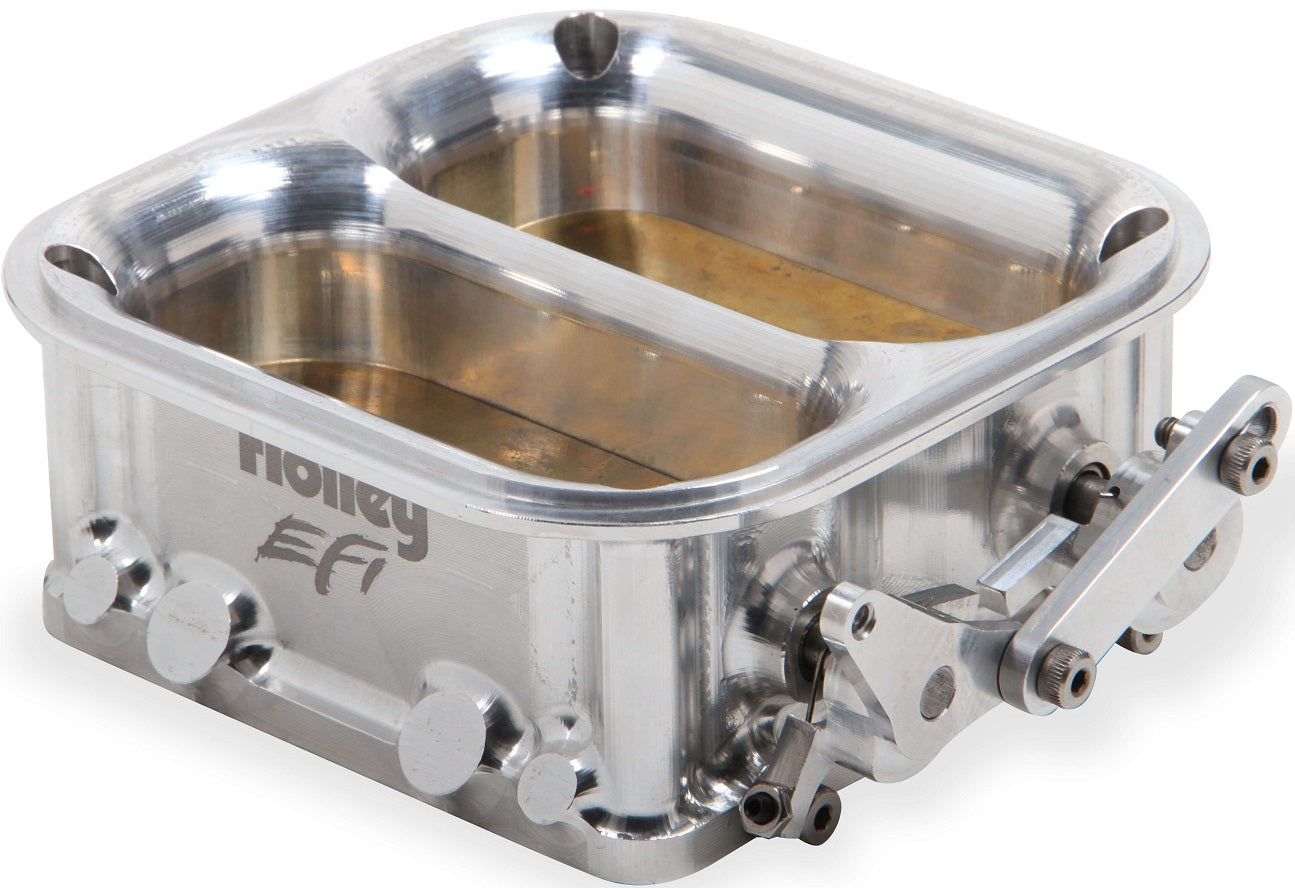

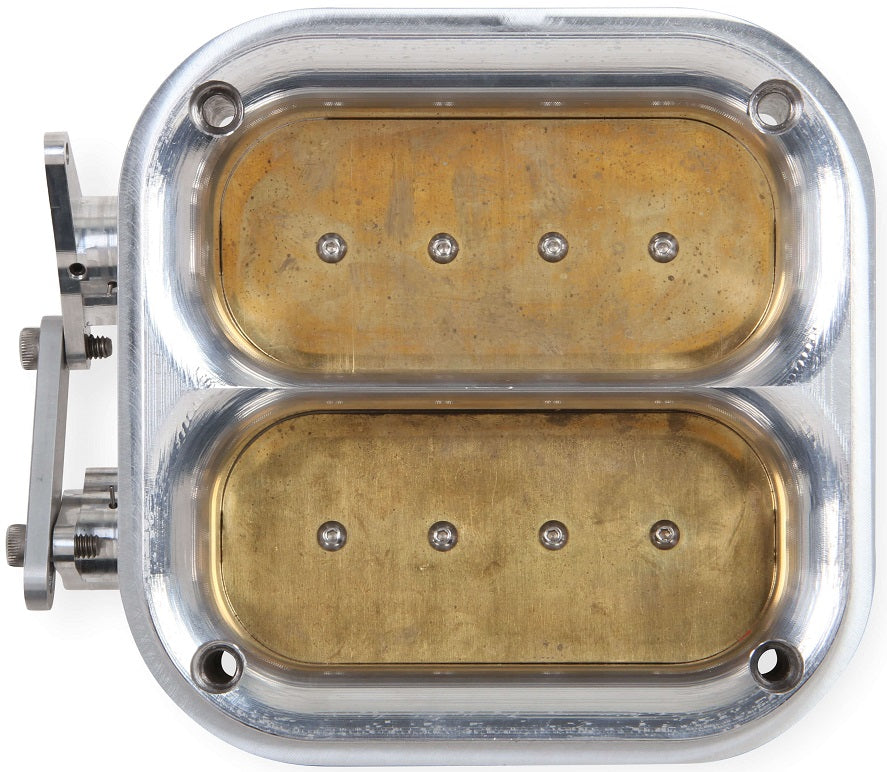

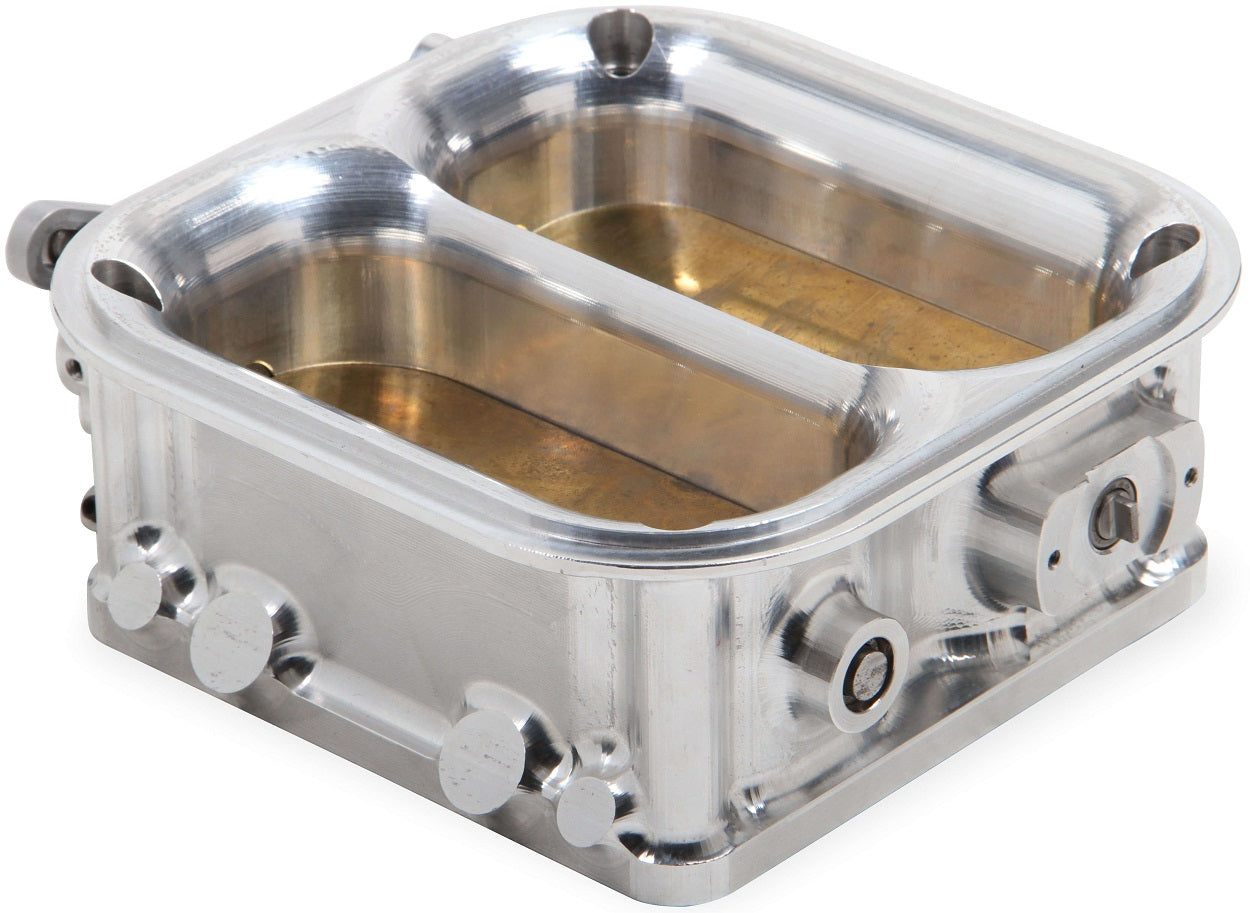

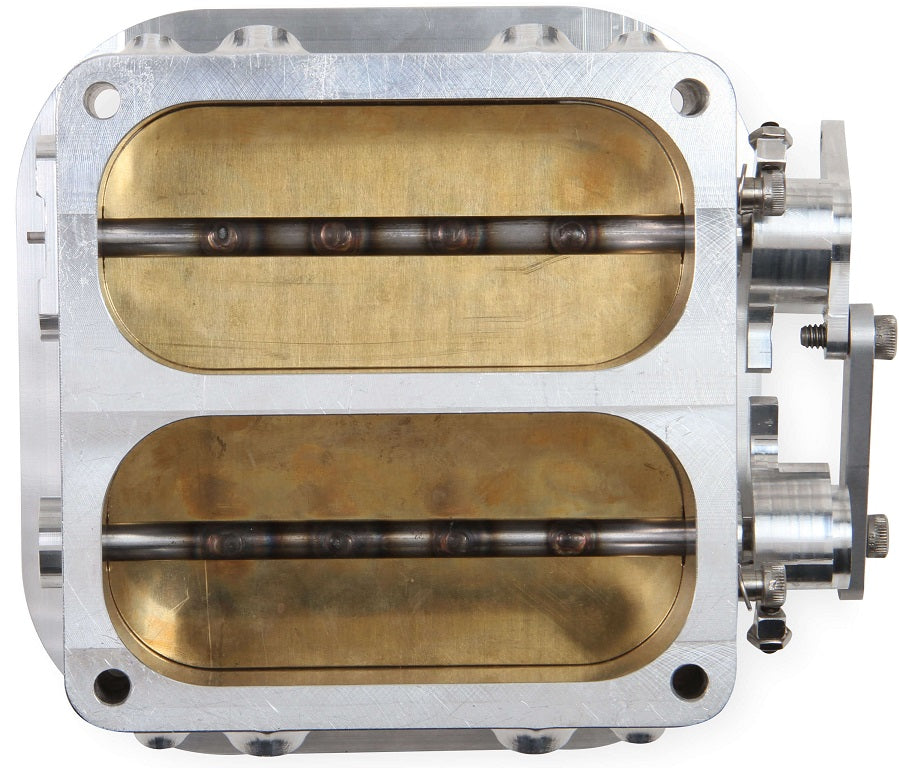

BRAND NEW HOLLEY EFI DOMINATOR FLANGE THROTTLE BODY, 2550 CFM

THE NEW HOLLEY EFI THROTTLE BODIES ARE UNQUESTIONABLY THE BIGGEST BORE, MOST FEATURE LOADED UNITS AVAILABLE ON THE MARKET TODAY. HOLLEY WENT BACK TO THE DRAWING BOARD AND BUILT THE ULTIMATE AIR VALVES FOR YOUR HOT RODS POWER PLANT. THE 2550 CFM DOMINATOR FLANGE THROTTLE BODY WILL BE AT HOME ON EVEN THE LARGEST CUBIC INCH ENGINES.

THESE THROTTLE BODIES ARE FEATURE PACKED, SHOWCASING ROLLER BEARING THROTTLE SHAFTS, NON-CONTACT MAGNETIC TPS SENSORS, AND INDEX-ABLE THROTTLE LEAVERS. MAKING THESE THE ULTIMATE THROTTLE BODIES FOR EASE OF INSTALLATION AND TUNING. REGARDLESS OF WHETHER YOU HAVE A TURBO, SUPERCHARGER, OR A BIG CAM ENGINE PUMPING MASSIVE GULPS OF AIR, THE HOLLEY THROTTLE BODIES ARE MAXIMIZED FOR YOUR APPLICATION.

FEATURES:

• LIGHTWEIGHT BILLET DESIGN (4500 BOLT PATTERN)
• DUAL THROTTLE BLADES FOR MAXIMUM AIRFLOW
• SHAFTS RIDE ON ROLLER BEARINGS FOR ULTRA-SMOOTH THROTTLE ACTUATION
• FLOWS 2550 CFM
• VERSIONS WITH AND WITHOUT SUPPLEMENTAL INJECTOR PROVISIONS (4 INJECTORS PER TB AND RAILS)
• NON-CONTACT MAGNETIC TPS SENSOR - BRINGING PRO STOCK AND ARCA TECHNOLOGY TO YOUR RIDE

SPECS:

• BILLET COLOR: CLEAR
• BOLT PATTERN: DOMINATOR FLANGE
• BRAND: HOLLEY EFI
• CFM: 2550
• EMISSION CODE: 4
• HEIGHT: 3"
• MATERIAL: BILLET ALUMINUM
• PRODUCT TYPE: THROTTLE BODY
• THROTTLE BORE: 25.8 SQUARE INCHES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS THROTTLE BODY HERE.
