770 CFM ALUM STREET AVENGER E/C

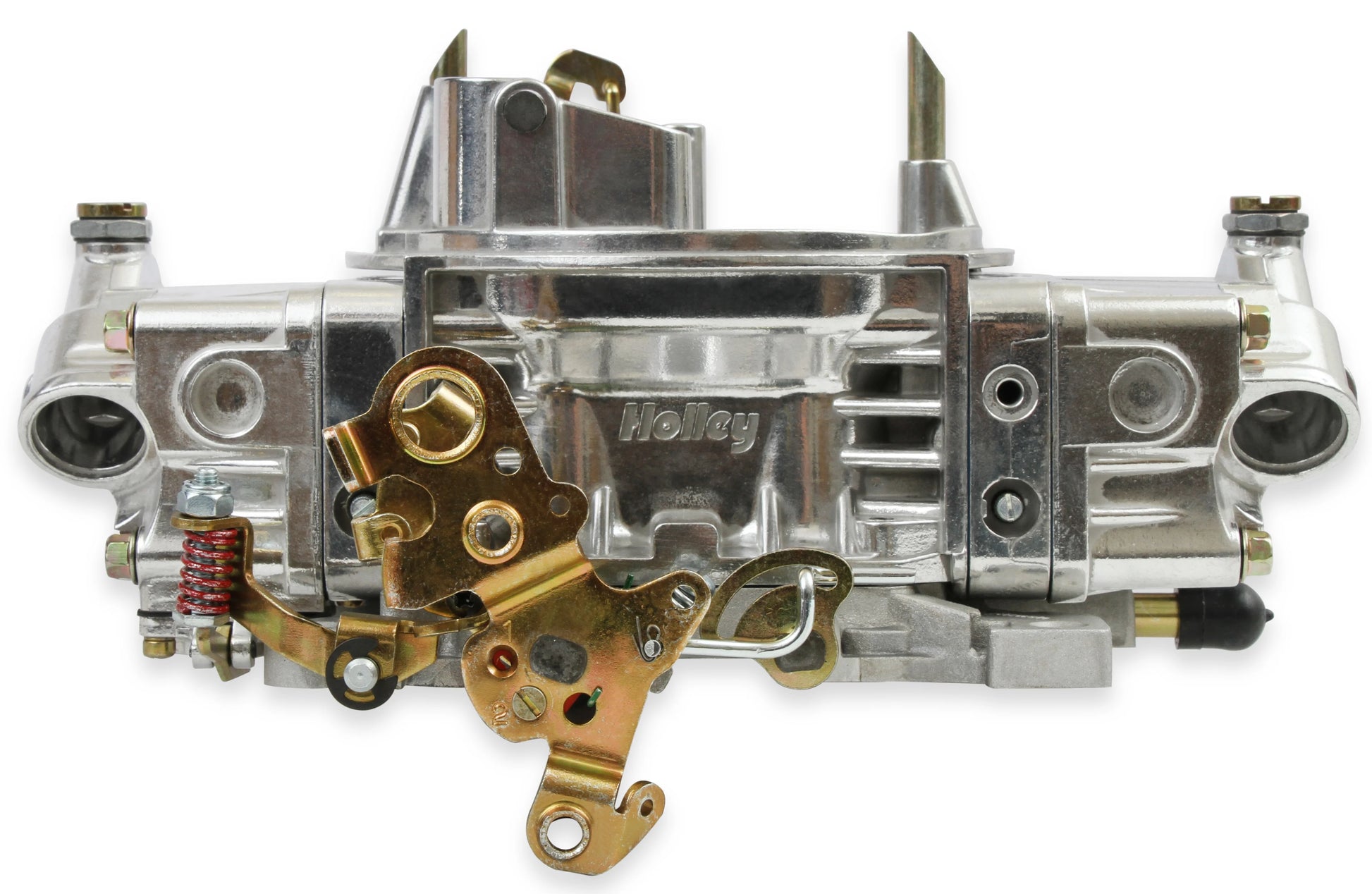

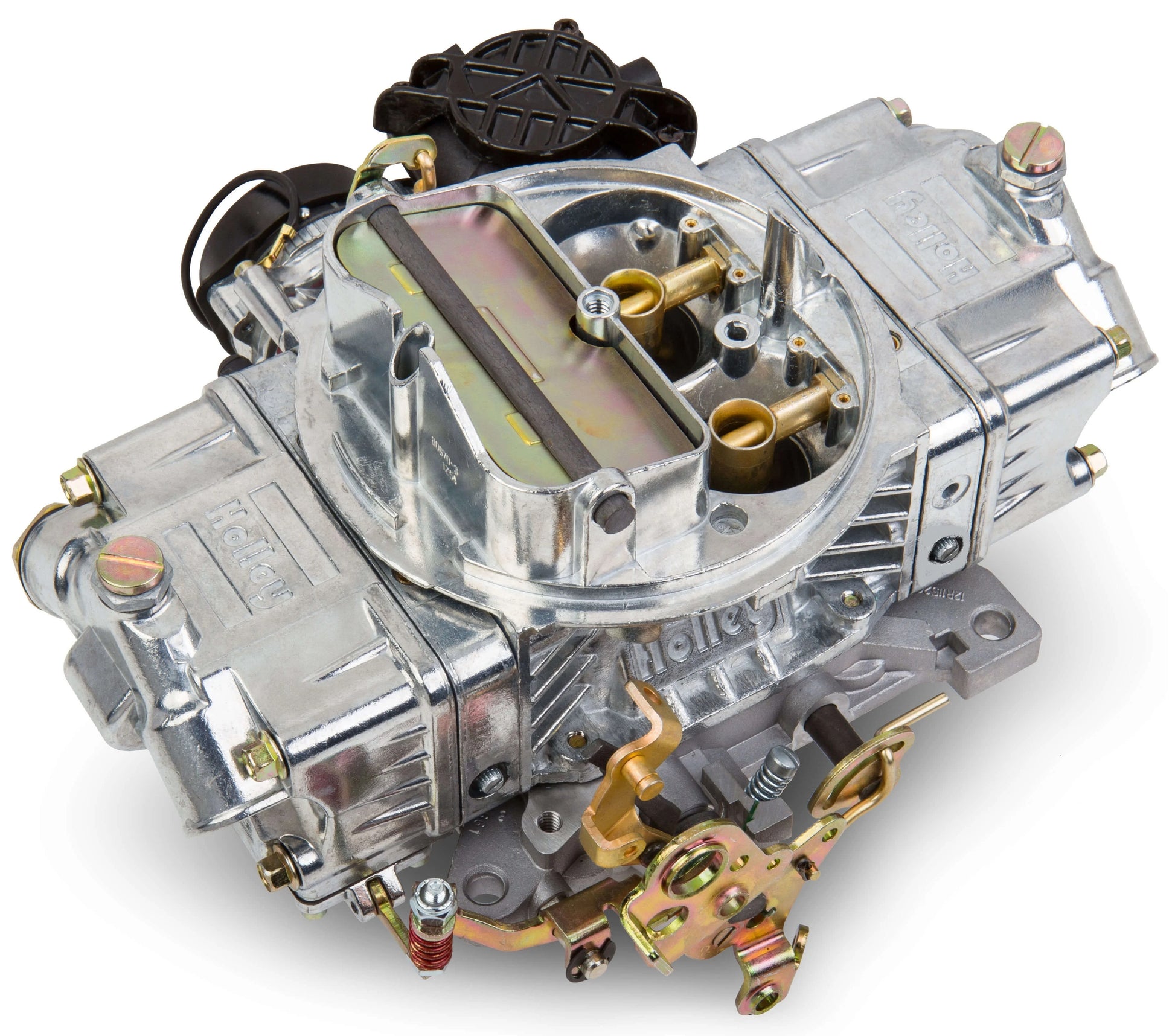

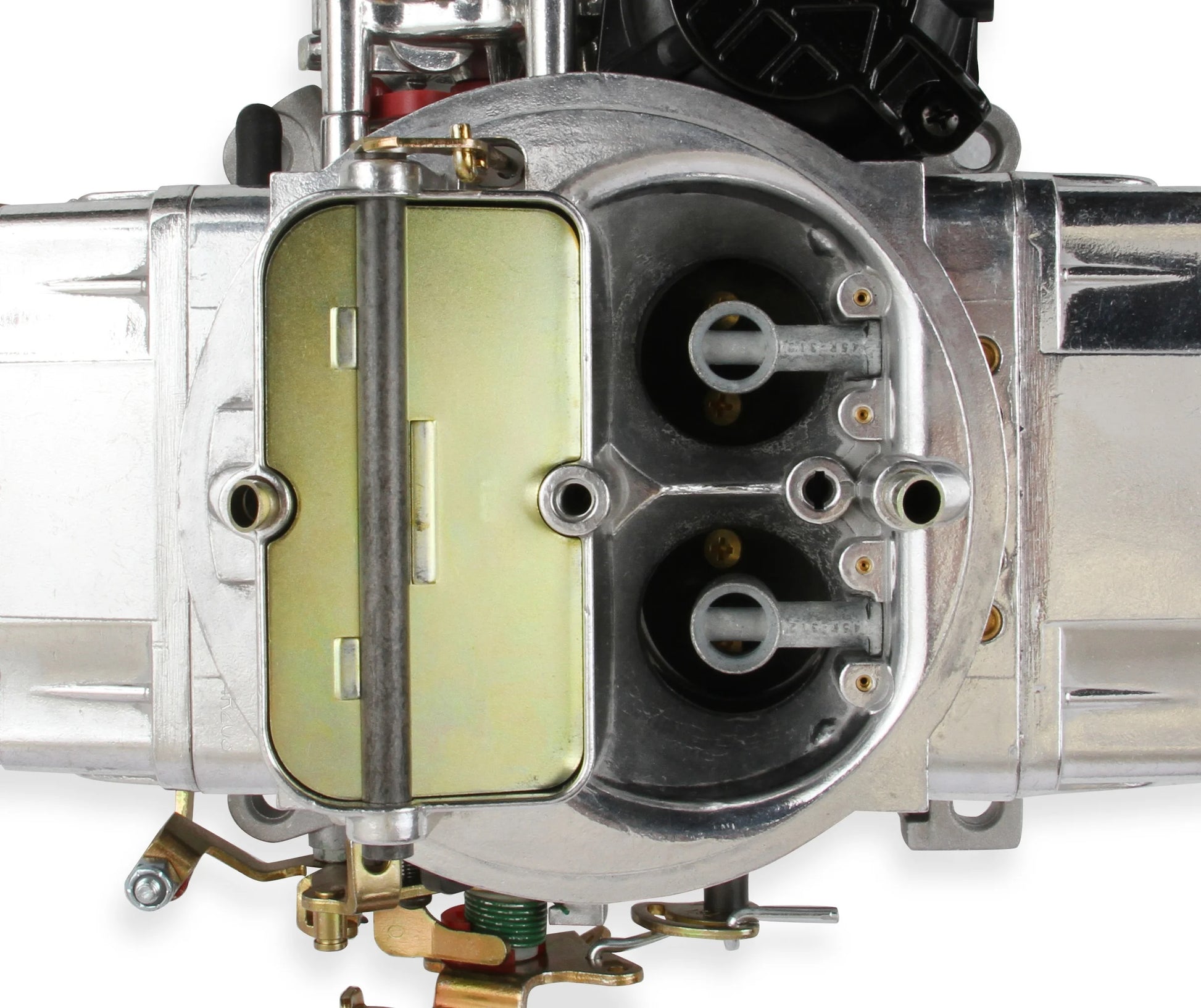

Brand New Holley Street Avenger Aluminum Carburetor, 770 CFM, 4150 Vacuum Secondaries, Shiny (Part #0-83770).

Holley's Street Avenger series carburetors have been taken to the next level.  Street Avenger carburetors are known to bolt on right out of the box, so what could be better than a Holley Street Avenger carburetor?  How about one in aluminum?  They save weight and look great.  The tumble polished aluminum finish will keep its shine for a long time to come or it can be hand polished to a show quality shine.

The new Aluminum Avenger carburetors have the same great features as their zinc counterparts such as a quick change vacuum secondary for easy fine tuning, four vacuum ports for all necessary vacuum accessories, factory preset electric choke for easy start ups, built-in fuel filters, and an included fuel line kit so there are no unnecessary trips back to the parts store. Aluminum Avengers feature the same optimized street calibration as the zinc version so you know they will run great on your vehicle. Another new feature on the Aluminum Street Avenger is a clear fuel level sight glass for easy, no mess float adjustments.

The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.

Note:

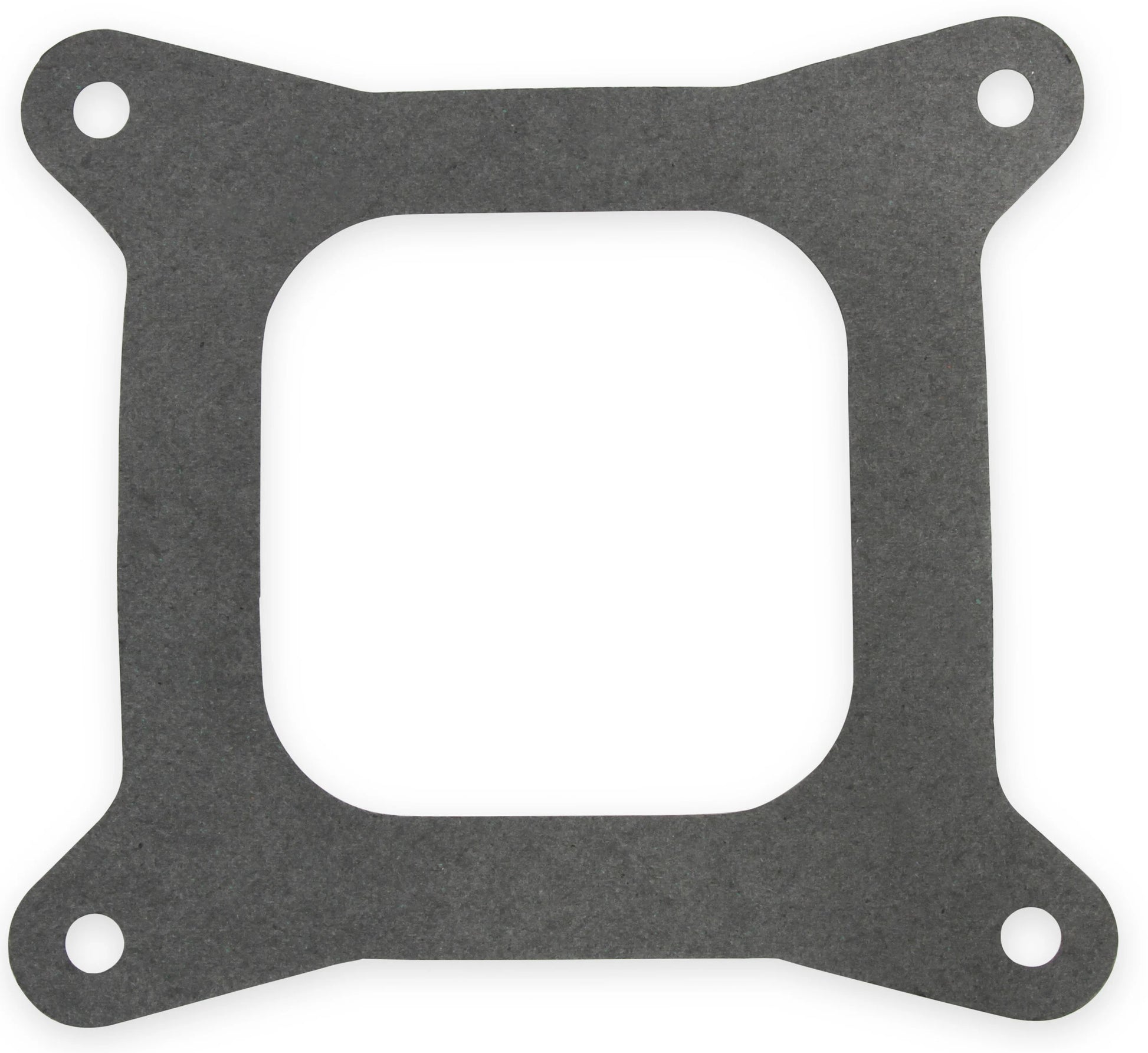

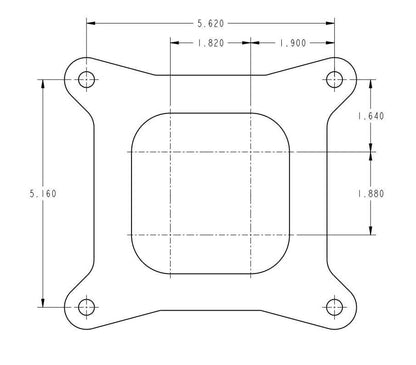

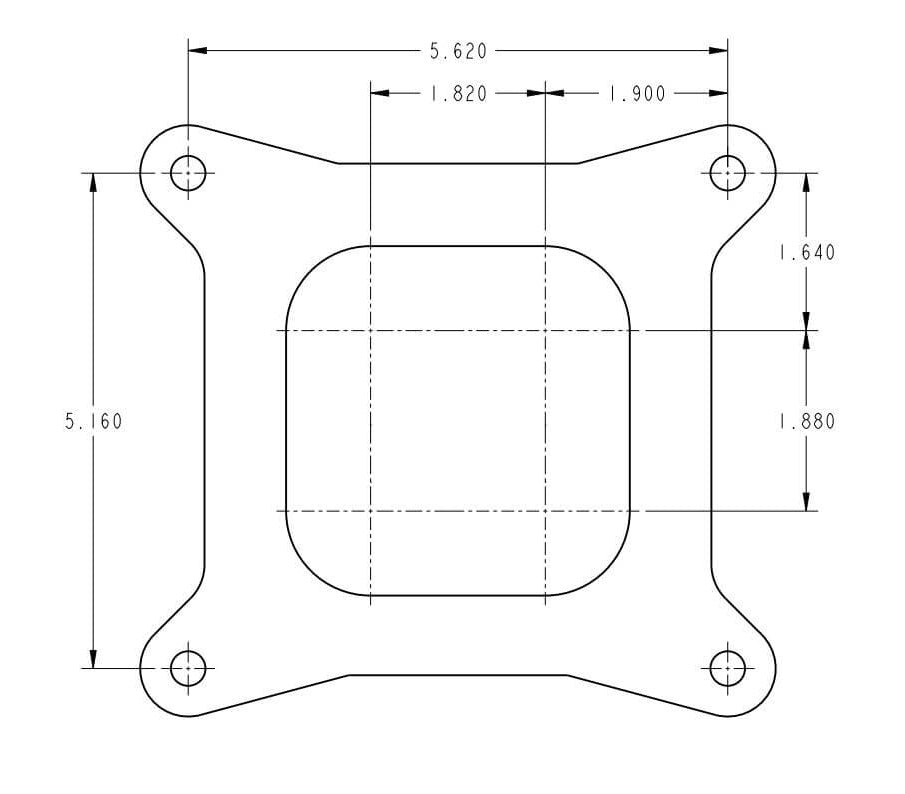

•  This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.
• If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

Features:

• Features a tumble polished finish - can also be hand polished

• Optimized street calibration that works-out-of-the-box

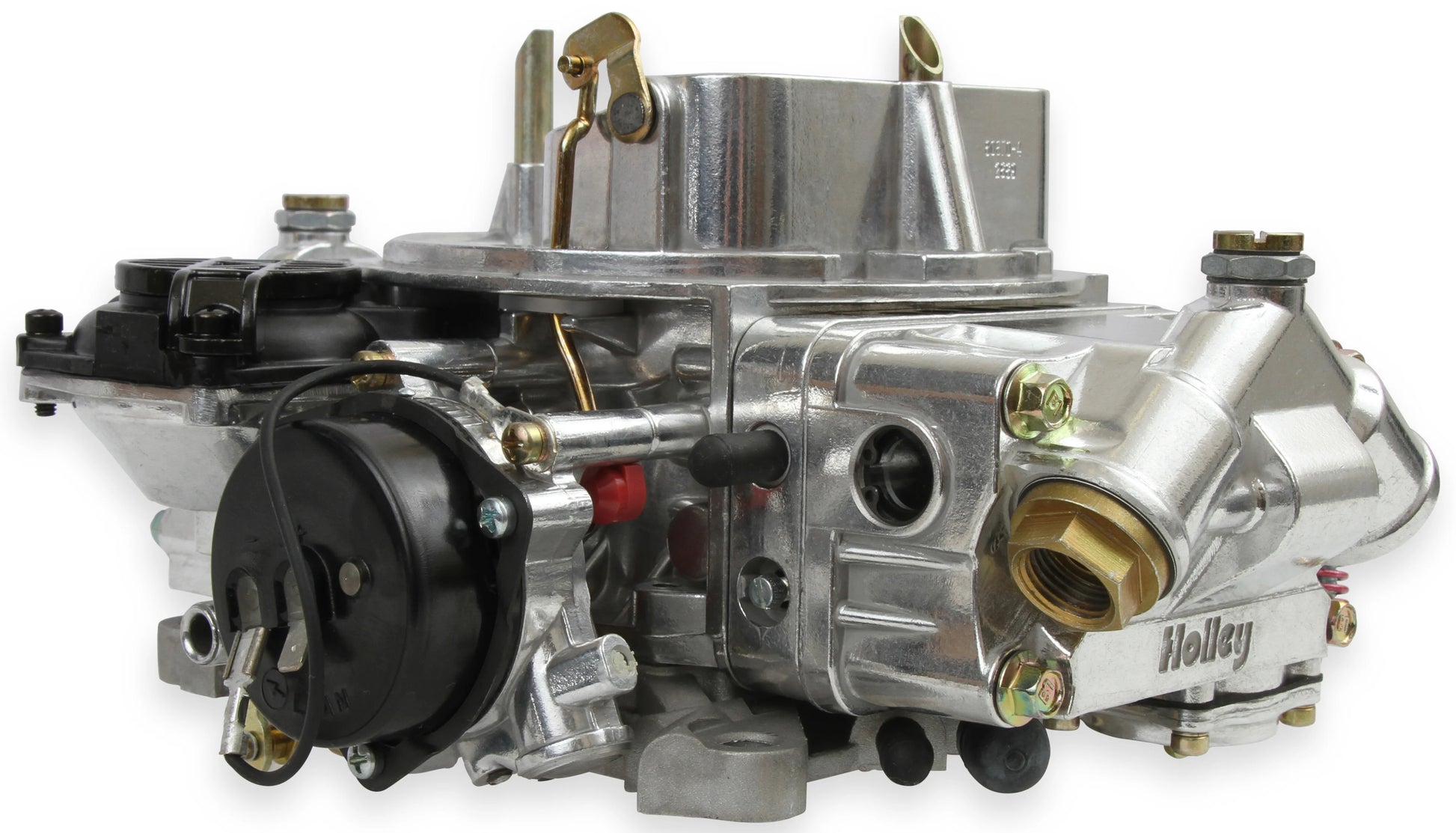

• Factory preset electric choke for easy startups

• Glass fuel level sight windows for easy, safe float adjustments

• Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum
• housing cap allows you to tune for performance or fuel economy (springs included)

• 4 corner idle allows you to precisely control your idle system

• Aluminum construction for a 44% weight savings

• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.

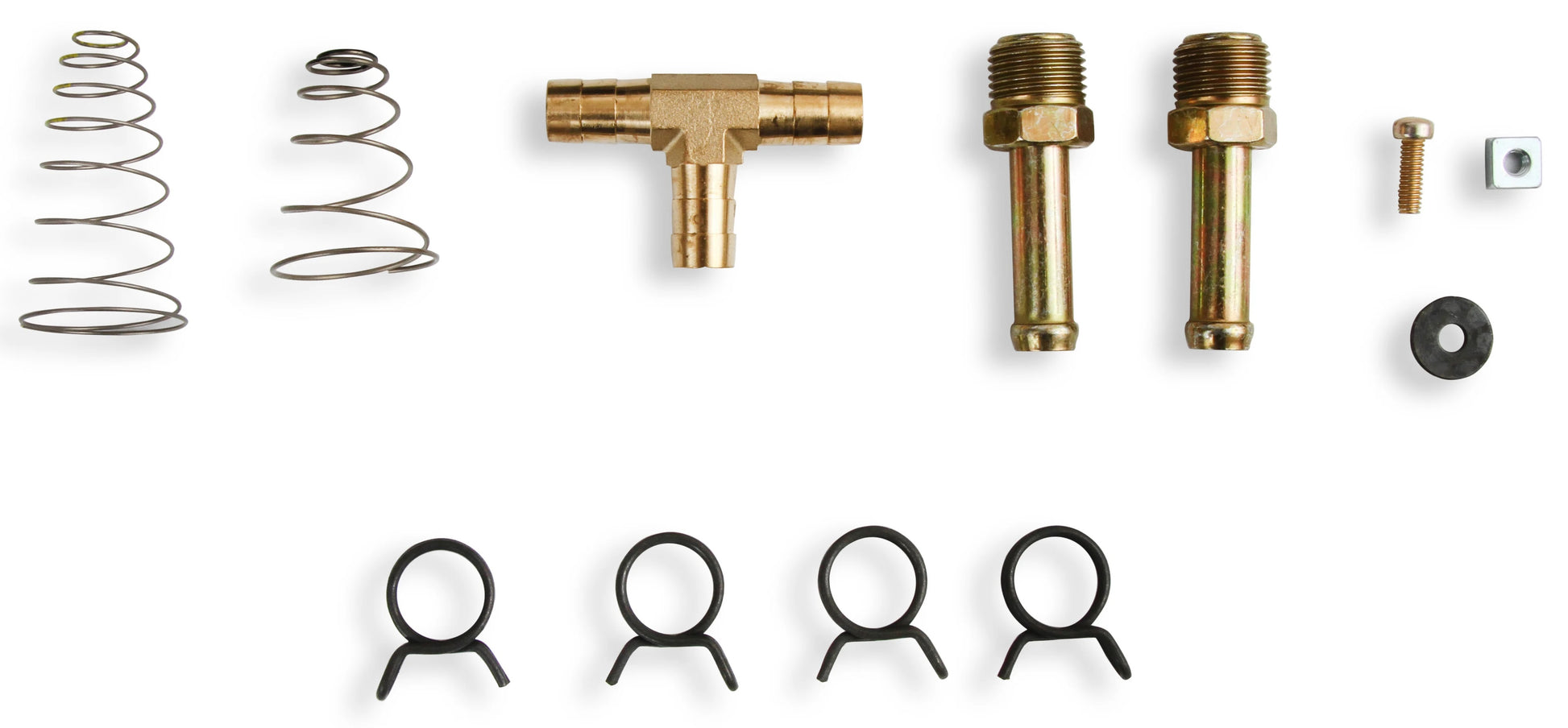

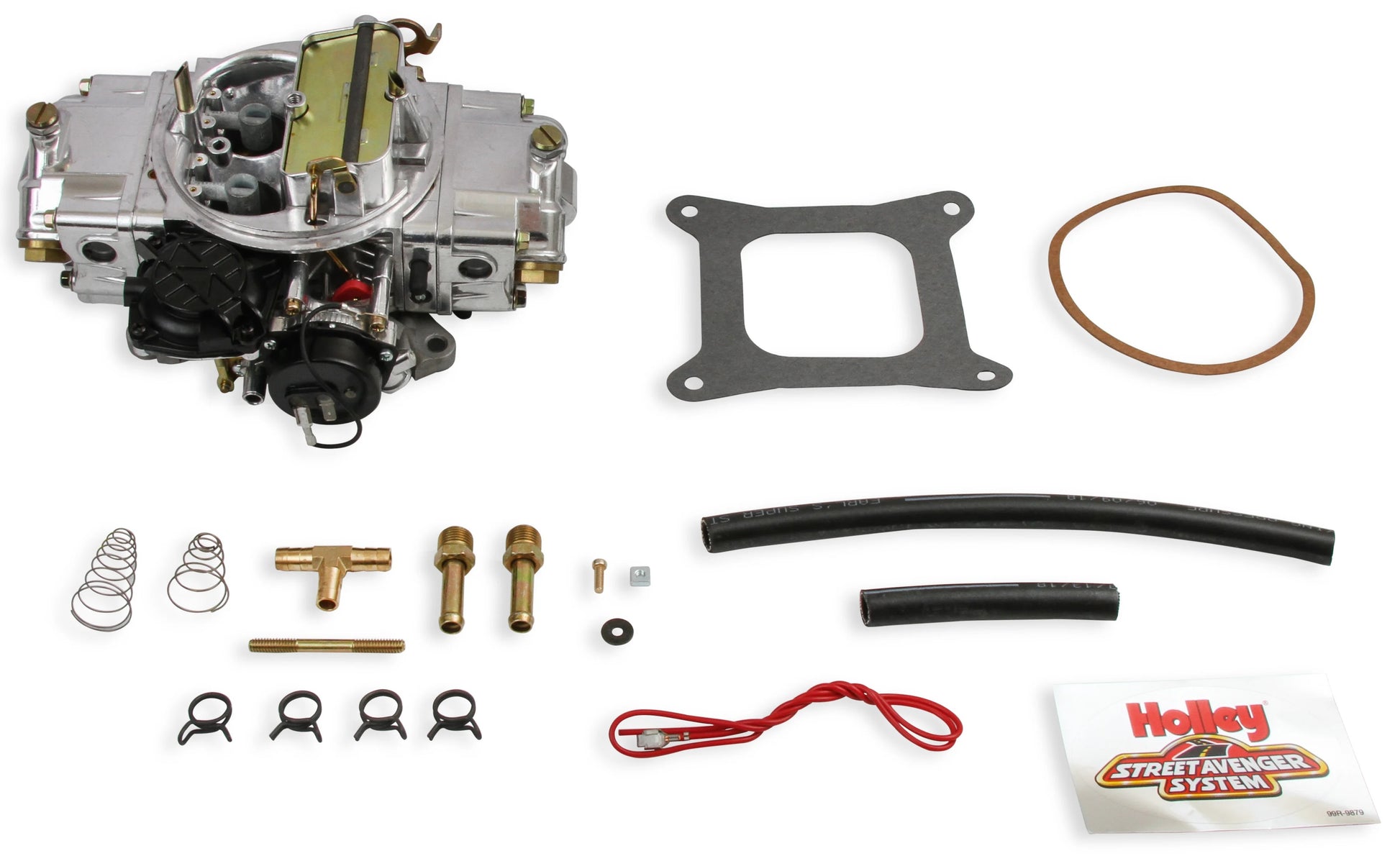

• Fuel line kit included so there are no unnecessary trips back to the parts store
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Specs:

• Barrel Quantity: 4
• Body Material: Polished Aluminum

• Booster Design: Straight

• Brand: Holley

• Carburetor Material: Aluminum

• Carburetor Use: Street

• Choke Type: Electric

• Cubic Feet Per Minute Rating: 770
• Flange Type: Square/4150

• Fuel Inlet: Dual

• Fuel Type: Gasoline

• Linkage Attached: Yes
• Primary Main Jet Size: 70

• Primary Nozzle Size: 31
• Secondary Barrel Type: Vacuum

• Secondary Main Jet Size: 75

• Supercharger Compatible: No

• Throttle Bore Diameter: 1.688 inch
• Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port

You can view and download the instruction booklet here.
