770 CFM MARINE AVENGER CARBURETOR,4150,ALUM,GRAY

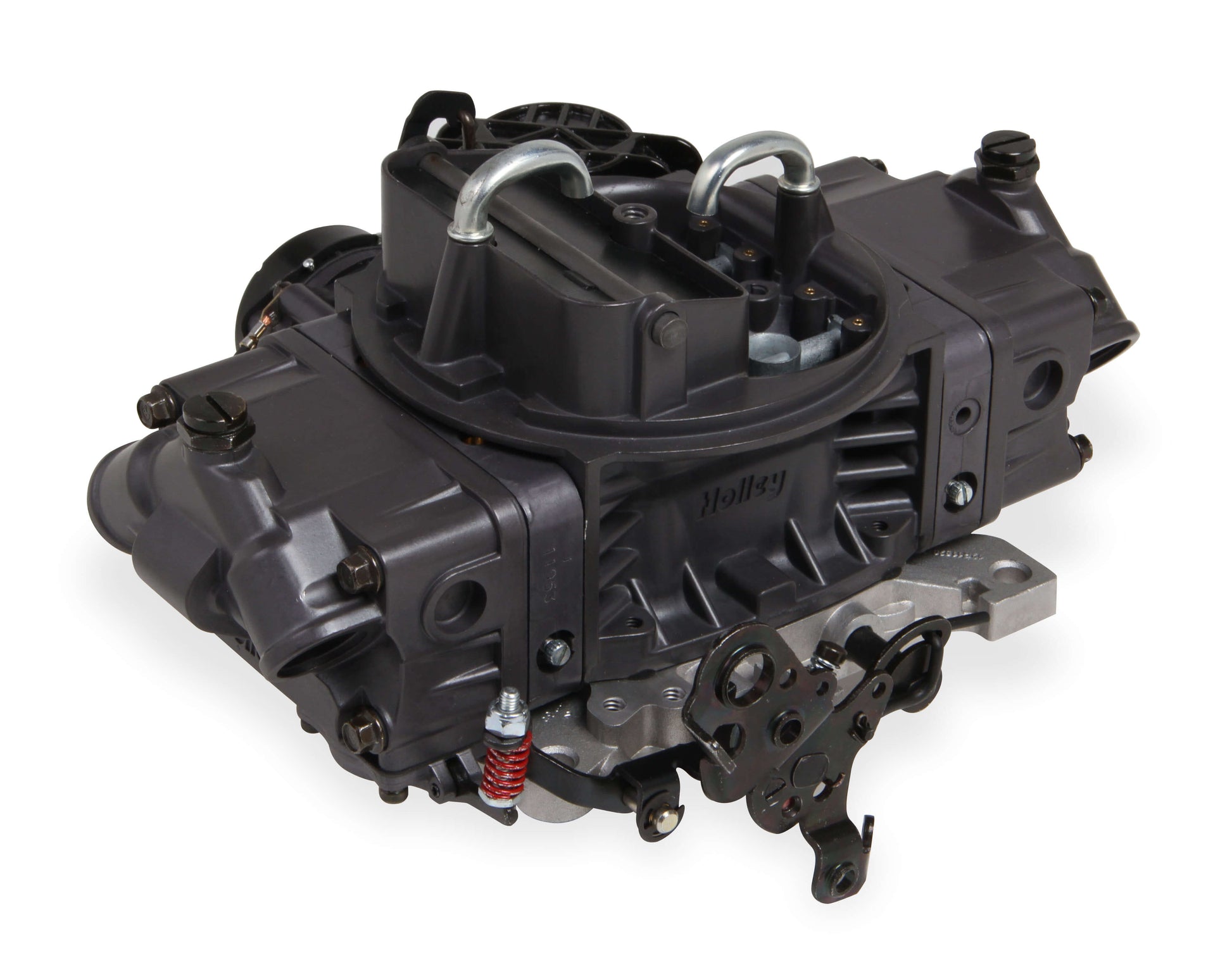

BRAND NEW HOLLEY MARINE AVENGER CARBURETOR, 770 CFM, HARD CORE GRAY FINISH, ELECTRIC CHOKE, VACUUM SECONDARIES, 4150, COMPATIBLE WITH GASOLINE (PART #0-82770).

BUILDING ON THE PROVEN PERFORMANCE AND DURABILITY OF THE ALUMINUM STREET AVENGER SERIES- WE HAVE ENGINEERED THE NEW MARINE MODELS TO CONTINUE THAT PERFORMANCE HERITAGE THAT HOLLEY IS KNOWN FOR. THE ALL-ALUMINUM CARBURETORS ARE HARD COAT ANODIZED IN A HARD CORE GRAY FINISH TO PROTECT THEM FROM CORROSION IN FRESH WATER OR SALT WATER CONDITIONS. THE NEW MARINE AVENGERS ARE BUILT TO EXCEED THE COAST GUARD STANDARDS AND ARE J1223 MARINE STANDARD CERTIFIED. SO, IF YOU ARE HITTING THE LAKE FOR AN EASY CRUISE OR SOME HIGH SPEED FUN, THE NEW ALUMINUM MARINE AVENGERS WILL MEET AND EXCEED YOUR PERFORMANCE DEMANDS!

THE MARINE AVENGER CARBURETORS COME WITH THE SAME LIMITED LIFETIME WARRANTY AS OUR STREET AVENGERS DO. HOLLEY WARRANTS ITS MARINE AVENGER CARBURETOR TO BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP FOR THE LIFE OF THE PRODUCT ON PARTS AND ONE YEAR ON REPAIR LABOR. AFTER A PERIOD OF ONE YEAR, HOLLEY WILL CHARGE STANDARD RATES FOR REPAIR LABOR.

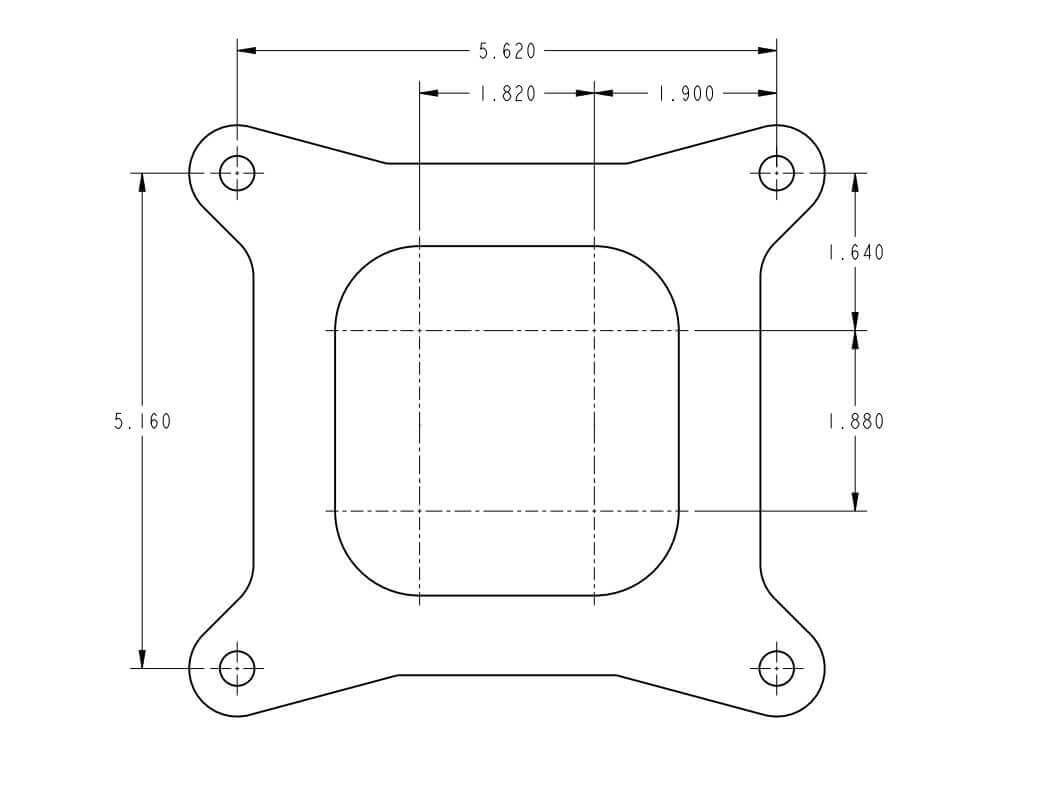

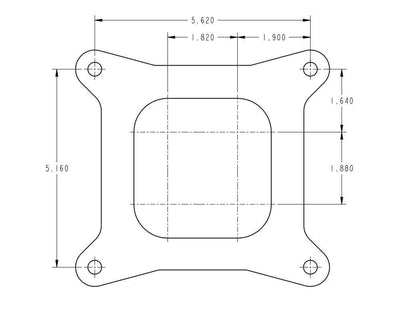

NOTE: THIS CARBURETOR HAS SQUARE BORE FLANGE BOLT PATTERN. IT REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU NEED AN ADAPTER TO INSTALL THIS CARBURETOR, SIMILAR TO MR. GASKET #1932.

FEATURES:

• ALL ALUMINUM CONSTRUCTION
• HARD CORE GRAY ANODIZED FINISH FOR CORROSION PROTECTION IN MARINE ENVIRONMENTS
• BUILT TO EXCEED COAST GUARD STANDARDS AND ARE J1223 MARINE STANDARD CERTIFIED
• DUAL METERING BLOCK SYSTEM UTILIZING FOUR CORNER IDLE ADJUSTMENT FOR PRECISION TUNING
• THROTTLE SHAFTS ARE PTFE COATED FOR CORROSION PROTECTION
• CALIBRATED TO COMPENSATE FOR UNIQUE ENGINE LOADS FOUND ON BOATS

SPECS:

• BARRELS: 4
• BRAND: HOLLEY
• CARBURETOR USE: MARINE
• CFM: 770
• CHOKE: ELECTRIC
• FINISH: HARD CORE GRAY
• FUEL: GASOLINE
• FUEL INLET: DUAL
• MARINE ENGINE SIZE: UNIVERSAL
• MARINE USE: YES
• MATERIAL: ALUMINUM
• MODEL: 4150
• PRIMARY MAIN JET: 76
• PRIMARY POWER VALVE: 10.5
• PRIMARY PUMP NOZZLE SIZE: .025
• PRODUCT TYPE: MARINE CARBURETOR
• SECONDARIES: VACUUM
• SECONDARY MAIN JET: 89
• THROTTLE BORE: 1.6875"
• SUPERCHARGED APPLICATION: NO
• VENTURII SIZE: 1.375"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
