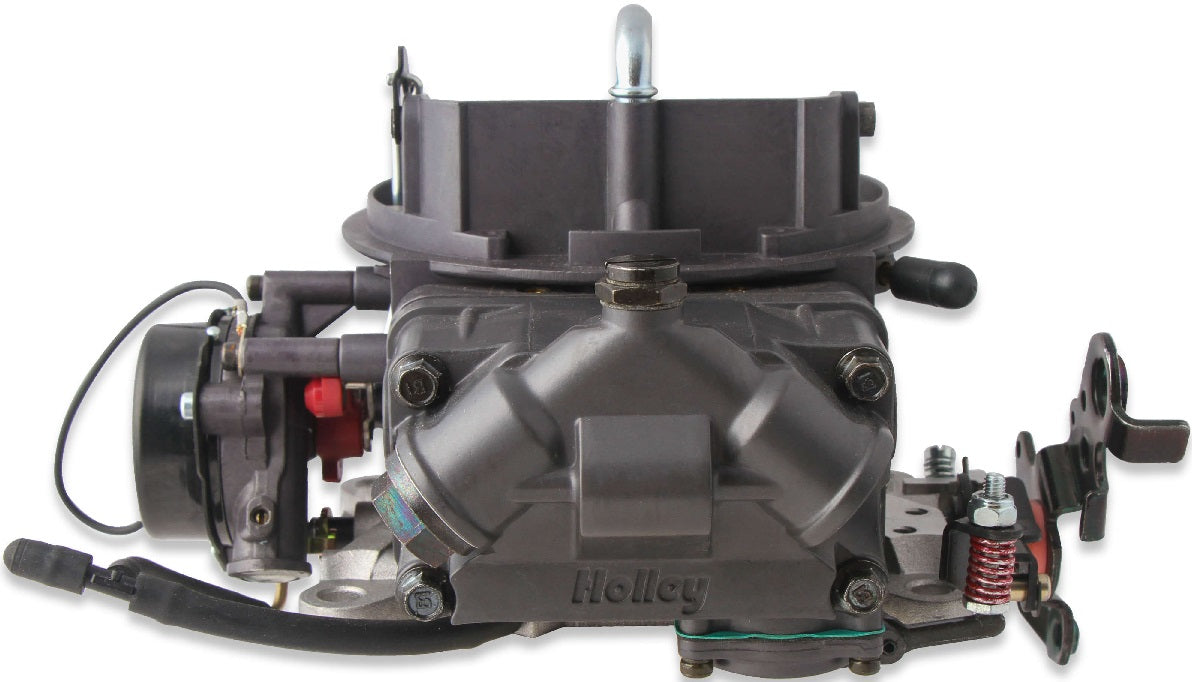

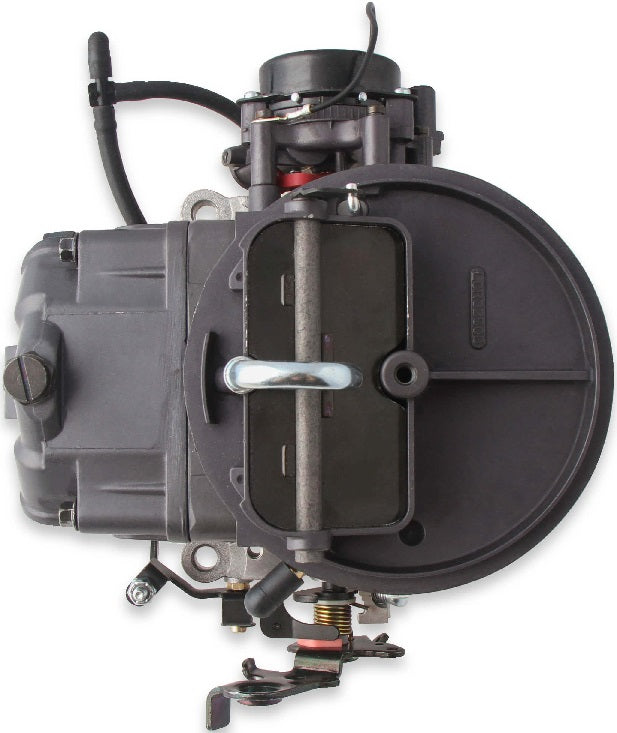

500 CFM MARINE AVENGER CARBURETOR,2300,ALUM,GRAY

BRAND NEW HOLLEY MARINE AVENGER CARBURETOR, 500 CFM, HARD CORE GRAY FINISH, ELECTRIC CHOKE, 2300, COMPATIBLE WITH GASOLINE

BUILDING ON THE PROVEN PERFORMANCE AND DURABILITY OF THE ALUMINUM STREET AVENGER SERIES- WE HAVE ENGINEERED THE NEW MARINE MODELS TO CONTINUE THAT PERFORMANCE HERITAGE THAT HOLLEY IS KNOWN FOR. THE ALL-ALUMINUM CARBURETORS ARE HARD COAT ANODIZED IN A HARD CORE GRAY FINISH TO PROTECT THEM FROM CORROSION IN FRESH WATER OR SALT WATER CONDITIONS.

ALL HOLLEY MARINE AVENGER CARBURETORS ARE DESIGNED TO MEET COAST GUARD SPECIFICATIONS. A MARINE CARBURETORS FUEL METERING SYSTEM IS CALIBRATED TO COMPENSATE FOR UNIQUE ENGINE LOADS FOUND ON BOATS. THE J-STYLE VENT TUBES DIRECT FUEL/FUMES BACK INTO THE CARBURETOR FOR SAFE OPERATION WHILE ON ROUGH WATERS.

NOTE: DESIGNED WITH A UNIVERSAL CALIBRATION GOOD FOR SMALL CUBIC INCH MARINE ENGINES WHERE A 2300 MODEL 2BBL WITH ELECTRIC CHOKE IS REQUIRED.

FEATURES:

• ALL ALUMINUM CONSTRUCTION
• CALIBRATED TO COMPENSATE FOR UNIQUE ENGINE LOADS FOUND ON BOATS
• FACTORY PRESET ELECTRIC CHOKE FOR EASY STARTUPS
• HARD CORE GRAY FINISH FOR CORROSION PROTECTION IN MARINE ENVIRONMENTS
• SINGLE FEED FUEL INLET FOR EASY INSTALLATION
• J-STYLE VENT TUBES
• THROTTLE SHAFTS ARE PTFE COATED FOR CORROSION PROTECTION
• MEETS COAST GUARD SPECIFICATIONS
• 100% WET-FLOW TESTED

SPECS:

• BARRELS: 2
• BOOSTER: DOWN LEG
• BRAND: HOLLEY
• CARBURETOR USE: MARINE
• CFM: 500
• CHOKE: ELECTRIC
• FINISH: HARD CORE GRAY
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• MARINE ENGINE SIZE: UNIVERSAL
• MARINE USE: YES
• MATERIAL: ALUMINUM
• MODEL: 2300
• PRIMARY MAIN JET: 78
• PRIMARY POWER VALVE: 4.5
• PRIMARY PUMP NOZZLE SIZE: 28
• PRODUCT TYPE: MARINE CARBURETOR
• SECONDARIES: NONE
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.750"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
