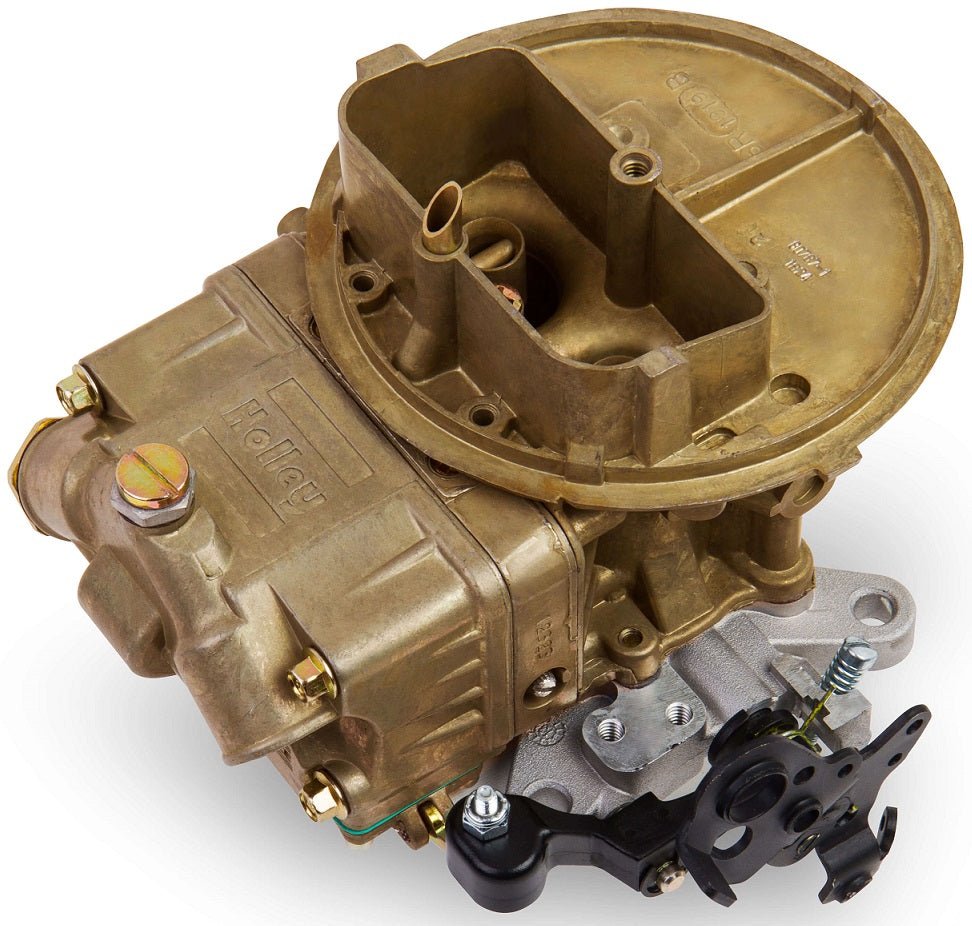

CARBURETOR,2300,350CFM,2BBL,X-CHOKE,CIRCLE TRACK

BRAND NEW HOLLEY PERFORMANCE CARBURETOR, 2BBL, 350 CFM, GOLD DICHROMATE, NO CHOKE, 2300 MODEL, COMPATIBLE WITH GASOLINE

THE 0-80583-1 CARBURETOR SHARES THE HUGELY SUCCESSFUL FEATURES OF THE ORIGINAL 4412, BUT W/ CHANGES AIMED DIRECTLY AT CIRCLE TRACK CARS. THE CHOKE ASSEMBLY HAS BEEN REMOVED FOR UNOBSTRUCTED AIRFLOW & UTILIZES THE HP METERING BLOCK, 30CC ACCELERATOR PUMP, WELDED THROTTLE LEVER, SCREW IN AIR BLEEDS & STAINLESS THROTTLE PLATES, PLUS IT HAS BEEN SPECIALLY CALIBRATED FOR CIRCLE TRACK RACING USE. IT COMES OUT OF THE BOX READY TO RUN W/ LESS MODIFYING & LESS TUNING AT THE TRACK.

FEATURES:

• GOLD DICHROMATE FINISH FOR CORROSION RESISTANCE & CLASSIC HOLLEY LOOKS
• CALIBRATED SPECIFICALLY FOR CIRCLE TRACK USE
• NO CHOKE FOR UNOBSTRUCTED AIRFLOW
• SCREW IN AIR BLEEDS FOR PRECISION TUNING CAPABILITIES
• 30CC ACCELERATOR PUMP FOR ADDITIONAL FUEL UNDER INITIAL ACCELERATION
• HP METERING BLOCK FOR IMPROVED FUEL FLOW
• WELDED THROTTLE LEVER
• POWER VALVE BLOW-OUT PROTECTION
• 100% WET-FLOW TESTED BY HOLLEY TECHNICIANS, ARRIVES READY TO RUN

SPECS:

• BARRELS: 2
• BOOSTER: STRAIGHT
• BRAND: HOLLEY
• CFM: 350
• CHOKE: NONE
• EMISSION CODE: 3
• FINISH: GOLD DICHROMATE
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• MATERIAL: ZINC
• MODEL: 2300
• PRIMARY MAIN JET: 77
• PRIMARY POWER VALVE: 4.5
• PRIMARY PUMP NOZZLE SIZE: 21
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: NONE
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.500"
• VENTURII SIZE: 1.187"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE, AND THE CARBURETOR NUMERICAL LISTING HERE.
