CARBURETOR,4150,830CFM,CLASSIC HP,ALUM

Brand New Holley Classic HP Carburetor, 830 CFM, 4150 Mechanical Secondaries, Gold Dichromate (Part #0-80509-2).

Holley HP carburetors have been the standard in racing carburetors for nearly two decades. Powering the biggest names in NASCAR to the Saturday night racer, HP carburetors are the perfect choice for all types of motorsports.

Classic HP carburetors are available from 390 to 1000 CFM and feature a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow metering blocks and Dominator style fuel bowls which allow pluming from either side for ease of installation.

Note:

• Due to the natural color variations of the dichromate plating process, the plating color may vary from casting to casting (within a carburetor) and from carburetor to carburetor. This is considered normal and is not a cosmetic defect. If you desire a carburetor with no color variation, please shop our black and shiny finish carburetors.

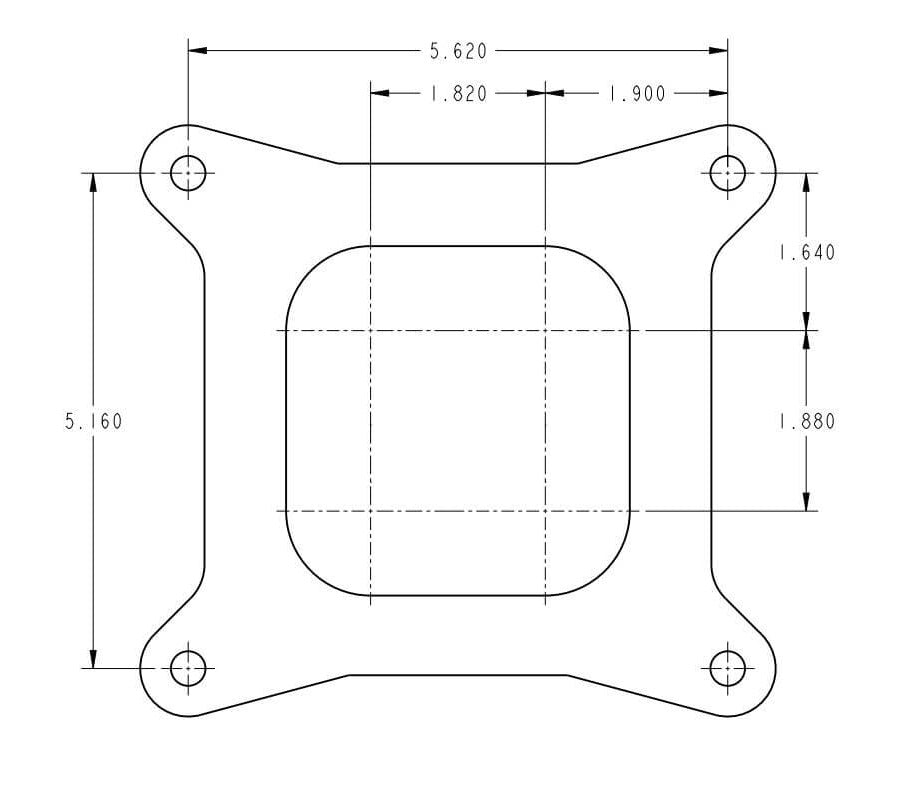

• This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.
• If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

Features:

• Gold Dichromate finish for corrosion resistance

• Optimized race calibration

• Contoured venturi inlet offers balanced airflow for increased horsepower

• Screw in air bleeds for precision tuning capabilities

• Dual 30cc accelerator pumps for additional fuel under initial acceleration

• Dual feed fuel inlets for constant high volume fuel delivery

• 4 corner idle allows you to precisely control your idle system

• Progressive Secondaries for perfect off the line launches

• Stainless steel throttle plates

• Calibrated for gasoline

• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Specs:

• Barrel Quantity: 4
• Body Color: Gold Dichromate

• Booster Design: Downleg

• Brand: Holley

• Carburetor Material: Aluminum

• Carburetor Use: Performance & Race

• Choke Type: None

• Cubic Feet Per Minute Rating: 830
• Flange Type: Square/4150

• Fuel Inlet: Dual

• Fuel Type: Gasoline

• Linkage Attached: Yes
• Primary Main Jet Size: 86

• Primary Nozzle Size: 28
• Primary Power Valve: 6.5
• Secondary Barrel Type: Mechanical

• Secondary Main Jet Size: 86

• Secondary Nozzle Size: 29
• Supercharger Compatible: No

• Throttle Bore Diameter: 1.688 inch

• Venturi Size: 1.561 inch

You can view and download the instruction booklet here.
