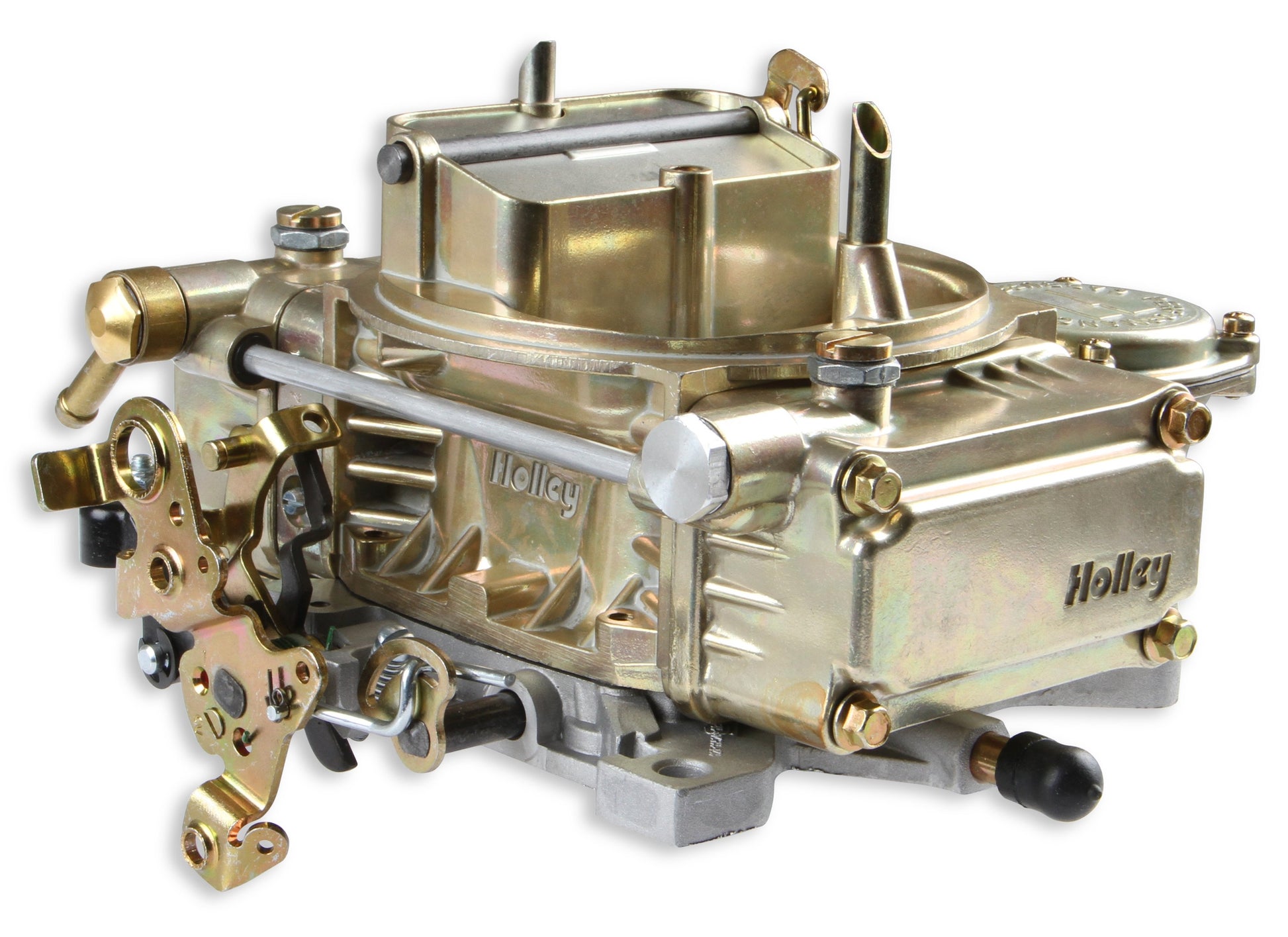

CARBURETOR,4160,390CFM,CLASSIC,VACUUM,ELECTRIC CHOKE

BRAND NEW HOLLEY CLASSIC CARBURETOR, 4BBL, 390 CFM, GOLD DICHROMATE, ELECTRIC CHOKE, 4160 MODEL, COMPATIBLE WITH GASOLINE

CLASSIC HOLLEY CARBURETORSS HAVE BEEN A STAPLE FOR RODDERS AROUND THE WORLD FOR DECADES. CALIBRATED FOR USE ON STOCK TO MILDLY MODIFIED VEHICLES & HAVE CLASSIC HOLLEY LOOKS. THE 0-8007 IS CALIBRATED & INTENDED FOR SMALL V8S OR 6 CYLINDER ENGINES AS WELL AS 2X4 STREET TUNNEL RAM STYLE SET UPS. GOLD DICHROMATE COATED FOR DURABILITY. DO NOT TRUST YOUR PERFORMANCE TO JUST ANYONE, HOLLEY IS THE ONLY MODULAR CARBURETOR COMPANY THAT HAS BEEN IN BUSINESS FOR OVER 100 YEARS.

NOTE: THIS CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT REPLACES HOLLEY, EDELBROCK, CARTER AFB, & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. IF YOU HAVE A SPREADBORE STYLE INTAKE MANIFOLD, YOU WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO THE MR. GASKET #1932.

FEATURES:

• GOLD DICHROMATE FINISH FOR CORROSION RESISTANCE AND CLASSIC HOLLEY LOOKS
• CALIBRATED AND INTENDED FOR SMALL V-8 OR 6 CYLINDER ENGINES & 2 X 4 STREET TUNNEL RAM SET-UPS
• FACTORY PRESET ELECTRIC CHOKE FOR EASY STARTUPS
• VACUUM SECONDARIES FOR USE ON WIDE VARIETY OF VEHICLES. COMPENSATE FOR ALL VEHICLE WEIGHTS, GEARING & TRANSMISSIONS TO ALLOW SMOOTH OPENING OF SECONDARIES
• SINGLE FEED FUEL INLET FOR EASY INSTALLATION
• POWER VALVE BLOW-OUT PROTECTION

SPECS:

• BARRELS: 4
• BILLET COLOR: NONE
• BOOSTER: STRAIGHT
• BRAND: HOLLEY
• CFM: 390
• CHOKE: ELECTRIC
• CIRCUIT: 2
• EMISSION CODE: 3
• FINISH: GOLD DICHROMATE
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• MATERIAL: ZINC
• MODEL: 4160
• PRIMARY MAIN JET: 51
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 25
• PRODUCT TYPE: 4160 MODEL CARBURETOR
• SECONDARIES: VACUUM
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.438"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE, AND THE CARBURETOR NUMERICAL LISTING HERE.
