TRACK WARRIOR 850 CFM BLACK

Brand New Holley Track Warrior Carburetor, 850 CFM, 4150 Mechanical Secondaries, Black (Part #0-67201BK).

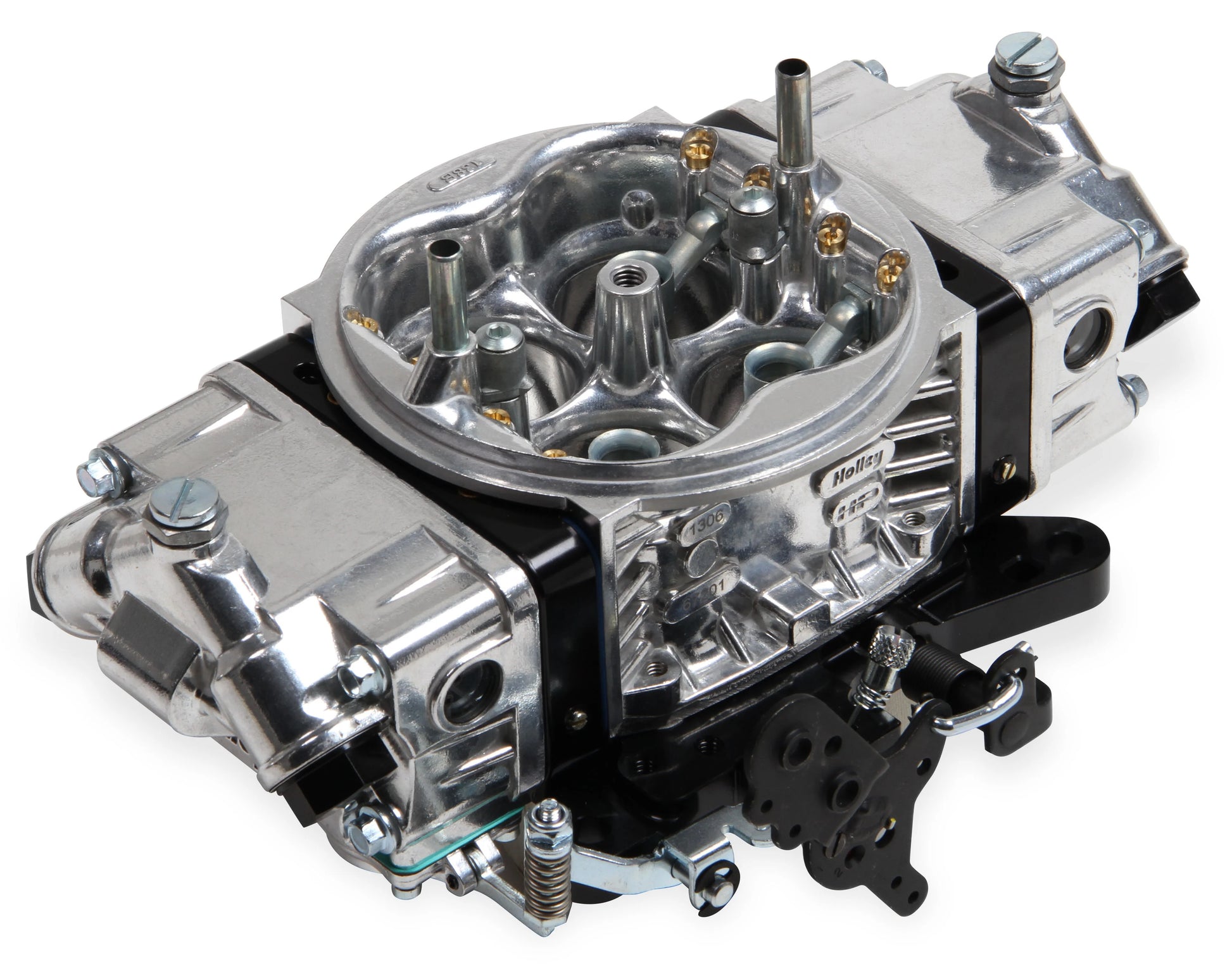

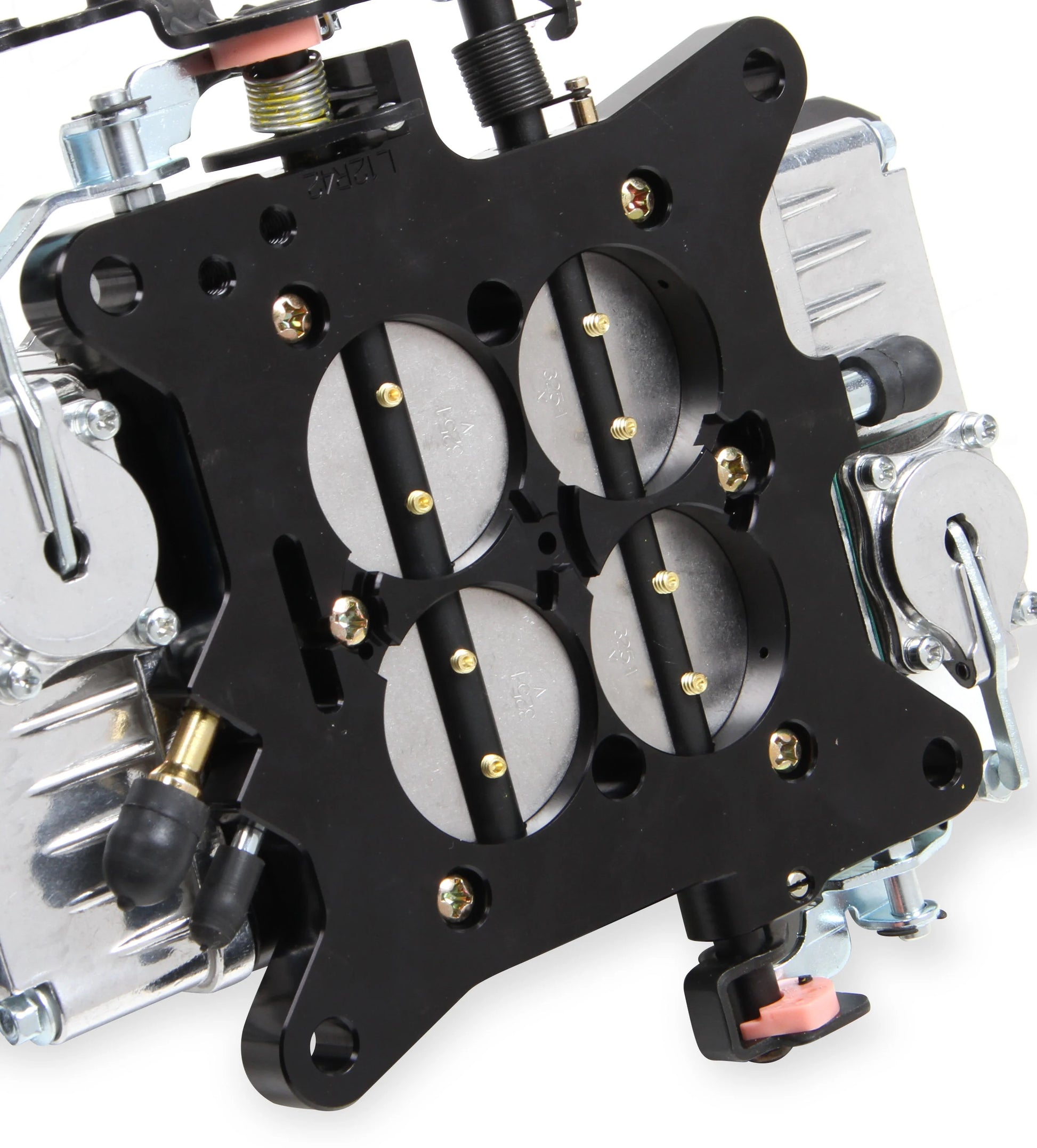

Holley is proud to introduce the all new aluminum Track Warrior carburetors. They utilize the best features from Holley's Race Bred Classic 4150 HP carbs, and we have added billet metering blocks, billet base plate, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. The Track Warrior features an aluminum contoured main body design and has screw in air bleeds for precision tuning capabilities. The all new aluminum Track Warrior weighs up to 40% less and adds horsepower and torque, pushing on the track performance to the next level!

Note:

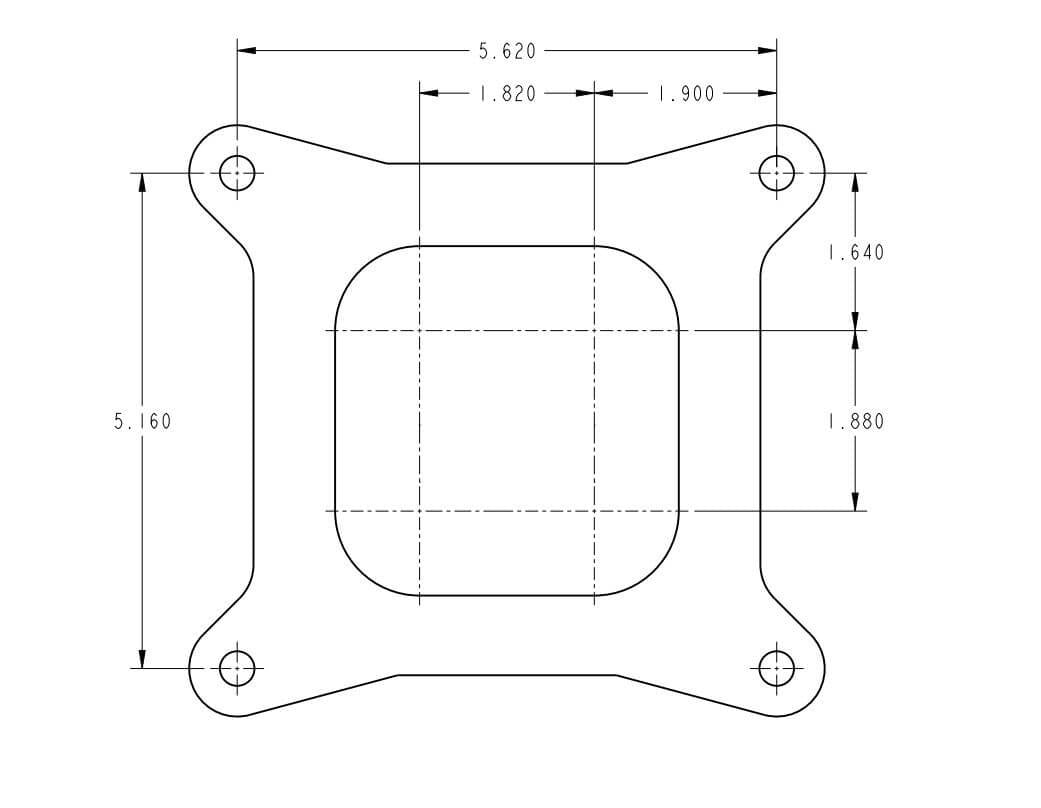

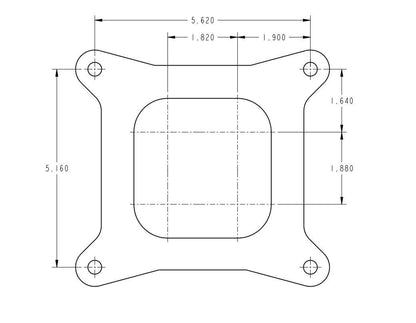

• This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern.
• If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

Features:

• Aluminum construction for weight savings and long lasting good looks in purple or black

• Optimized race calibrations for outstanding throttle response

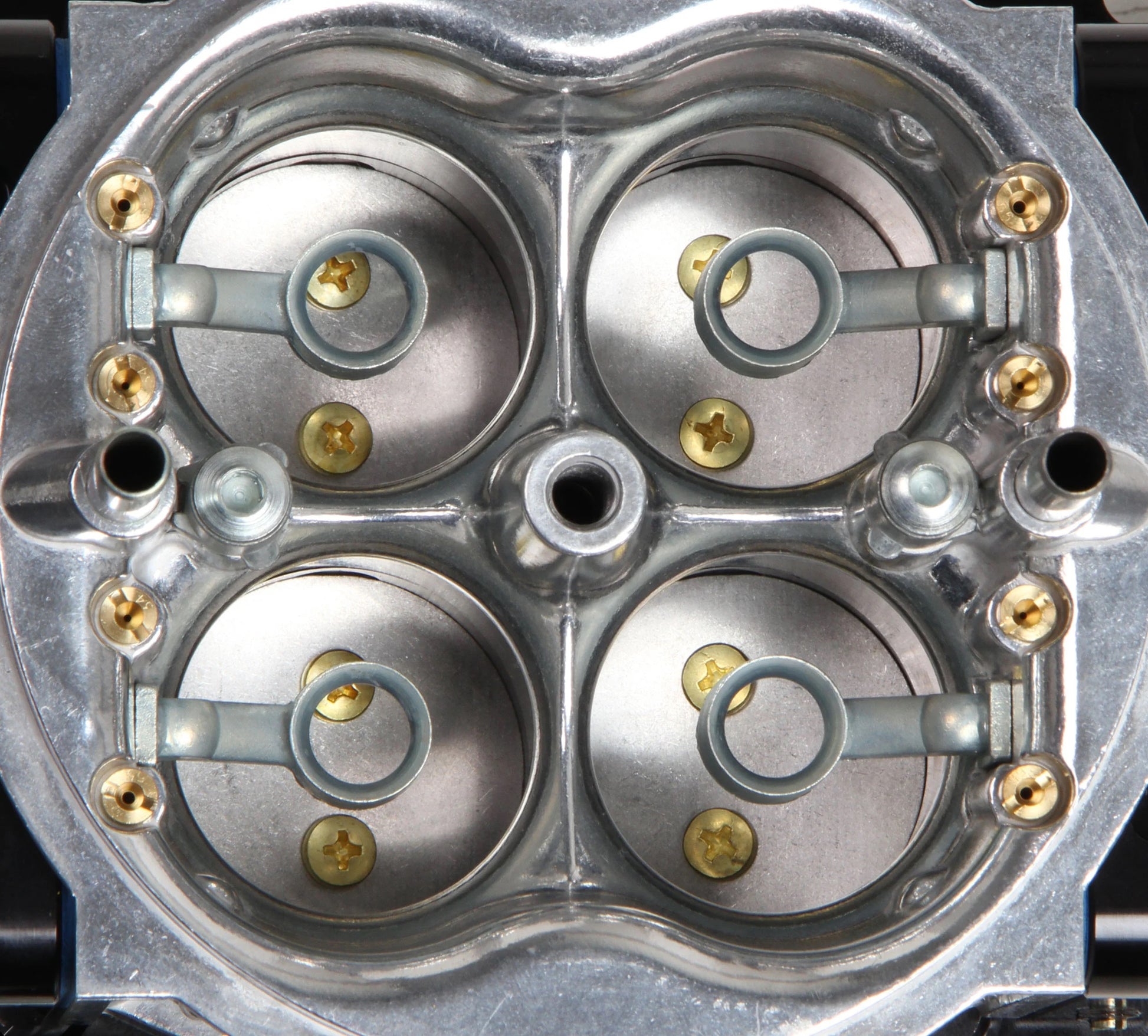

• Contoured venturi inlet offers balanced airflow for increased horsepower

• Screw in air bleeds for precision tuning capabilities

• Four corner idle for precise idle control

• Mechanical secondaries for awesome tire turning performance

• The billet metering blocks feature improved durability over cast blocks, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)

• Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing

• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Specs:

• Barrel Quantity: 4
• Body Color: Black

• Booster Design: Downleg

• Brand: Holley

• Carburetor Material: Aluminum

• Carburetor Use: Performance & Race

• Choke Type: None

• Circuit Count: 2
• Cubic Feet Per Minute Rating: 850
• Flange Type: Square/4150

• Float Level: Externally Adjustable
• Fuel Inlet: Dual

• Fuel Type: Gasoline

• Linkage Attached: Yes
• Primary Main Jet Size: 86

• Primary Nozzle Size: 31
• Primary Power Valve: 4.5
• Secondary Barrel Type: Mechanical

• Secondary Main Jet Size: 94

• Secondary Nozzle Size: 31
• Supercharger Compatible: No

• Throttle Bore Diameter: 1.750 inch

• Venturi Size: 1.563 inch

You can view and download the instruction booklet here.
