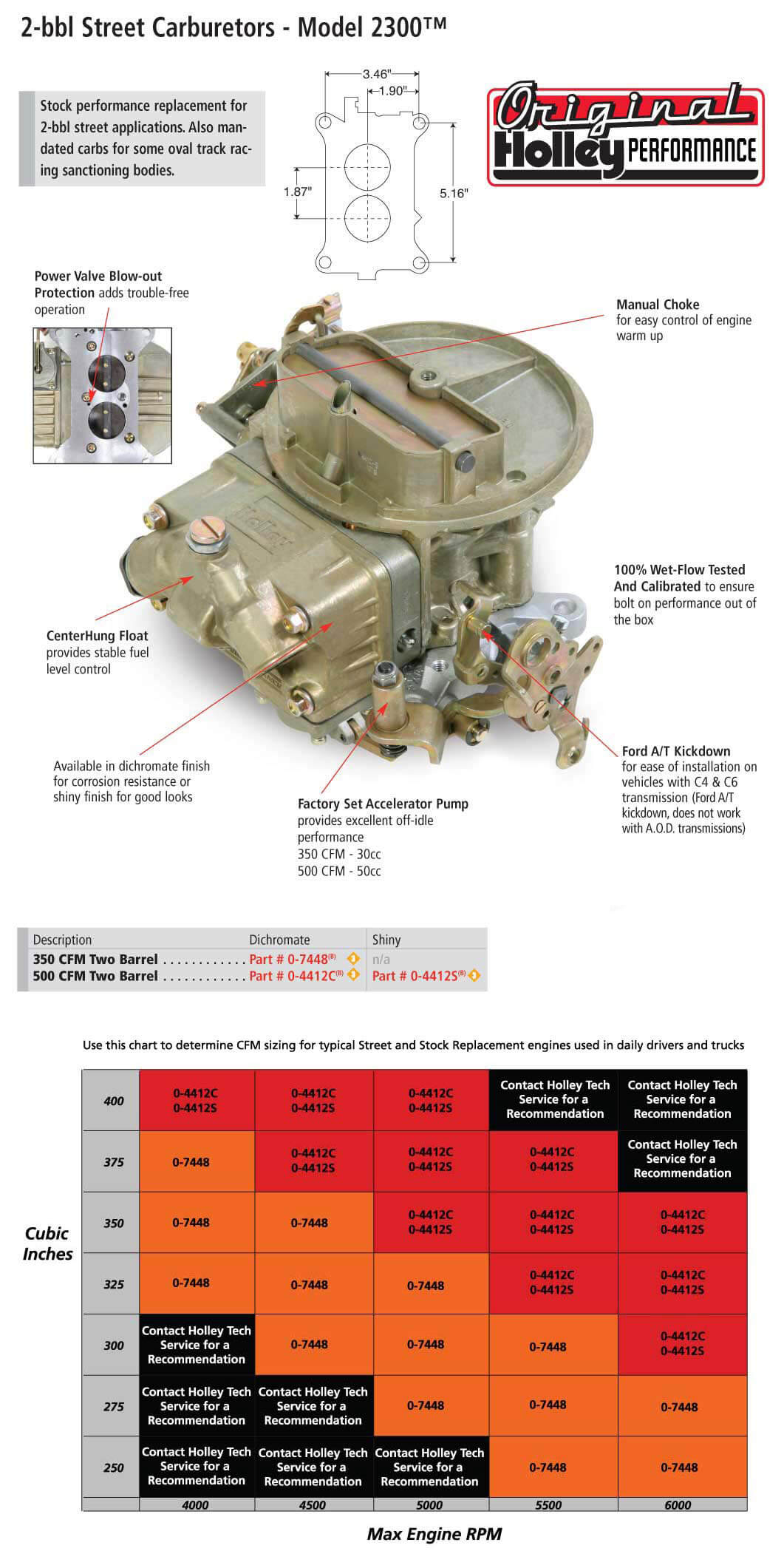

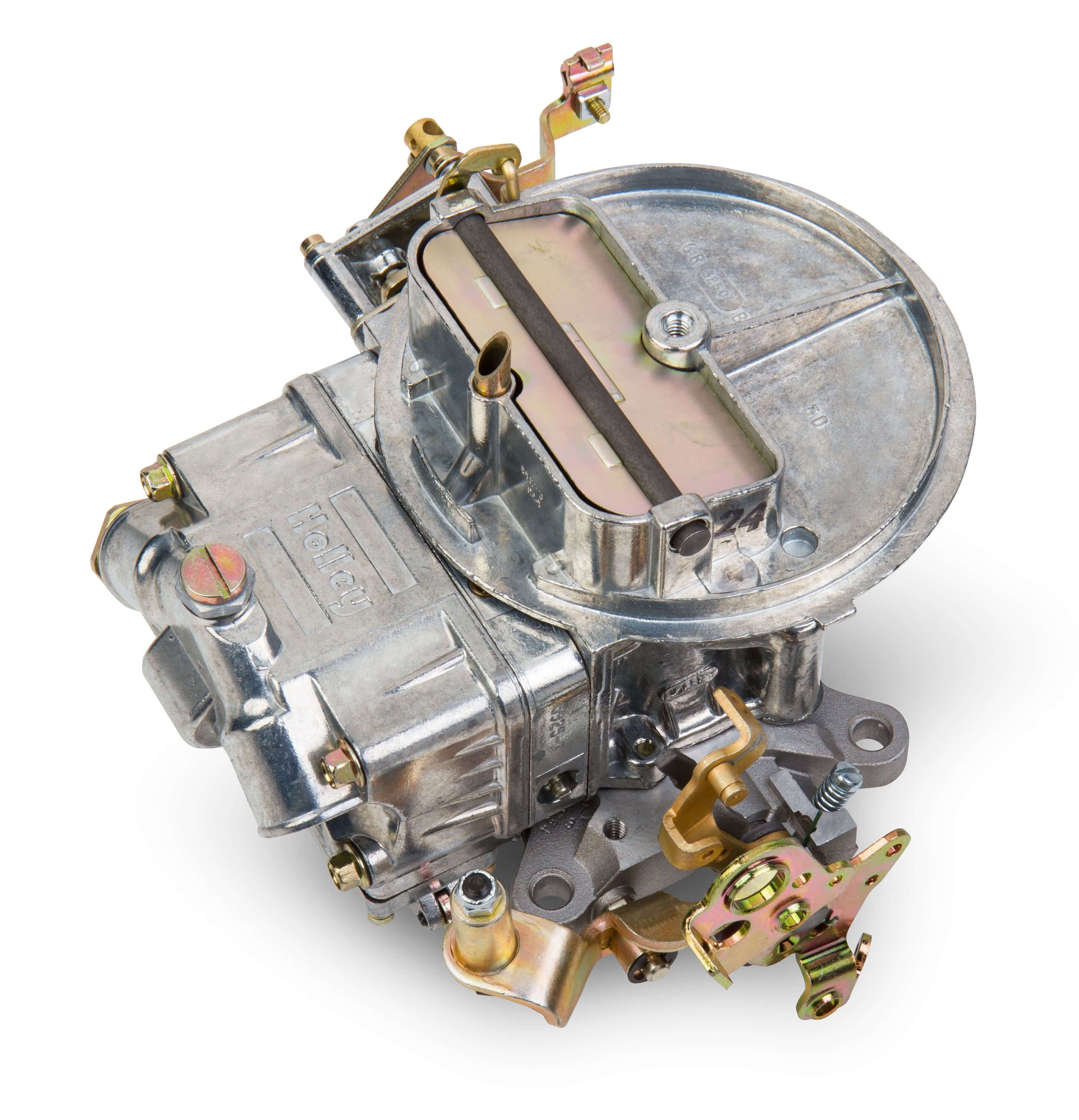

CARBURETOR,2300,500CFM,UNIVERSAL,2BBL,POLISHED

BRAND NEW PERFORMANCE ALUMINUM CARBURETOR,SHINY FINISH, 500 CFM, 2 BARREL CARBURETOR, WITH MANUAL CHOKE

THE 0-4412 IS DESIGNED AS A STOCK REPLACEMENT FOR 2BBL STREET APPLICATIONS AS WELL AS BEING MANDATED FOR SOME OVAL TRACK RACING SANCTIONING BODIES. WHETHER YOU ARE LOOKING FOR A REPLACEMENT CARBURETOR TO REPLACE YOUR TIRED AND WORN FACTORY 2BBL OR ONE TO PUSH YOU TO THE FINISH LINE ON SATURDAY NIGHT, THE HOLLEY 0-4412 PERFORMANCE 2BBL IS THE PERFECT CHOICE. THE 0-4412 IS EASILY THE WINNINGEST TWO BARREL CARBURETOR ON THE MARKET, USED FOR DECADES IN CIRCLE TRACK RACING AROUND THE WORLD!

FEATURES:

• VIBRATORY POLISHED ALUMINUM FOR GOOD LOOKS
• INTENDED AS STOCK PERFORMANCE REPLACEMENT FOR 2-BBL STREET APPLICATIONS. ALSO A MANDATED CARB FOR SOME OVAL TRACK RACING SANCTIONING BODIES
• MANUAL (CABLE DRIVEN, HAND OPERATED) CHOKE FOR PRECISE COLD START CONTROL
• 50CC ACCELERATOR PUMP FOR ADDITIONAL FUEL UNDER INITIAL ACCELERATION
• COMPATIBLE WITH GM, CHRYSLER, AND FORD A/T KICKDOWN LINKAGE. ADDITIONAL PARTS MAY BE REQUIRED.
• POWER VALVE BLOW-OUT PROTECTION
• 100% WET-FLOW TESTED BY HOLLEY TECHNICIANS TO ASSURE IT ARRIVES READY TO RUN!

SPECS:

• BARRELS: 2
• BOOSTER: DOWN LEG
• CFM: 500
• CHOKE: MANUAL
• EMISSION CODE: 3
• FINISH: SHINY
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• MATERIAL: ALUMINUM
• MODEL: 2300
• PRIMARY MAIN JET: 73
• PRIMARY POWER VALVE: 5.0
• PRIMARY PUMP NOZZLE SIZE: 28
• PRODUCT TYPE: 2300 MODEL CARBURETOR
• SECONDARIES: NONE
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.688 INCH
• VACUUM PORTS: 1 TIMED (SPARK) PORT, 1 FULL, AND 1 PCV PORT
• VENTURII SIZE: 1.376 INCH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS CARBURETOR HERE.
