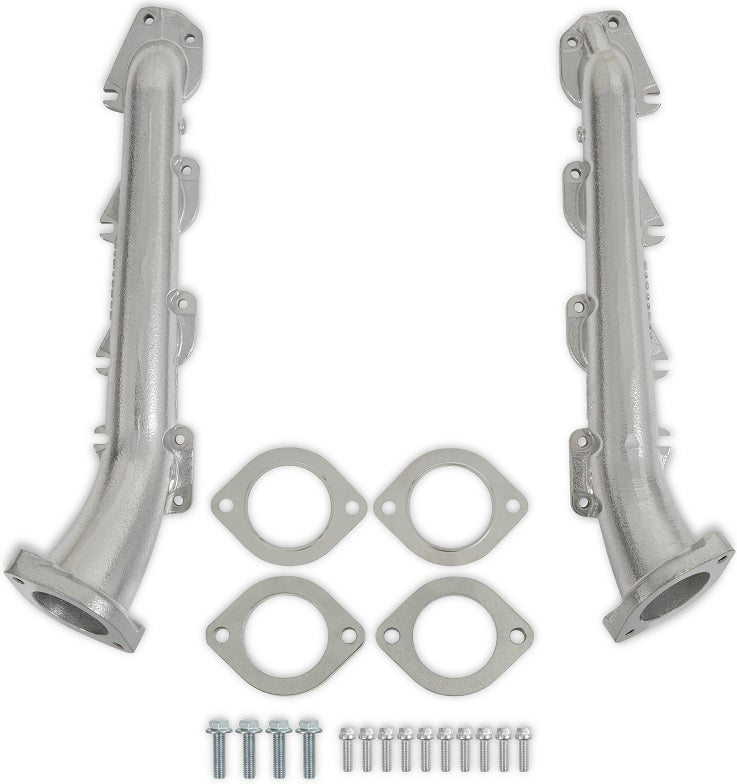

EXHAUST MANIFOLDS,HEMI SWAP,2 1/2 OUTLET,SILVER CERAMIC COATING

BRAND NEW HOOKER BLACKHEART SWAP EXHAUST MANIFOLDS, LOW PROFILE, SILVER CERAMIC FINISH, 2.5-INCH OUTLETS, COMPATIBLE WITH GEN III HEMI ENGINES

HOOKER BLACKHEART GEN III HEMI SWAP EXHAUST MANIFOLDS ARE ONE PART OF A FULLY ENGINEERED SWAP SYSTEM THAT PROVIDES MAXIMUM COMPONENT CLEARANCES AND IDEAL DRIVETRAIN GEOMETRY. THESE MANIFOLDS ARE DESIGNED TO FIT A WIDE RANGE OF SWAP APPLICATIONS WHERE CLEARANCE IS LIMITED.

THESE EXHAUST MANIFOLDS ARE CAST FROM HI-SILICON-MOLY DUCTILE IRON AND FEATURE 2.5-INCH 2-BOLT COLLECTORS. THESE MANIFOLDS PROVIDE CLEARANCE TO THE BRAKE BOOSTER, STEERING SHAFT, STEERING BOX, STARTER MOTOR (BOTH LEFT & RIGHT SIDE-MOUNTED STARTERS) AND PROVIDE CLEARANCE FOR SEVERAL AUTOMATIC & MANUAL TRANSMISSION OPTIONS.

NOTE: REQUIRES BLACKHEART OR WHITE BOX ENGINE MOUNTS, TRANSMISSION CROSSMEMBER, AND APPROPRIATE ADAPTER FOR THE DESIRED TRANSMISSION.

RECOMMENDED HEADER GASKETS:

• 2003-2008 5.7L HEMI ENGINES USE HEADER GASKETS 7594 (OR MOPAR #530139343AA & #53013944AA)
• 6.1L, 6.2L, 6.4L, AND 2009-UP 5.7L HEMI ENGINES (NO EGR) USE HEADER GASKETS - 7595 (OR MOPAR #5038098AA & #5038099AA)
• 2009 & UP 5.7L, AND 2011 & UP 6.4L HEMI ENGINES (WITH EGR & HEAT SHIELD) - MOPAR #5045495AA & #5045496AA

MANIFOLD COMPATIBILITY HAS BEEN CONFIRMED ON THE FOLLOWING GEN III HEMI SWAP VEHICLES WHEN USED WITH HOLLEY ENGINE SWAP COMPONENTS:

• 1967-1972 A-BODY MANUAL STEERING ONLY, REQUIRES POWER STEERING OR SHORTENED STEERING COLUMN TUBE & U-JOINT STYLE COUPLER
• 1966-1972 B-BODY-MANUAL OR POWER STEERING
• 1970-1974 E-BODY-MANUAL OR POWER STEERING
• 1987-1996 DODGE DAKOTA 2WD V6/V8

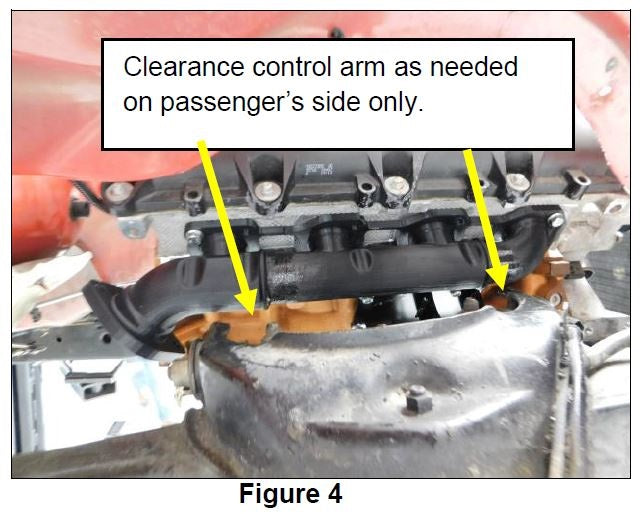

• 1997-2004 DODGE DAKOTA 2WD V6/V8-UPPER CONTROL ARM CLEARANCE RECOMMENDED
• 1972-1993 DODGE D100/D150

HOLLEY ENGINE MOUNTS OR ADAPTER BRACKETS ARE REQUIRED FOR CORRECT FITMENT:

• 1967-1972 A-BODY MANUAL STEERING ONLY, REQUIRES POWER STEERING OR SHORTENED STEERING COLUMN TUBE & U-JOINT STYLE COUPLER
• SQUARE EXHAUST PORT-OEM GASKET PART #53013943AA & PART #53013944AA OR 7594
• D-SHAPED EXHAUST PORT (NO EGR) OEM GASKET PART #05038098AA & PART #05038099AA OR #7595
• D-SHAPED EXHAUST PORT (WITH EGR AND HEAT SHIELD) OEM GASKET PART #5045495AA & #5045496AA

FEATURES:

• GEN III HEMI SWAP EXHAUST MANIFOLDS - A COMPACT, HIGH FLOW DESIGN WITH A FACTORY LOOK THAT IS IDEAL FOR ENGINE SWAPS WITH LIMITED SPACE
• CAST FROM HEAVY-DUTY HI-SILICON-MOLY DUCTILE IRON FOR LONG-LASTING DURABILITY
• 2.5-INCH OUTLET DIAMETER OFFERS IMPROVED FLOW FOR MAXIMUM PERFORMANCE FROM CAST IRON EXHAUST MANIFOLD
• INCLUDES COLLECTOR FLANGES, MULTI-LAYER STAINLESS STEEL (MLS) COLLECTOR GASKETS & BOLTS THAT MAKE IT EASY TO FABRICATE DOWNPIPES
• WORKS WITH LEFT OR RIGHT-HAND SIDE STARTERS AND ALL POPULAR TRANSMISSIONS
• THE SLOTTED BOTTOM ROW OF HOLES MAKES IT EASY TO INSTALL (ON PRE-INSTALLED LOWER BOLTS AND GASKET FOR EACH CYLINDER HEAD)
• IDEAL FOR USE IN APPLICATIONS THAT REQUIRE CATALYTIC CONVERTORS

SPECS:

• BOLT SIZE: M8 X 1.25 X 25MM
• BRAND: HOOKER BLACKHEART
• COLLECTOR DIAMETER: 2.50 INCH
• ENGINE: GEN 3 HEMI
• HEADER FINISH: SILVER CERAMIC
• HEADER STYLE: MANIFOLD
• PRIMARY TUBE DIAMETER: 1-3/4 INCH
• PRODUCT TYPE: MANIFOLD
• TUBE MATERIAL: CAST IRON

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE SWAP EXHAUST MANIFOLDS HERE.
