ENGINE MOUNTS,HEMI SWAP,MOPAR 70-74 E-BODY,V8 K-MEMBER

ENGINE MOUNTS,HEMI SWAP,MOPAR 70-74 E-BODY,V8 K-MEMBER

SKU:HEH BHS566

Regular price $159.95
Regular price Sale price $159.95
View full details

BRAND NEW HOOKER BLACKHEART ENGINE MOUNT BRACKETS, BLACK FINISH, GEN III HEMI, COMPATIBLE WITH 1970-1974 CHALLENGER V8

PART OF AN ENGINEERED SOLUTION THAT WORKS TOGETHER WITH THE TRANSMISSION CROSSMEMBER AND HEADERS TO OPTIMIZE THE ENGINE PLACEMENT & COMPONENT CLEARANCES ALONG WITH IDEAL DRIVETRAIN / U-JOINT OPERATION ANGLES.

ENGINE MOUNT BRACKETS FIT THE K-MEMBER ON CARS THAT ORIGINALLY CAME FROM THE FACTORY WITH A V8 ENGINE. CLEARANCE WAS PROVIDED FOR THE SHORT RUNNER VALVE (SRV) INTAKE SOLENOID, LOW MOUNT ALTERNATOR & LOW MOUNT A/C COMPRESSORS WHEN USED WITH VVT (VARIABLE VALVE TIMING) ACCESSORY DRIVE.

NOTE: VEHICLES THAT CAME FROM THE FACTORY WITH SLANT-6 ENGINE OR 426 HEMI ENGINE WILL NEED TO SWAP OUT K-MEMBER WITH ONE FROM V8 ENGINE (ALL EXCEPT 426 HEMI)

NOTE: INSTALLING THESE BRACKETS REQUIRES USE OF NEW OE STYLE RUBBER OR POLYURETHANE ENGINE MOUNTS LAKEWOOD PART # 24096LKW OR SIMILAR (POWER TORQUE B2250). REQUIRE TYPICAL MODIFICATIONS FOR ENGINE BLOCK CLEARANCE

NOTE: INSTALLING A GEN 3 HEMI INTO THIS VEHICLE WILL REQUIRE THE ENGINE TO HAVE A MID-SUMP OIL PAN (I.E. PART #302-60, #302-61, #5050WND, #5051WND, OR #WB11010)

NOTE: USE WITH BLACKHEART HEADERS BH2358 (ENGINEERING FITMENT WITH THESE ENGINE MOUNTS)

USE WITH BHS567 TRANSMISSION CROSSMEMBER & TRANSMISSION SPECIFIC ADAPTER (SOLD SEPARATELY):

  • BHS568 A727 TRANSMISSION ADAPTER
  • BHS569 NAG1 TRANSMISSION ADAPTER
  • BHS570 8HP70 TRANSMISSION ADAPTER
  • BHS591 8HP90 TRANSMISSION ADAPTER
  • BHS592 TREMEC TXK (GM STYLE)

COMPATIBLE WITH:

  • PLYMOUTH:
    • 1970-1974 BARRACUDA
    • 1970-1974 CUDA
  • DODGE:
    • 1970-1974 CHALLENGER

FEATURES:

  • GEN III HEMI ENGINES 2003 & UP 5.7L/6.1L/6.2L/6.4L ENGINES & V8 K-MEMBER (ALL EXCEPT 426 HEMI)
  • HEAVY DUTY 3/16" STEEL CONSTRUCTION FOR STRENGTH & DURABILITY
  • SHORT RUNNER VALVE (SRV) INTAKE SOLENOID CLEARS FIREWALL - ELIMINATES FIREWALL MODIFICATIONS OR NEED TO ELIMINATE SRV & SACRIFICE TOP END PERFORMANCE
  • 4 OEM ENGINE MOUNT BOLT HOLES FOR OEM STYLE MOUNTING & STRENGTH
  • DRIVERS SIDE ENGINE MOUNTS FEATURE A 5TH BOLT HOLE THAT CAN BE USED ON LATER ENGINE BLOCKS TO SIMPLIFY INSTALLATION
  • OPTIMAL ENGINE LOCATION & CRANKSHAFT CENTERLINE PROVIDES THE MOST TRANSMISSION ALTERNATIVES WITH LEAST AMOUNT OF SHEET METAL WORK TO TRANSMISSION TUNNEL & OPTIMIZED DRIVELINE ANGLES
  • USES OEM STYLE RUBBER OR POLYURETHANE ISOLATOR MOUNTS (LAKEWOOD # 24096LKW W/ TYPICAL BLOCK CLEARANCE PERFORMED)

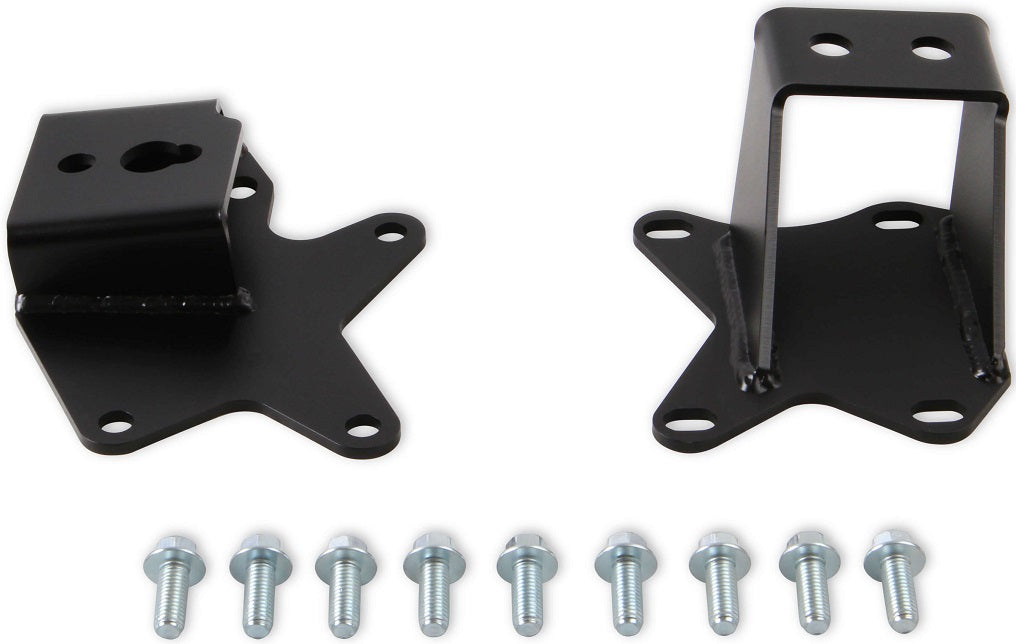

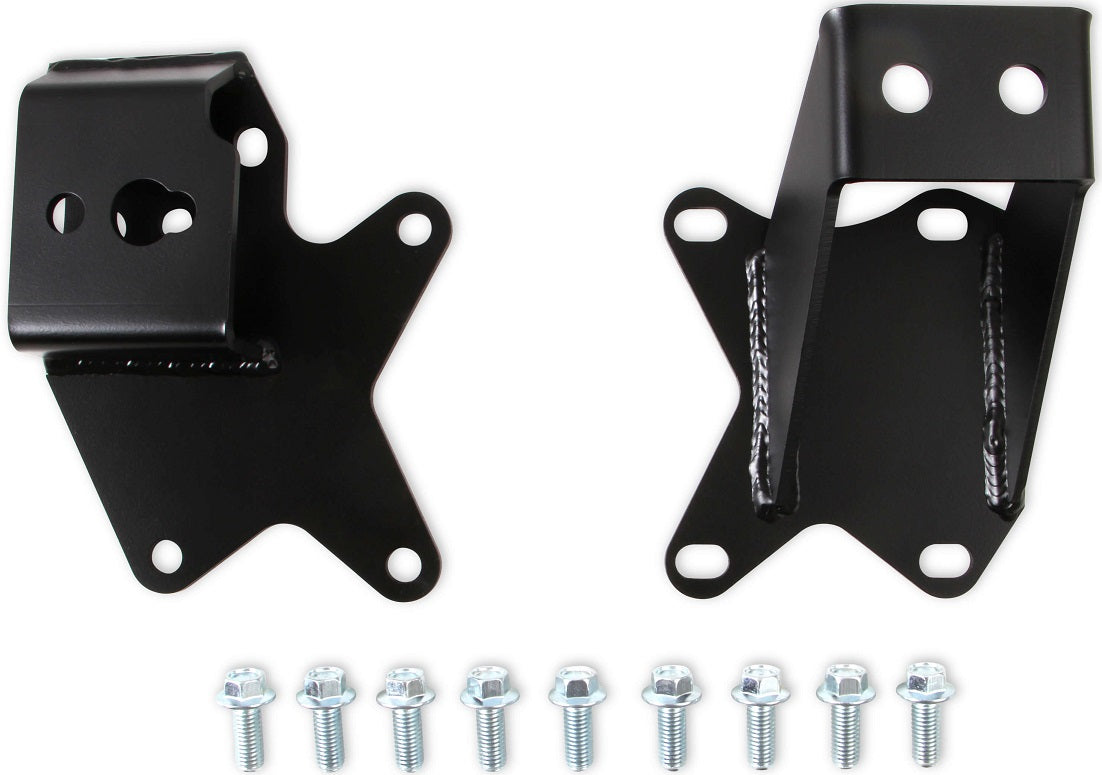

  • INCLUDES 2 ENGINE MOUNTING BRACKETS, ATTACHING HARDWARE & INSTRUCTIONS

SPECS:

  • APPLICATION: 1970-1974 MOPAR E-BODY
  • BRAND: HOOKER BLACKHEART
  • FINISH/MATERIAL: BLACK PAINTED STEEL
  • MOTOR TYPE: CHRYSLER GEN III HEMI
  • PRODUCT TYPE: ENGINE MOUNT BRACKETS
  • TRANSMISSION: 8HP70 | 8HP90 | A727 | NAG1 | TKX CHEVY

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE BRACKETS HERE.
