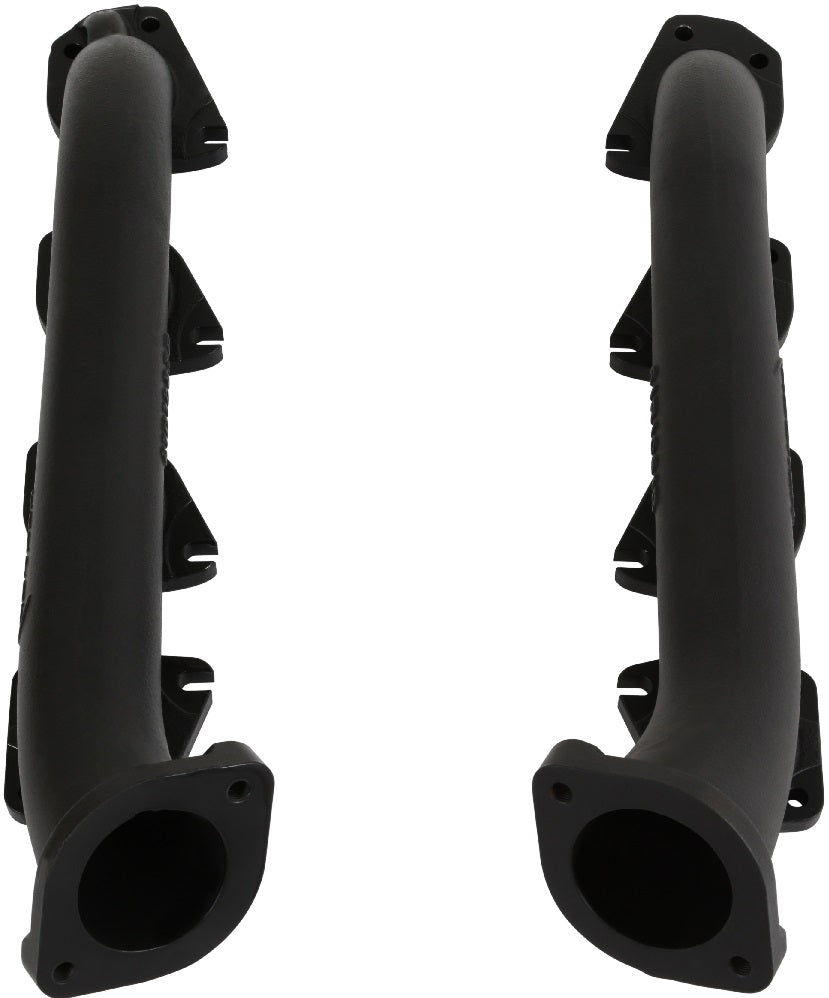

EXHAUST MANIFOLDS,HEMI SWAP,2 1/2 OUTLET,BLACK CERAMIC COATING

BRAND NEW HOOKER BLACKHEART SWAP EXHAUST MA�NIFOLDS, BLACK CERAMIC FINISH, 2.5-INCH OUTLETS, COMPATIBLE WITH GEN III HEMI ENGINES

HOOKER BLACKHEART GEN III HEMI SWAP EXHAUST MA�NIFOLDS ARE ONE PART OF A FULLY ENGINEERED SWAP SYSTEM THAT PROVIDES MAXIMUM COMPONENT CLEARANCES AND IDEAL DRIVETRAIN GEOMETRY. THESE MA�NIFOLDS ARE DESIGNED TO FIT A WIDE RANGE OF SWAP APPLICATIONS WHERE CLEARANCE IS LIMITED.

THESE EXHAUST MA�NIFOLDS ARE CAST FROM HI-SILICON-MOLY DUCTILE IRON AND FEATURE 2.5-INCH 2-BOLT COLLECTORS. THESE MA�NIFOLDS PROVIDE CLEARANCE TO THE BRAKE BOOSTER, STEERING SHAFT, STEERING BOX, STARTER MOTOR (BOTH LEFT & RIGHT SIDE-MOUNTED STARTERS) AND PROVIDE CLEARANCE FOR SEVERAL AUTOMATIC & MANUAL TRANSMISSION OPTIONS.

NOTE: REQUIRES BLACKHEART OR WHITE BOX ENGINE MOUNTS, TRANSMISSION CROSSMEMBER, AND APPROPRIATE ADAPTER FOR THE DESIRED TRANSMISSION.

RECOMMENDED HEADER GASKETS:

• 2003-2008 5.7L HEMI ENGINES USE HEADER GASKETS 7594 (OR MOPAR #530139343AA & #53013944AA)
• 6.1L, 6.2L, 6.4L, AND 2009-UP 5.7L HEMI ENGINES (NO ЕGR) USE HEADER GASKETS - 7595 (OR MOPAR #5038098AA & #5038099AA)
• 2009 & UP 5.7L, AND 2011 & UP 6.4L HEMI ENGINES (WITH ЕGR & HEAT SHIELD) - MOPAR #5045495AA & #5045496AA

MA�NIFOLD COMPATIBILITY HAS BEEN CONFIRMED ON THE FOLLOWING GEN III HEMI SWAP VEHICLES WHEN USED WITH HOLLEY ENGINE SWAP COMPONENTS:

• 1966-1972 B-BODY - MANUAL STEERING ONLY, REDUCED HEAD COVER BOLT RECOMMENDED
• 1970-1974 E-BODY - MANUAL STEERING ONLY, REDUCED HEAD COVER BOLT RECOMMENDED
• 1987-1996 DODGE DАKOTA 2WD V6/V8
• 1997-2004 DODGE DАKOTA 2WD V6/V8 - UPPER CONTROL ARM CLEARANCE RECOMMENDED
• 1972-1993 DODGE D100/D150 - AUTOMATIC TRANSMISSION ONLY

FEATURES:

• GEN III HEMI SWAP EXHAUST MA�NIFOLDS - A COMPACT, HIGH FLOW DESIGN WITH A FACTORY LOOK THAT IS IDEAL FOR ENGINE SWAPS WITH LIMITED SPACE
• CAST FROM HEAVY-DUTY HI-SILICON-MOLY DUCTILE IRON FOR LONG-LASTING DURABILITY
• 2.5-INCH OUTLET DIAMETER OFFERS IMPROVED FLOW FOR MAXIMUM PERFORMANCE FROM CAST IRON EXHAUST MA�NIFOLD

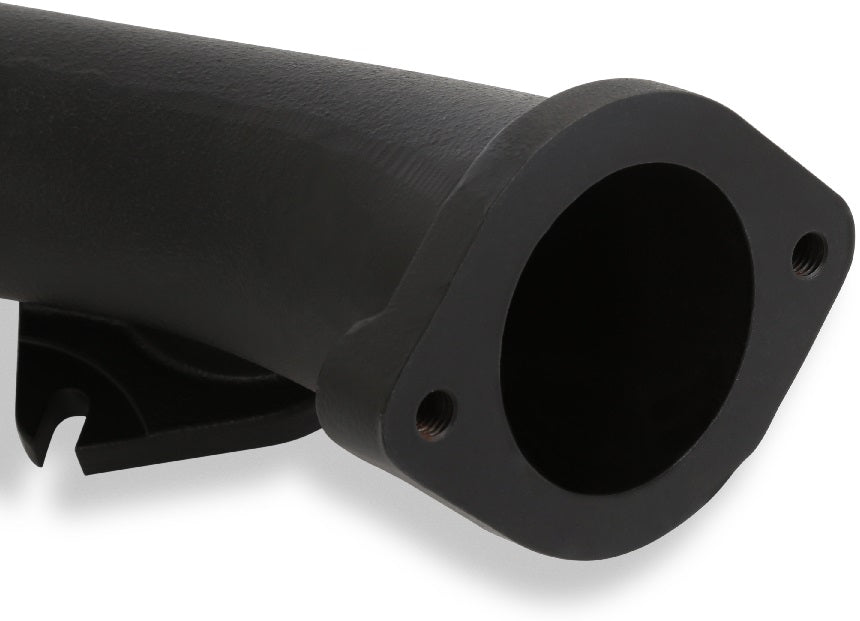

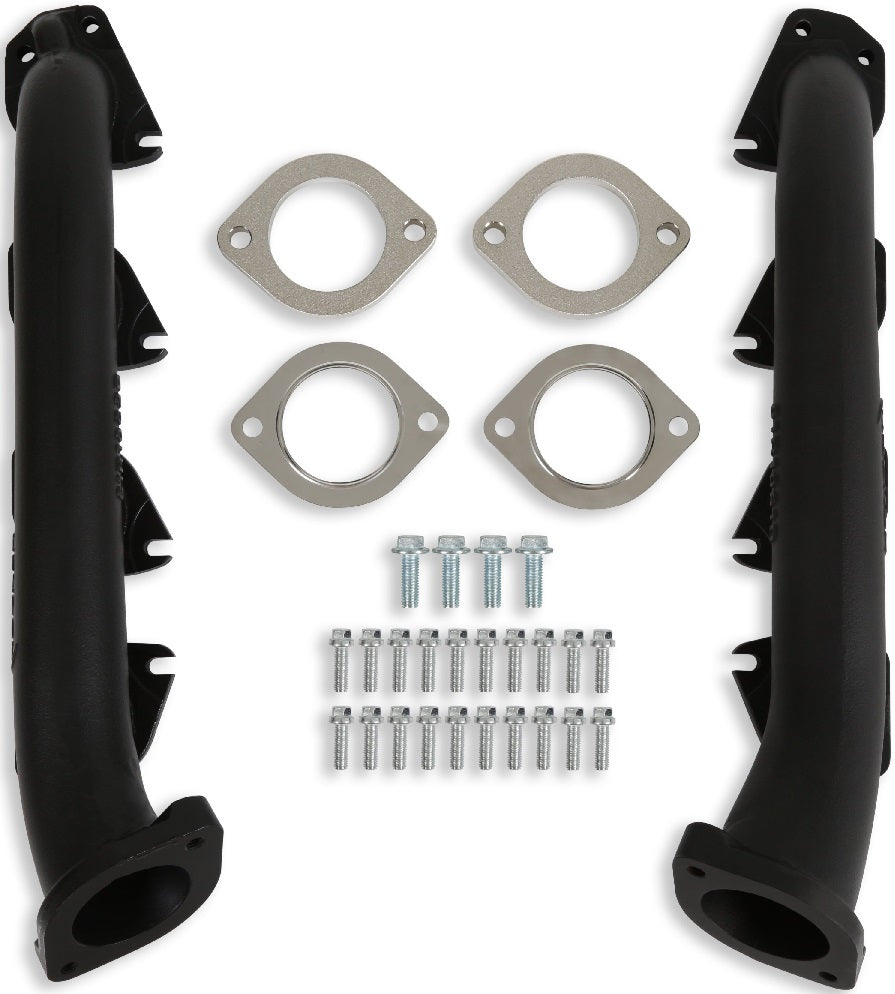

• INCLUDES COLLECTOR FLANGES, MULTI-LAYER STAINLESS STEEL (MLS) COLLECTOR GASKETS & BOLTS THAT MAKE IT EASY TO FABRICATE DOWNPIPES
• WORKS WITH LEFT OR RIGHT-HAND SIDE STARTERS AND ALL POPULAR TRANSMISSIONS

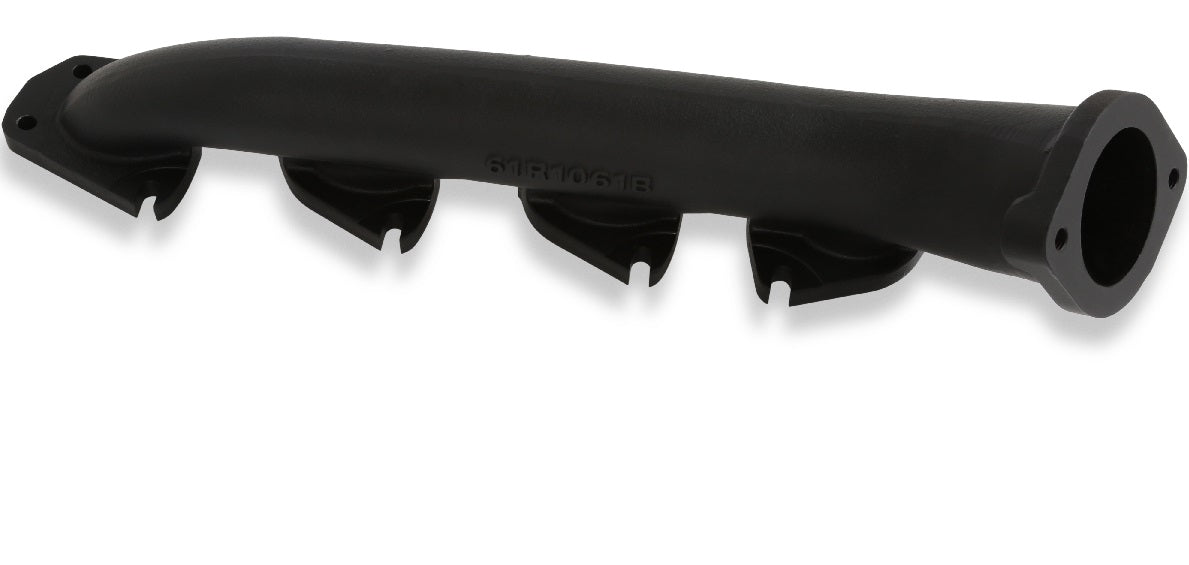

• THE SLOTTED BOTTOM ROW OF HOLES MAKES IT EASY TO INSTALL (ON PRE-INSTALLED LOWER BOLTS AND GASKET FOR EACH CYLINDER HEAD)
• IDEAL FOR USE IN APPLICATIONS THAT REQUIRE CАTАLYTIC CONVERTORS

SPECS:

• BRAND: HOOKER BLACKHEART
• COLLECTOR DIAMETER: 2.50 INCH
• ENGINE: GEN 3 HEMI
• HEADER FINISH: BLACK CERAMIC
• HEADER STYLE: MA�NIFOLD
• PRIMARY TUBE DIAMETER: 1-3/4 INCH
• PRODUCT TYPE: MA�NIFOLD
• TUBE MATERIAL: CAST IRON

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE SWAP EXHAUST MANIFOLDS HERE.
