ENGINE MOUNTS,GEN-V LT SWAP,FRONT,88-98 C-1500

ENGINE MOUNTS,GEN-V LT SWAP,FRONT,88-98 C-1500

HEH BHS553

$155.95
$155.95
View full details

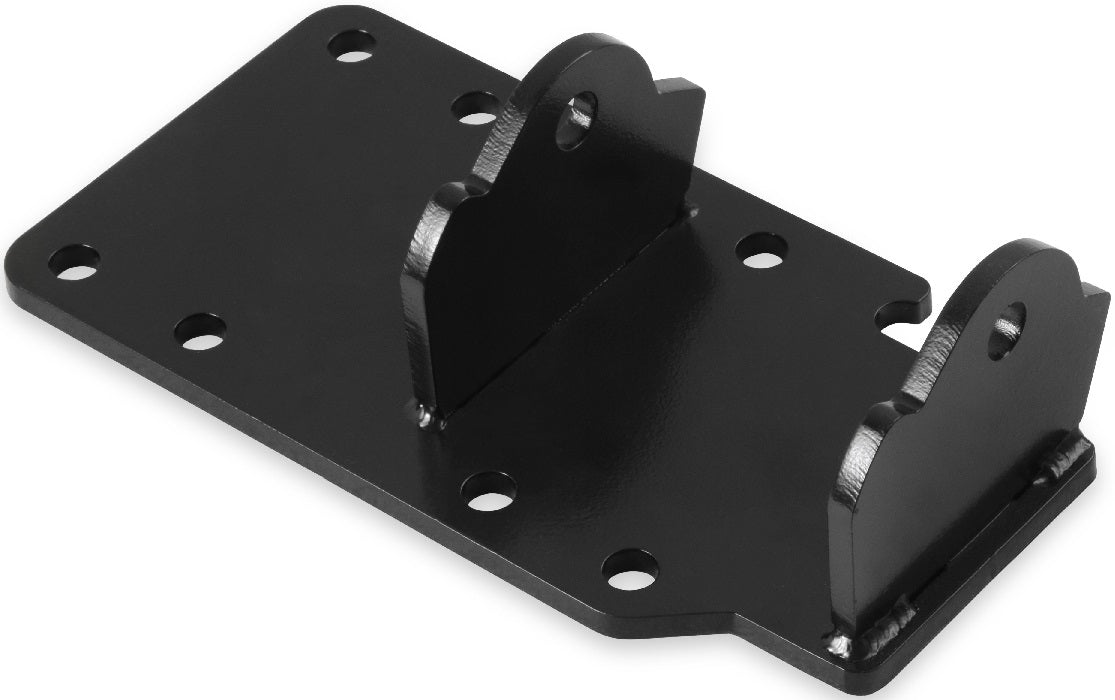

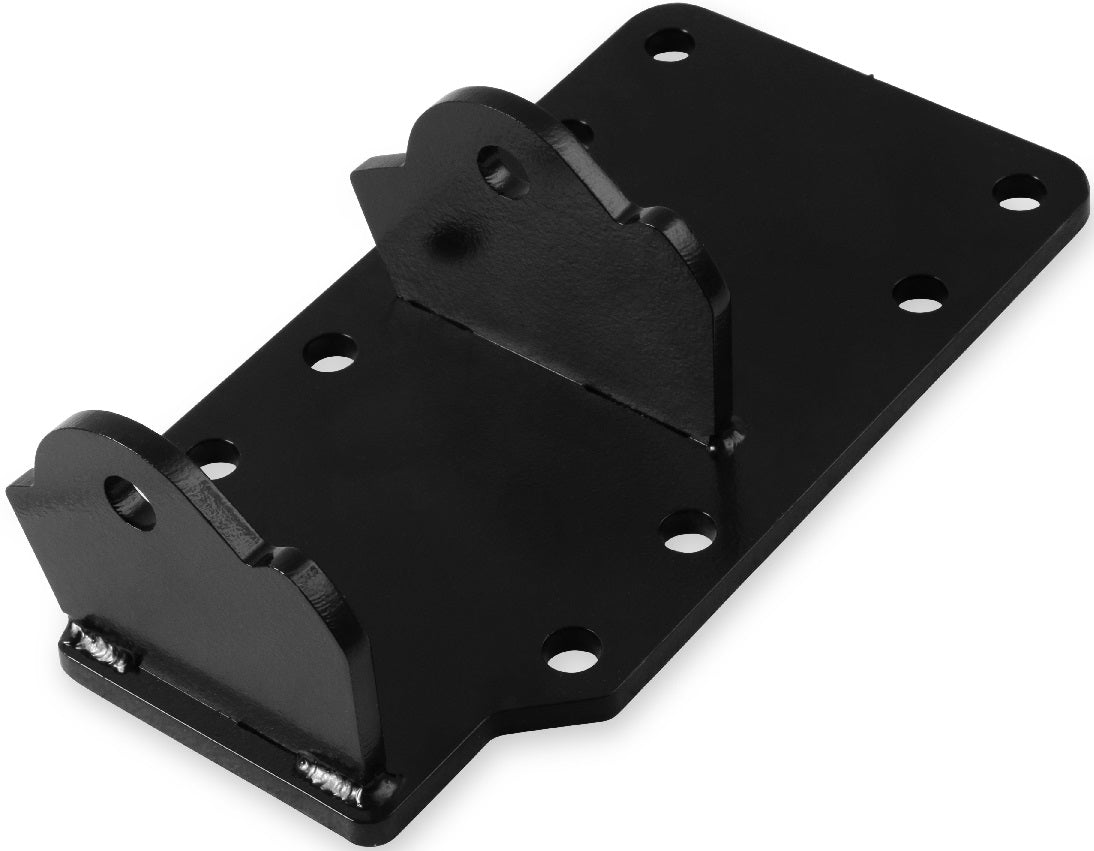

BRAND NEW HOOKER BLACKHEART STANDARD LT SWAP MOUNT BRACKETS, BLACK FINISH, COMPATIBLE WITH GM 1988-1998 C1500 RWD TRUCKS

HOOKER BLACKHEART APPLICATION-SPECIFIC LT SWAP ENGINE MOUNTING BRACKETS ELIMINATE INSTALL GUESSWORK & COMPATIBILITY UNCERTAINTY WITH USING UNIVERSAL SWAP PLATE MOUNTING METHODS. AVAILABLE WITH DUAL ENGINE MOUNTING POSITIONS THAT OPTIMIZE POWERTRAIN PLACEMENT BASED ON USER-SELECTED TRANSMISSION, TRANSFER CASE AND DRIVESHAFT COMPATIBILITY/RETENTION PRIORITIES.

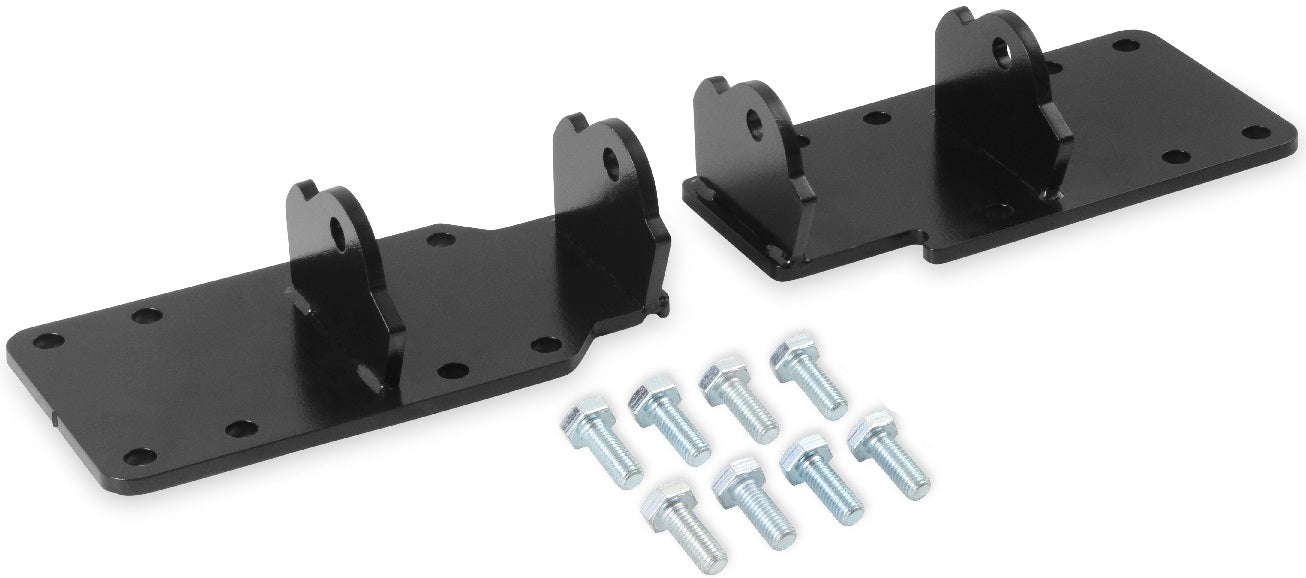

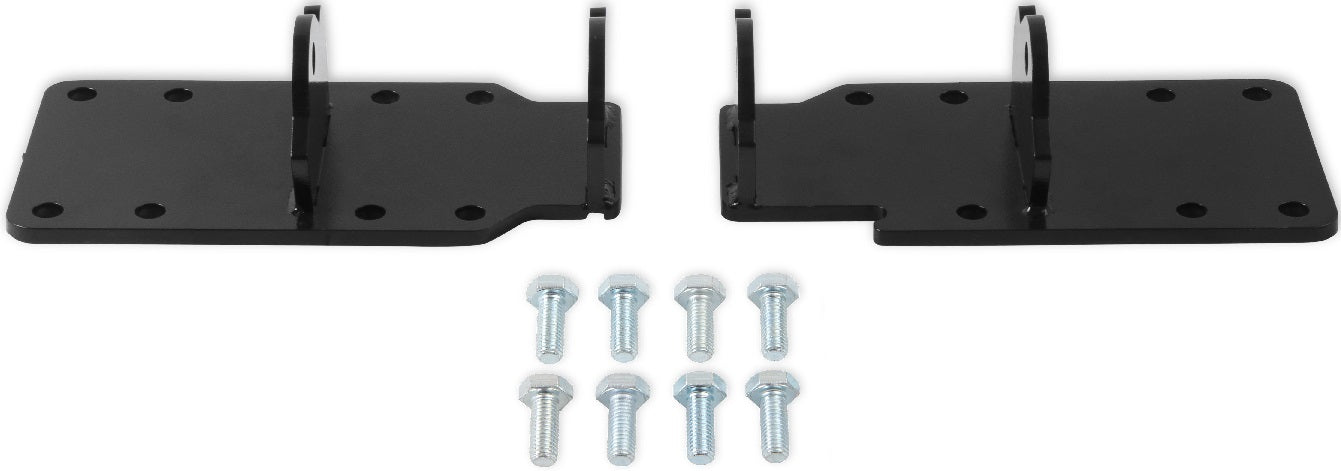

THE FACTORY TRANSMISSION CROSSMEMBER IS RE-USED WITH THESE MOUNTING BRACKETS (COST SAVINGS SINCE DRIVESHAFTS AND CROSSMEMBER ARE RE-USED). OFF-ROAD RACING APPLICATIONS CAN USE HOOKER BLACKHEART PART #BH13272 LT SWAP HEADERS. MOUNTS FEATURE A BLACK POWDER-COATED FINISH & INCLUDE 2 ENGINE MOUNTING BRACKETS, ATTACHING HARDWARE & INSTRUCTIONS.

NOTE: COMPATIBLE WITH THE V8 ENGINE MOUNTS THAT WERE FACTORY INSTALLED ON THESE TRUCKS. USING THESE BRACKETS ON 4.3L V6 EQUIPPED TRUCKS WILL REQUIRE THE FACTORY V6 FRAME SIDE ENGINE MOUNTS & BRACKETS TO BE REMOVED AND REPLACED WITH V8 ENGINE MOUNTS.

COMPATIBLE WITH:

  • CHEVROLET:
    • 1988-1998 C1500
  • GMC:
    • 1988-1998 C1500

FEATURES:

  • STANDARD ENGINE MOUNTING BRACKETS - FOR 2WD 1/2-TON TRUCKS
  • STANDARD ENGINE MOUNT BRACKETS (BHS553, OR BHS556) ARE COMPATIBLE WITH FACTORY V8 ENGINE ISOLATORS & PROVIDE A SIMPLE, COST-EFFECTIVE GEN-V LT ENGINE MOUNTING SOLUTION
  • STANDARD MOUNTING BRACKETS ARE ENGINEERED TO ACCOMMODATE EITHER ENGINE LOCATION (DUAL MOUNTING POSITIONS)
  • COMPATIBLE WITH HOOKER BLACKHEART PART #BH13272 LT SWAP HEADERS FOR RACING & COMPETITION APPLICATIONS
  • FACTORY DRIVESHAFTS & TRANSMISSION CROSSMEMBER ARE RE-USED WITH ENGINE SWAP FABRICATED 1/4" STEEL PLATE CONSTRUCTION
  • SEMI-GLOSS BLACK POWDER COATED FINISH
  • ALLOWS USE OF ELECTRIC COOLING FAN, OR FACTORY VORTEC MECHANICAL COOLING FAN
  • COMPATIBLE OIL PAN PART #302-20

SPECS:

  • APPLICATION: 1988-1998 CHEVROLET / GMC C1500 SERIES TRUCK
  • BRAND: HOOKER BLACKHEART
  • ENGINE POSITION: DUAL
  • FINISH: BLACK POWDER COATED
  • MATERIAL: STEEL
  • MOTOR TYPE: GM LT
  • PRODUCT TYPE: ENGINE MOUNT BRACKETS
  • TRANSMISSION: 4L60E | 4L70E | 6L80E | 6L90E | 700R4 | T56 GM | T56 MAGNUM GM | TH400

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE BRACKETS HERE.
