ENGINE MOUNTS,LS SWAP,FRONT,88-98 C-1500

BRAND NEW HOOKER BLACKHEART ENGINE MOUNTING BRACKETS (HOLLEY PART #BHS552)

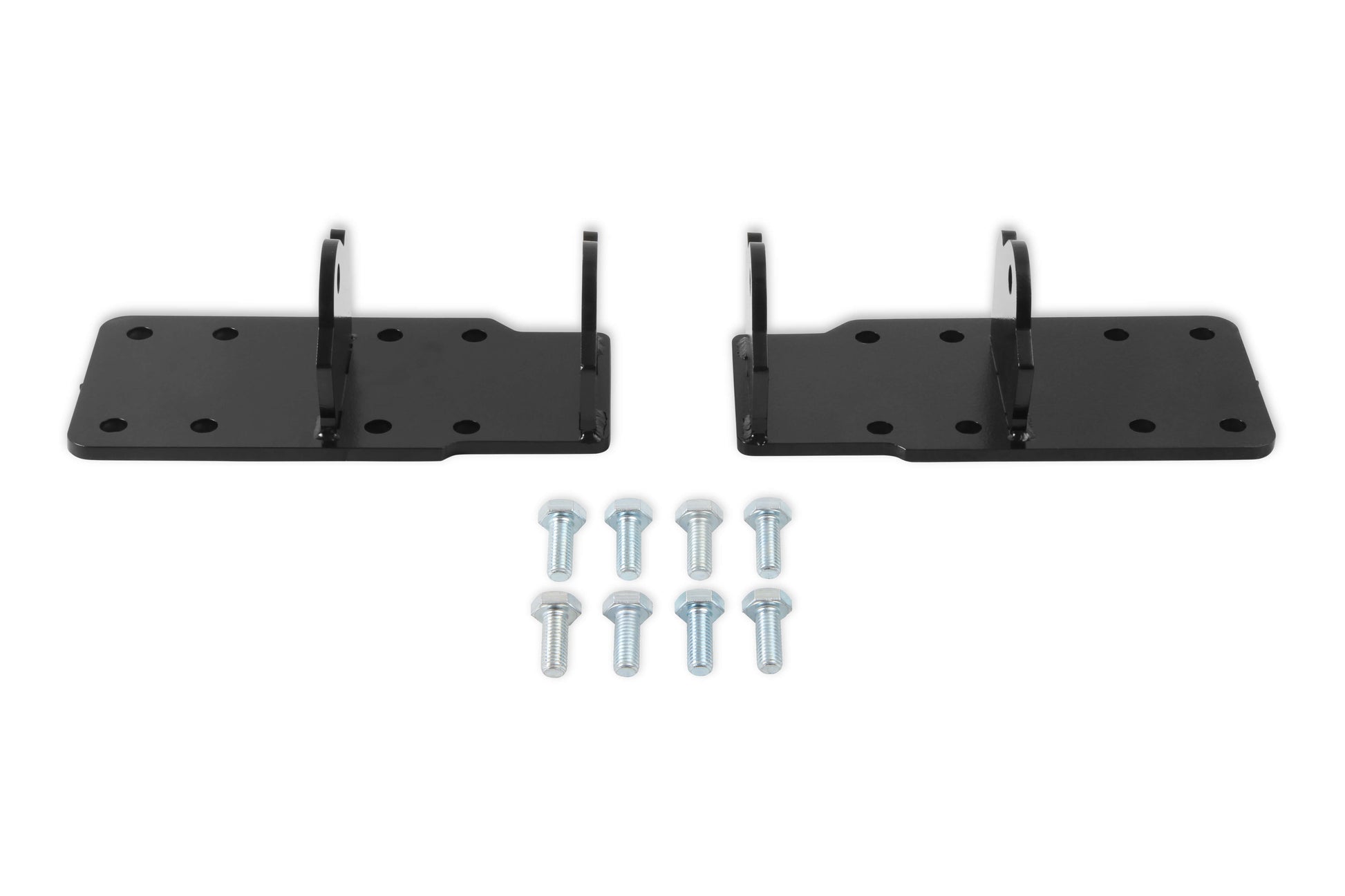

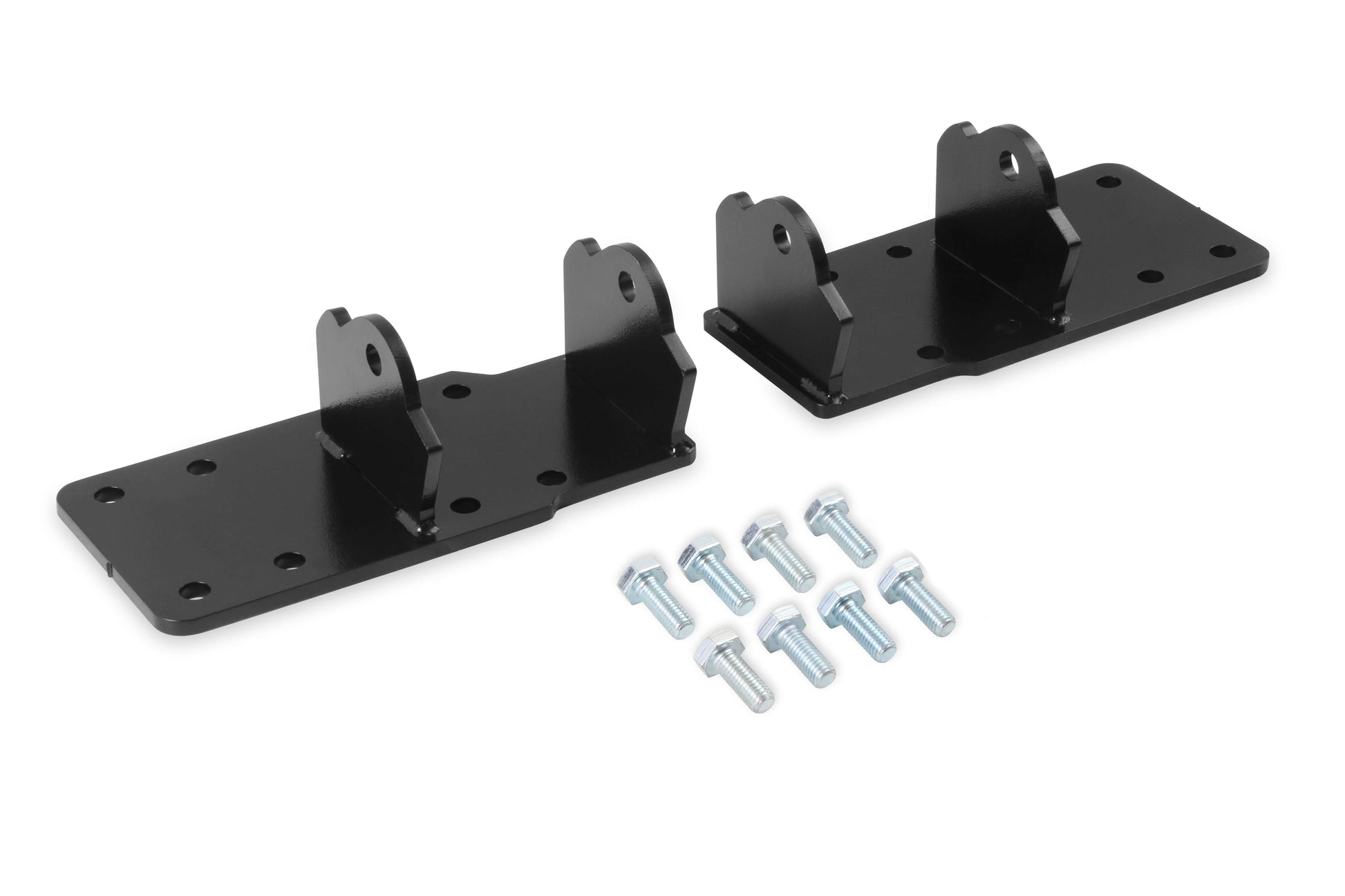

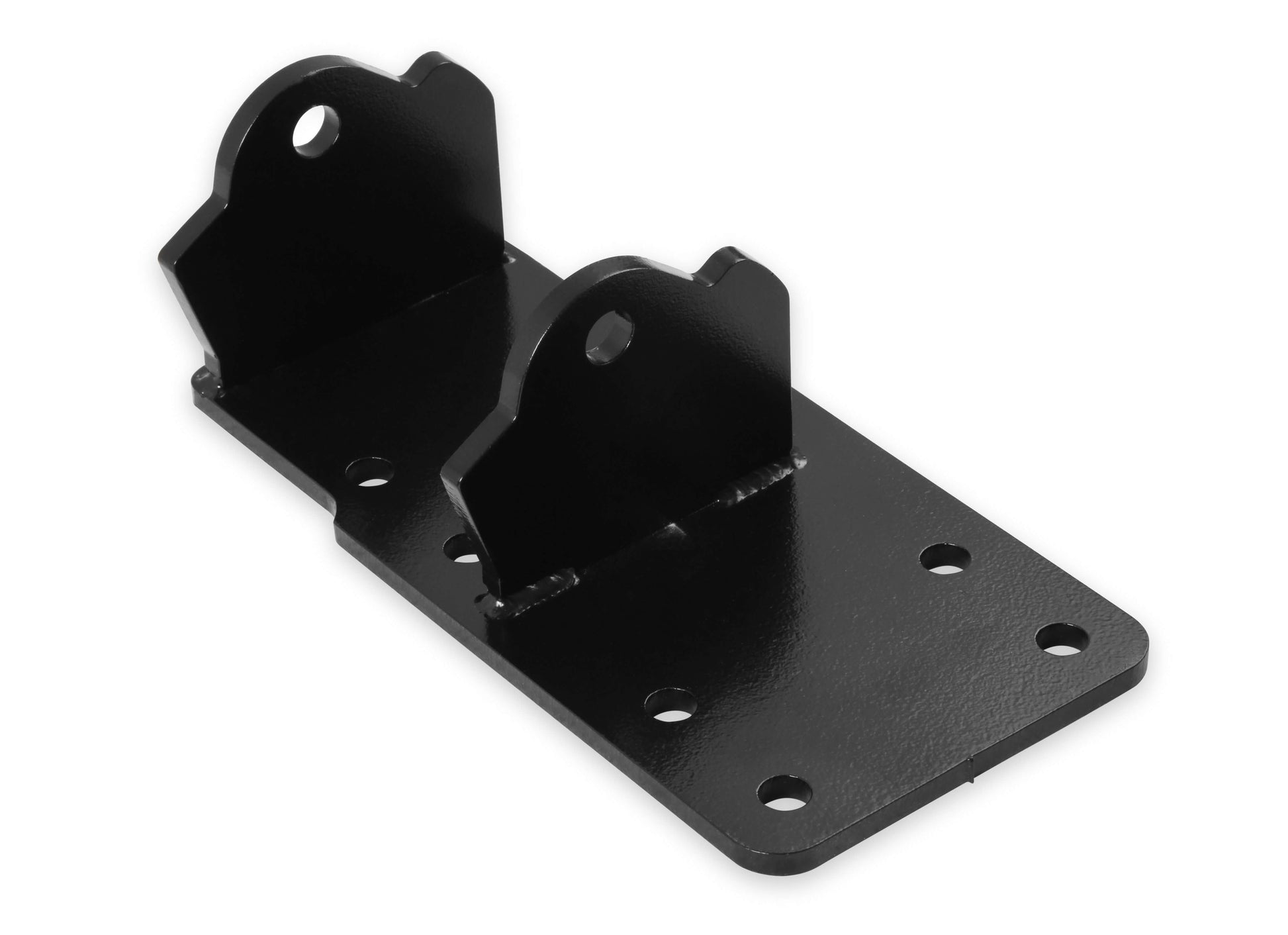

HOOKER BLACKHEART APPLICATION-SPECIFIC LS SWAP ENGINE MOUNTING BRACKETS ELIMINATE THE INSTALLATION GUESSWORK AND COMPATIBILITY UNCERTAINTY THAT COMES WITH USING UNIVERSAL SWAP PLATE MOUNTING METHODS. THESE MOUNTING BRACKETS ARE AVAILABLE WITH DUAL ENGINE MOUNTING POSITIONS THAT OPTIMIZE POWERTRAIN PLACEMENT BASED ON USER-SELECTED TRANSMISSION, TRANSFER CASE AND DRIVESHAFT COMPATIBILITY/RETENTION PRIORITIES. THE FACTORY TRANSMISSION CROSSMEMBER IS RE-USED WITH THESE MOUNTING BRACKETS (COST SAVINGS SINCE DRIVESHAFTS AND CROSSMEMBER ARE RE-USED). FACTORY LS VORTEC EXHAUST MANIFOLDS CAN BE USED ALONG WITH THE ENGINE MOUNTING BRACKETS AND ARE REQUIRED TO SUPPORT A STREET-LEGAL ENGINE CHANGE (WITH CATALYTIC CONVERTERS). MOUNTS FEATURE A BLACK POWDER-COATED FINISH AND INCLUDE (2) ENGINE MOUNTING BRACKETS, ATTACHING HARDWARE AND INSTRUCTIONS.

NOTE: THESE ENGINE MOUNTING BRACKETS HAVE BEEN DESIGNED FOR USE WITH THE V8 ENGINE MOUNTS THAT WERE FACTORY INSTALLED ON THESE TRUCKS. USE OF THESE ENGINE MOUNTING BRACKETS ON 4.3L V6 EQUIPPED TRUCKS WILL REQUIRE THE FACTORY V6 FRAME SIDE ENGINE MOUNTS AND BRACKETS TO BE REMOVED AND REPLACED WITH V8 ENGINE MOUNTS.

APPLICATIONS:

CHEVROLET:

• 1988-1998 C1500, 2WD

GMC:

• 1988-1998 C1500, 2WD

FEATURES:

STANDARD ENGINE MOUNTING BRACKETS – FOR TWO-WHEEL DRIVE 1/2-TON TRUCKS

STANDARD ENGINE MOUNT BRACKETS (BHS552,OR BHS555) ARE DESIGNED FOR USE WITH THE FACTORY V8 ENGINE ISOLATORS AND PROVIDE A SIMPLE, COST-EFFECTIVE LS ENGINE MOUNTING SOLUTION

FORE/AFT ENGINE MOUNTING ENGINE POSITION OPTIONS – OPTIMIZES POWERTRAIN PLACEMENT BASED ON USER-SELECTED TRANSMISSION, TRANSFER CASE AND DRIVESHAFT COMPATIBILITY/RETENTION PRIORITIES

FORWARD-BIAS ENGINE LOCATION PROVIDES ENHANCED T56 MAGNUM TRANSMISSION FITMENT AND ENGINE ACCESSORY DRIVE COMPATIBILITY IN 2WD APPLICATIONS

REAR-BIAS ENGINE LOCATION (STOCK BELLHOUSING PLANE POSITION) ALLOWS AN EXISTING TRANSMISSION TRANSFER CASE AND RELATED DRIVESHAFT(S) TO REMAIN UNDISTURBED, IF DESIRED.

STANDARD MOUNTING BRACKETS ARE ENGINEERED TO ACCOMMODATE EITHER ENGINE LOCATION (DUAL MOUNTING POSITIONS)

COMPATIBLE WITH FACTORY VORTEC EXHAUST MANIFOLDS FOR USE IN 50-STATE LEGAL LS ENGINE SWAP (WITH APPROPRIATE CATALYTIC CONVERTERS)

FACTORY DRIVESHAFTS AND TRANSMISSION CROSSMEMBER ARE RE-USED WITH ENGINE SWAP

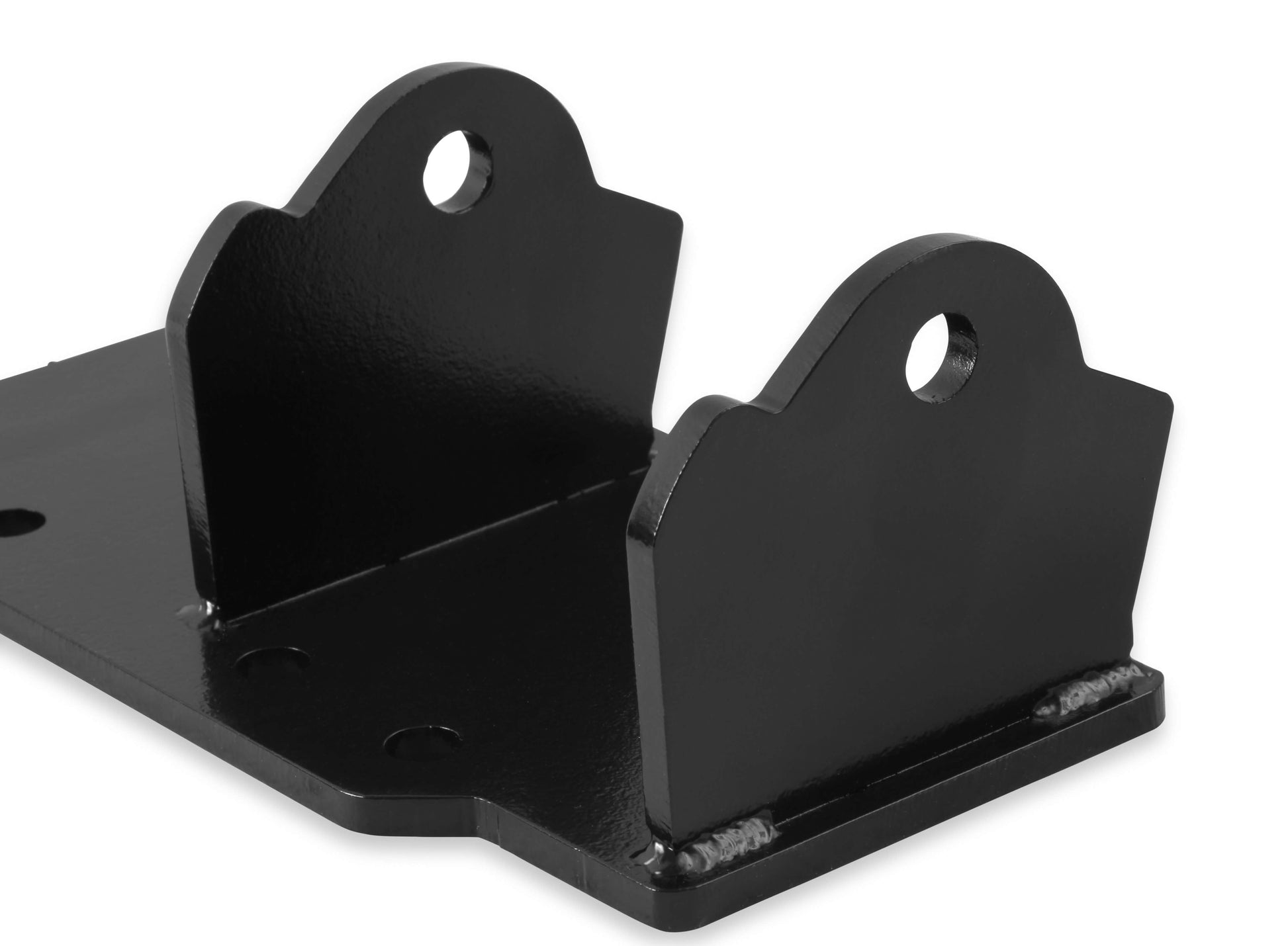

FABRICATED 1/4" STEEL PLATE CONSTRUCTION - PROVIDES A STRONG, DURABLE MOUNTING SOLUTION

SEMI-GLOSS BLACK POWDER COAT - FOR A DURABLE CORROSION RESISTANT FINISH

ALLOWS USE OF ELECTRIC COOLING FAN, OR FACTORY VORTEC MECHANICAL COOLING FAN

COMPATIBLE OIL PANS: FACTORY GM TRUCK LS OIL PAN, 302-2 OR 302-3

SPECS:

BRAND: HOOKER BLACKHEART

FINISH: BLACK POWDERCOATED

ENGINE POSITION: DUAL

MATERIAL: STEEL

MOTOR TYPE: GM LS

TRANSMISSION: 4L60E | 4L70E | 6L80E | 6L90E | 700R4 | T56 GM | T56 MAGNUM GM | TH400

PRODUCT TYPE: ENGINE MOUNT BRACKETS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
