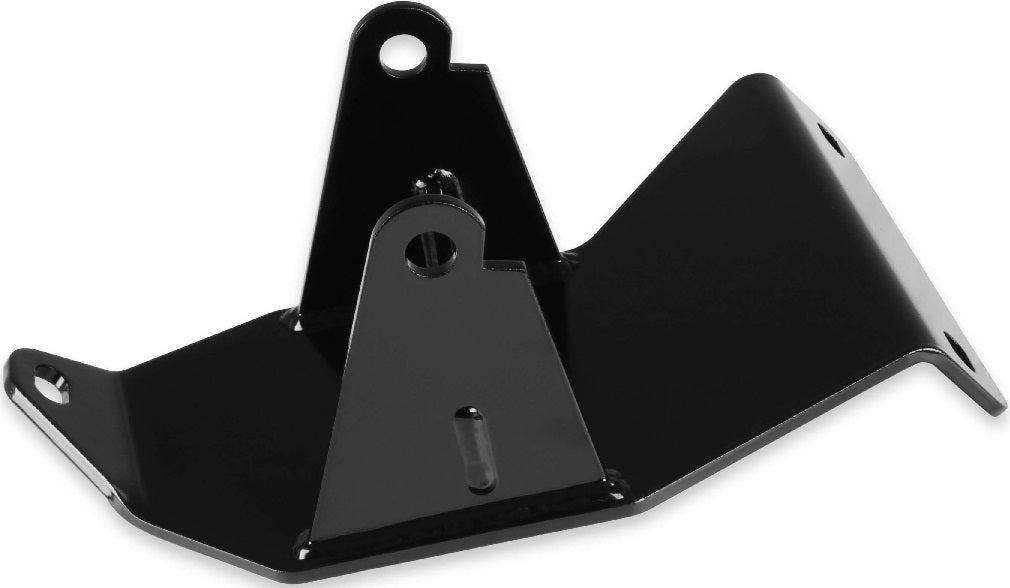

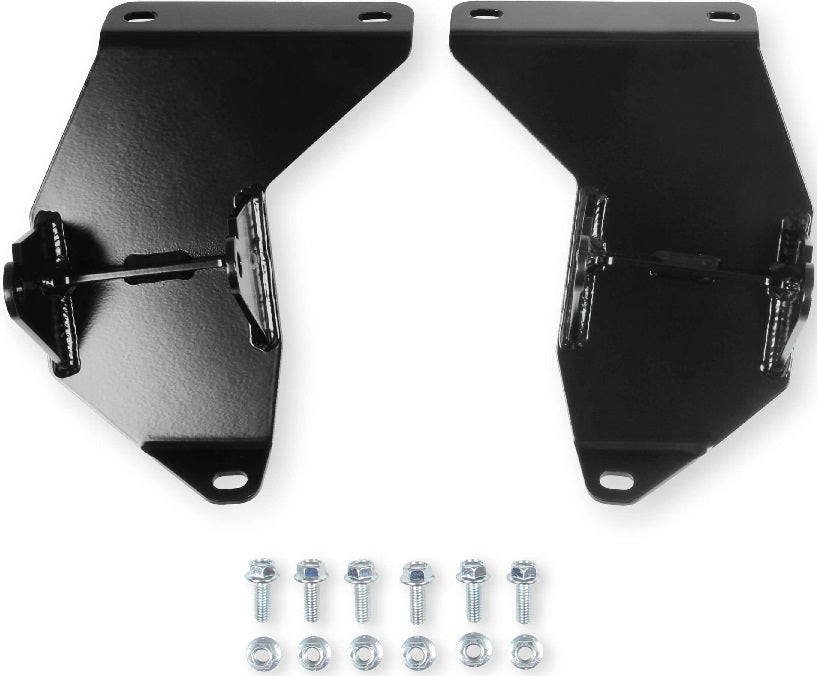

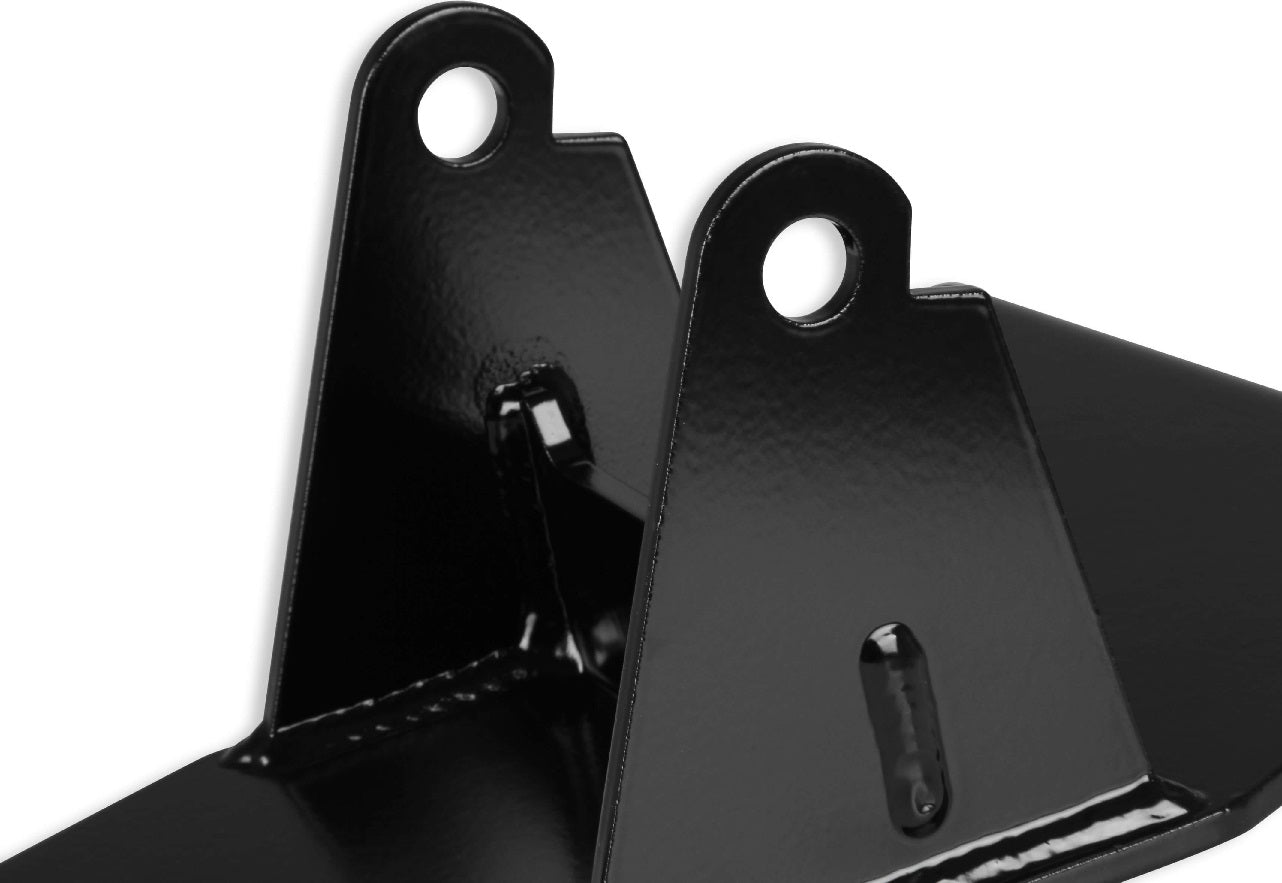

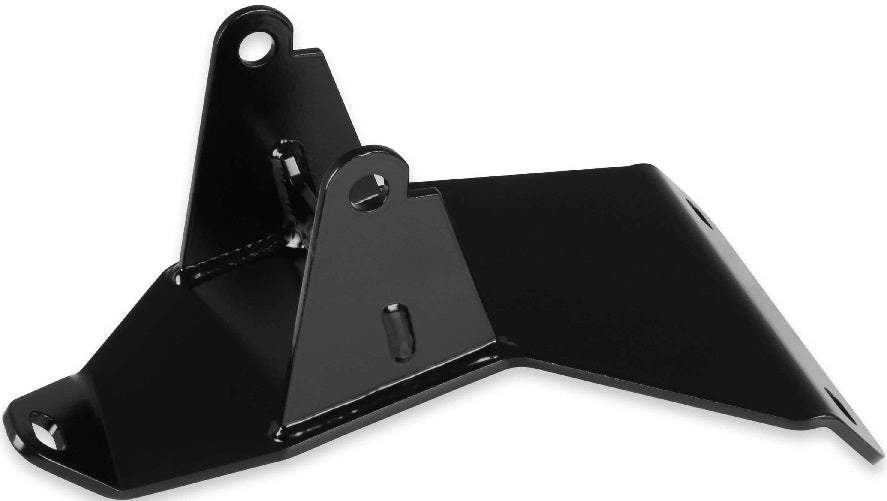

ENGINE SWAP BRACKETS,FRONT,LS/LT>73-87 C-10

BRAND NEW HOOKER BLACKHEART PREMIUM ENGINE MOUNT BRACKETS, BLACK, COMPATIBLE WITH 1973-1974 CHEVROLET BLAZER

THESE NEW PREMIUM ENGINE MOUNTING BRACKETS HAVE BEEN REDESIGNED TO ALLOW GM LS OR GEN-V LT ENGINES TO BE INSTALLED IN THE 1973-1987 C10/C20 TRUCKS. THE MODULAR DESIGN OF THESE BRACKETS ALLOW ENGINE CHANGES FROM LS TO LT W/ A CHANGE TO THE CLAMSHELL COMPONENTS ONLY. THE SAME MOUNTING BRACKETS, POLYURETHANE INSERTS & CROSSMEMBERS FIT BOTH LS & LT ENGINES.

HOOKER BLACKHEART APPLICATION-SPECIFIC LS/GEN-V LT SWAP ENGINE MOUNTING BRACKETS REMOVE THE INSTALLATION GUESSWORK AND COMPATIBILITY UNCERTAINTY THAT COMES WITH USING UNIVERSAL/ADJUSTABLE SWAP PLATES. THESE BRACKETS ARE DESIGNED FOR 1973-1987 GM C10 PICK-UPS TO ACHIEVE OPTIMIZED COMPONENT CLEARANCES AND DRIVETRAIN/U-JOINT OPERATION ANGLES WHEN USED IN CONJUNCTION WITH THE TRANSMISSION CROSSMEMBER AND HOOKER CAST EXHAUST MANIFOLDS, AND EXHAUST SYSTEMS. HOOKER BLACKHEART LONG-TUBE HEADERS WILL BE AVAILABLE SOON FOR THIS APPLICATION.

NOTE: LS ENGINES USE CLAMSHELL MOUNTS 71221018HKR AND POLYURETHANE INSERTS 71221016HKR (BLACK) OR 71221017HKR (RED), AND 71223015HKR ENGINE MOUNT BOLT KIT TO CONNECT THE HOOKER ENGINE BRACKETS TO THE MOTOR MOUNTS. LS ENGINES CAN ALSO USE FACTORY STYLE 4TH-GEN F-BODY LS ENGINE MOUNTS (EX: GM 22179268 OR ANCHOR 3064) W/ SPECIFICATION REQUIREMENTS ARE 10.9 M12 X 1.75 X 140MM. THESE PARTS ARE AVAILABLE IN A KIT VK090152 (BLACK INSERTS), OR VK090153 (RED INSERTS).

NOTE: GEN-V LT ENGINES USE CLAMSHELL MOUNTS 71221019HKR WITH POLYURETHANE INSERTS - PART # 71221016HKR (BLACK) OR 71221017HKR (RED), AND 71223015HKR ENGINE MOUNT BOLT KIT. THESE PARTS ARE AVAILABLE IN A KIT VK090154 (BLACK INSERTS), OR VK090155 (RED INSERTS).

NOTE: THESE MOUNTS WORK WITH LS CAST EXHAUST MANIFOLDS: 8501HKR, 8501-1HKR, 8501-3HKR, 8501-4HKR, 8501-5HKR, 8502HRK, 8502-1HKR, 8502-3HKR, 8502-4HKR, 8502-5HKR, 11730FLT, 11730-1FLT, OR 11730-3FLT.

NOTE: THESE MOUNTS WORK WITH GEN-V LT CAST EXHAUST MANIFOLDS: BHS516, BHS517, OR BHS518.

COMPATIBLE WITH:

• CHEVROLET:
• 1973-1974 BLAZER
• 1975-1986 C10
• 1973-1974 C10 PICKUP
• 1973-1974 C10 SUBURBAN
• 1982-1987 C15
• 1975-1987 C20
• 1973-1974 C20 PICKUP
• 1973-1986 C20 SUBURBAN
• 1972-1982 K5 BLAZER
• 1987 R10
• 1987 R10 SUBURBAN
• 1987 R20
• 1987 R20 SUBURBAN
• GMC:
• 1975-1978 C15
• 1973-1974 C15/C1500 PICKUP
• 1973-1974 C15/C1500 SUBURBAN
• 1979-1986 C1500 SUBURBAN
• 1975-1978 C25
• 1975-1978 C25 SUBURBAN
• 1973-1974 C25/C2500 PICKUP
• 1973-1974 C25/C2500 SUBURBAN
• 1979-1986 C2500
• 1973-1982 JIMMY
• 1987 R1500
• 1987 R1500 SUBURBAN
• 1987 R2500
• 1987 R2500 SUBURBAN

FEATURES:

• WELDED STEEL CONSTRUCTION W/ BLACK FINISH FOR LIGHT WEIGHT, DURABILITY & CORROSION PROTECTION
• REPLACES ORIGINAL FRAME STANDS
• WORKS WITH GM LS SWAP PANS: 302-1, 302-2, 302-3 & GEN-V LT SWAP PAN 302-20
• ALLOWS USE OF LOW MOUNT A/C - FOR BOTH TRUCK STYLE ACCESSORIES & LSA SUPERCHARGED ENGINE
• USE WITH TRANSMISSION CROSSMEMBERS: BHS548 (4L60E/4L65E/4L70E/4L75E/6L80), BHS549 (4L80E/4L85E), OR BHS550 (T56/T56 MAGNUM)
• WORKS WITH HOOKER CAST EXHAUST MANIFOLDS

SPECS:

• BRAND: HOOKER BLACKHEART
• FINISH: BLACK POWDERCOATED
• MATERIAL: STEEL
• MOTOR TYPE: GM LS | GM LT
• TRANSMISSION: 4L60E | 4L65E | 4L70E | 4L75E | 4L80E | 4L85E | 6L80E | T56 GM | T56 MAGNUM GM
PRODUCT TYPE: ENGINE MOUNT BRACKET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE ENGINE MOUNT BRACKETS HERE.
