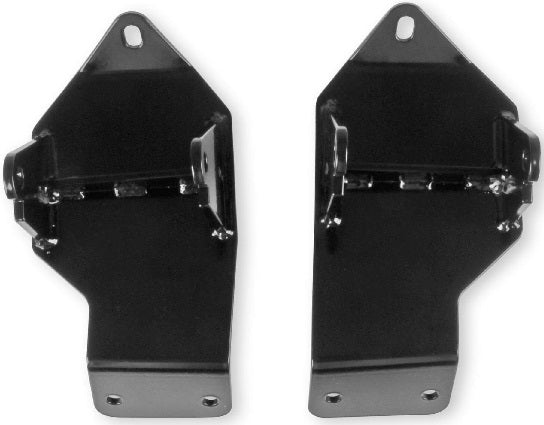

ENGINE SWAP BRACKETS,FRONT,LS/LT>63-67 C-10

BRAND NEW HOOKER BLACKHEART ENGINE SWAP BRACKETS, BLACK FINISH, GM LS-LT, COMPATIBLE WITH 1963-1967 CHEVROLET C10 2WD WIDE FRAME

GM LS & GEN-V LT ENGINES MAKE GREAT POWER AND ARE IDEAL FOR ENGINE SWAPS IN THE 1963-67 GM C10 TRUCKS. HOOKER BLACKHEART APPLICATION-SPECIFIC LS/LT SWAP ENGINE MOUNTING BRACKETS REMOVE THE INSTALLATION GUESSWORK AND COMPATIBILITY UNCERTAINTY THAT COMES WITH USING UNIVERSAL/ADJUSTABLE SWAP PLATES.

THESE BRACKETS ARE DESIGNED FOR 1963-1967 GM C10 PICK-UPS TO ACHIEVE OPTIMIZED COMPONENT CLEARANCES & DRIVETRAIN/U-JOINT OPERATION ANGLES WHEN USED IN CONJUNCTION WITH 71222024HKR, 71222024HKR-1, OR 71222024HKR-2 TRANSMISSION CROSSMEMBER AND HOOKER CAST EXHAUST MANIFOLDS AND DUAL EXHAUST SYSTEMS CO-DEVELOPED FOR THIS APPLICATION.

NOTE: COMPATIBLE WITH C10 TRUCKS WITH WIDE FRAME RAILS. C10 TRUCKS WITH NARROW FRAME RAILS USE PART NUMBER BHS511. IN MOST CASES, THE NARROW FRAME RAILS WERE USED ON 1968-72 TRUCKS TO ACCOMMODATE BIG BLOCK ENGINES, BUT SOME TRUCKS MAY HAVE BEEN HAD THE FRAME SWAPPED AT SOME POINT AFTER IT LEFT THE FACTORY.

NOTE: INSTALL REQUIRES USE OF BLACKHEART LS/LT POLYURETHANE INSERTS - PART #71221016HKR (BLACK) OR 71221017HKR (RED) & HOOKER BLACKHEART 71221018HKR (LS ENGINES), OR 71221019HKR (GEN-V LT ENGINES). ALSO REQUIRES BLACKHEART 71223015HKR ENGINE MOUNT BOLT KIT TO CONNECT THE HOOKER ENGINE BRACKETS TO THE MOTOR MOUNTS. SPECIFICATION REQUIREMENTS ARE 10.9 M12 X 1.75 X 140MM.

NOTE: LS ENGINES CAN SUBSTITUTE O.E. GEN IV F-BODY LS ENGINE MOUNTS (EX: GM 22179268 OR ANCHOR 3064) INSTEAD OF THE BLACKHEART CLAMSHELLS AND POLYURETHANE INSERTS. USE 302-2, OR 302-3 OIL PANS W/ LS ENGINES & 302-20 W/ GEN-V LT ENGINES. ALLOWS USE OF LOW MOUNT A/C.

COMPATIBLE WITH:

• CHEVROLET:
• 1963-1967 C10 PICKUP
• 1963 C20 PICKUP
• GMC:
• 1967 C15/C1500 PICKUP

FEATURES:

• ENGINE SWAP MOUNTING BRACKETS FOR GM LS OR GEN-V LT IN 1963-1967 GM C10 2-WHEEL DRIVE TRUCKS

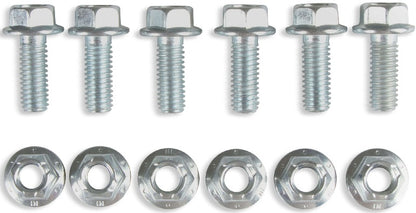

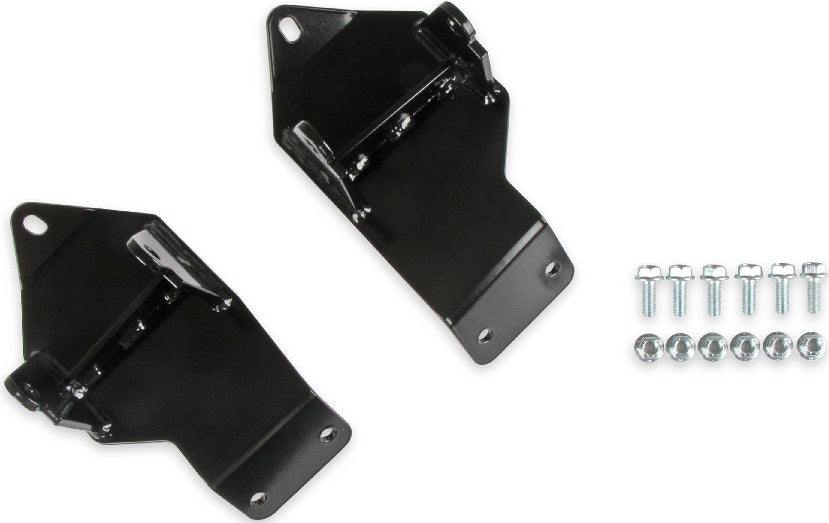

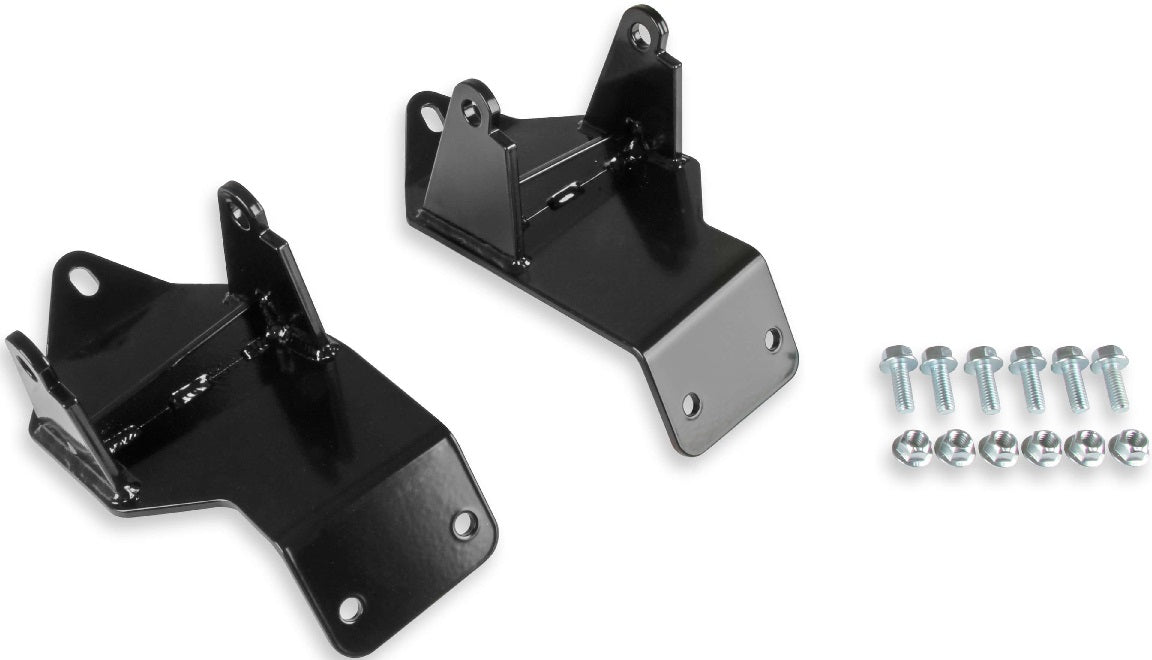

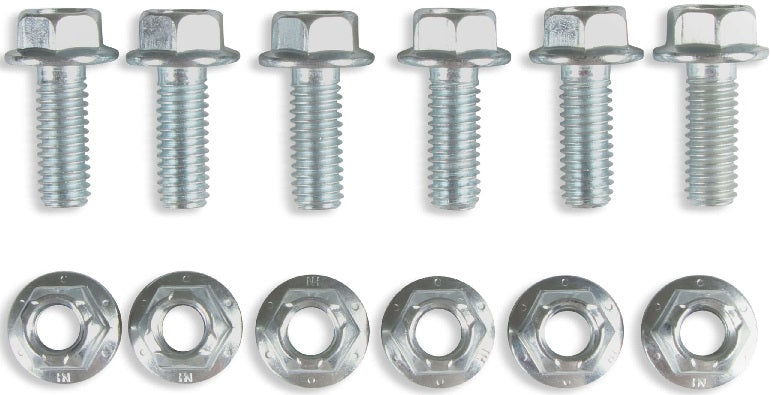

• INCLUDES MOUNTS, INSTRUCTIONS & MOUNTING BOLTS
• COMPATIBLE WITH 4TH GEN GM F-BODY STYLE CLAMSHELL ENGINE MOUNTS
• LS ENGINES USE 71221018HKR CLAMSHELLS, 71221016HKR (BLACK) OR 71221017HKR (RED) POLYURETHANE INSERTS & 71223015HKR THROUGH BOLTS
• GEN-V LT ENGINES USE 71221019HKR CLAMSHELLS, 71221016HKR (BLACK) OR 71221017HKR (RED) POLYURETHANE INSERTS & 71223015HKR THROUGH BOLTS
• COMPATIBLE OIL PANS: LS SWAP PANS 302-2, OR 302-3 & GEN-V LT SWAP PAN 302-20

SPECS:

• BRAND: HOOKER BLACKHEART
• FINISH: BLACK POWDER COATED
• MOTOR TYPE: GM LS/LT
• PRODUCT TYPE: ENGINE MOUNTS
• TRANSMISSION: 4L60E | 4L80E | 6L80E | 700R4 | T56 GM | T56 MAGNUM | TH350 | TH400
• TYPE OF COMPONENT: ENGINE MOUNT BRACKETS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE BRACKETS HERE.
