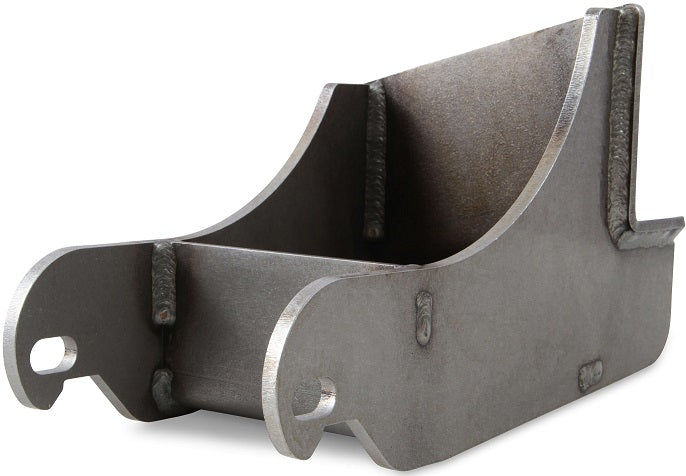

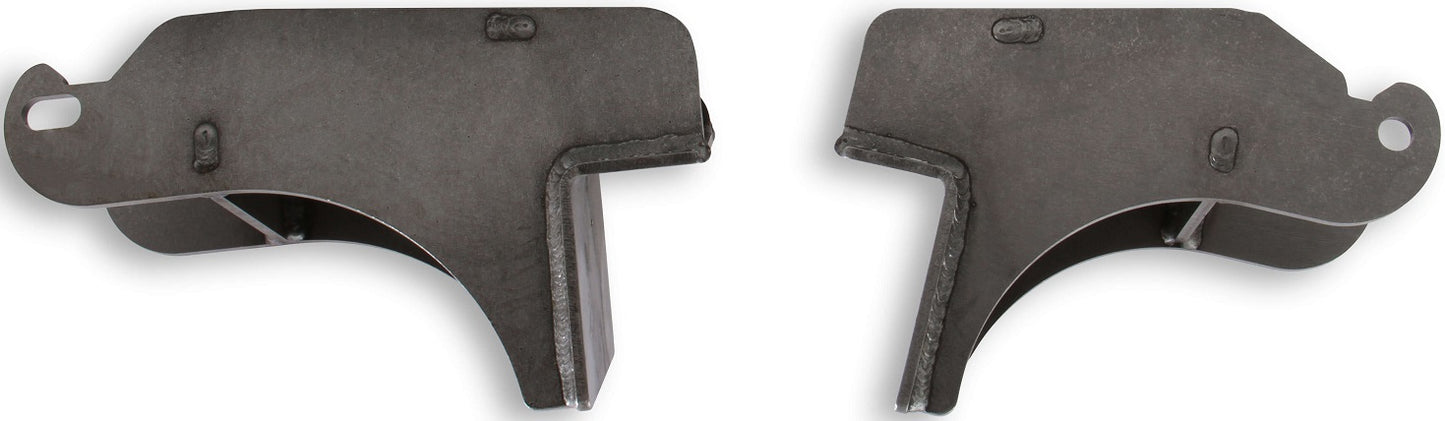

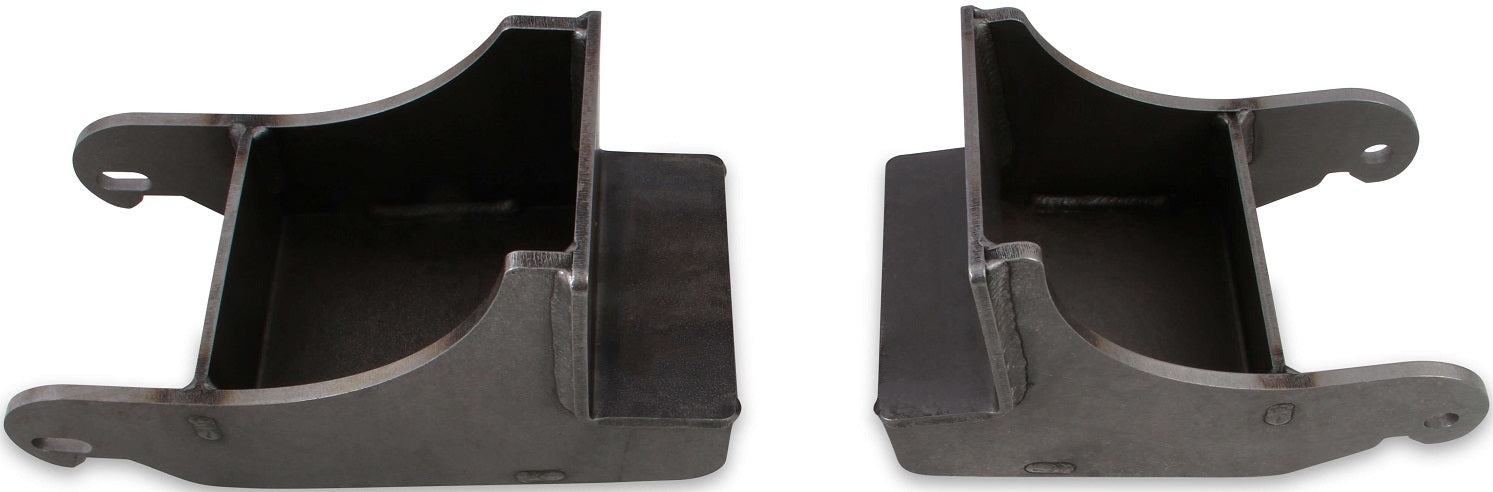

ENGINE MOUNTS,HEMI SWAP,87-95 WRANGLER TJ

BRAND NEW HOOKER BLACKHEART ENGINE MOUNTING BRACKETS, RAW FINISH, GEN III H�EMI SWAP, COMPATIBLE WITH 1987-1995 JEEP WRANGLER YJ

THESE ENGINE-MOUNTING BRACKETS ARE ONE PART OF A FULLY ENGINEERED SWAP SYSTEM THAT PROVIDES MAX COMPONENT CLEARANCES, IDEAL DRIVETRAIN GEOMETRY & CLEARANCE FOR SWAP HEADERS & 3" HIGH-TUCK EXHAUST SYSTEM.

WORKS TOGETHER WITH THE STOCK SKID PLATE / TRANSMISSION CROSSMEMBER TO MOUNT THE TRANSMISSION & STOCK NP231J TRANSFER CASE. THE GEN III H�EMI 5.7L FACTORY TRUCK OIL PAN & ACCESSORY DRIVE SYSTEM ARE RECOMMENDED FOR THIS SWAP (THESE PARTS COME ON THE DONOR ENGINE WHEN USING THE 2003-08 5.7L H�EMI TRUCK ENGINE). 5.7L TRUCK ENGINE IS AN IDEAL ENGINE CHOICE FOR THE WRANGLER SINCE IT MAKES TORQUE AT A LOW RPM, RIGHT WHERE IT IS NEEDED FOR OFF-ROAD USE.

NOTE: BODY OR SUSPENSION LIFT IS NOT REQUIRED TO INSTALL THESE MOUNTING BRACKETS. BARE STEEL, WELD-ON DESIGN. REQUIRES WELDING & PAINTING

NOTE: USE BHS537 WITH 545RFE TRANSMISSION. 46RE TRANSMISSION CAN ALSO BE USED, BUT WILL REQUIRE A FABRICATED TRANSMISSION-MOUNTING BRACKET TO ATTACH IT TO THE SKID PLATE / CROSSMEMBER.

NOTE: ADDITIONAL HOOKER BLACKHEART PARTS REQUIRED FOR INSTALLATION: BHS514 ENGINE MOUNT CLAMSHELL FOR GEN 3 H�EMI (2 REQUIRED), 71221017HKR (RED) OR 71221016HKR (BLACK) POLY ENGINE MOUNT INSERTS (2 REQUIRED), 71223015HKR ENGINE MOUNT BOLT KIT (1 REQUIRED)

COMPATIBLE WITH:

• JEEP:
• 1987-1995 WRANGLER YJ

FEATURES:

• COMPATIBLE WITH JEEPS THAT CAME FROM THE FACTORY WITH A 4 OR 6-CYLINDER ENGINE
• WORKS WITH OR WITHOUT A BODY OR SUSPENSION LIFT
• COMPATIBLE WITH GEN III H�EMI TRUCK OIL PAN
• MAINTAINS THE STOCK PASSENGER SIDE ENGINE OFFSET FOR OPTIMUM VEHICLE COMPONENT COMPATIBILITY
• COMPATIBLE WITH HOOKER BLACKHEART JEEP WRANGLER SWAP HEADERS, Y-PIPE, AND EXHAUST SYSTEM
• PLATE STEEL CONSTRUCTION PROVIDES DURABLE, LONG-TERM MOUNTING SYSTEM
• RAW UN-PAINTED STEEL FOR EASY WELDING & STRONG MOUNTING FOUNDATION
• ENGINE POSITION ALLOWS FOR USE OF ELECTRIC OR MECHANICAL ENGINE COOLING FAN

SPECS:

• APPLICATION: 1987-1995 JEEP WRANGLER
• BRAND: HOOKER BLACKHEART
• ENGINE: CHRYSLER GEN III H�EMI
• FINISH/MATERIAL: RAW STEEL
• PRODUCT TYPE: ENGINE MOUNT BRACKETS
• TRANSMISSION: 46RE | 545 RFE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE BRACKETS HERE.
