ENGINE MOUNT BRACKETS,HEMI SWAP,72-93 W100,W150,4WD

BRAND NEW HOOKER BLACKHEART ENGINE MOUNT BRACKETS, BLACK FINISH, COMPATIBLE WITH 1972-1993 DODGE W100/W150 4WD TRUCK WITH GEN III HEMI SWAP

GEN III HEMI ENGINE SWAP MOUNTING BRACKETS FOR 1972-1993 DODGE W100/W150 4-WHEEL DRIVE TRUCKS. 2 ENGINE MOUNTING POSITIONS (STOCK FACTORY BELL-HOUSING LOCATION OR 1-INCH FORWARD). FACTORY LOCATION KEEPS THE TRANSMISSION/TRANSFER CASE IN THE STOCK LOCATION TO SIMPLIFY THE SWAP BY RE-USING THE TRANSMISSION, TRANSFER CASE, TRANSMISSION CROSSMEMBER & DRIVESHAFTS.

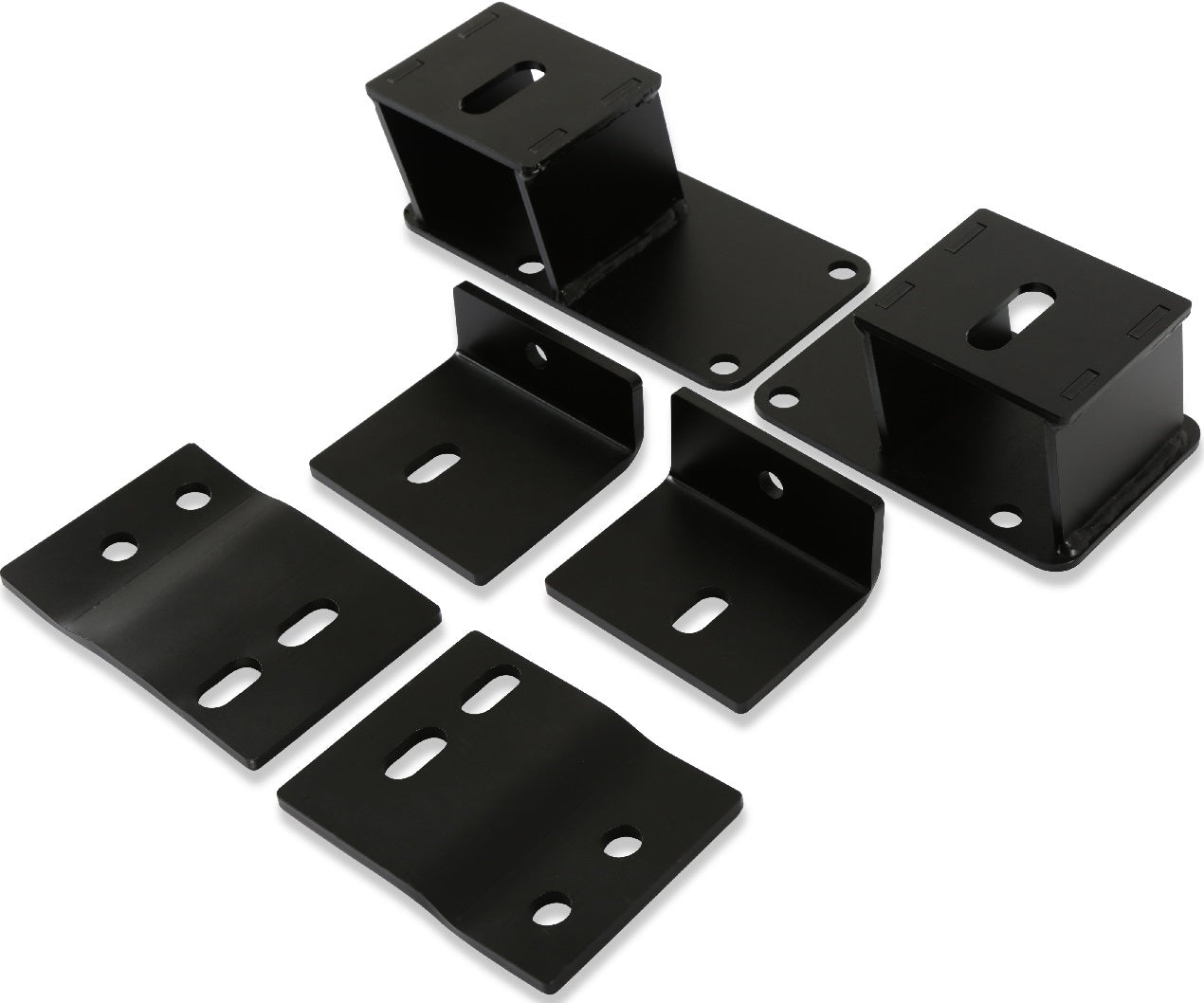

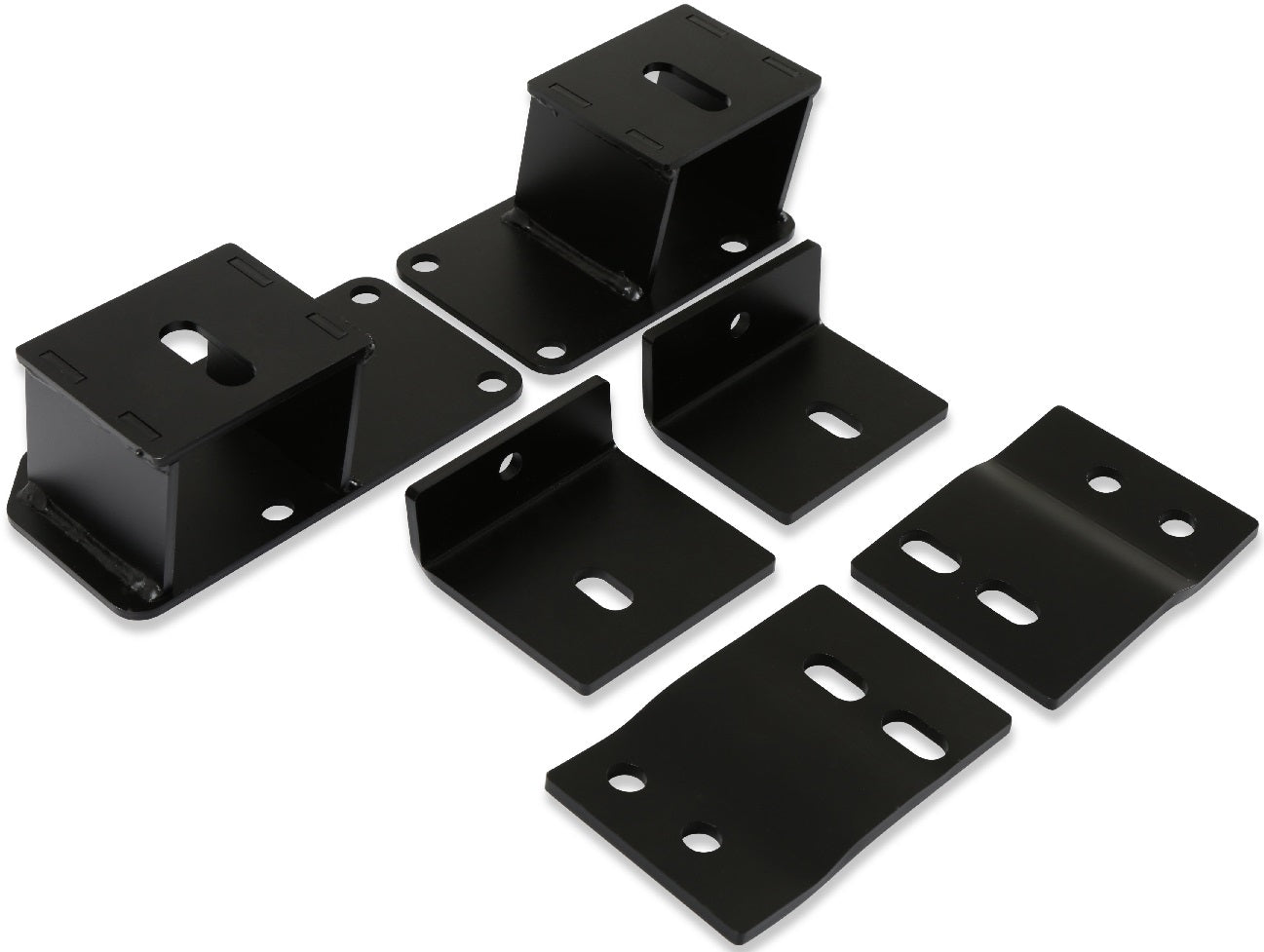

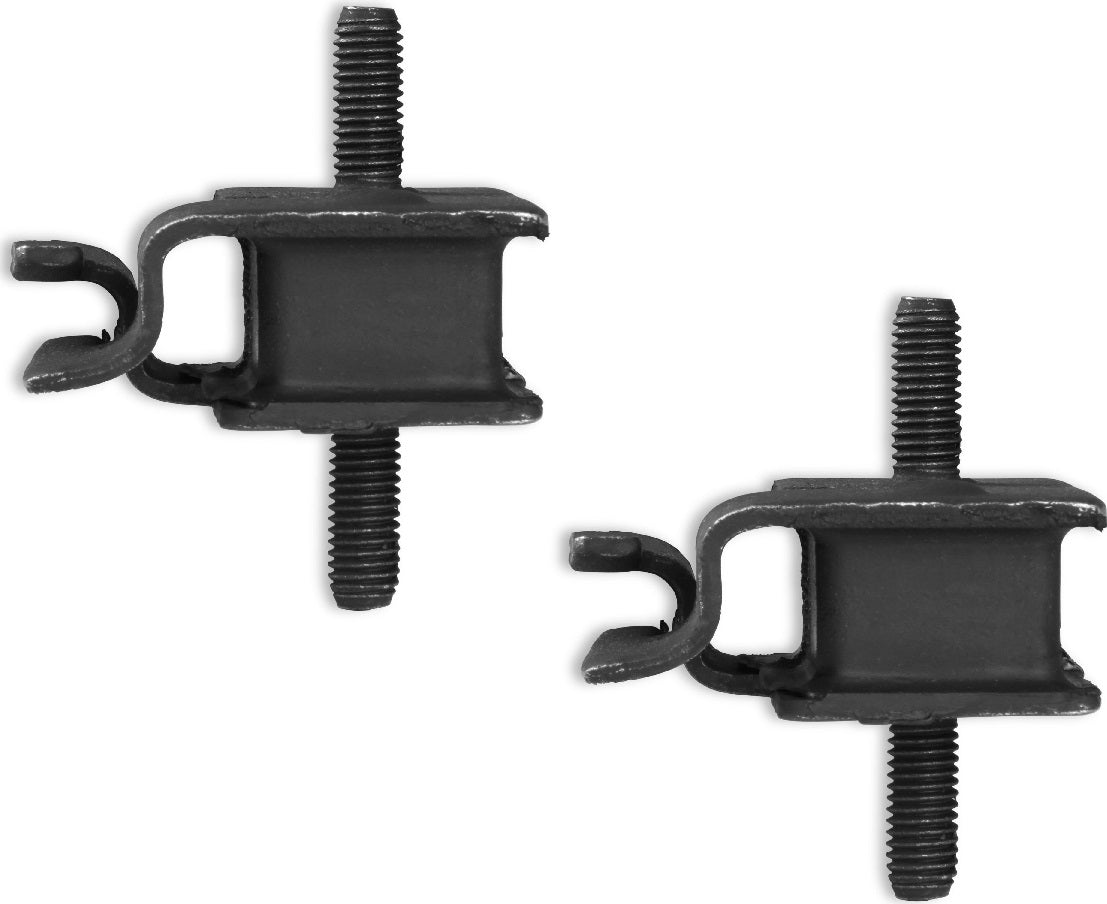

THE BRACKETS ALSO ALLOW THE OPTIONAL 1-INCH FORWARD ENGINE LOCATION - IF NEEDED FOR EXTRA FIREWALL CLEARANCE. MOUNT KIT INCLUDES MOUNTING BRACKETS, FRAME PLATES, ENGINE ISOLATORS, AND MOUNTING HARDWARE. WELDED STEEL CONSTRUCTION WITH BLACK POWDER COATED FINISH FOR DURABILITY AND CORROSION PROTECTION.

NOTE: COMPATIBLE WITH TRUCKS THAT CAME FROM THE FACTORY WITH A V8 OR SLANT-6 ENGINE (IT DOES NOT WORK ON V6 FRONT CROSSMEMBER).

NOTE: NP435 & NP445 MANUAL TRANSMISSIONS MAY REQUIRE THE INPUT SHAFT PILOT TO BE SHORTENED APPROXIMATELY 5/8" TO PREVENT BOTTOMING OUT IN THE SHALLOW COUNTERBORE OF THE GEN3 HEMI CRANKSHAFT FLANGE. ALWAYS CHECK THE INPUT SHAFT TO CRANKSHAFT BOTTOMING CLEARANCE BEFORE CUTTING THE SHAFT.

NOTE: ENGINES WITH SHORT RUNNER INTAKE VALVES (SRV) WILL REQUIRE MINOR FIREWALL CLEARANCE. 6.2L SUPERCHARGED ENGINES WILL REQUIRE MINOR FIREWALL CLEARANCE FOR SUPERCHARGER WATER MANIFOLD - EARLS LOW PROFILE INTERCOOLER WATER MANIFOLD RECOMMENDED PART #HEMI0005ERL. CAR ENGINES WITH REAR EXIT HEATER PIPES WILL NEED MODIFICATION. OEM V8 RADIATOR WILL REQUIRE UPPER RADIATOR HOSE FABRICATION.

NOTE: THE 1-INCH FORWARD ENGINE POSITION WILL NOT WORK WITH THE STOCK TRANSMISSION MOUNT AND DRIVESHAFTS.

OTHER RECOMMENDED ACCESSORY PARTS:

• PILOT BEARING FOR MANUAL TRANSMISSION: MOPAR PART #53009180AB
• LOWER RADIATOR HOSE: GATES PART #22698 (CUT TO LENGTH)
• HEATER HOSES: GATES PART #28471 (2 PIECES) TRUCK ENGINE WITH FRONT PASSENGER SIDE HEATER PIPES.
• 90-DEGREE OIL FILTER ADAPTER: MOPAR PART #04893315AC

COMPATIBLE WITH:

• DODGE:
• 1975-77, 1984-89 W100
• 1972-1974 W100 PICKUP
• 1977-1993 W150

FEATURES:

• MOUNT THE GEN III HEMI ENGINE IN YOUR 1972-1993 DODGE W100/W150 4WD TRUCK
• COMPATIBLE WITH 4WD TRUCKS THAT INITIALLY CAME FROM THE FACTORY WITH V8 OR SLANT-6 ENGINES WITH NP435, NP445, OR A727 TRANSMISSION
• COMPATIBLE WITH GEN III HEMI ENGINE 2003 & UP 5.7, 6.1, 6.2, OR 6.4-LITER
• DUAL ENGINE MOUNTING POSITION - CHOOSE FROM THE ORIGINAL ENGINE POSITION TO RETAIN FACTORY TRANSMISSION, TRANSFER CASE LOCATION & DRIVESHAFTS, OR CHOOSE A 1-INCH FORWARD ENGINE POSITION FOR EXTRA FIREWALL CLEARANCE
• FACTORY TRANSMISSION CROSSMEMBER IS RE-USED AND STAYS IN THE FACTORY POSITION

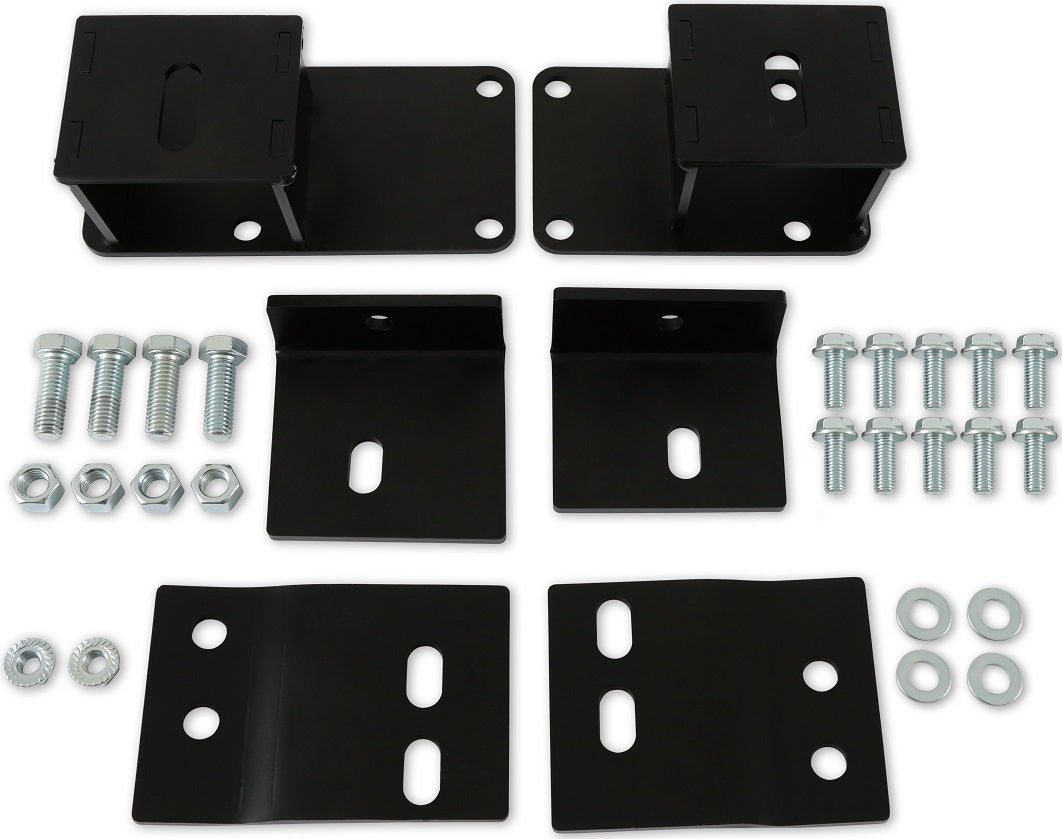

• INCLUDED ENGINE MOUNT BRACKETS, FRAME PLATES, ISOLATORS & ATTACHING FASTENERS
• WELDED STEEL CONSTRUCTION WITH BLACK POWDER COATED FINISH FOR DURABILITY AND CORROSION PROTECTION
• RECOMMENDED OIL PAN - STOCK FACTORY TRUCK (REAR SUMP) GEN III HEMI OIL PAN

SPECS:

• APPLICATION: 1972-1993 DODGE W100/W150
• BRAND: HOOKER BLACKHEART
• FINISH: BLACK POWDER COATED
• MATERIAL: STEEL
• MOTOR TYPE: CHRYSLER GEN III HEMI
• PRODUCT TYPE: ENGINE MOUNTS
• TRANSMISSION: A727, NP435, NP445
• TYPE OF COMPONENT: ENGINE MOUNT BRACKETS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE MOUNTING BRACKETS HERE.
