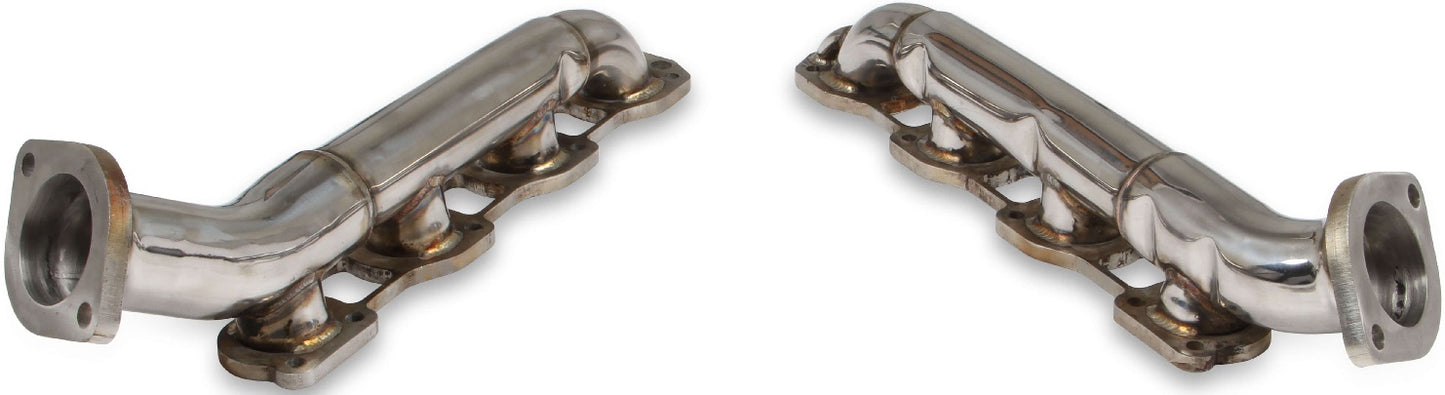

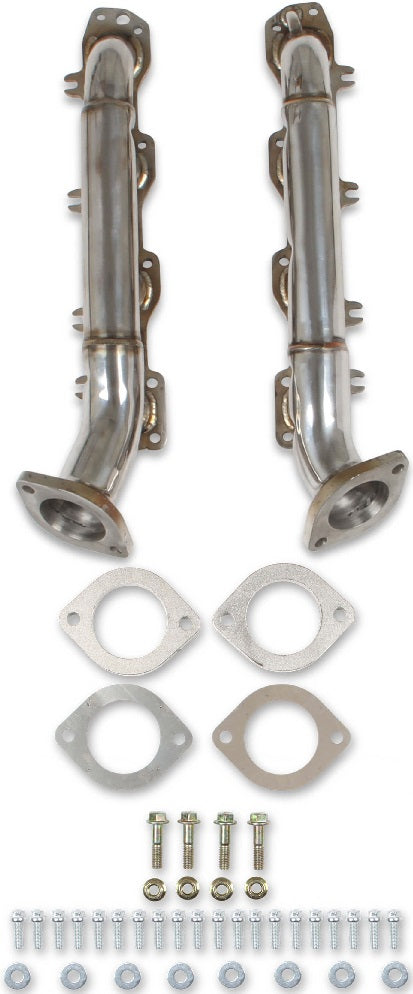

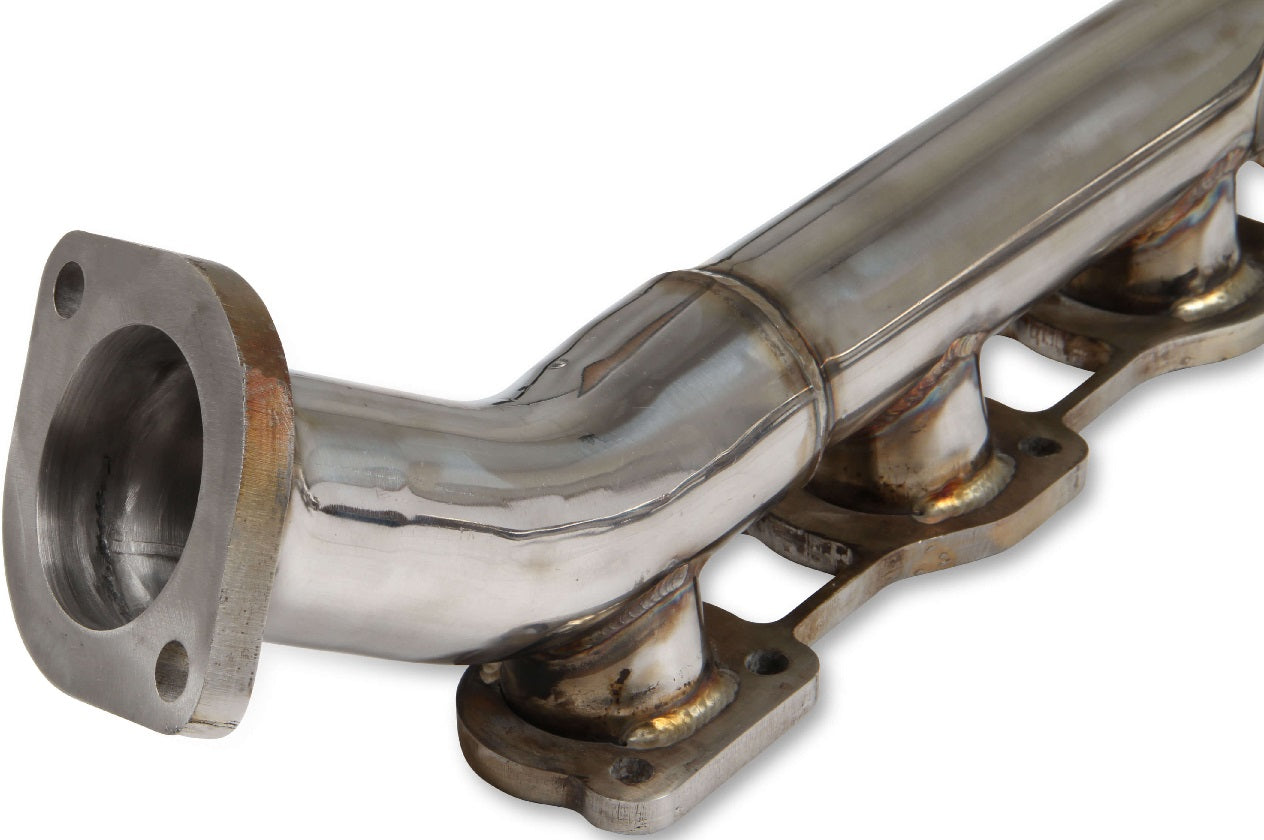

HEADER,HEMI SWAP,SHORTY,1 3/4,SS

BRAND NEW HOOKER BLACKHEART H�EMI SWAP SHORTY HEADERS, NATURAL 304SS FINISH, 1.75" PRIMARY TUBES, COMPATIBLE WITH 2003 & UP GEN III H�EMI ENGINES

COMPATIBLE WITH A WIDE RANGE OF SWAP APPLICATIONS WHERE CLEARANCE IS LIMITED. COMPATIBILITY HAS BEEN CONFIRMED ON SEVERAL POPULAR PLATFORMS INCLUDING 1987-2004 2WD DAKOTA, 1972-1993 2WD D100/D150, 1966-1972 B-BODY WITH MANUAL STEERING BOX & 1970-1974 MOPAR E-BODY WITH MANUAL STEERING BOX.

MADE FROM 304 STAINLESS STEEL & FEATURE 3/8" THICK FLANGES, 16-GAUGE 1-3/4" PRIMARY TUBES, & 2.50" 2-BOLT COLLECTORS. PROVIDE CLEARANCE TO BRAKE BOOSTER, STEERING SHAFT, STEERING BOX, STARTER MOTOR (BOTH LEFT & RIGHT SIDE MOUNTED STARTERS) & PROVIDE CLEARANCE FOR SEVERAL AUTO & MANUAL TRANSMISSION OPTIONS.

COMPATIBLE WITH:

• 1966-1972 B-BODY - MANUAL STEERING ONLY, REDUCED HEAD COVER BOLT RECOMMENDED, SEE FIGURE 3 ON INSTRUCTION SHEET
• 1970-1974 E-BODY - MANUAL STEERING ONLY, REDUCED HEAD COVER BOLT RECOMMENDED, SEE FIGURE 3 ON INSTRUCTION SHEET
• 1987- 1996 DODGE DAKOTA 2WD V6/V8
• 1997- 2004 DODGE DAKOTA 2WD V6/V8 - UPPER CONTROL ARM CLEARANCE RECOMMENDED, SEE FIGURE 4 ON INSTRUCTION SHEET
• 1972 -1993 DODGE D100/D150

FEATURES:

• GEN III H�EMI SWAP LOG STYLE HEADERS DESIGNED SPECIFICALLY FOR TIGHT APPLICATIONS
• COMPATIBLE WITH GEN III H�EMI ENGINES 2003 & UP 5.7L/6.1L/6.2L/6.4L
• SHORTY STYLE HEADER GEOMETRY DESIGNED FOR MAX CLEARANCE & HASSLE FREE INSTALLATION
• COMPATIBLE WITH AUTO TRANSMISSIONS: A727, 46RE, 46RH, 545RFE, NAG1, 8HP70 & MANUAL TRANSMISSION TR6060
• 16-GAUGE, MANDREL BENT 304 STAINLESS STEEL FOR STRENGTH & DURABILITY
• 1-3/4" PRIMARY TUBES & 2.5" 2-BOLT COLLECTOR

SPECS:

• BRAND: HOOKER BLACKHEART
• COLLECTOR DIAMETER: 2.50 INCH
• ENGINE: GEN 3 H�EMI
• HEADER FINISH: NATURAL
• HEADER STYLE: SHORTY
• PRIMARY TUBE DIAMETER: 1-3/4 INCH
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: 304 STAINLESS STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
