BLACKHEART CAT-BACK EXHAUST,20-23 CORVETTE 6.2L,DOR,BLACK

BLACKHEART CAT-BACK EXHAUST,20-23 CORVETTE 6.2L,DOR,BLACK

HEH BH13311

$1,725.95
$1,725.95
View full details

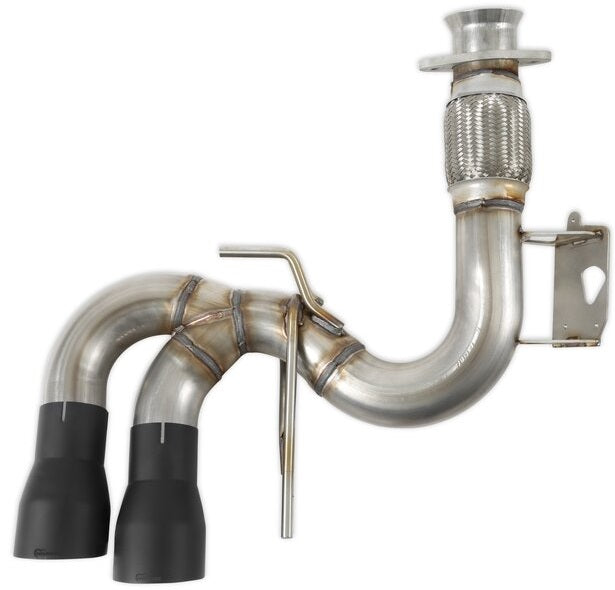

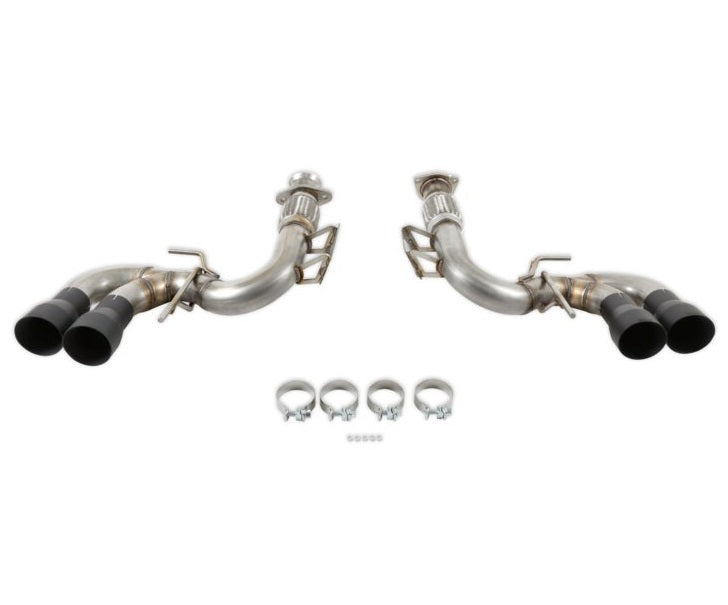

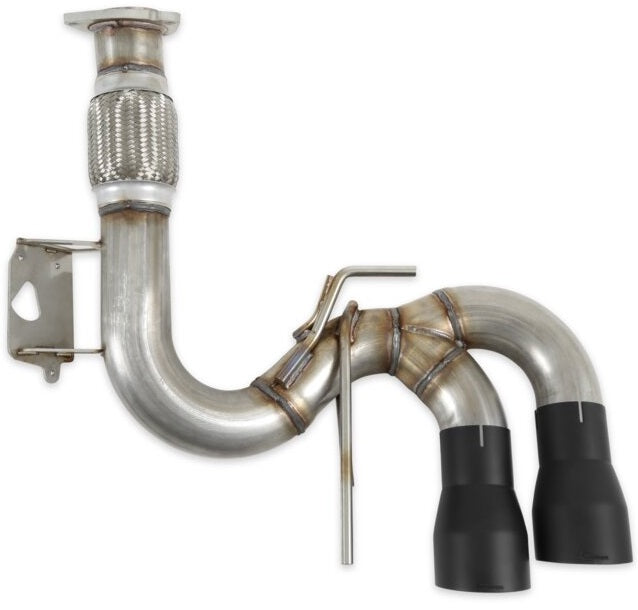

BRAND NEW HOOKER BLACKHEART CAT-BACK EXHAUST SYSTEM, NATURAL FINISH & 4" BLACK TIPS, STRAIGHT-PIPE, NON NPP & AFM VALVE SIMULATORS, COMPATIBLE WITH 2020-2023 C8 CORVETTE 6.2L

THE NON-MUFFLED STRAIGHT THROUGH KIT DESIGN WILL NOT ONLY GIVE YOUR CAR A DEEP AGGRESSIVE RUMBLE, BUT IT WILL ALSO REDUCE THE WEIGHT OF THE OVERALL EXHAUST SYSTEM. ALSO, INCLUDED IN THIS SYSTEM ARE AFM VALVE SIMULATORS THAT REUSE THE FACTORY VALVE ACTUATORS TO ELIMINATE FAULTY CHECK ENGINE LIGHTS. WHILE DESIGNED FOR C8S WITHOUT THE FACTORY NPP DUAL MODE EXHAUST OPTION, THIS SYSTEM CAN BE USED WITH NPP-EQUIPPED STINGRAYS IF NPP SIMULATORS ARE USED.

THIS SYSTEM INCLUDES MANDREL BENT 3.00-INCH TUBING TO MAXIMIZE THE EXHAUST FLOW, AND IS FINISHED OFF WITH FOUR 4.00-INCH DOUBLE WALLED BLACK STAINLESS STEEL TIPS THAT HAVE THE HOOKER BLACKHEART LOGO LASER ETCHED INTO THEM FOR GREAT LOOKS. THIS TWO PIECE EXHAUST SYSTEM REDUCES THE OVERALL INSTALL COMPLEXITY BY NOT HAVING TO ALIGN BOTH SIDES AT THE SAME TIME. HARDWARE THAT UTILIZE FACTORY MOUNTING POINTS INCLUDED.

COMPATIBLE WITH:

  • CHEVY:
    • 2020-2023 CORVETTE

FEATURES:

  • CONSTRUCTED FROM 3.00-INCH LIGHTWEIGHT, 18-GAUGE, MANDREL BENT, 304 STAINLESS STEEL
  • 4" DOUBLE-WALLED, 304 BLACK COATED STAINLESS TIPS WITH THE HOOKER BLACKHEART LOGO
  • 100% QUALITY HAND WELDED CONSTRUCTION
  • UTILIZES THE FACTORY MOUNTING POINTS FOR A FACTORY-LIKE FITMENT
  • TUBE GEOMETRY DESIGNED FOR MAXIMUM CLEARANCE & HASSLE-FREE INSTALL
  • ALL HARDWARE IS INCLUDED TO COMPLETE THE INSTALL
  • MAX GAINS ON THE DYNO OF 6 HP AND 7 LB-FT OVER STOCK AT THE WHEELS
  • STRAIGHT PIPE DESIGN ALLOWS FOR MAXIMUM SOUND AND EXHAUST FLOW
  • AFM VALVE SIMULATORS HELP KEEP MAXIMUM SOUND AT ALL TIMES

SPECS:

  • EXIT POSITION: DOR
  • MATERIAL: 304 STAINLESS STEEL
  • MOUNT TYPE: USES FACTORY HANGERS
  • PRODUCT TYPE: EXHAUST SYSTEM
  • SINGLE DUAL: DUAL
  • SOUND LEVEL: AGGRESSIVE
  • SYSTEM TYPE: CAT-BACK
  • TIP CUT: ANGLE
  • TIP DIAMETER: 4.00
  • TIP EDGE STYLE: CUT
  • TIP FINISH: BLACK CERAMIC
  • TIP LENGTH: 7
  • TIP MATERIAL: 304 STAINLESS
  • TIP QUANTITY: 4.00
  • TIP SHAPE: ROUND
  • TIP STYLE: DOUBLE WALL
  • TUBING DIAMETER (IN): 3.00
  • TUBING MATERIAL: 304 STAINLESS STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SWAP SYSTEM HERE.
