EXHAUST MANIFOLDS,LS SWAP,CERAMIC TITANIUM

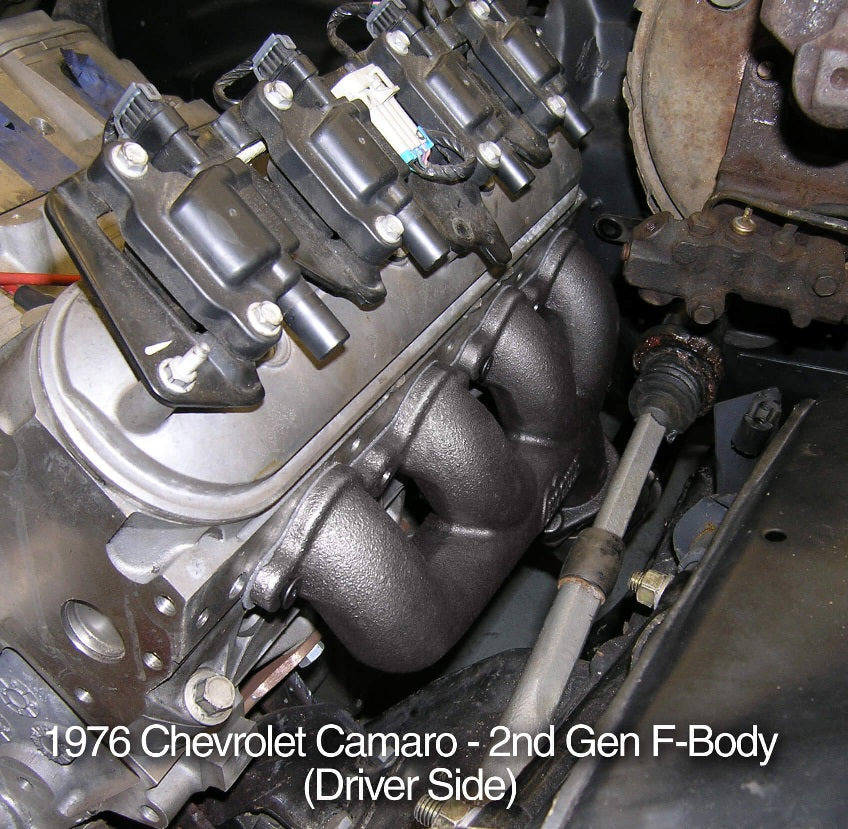

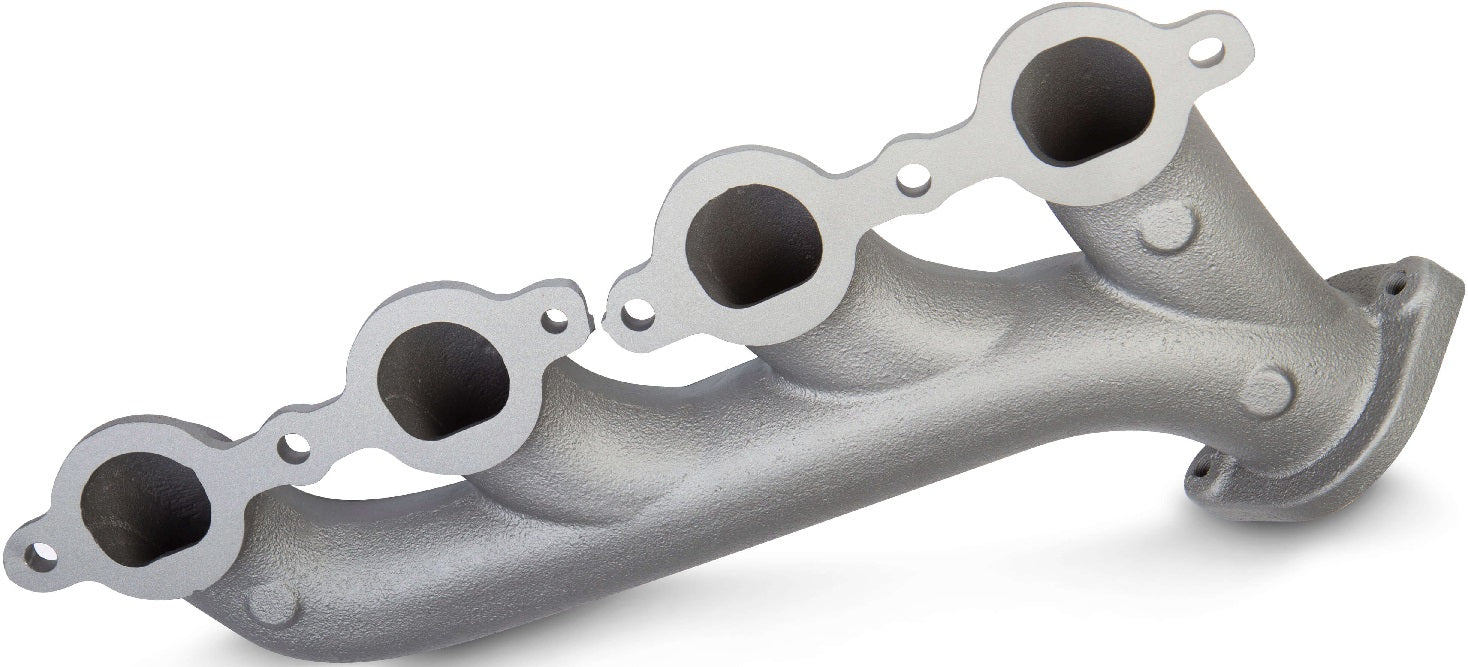

BRAND NEW HOOKER BLACKHEART LS SWAP EXHAUST MANIFOLD, 2.25" OUTLET, TITANIUM CERAMIC FINISH, COMPATIBLE WITH 1970-1981 CHEVROLET CAMARO

THESE HOOKER BLACKHEART CAST IRON EXHAUST MANIFOLDS HAVE A 2.25" OUTLET & ARE DESIGNED TO HUG CLOSE TO THE ENGINE BLOCK SO THEY FIT INTO A WIDE VARIETY OF REPLACEMENT & ENGINE-SWAP APPLICATIONS. THEIR CONTOURED DESIGN AIMS THE EXHAUST DIRECTLY TOWARD THE EXIT PORT FOR IMPROVED FLOW.

BEING CAST IRON MEANS THEY WILL PROVIDE YEARS OF LEAK-FREE PERFORMANCE WITH LESS UNDER HOOD NOISE THAN TRADITIONAL HEADERS. PLUS, THEIR SHORTY DESIGN MEANS YOU CAN ROUTE EXHAUST TUBING CLOSE TO YOUR FRAME/FLOOR PAN FOR MAXIMUM GROUND CLEARANCE.

FEATURES:

• INTENDED FOR GM LS ENGINE SWAP APPLICATIONS WHERE DURABILITY, QUIET OPERATION & LEAK-FREE SEALING IS DESIRED
• TITANIUM CERAMIC COATING FOR REDUCED ENGINE COMPARTMENT TEMPS & IMPROVED CORROSION RESISTANCE (TITANIUM CERAMIC HAS NO ACTUAL TITANIUM PROPERTIES)

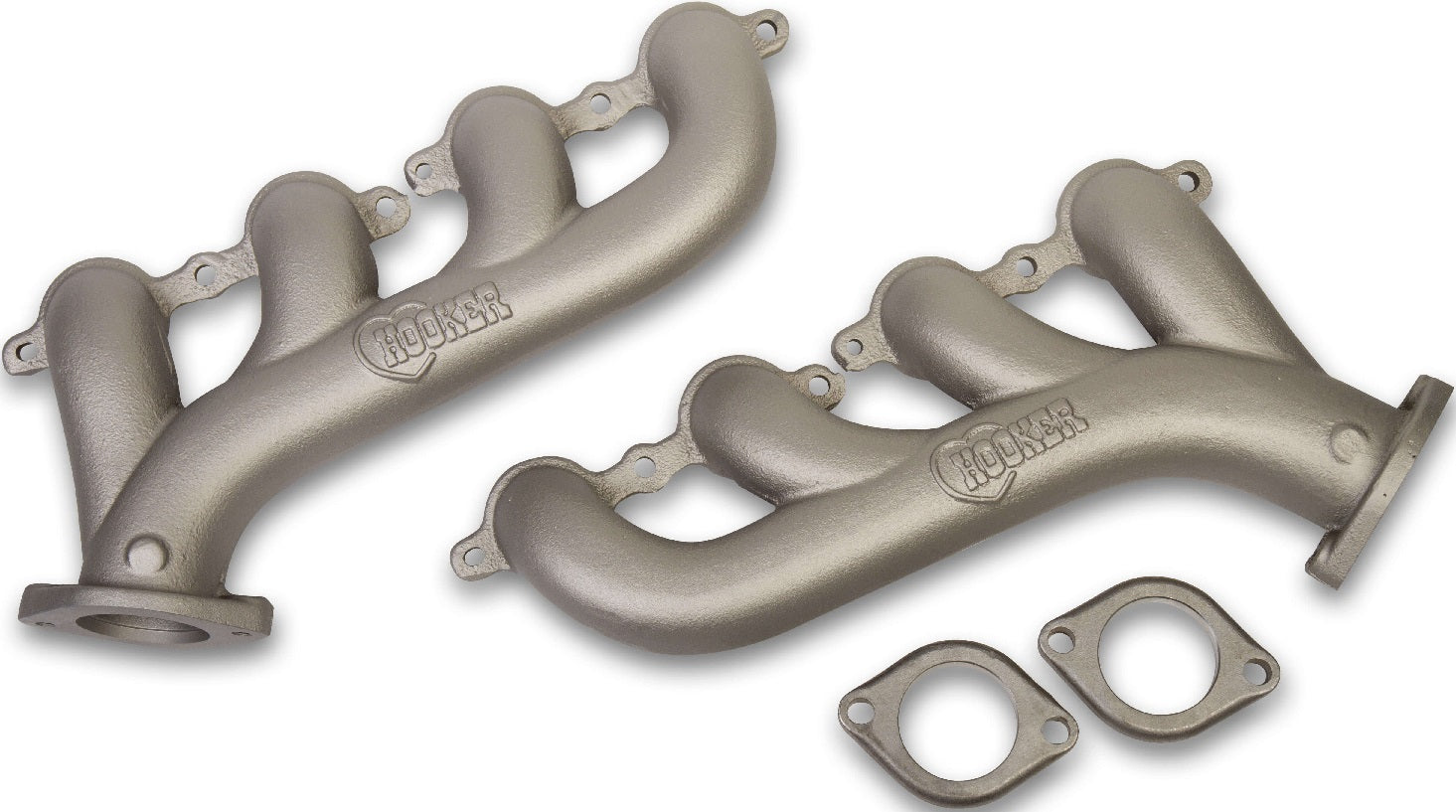

• 304 STAINLESS STEEL MATING FLANGES INCLUDED (MATING FLANGE FASTENERS ARE NOT INCLUDED)
• 2.25" OUTLET DIAMETER OFFERS IMPROVED FLOW FOR MAX PERFORMANCE FROM A CAST IRON EXHAUST MANIFOLD

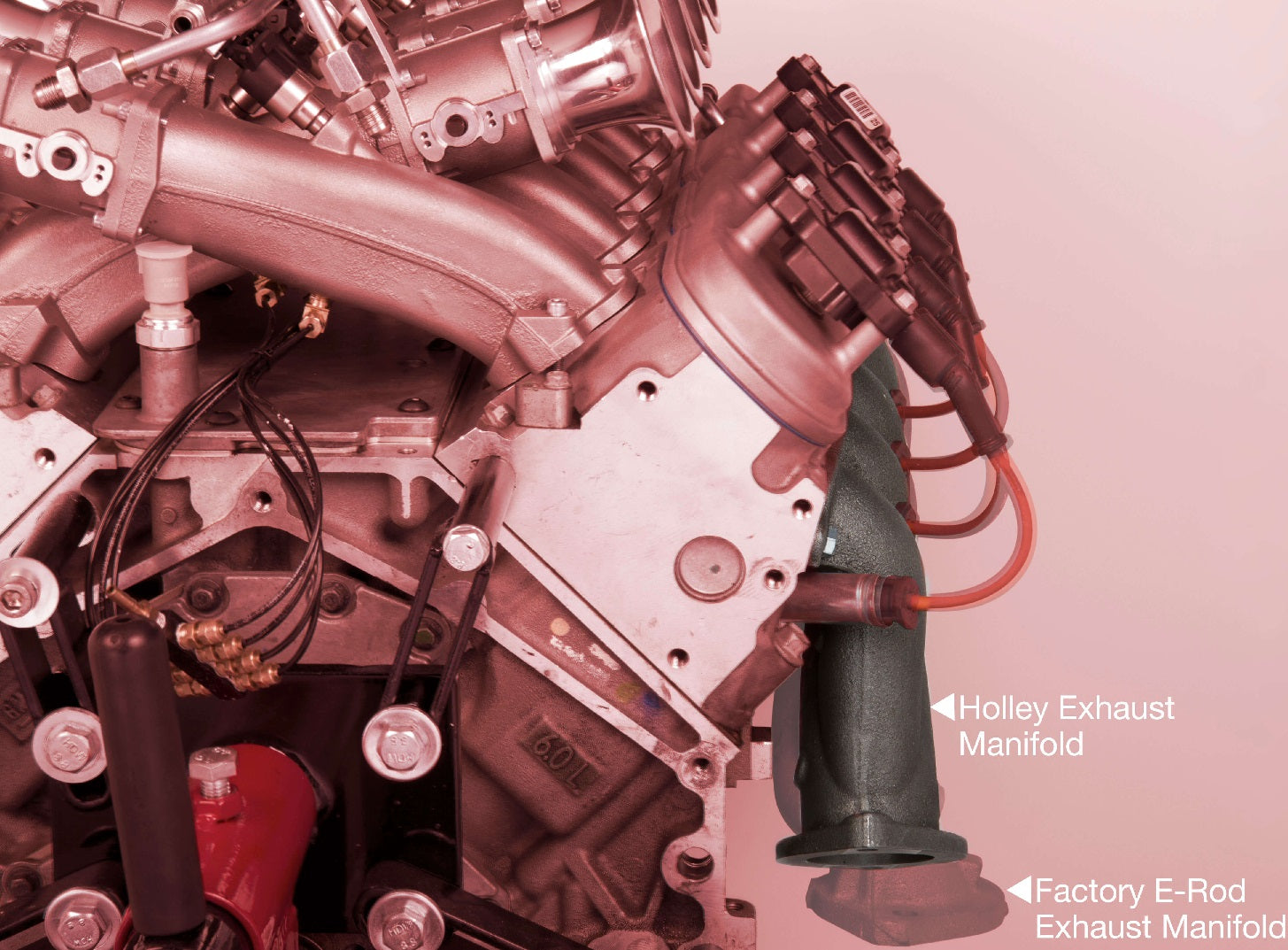

• 2 BOLT EXIT FLANGE CONFIGURATION MATCHES THE E-ROD EXHAUST MANIFOLDS FOR A FACTORY LIKE FITMENT. THIS ALLOWS THE USE OF OE GASKETS & FASTENERS IF DESIRED, FOR AN OE QUALITY SEAL & FITMENT TO EMISSIONS DEVICES
• CAST FROM HI-SILICON-MOLY DUCTILE IRON TO PROVIDE DURABILITY & CORROSION RESISTANCE
• TIGHT TUCK DESIGN PROVIDES UNIVERSAL FIT FOR MOST POPULAR CHASSIS & CLEAN TRADITIONAL MUSCLE CAR APPEARANCE
• PERFECT COMPLEMENT TO HOOKER ENGINE SWAP MOUNT PLATES & HOLLEY ENGINE SWAP OIL PANS

SPECS:

• APPLICATION: MULTI-FIT
• COLLECTOR DIAMETER: 2.25"
• ENGINE: GM LS
• EXHAUST SERIES: HOOKER
• FINISH: TITANIUM CERAMIC
• HEADER STYLE: MANIFOLD
• MATERIAL: CAST IRON
• PRIMARY TUBE DIAMETER: 1-3/4"
• PRODUCT TYPE: MANIFOLD
• SUBFRAME: STOCK

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EXHAUST MANIFOLD HERE.
