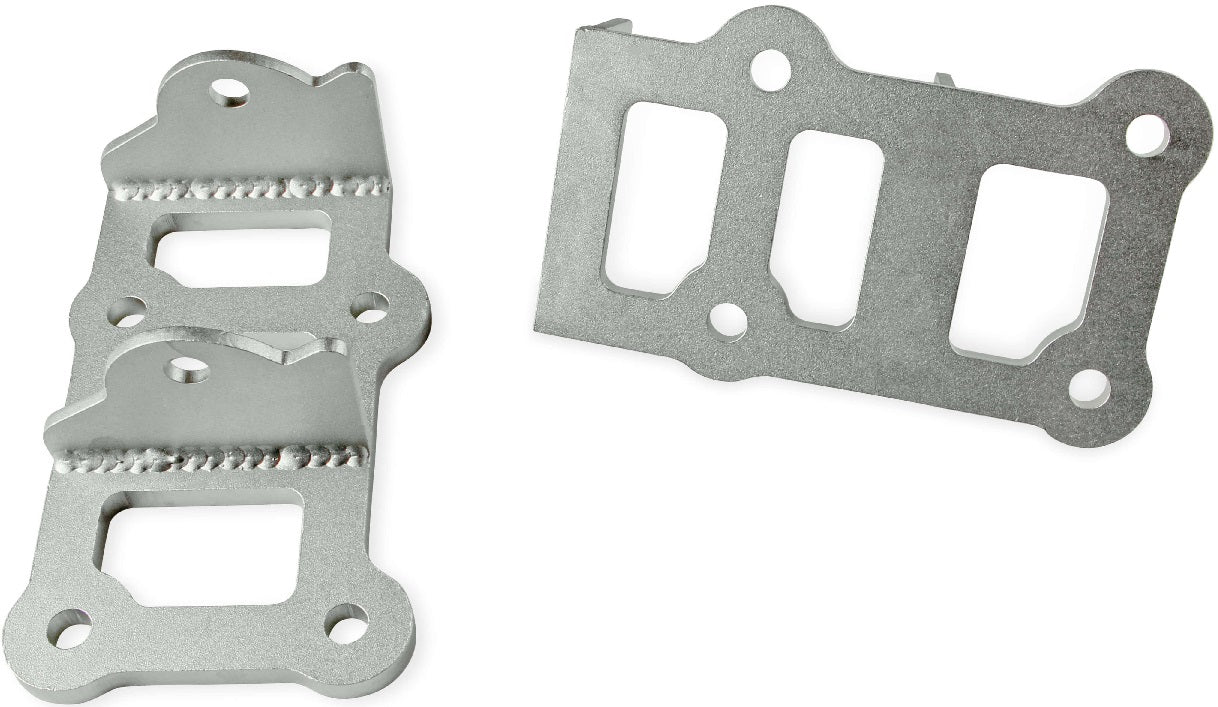

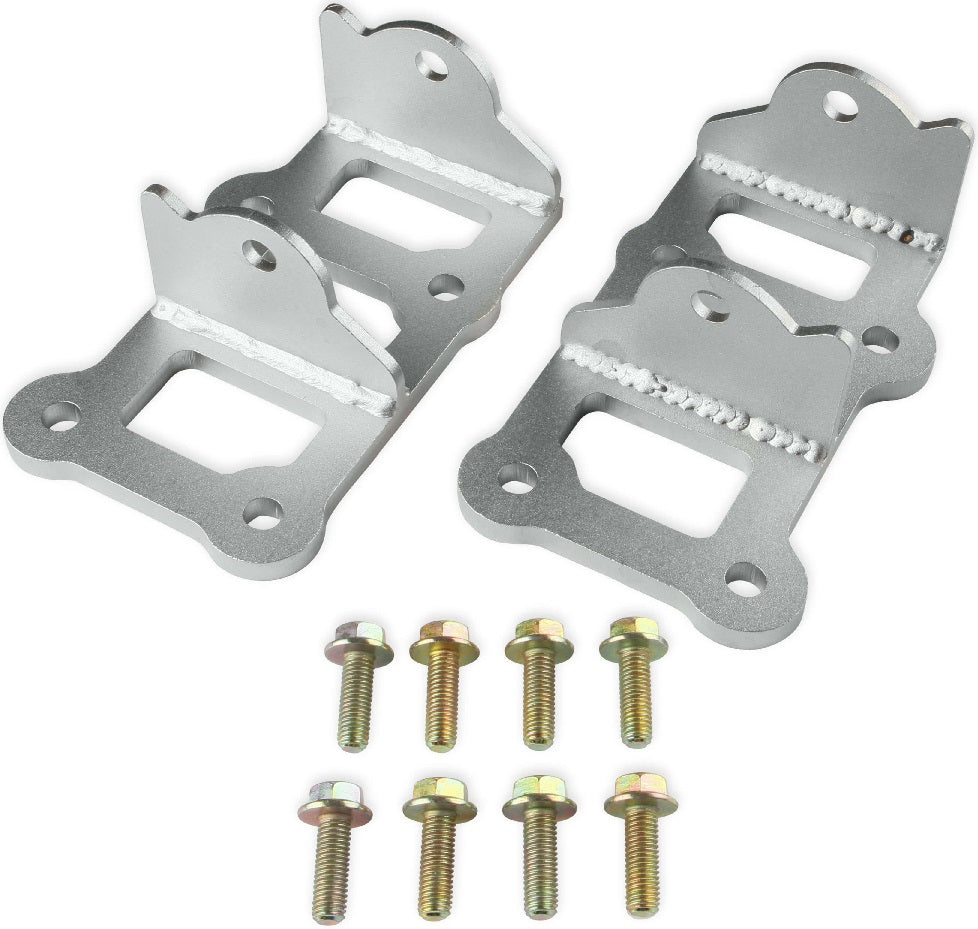

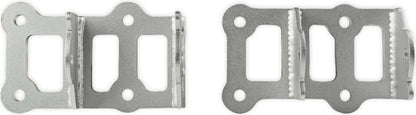

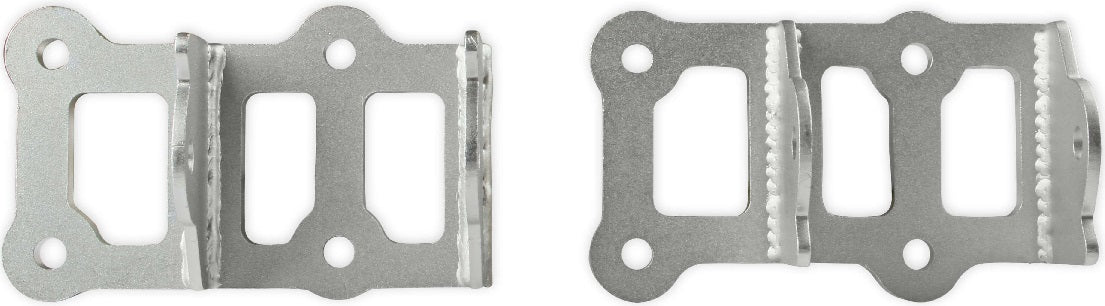

ENGINE MOUNTS,LS SWAP,FRONT,78-88 G-BODY

BRAND NEW HOOKER BLACKHEART ENGINE MOUNT BRACKETS, SILVER FINISH, COMPATIBLE WITH 1978-1988 GM A/G-BODY LS-SWAP ENGINES

HOOKER BLACKHEART ENGINE SWAP MOUNTING BRACKETS FACILITATE THE INSTALL OF AN GM LS MOTOR INTO A 1978-88 A/G-BODY AS PART OF YOUR LS SWAP PROJECT. THIS KIT IS PART OF THE MOST COMPREHENSIVELY ENGINEERED SYSTEM OF MOUNTING COMPONENTS, HEADERS & EXHAUST SYSTEMS AVAILABLE FOR THIS APPLICATION.

NOTE: INTEGRAL PART OF THE COMPLETE HOOKER BLACKHEART SWAP SYSTEM FOR THIS APPLICATION. COMPONENTS FEATURE UNIQUE DESIGN GEOMETRY THAT IS NOT COMPATIBLE WITH ANY OTHER BRAND OF TRANSMISSION CROSSMEMBER OR HEADERS.

NOTE: TH350 TRANSMISSIONS CAN REUSE THE FACTORY TRANSMISSION CROSSMEMBER, BUT THE SLOT IN THE CENTER OF THE CROSSMEMBER WILL NEED TO BE ELONGATED IN THE FORWARD DIRECTION.

FEATURES:

• SPECIFICALLY DESIGNED FOR BOLT-IN COMPATIBILITY WITH THE HOOKER BLACKHEART TRANSMISSION SWAP COMPONENTS
• FULLY COMPATIBLE WITH HOLLEY LS SWAP OIL PAN PART #302-2 & ACCESSORY DRIVE BRACKETS
• PROVIDES AN ENGINEERED 3 TO 3.5 DEGREE ENGINE/TRANSMISSION INCLINATION ANGLE THAT IS CRITICAL TO OBTAINING USABLE U-JOINT WORKING ANGLES (ESPECIALLY IN LOWERED VEHICLES)
• MOUNTING HARDWARE INCLUDED

SPECS:

• APPLICATION: 1978-1988 A/G-BODY
• BRAND: HOOKER BLACKHEART
• COLOR/FINISH: SILVER ZINC
• MATERIAL: STEEL
• MOTOR TYPE: GM LS
• PRODUCT TYPE: ENGINE MOUNTS
• TRANSMISSION: 200R4 | 4L60E | 4L65E | 4L70E | 4L75E | 4L80E | 4L85E | T56 GM | T56 MAGNUM GM | TH400
• TYPE OF COMPONENT: ENGINE MOUNT BRACKET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE ENGINE MOUNTS HERE.
