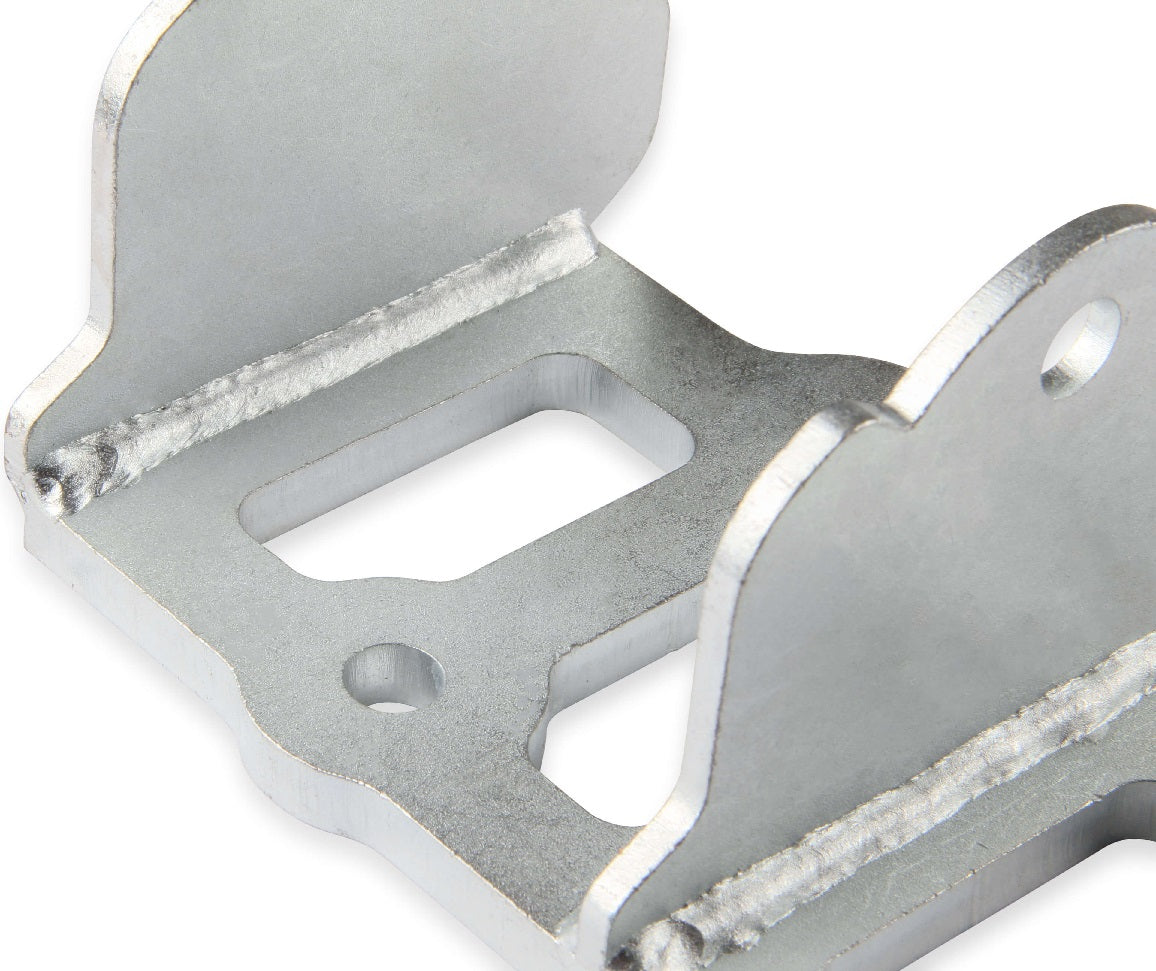

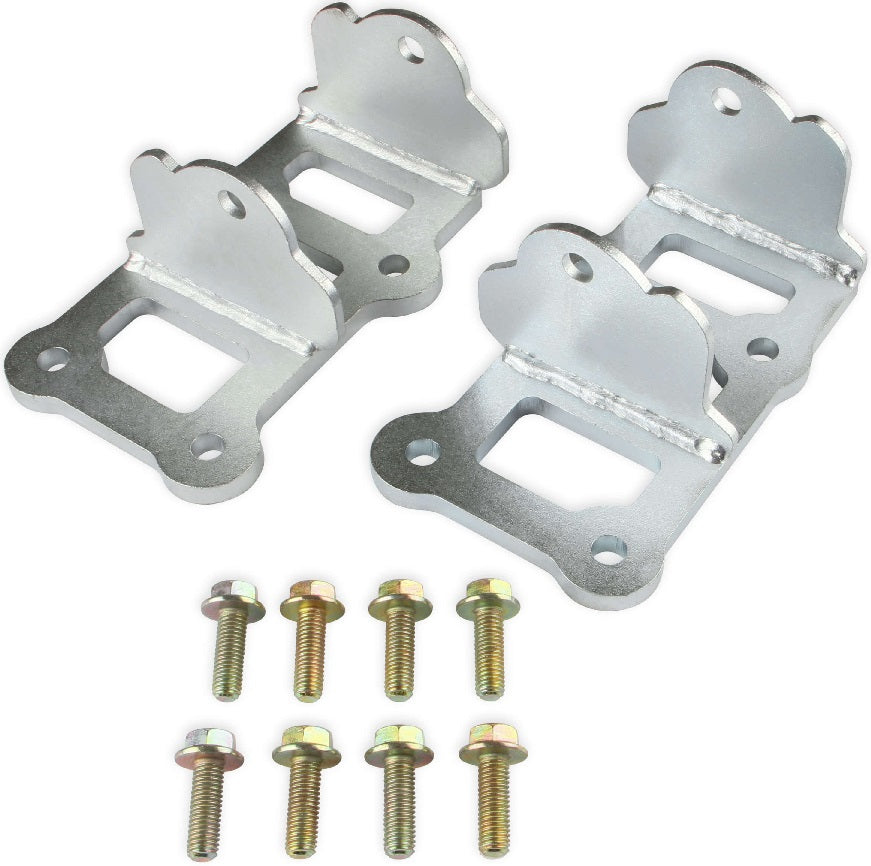

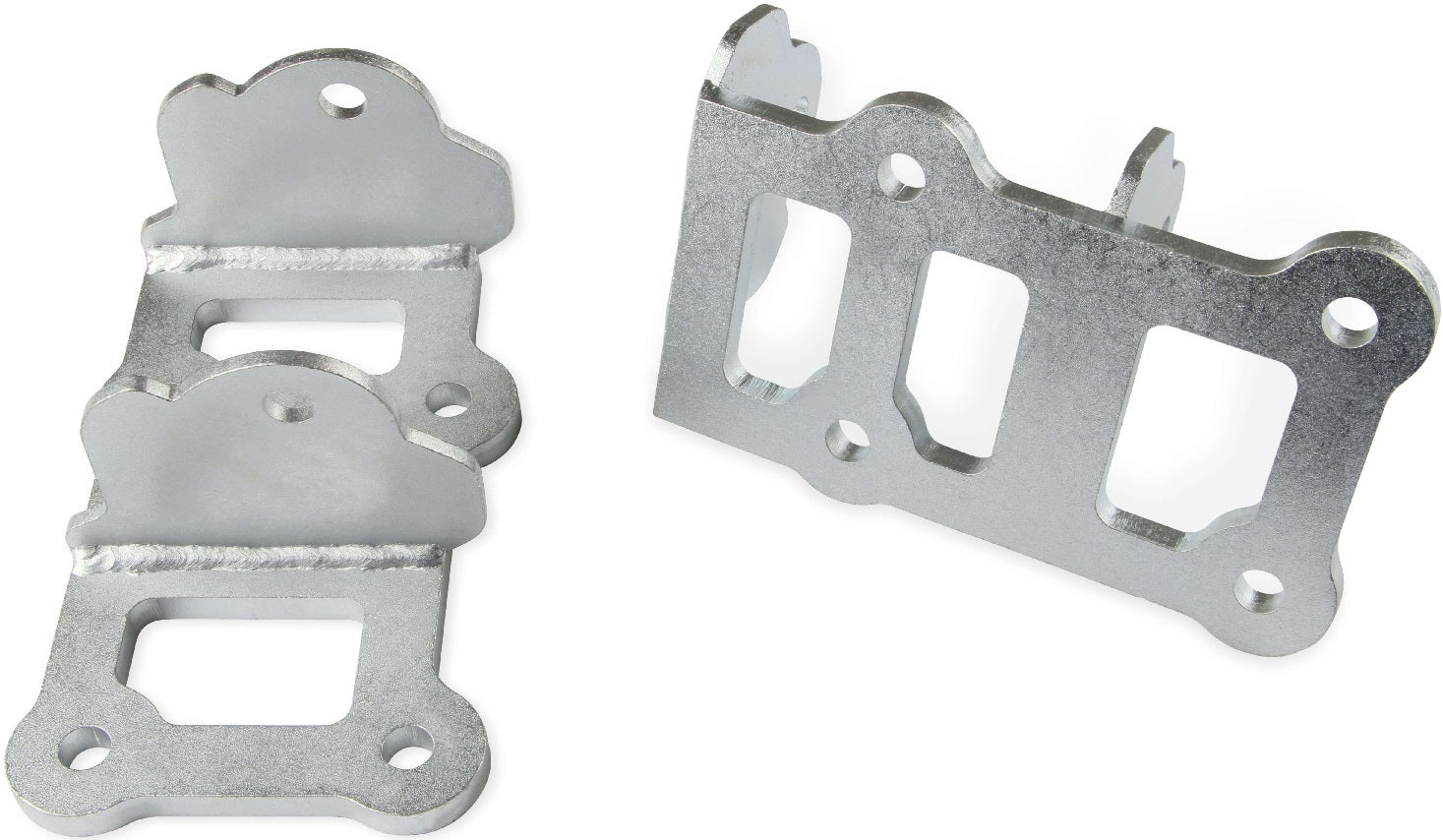

ENGINE MOUNTS,LS SWAP,FRONT,73-87 C-10

BRAND NEW HOOKER BLACKHEART STANDARD ENGINE MOUNT BRACKETS, SILVER FINISH, COMPATIBLE WITH 1973-1987 CHEVROLET C10 TRUCKS

HOOKER BLACKHEART APPLICATION-SPECIFIC LS SWAP ENGINE MOUNTING BRACKETS REMOVE THE INSTALLATION GUESSWORK & COMPATIBILITY UNCERTAINTY THAT COMES WITH USING UNIVERSAL/ADJUSTABLE SWAP PLATE MOUNTING METHODS.

THESE BRACKETS ARE DESIGNED TO ACHIEVE OPTIMIZED COMPONENT CLEARANCES & DRIVETRAIN/U-JOINT OPERATION ANGLES IN THIS APPLICATION WHEN USED IN CONJUNCTION WITH PART #12646HKR TRANSMISSION CROSSMEMBER & HOOKER BLACKHEART LONG-TUBE HEADERS & DUAL EXHAUST SYSTEMS CO-DEVELOPED FOR THIS APPLICATION.

NOTE: STANDARD ENGINE MOUNTING BRACKETS REQUIRE THE USE OF STOCK SB CHEVY CLAMSHELL MOUNTS FOR THIS APPLICATION OR THEIR AFTERMARKET EQUIVALENT.

NOTE: COMPATIBLE WITH EXHAUST MANIFOLDS: 8501HKR, 8501-1HKR, 8501-3HKR, 8501-4HKR, 8501-5HKR, 8502HKR, 8502-1HKR, 8502-3HKR, 8502-4HKR, 8502-5HKR, 11730FLT, 31730-1FLT, AND 31730-3FLT.

NOTE: COMPATIBLE WITH HEADERS: 70101303-RHKR, 70101304-RHKR, BH13254, BH13256, 70101503HKR, 70101503-1HKR, 70101503-3HKR, 70101504HKR, 70101504-1HKR, 70101504-3HKR, BH70101503, BH70101503-1, BH701010503-3, BH70101504, BH70101504-1 & BH70101504-3.

FEATURES:

• WELDED STEEL CONSTRUCTION
• ZINC PLATED & DESIGNED FOR LIGHT WEIGHT, RIGIDITY & CLEAN APPEARANCE
• INCLUDES ATTACHMENT HARDWARE & INSTRUCTIONS
• WORK WITH STOCK SBC CLAMSHELL MOUNTS
• COMPATIBLE WITH HOOKER BLACKHEART HEADERS FOR THIS APPLICATION
• LS OIL PAN 302-1 WILL WORK WITH THESE ENGINE MOUNT BRACKETS

SPECS:

• APPLICATION: 1973-1987 CHEVROLET / GMC C10 SERIES TRUCK
• BRAND: HOOKER BLACKHEART
• COLOR/FINISH: SILVER ZINC
• MATERIAL: STEEL
• MOTOR TYPE: GM LS
• PRODUCT TYPE: ENGINE MOUNTS
• TRANSMISSION: 200R4 | 4L60E | 4L65E | 4L70E | 4L75E | 4L80E | 4L85E | 6L80E | 700R4 | POWERGLIDE | T56 GM | T56 MAGNUM GM | TH350 | TH400
• TYPE OF COMPONENT: ENGINE MOUNT BRACKET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE ENGINE MOUNTS HERE.
