STREET 650 CONVERSION CLUTCH KIT,55-85 GM,10.5",26-SPLINE

BRAND NEW HAYS STREET 650 CONVERSION CLUTCH KIT, BLACK, 10.5" DIAMETER, 650 MAX HP, 1.125" 26 SPLINE INPUT SHAFT, COMPATIBLE WITH 1955-85 GM L6, V6 & V8 ENGINES

HAYS STREET 650 CLUTCH KITS ARE DESIGNED HANDLE HIGHLY MODIFIED ENGINES UP TO 650 NATURALLY ASPIRATED HP (600HP FOR FORCED INDUCTION & NITROUS COMBINATIONS). NEWEST 26-SPLINE VERSIONS ARE DESIGNED TO WORK WITH A MODERN 5 OR 6 SPEED TRANSMISSION SWAP.

THESE ARE TRUE STREET/STRIP CLUTCHES FOR SPIRITED HIGH PERFORMANCE DRIVING OR FREQUENT TRACK USE. THE HIGH PERFORMANCE DUAL FRICTION DISC UTILIZED IN THE STREET 650 HAS AN UPGRADED SPRING HUB WITH HEAVY-DUTY DAMPER SPRINGS DESIGNED TO HANDLE GREATER SHOCK LOADS VERSUS A STANDARD DAMPER SPRING.

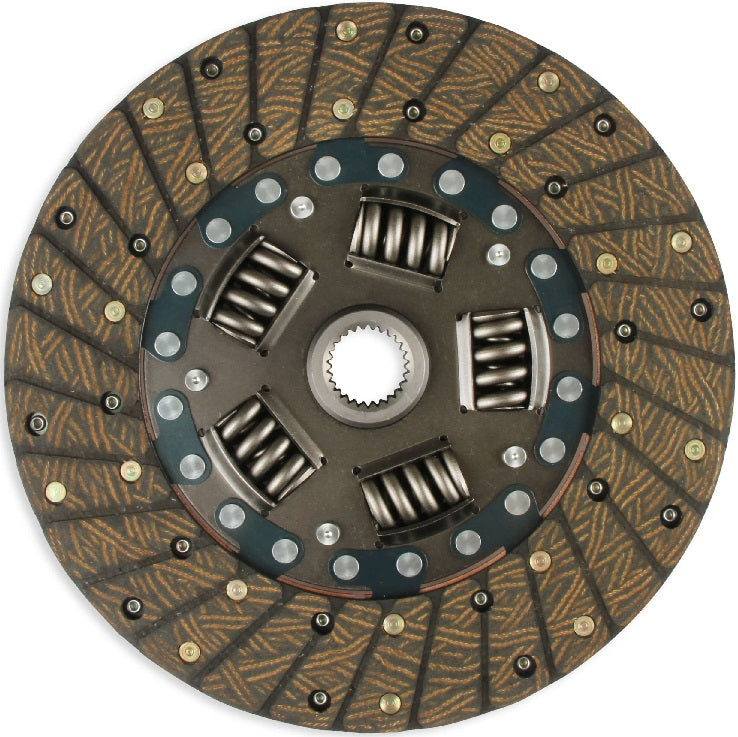

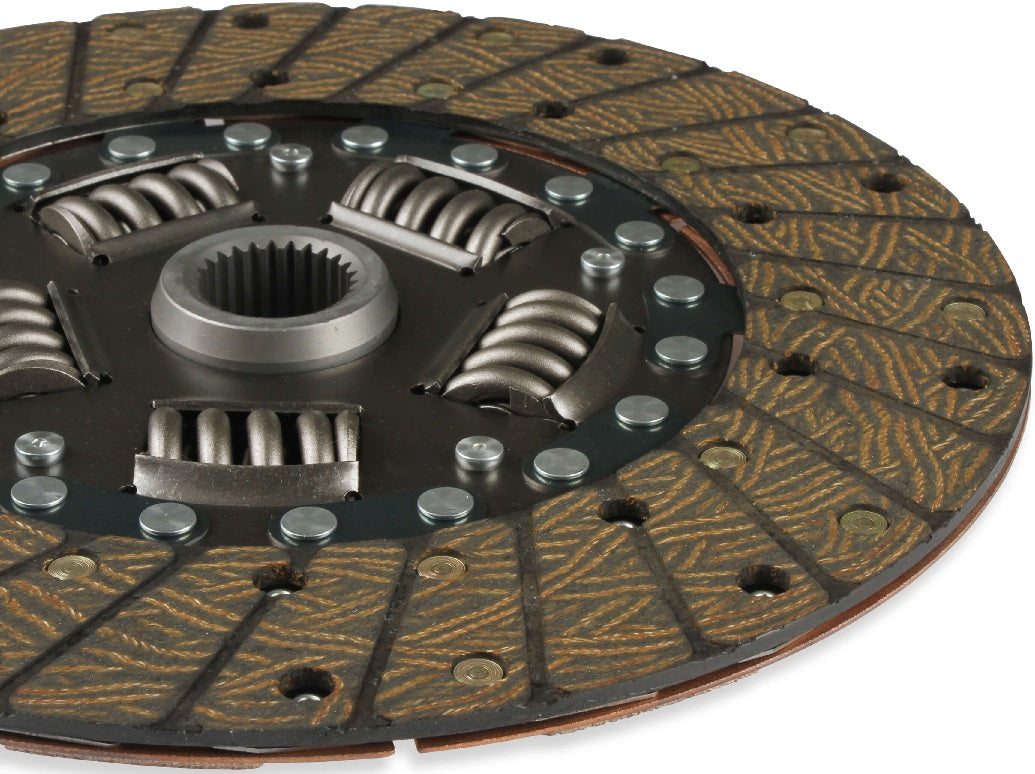

DISC FEATURES A SINTERED METALLIC FRICTION SURFACE AND AN ORGANIC FRICTION SURFACE. THIS DISC DOES A GREAT JOB AT DISSIPATING HEAT AND FIGHTING THE SLIPPAGE FOUND IN ORDINARY DISCS ALONG WITH PROVIDING THE SMOOTH ENGAGEMENT CHARACTERISTICS OF A STREET-STYLE CLUTCH.

FEATURES:

• INCLUDES 26-SPLINE CLUTCH DISC FOR USE WITH MOST 5 & 6 SPEED CONVERSIONS
• DESIGNED FOR POWER LEVELS UP TO 650 NATURALLY ASPIRATED HP (600 HP FOR FORCED INDUCTION/NITROUS)
• TRUE STREET/STRIP CLUTCH KIT FOR SPIRITED STREET DRIVING & FREQUENT TRACK USE
• UPGRADED DAMPER SPRINGS GIVES UP TO 30% MORE CLAMPING PRESSURE THAN STOCK OE CLUTCH
• DUAL FRICTION DISC OFFERS THE BEST OF BOTH WORLDS, SMOOTH ENGAGEMENT & EXCELLENT HOLDING CAPACITY
• UPGRADED HEAVY-DUTY SPRING HUB HANDLES GREATER SHOCK LOAD OVER STANDARD DISC SPRINGS

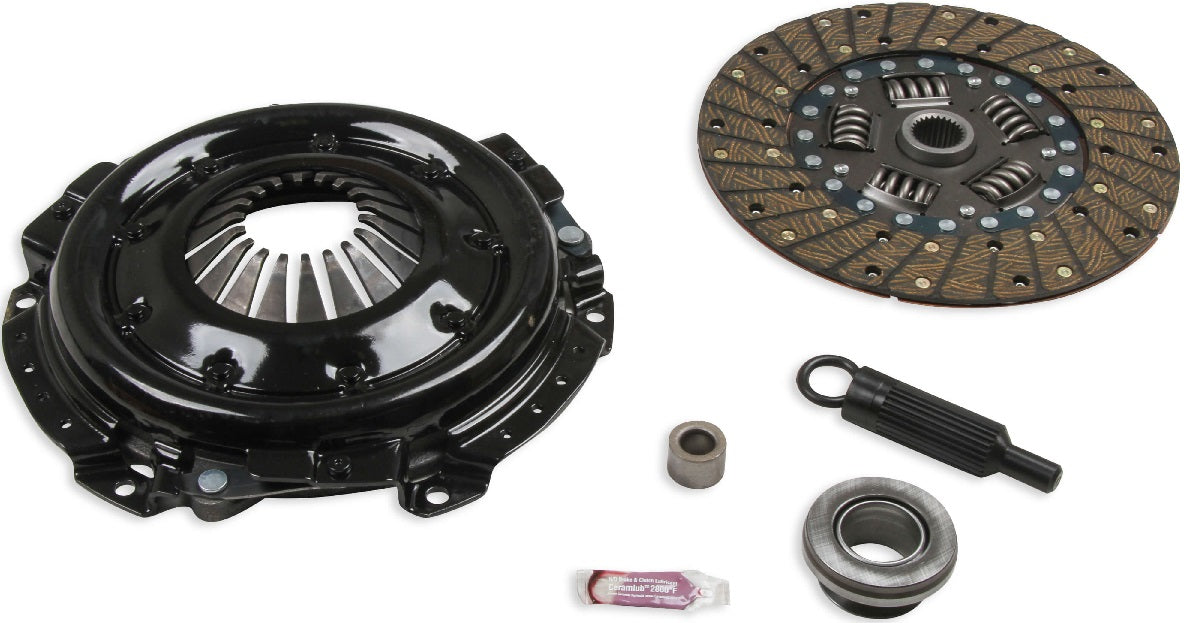

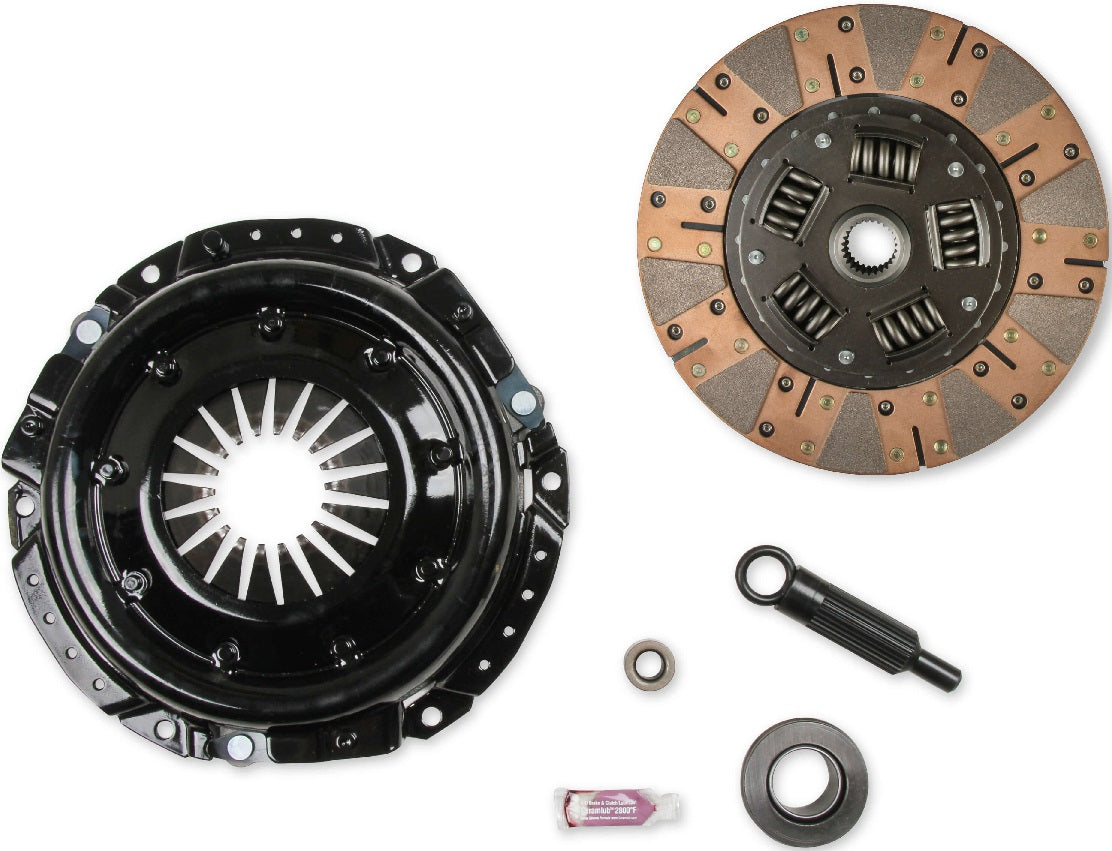

• COME COMPLETE WITH PRESSURE PLATE, DISC, THROWOUT BEARING & ALIGNMENT TOOL

SPECS:

• ALIGNMENT TOOL INCLUDED: YES
• APPLICATION: GM
• COLOR: BLACK
• DISC DIAMETER: 10.5"
• DISC MATERIAL: SINTERED METALLIC
• DISC STYLE: SPRING HUB
• INPUT SHAFT DIAMETER: 1-1/8"
• INPUT SPLINE: 26
• MAX HORSEPOWER RATING: 650
• PILOT BUSHING INCLUDED: NO
• PRESSURE PLATE STYLE: DIAPHRAGM
• PRODUCT TYPE: CLUTCH KITS
• THROWOUT BEARING INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CLUTCH KIT HERE.
