STREET 650 CLUTCH KIT,69-81 GM,11",26-SPLINE

BRAND NEW HAYS STREET 650 CLUTCH KIT, BLACK, 11" DIAMETER, 650 MAX HP, 1.125" 26 SPLINE INPUT SHAFT, COMPATIBLE WITH 1969-81 GM 305, 350, 396, 400, 455 V8 ENGINES

HAYS STREET 650 SINGLE DISC KITS ARE DESIGNED HANDLE HIGHLY MODIFIED ENGINES UP TO 650 NATURALLY ASPIRATED HP (600HP FOR FORCED INDUCTION & NITROUS COMBINATIONS). DESIGNED AS A TRUE STREET/STRIP CLUTCH FOR SPIRITED HIGH PERFORMANCE DRIVING OR FREQUENT TRACK USE.

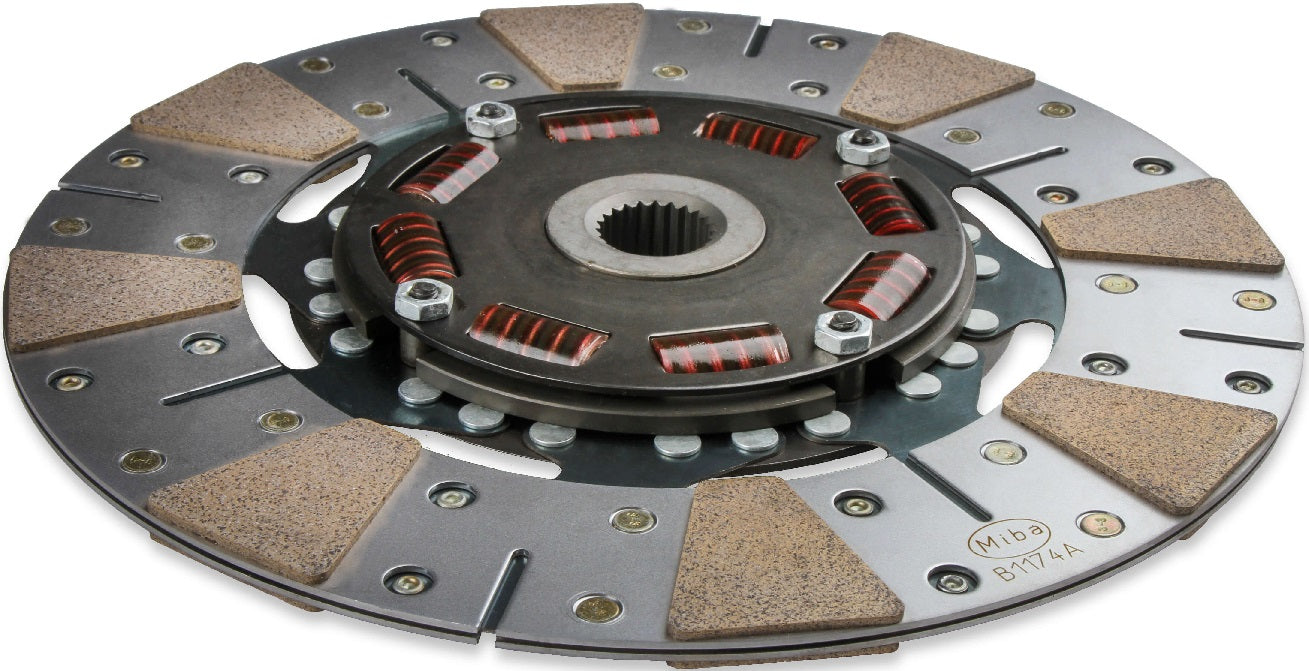

THE HIGH PERFORMANCE DISC UTILIZED IN THE STREET 650 HAS AN 8-SPRING HUB WITH ENCAPSULATED DAMPER SPRINGS AND A SINTERED METALLIC FRICTION SURFACE. THE ENCAPSULATED SPRING CAN HANDLE 3 TIMES THE SHOCK LOAD VERSUS A STANDARD COIL SPRING.

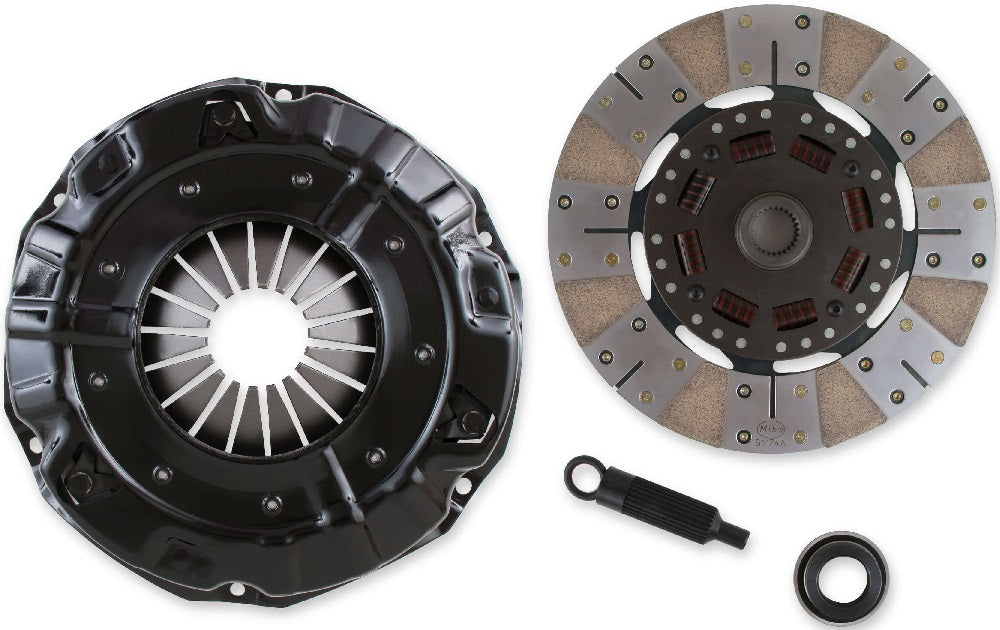

SINTERED METALLIC MATERIAL PROVIDES A DEGREE OF SLIPPAGE ON VEHICLE LAUNCH TO PREVENT VIOLENT ENGAGEMENT CHARACTERISTICS FOUND IN PADDLE-STYLE METALLIC DISCS. EACH KIT INCLUDES PRESSURE PLATE, CLUTCH DISC, THROWOUT BEARING, ALIGNMENT TOOL, AND INSTRUCTIONS.

FEATURES:

• DESIGNED FOR POWER LEVELS UP TO 650 NATURALLY ASPIRATED HP (600 HP FOR FORCED INDUCTION/NITROUS)
• TRUE STREET/STRIP CLUTCH KIT FOR SPIRITED STREET DRIVING & FREQUENT TRACK USE
• PRESSURE PLATE OFFERS 30% MORE CLAMPING FORCE THAN STOCK
• SINTERED METALLIC DISC FRICTION SURFACE USED FOR SMOOTHER ENGAGEMENT DURING VEHICLE LAUNCH
• UPGRADED 8-SPRING HUB WITH POLYURETHANE ENCAPSULATED DAMPER SPRINGS HANDLES 3 TIMES THE SHOCK LOAD OVER STANDARD DISC SPRINGS

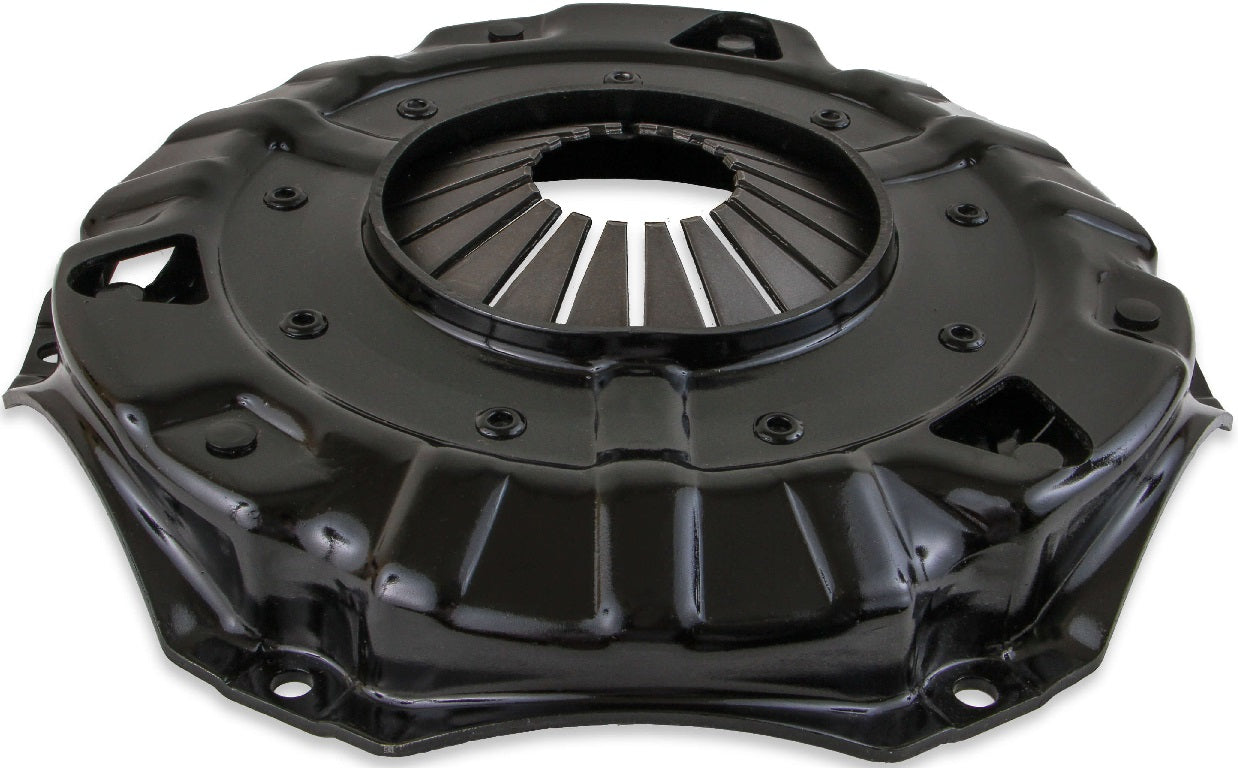

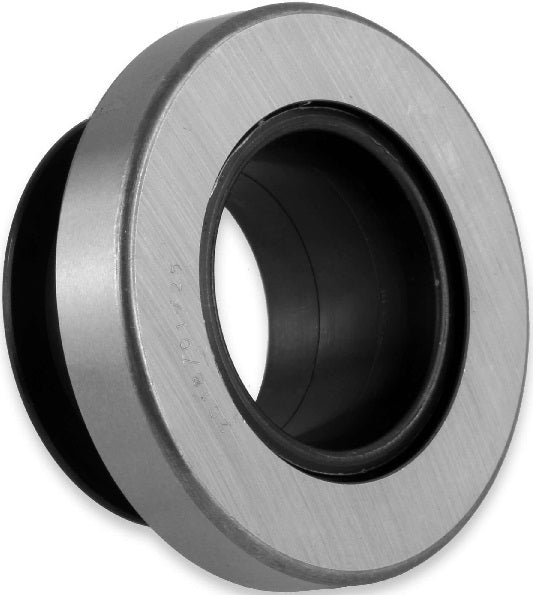

• COMES COMPLETE WITH PRESSURE PLATE, DISC, THROWOUT BEARING & ALIGNMENT TOOL

SPECS:

• ALIGNMENT TOOL INCLUDED: YES
• APPLICATION: GM
• DISC DIAMETER: 11
• DISC MATERIAL: SINTERED METALLIC
• DISC STYLE: SPRING HUB
• INPUT SHAFT DIAMETER: 1-1/8"
• INPUT SPLINE: 26
• MAX HP RATING: 650
• PILOT BUSHING INCLUDED: NO
• PRESSURE PLATE STYLE: DIAPHRAGM
• PRODUCT TYPE: CLUTCH KITS
• THROWOUT BEARING INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CLUTCH KIT HERE.
