CLASSIC CLUTCH KIT,STREET/STRIP,GM,10.5",10-SPLINE

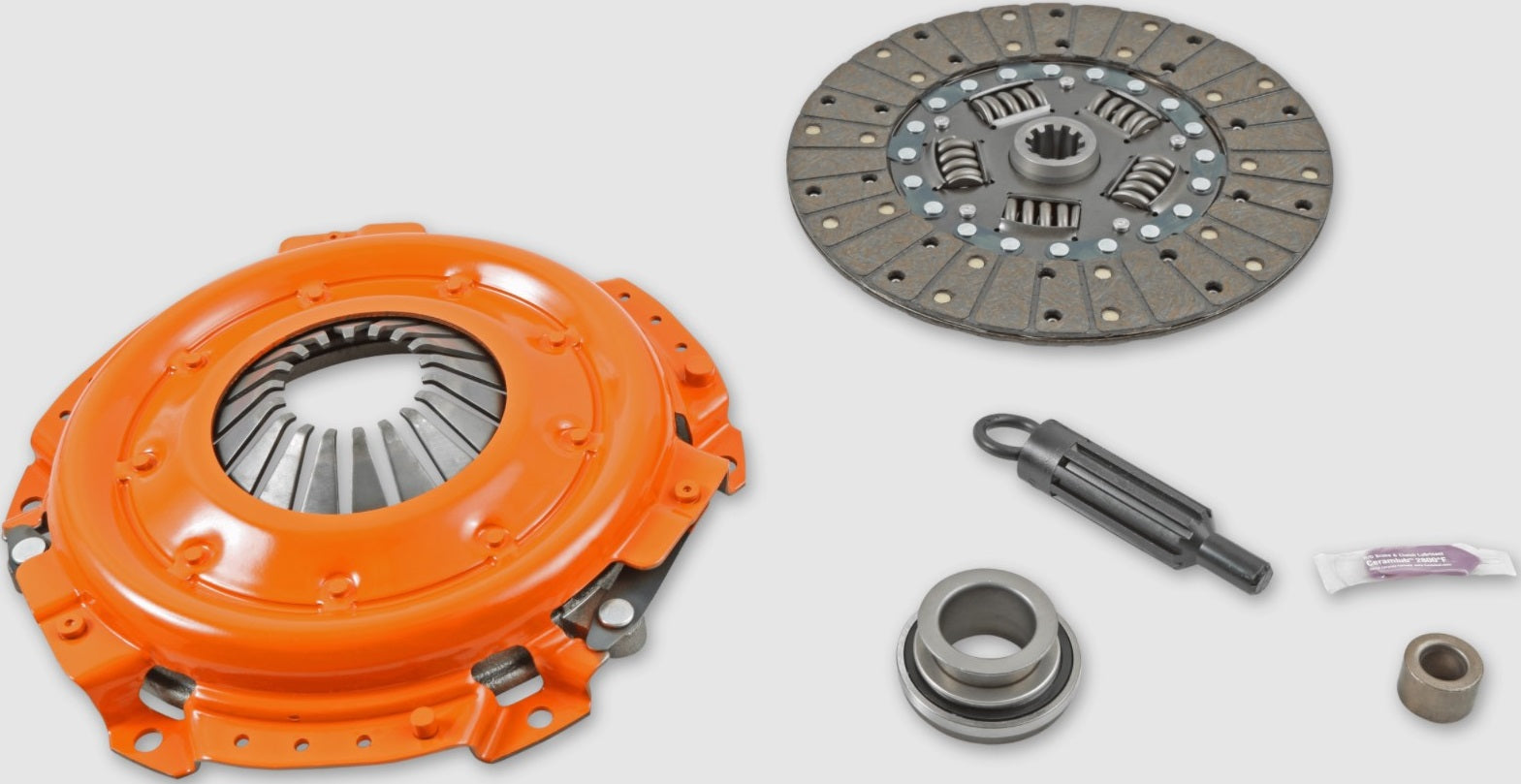

BRAND NEW HAYS CLASSIC CLUTCH KIT, SPRING HUB DISC STYLE, 10 INPUT SPLINE, 10.5" DISC DIAMETER, 600 MAX HP COMPATIBLE WITH GM APPLICATIONS

HAYS STREET/STRIP CLUTCH KITS ARE GREAT REPLACEMENTS FOR ORIGINAL EQUIPMENT UNITS. ENGINEERED AND BUILT AS A MATCHED ASSEMBLY, EACH KIT WILL PROVIDE EXCEPTIONAL PERFORMANCE, DURABILITY AND LONG TERM DEPENDABILITY. THIS CLUTCH FEATURES A HEAVY DUTY COVER TO MINIMIZE FLEX AND ENSURE STRENGTH AND STABILITY.

COMPATIBLE WITH BUICK, CHEVY AND PONTIAC APPLICATIONS WITH 10.5 IN CLUTCH AND 1-1/8 IN 10 SPLINE INPUT SHAFT. THE PRESSURE PLATE IS A DIAPHRAGM STYLE WITH LIGHT PEDAL PRESSURE AND A QUICK CLEAN RELEASE FOR PRECISE GEAR CHANGES WITH POSITIVE ENGAGEMENT TO HANDLE HIGH HORSEPOWER. THE CLUTCH DISK IS ORGANIC SPRUNG HUB. COMES COMPLETE WITH THE THROW OUT BEARING AND ALIGNMENT TOOL.

NOTE: THIS FLYWHEEL IS DRILLED FOR DIAPHRAGM, LONG STYLE, BORG & BECK AND MARK XII STYLE CLUTCHES.

FEATURES:

• STREET/STRIP
• HEAVY DUTY COVER
• GM APPLICATIONS
• 10.5 IN CLUTCH
• 1-1/8 IN 10 SPLINE
• ORGANIC SPRUNG HUB
• THIS IS A COMPLETE KIT

SPECS:

• ALIGNMENT TOOL INCLUDED: YES
• APPLICATION: GM
• BRAND: HAYS
• DISC DIAMETER: 10.5
• DISC MATERIAL: ORGANIC
• DISC STYLE: SPRING HUB
• INPUT SHAFT DIAMETER: 1-1/8 IN.
• INPUT SPLINE: 10
• MAX HORSEPOWER RATING: 600
• MAX TORQUE RATING (FT.-LBS.): 573
• PRESSURE PLATE STYLE: DIAPHRAGM
• PRODUCT TYPE: CLUTCH KITS
• BEARING INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CLUTCH KIT HERE.
