CLASSIC CLUTCH KIT,STREET,GM,10.5",10-SPLINE

BRAND NEW HAYS CLASSIC CLUTCH KIT, 10.5" DIAMETER, 1.125" 10 SPLINE INPUT SHAFT, 442 MAX HP, COMPATIBLE WITH GM APPLICATIONS

HAYS STREET CLUTCH KITS ARE GREAT REPLACEMENTS FOR ORIGINAL EQUIPMENT UNITS. ENGINEERED AND BUILT AS A MATCHED ASSEMBLY, EACH KIT WILL PROVIDE EXCEPTIONAL PERFORMANCE, DURABILITY AND LONG TERM DEPENDABILITY.

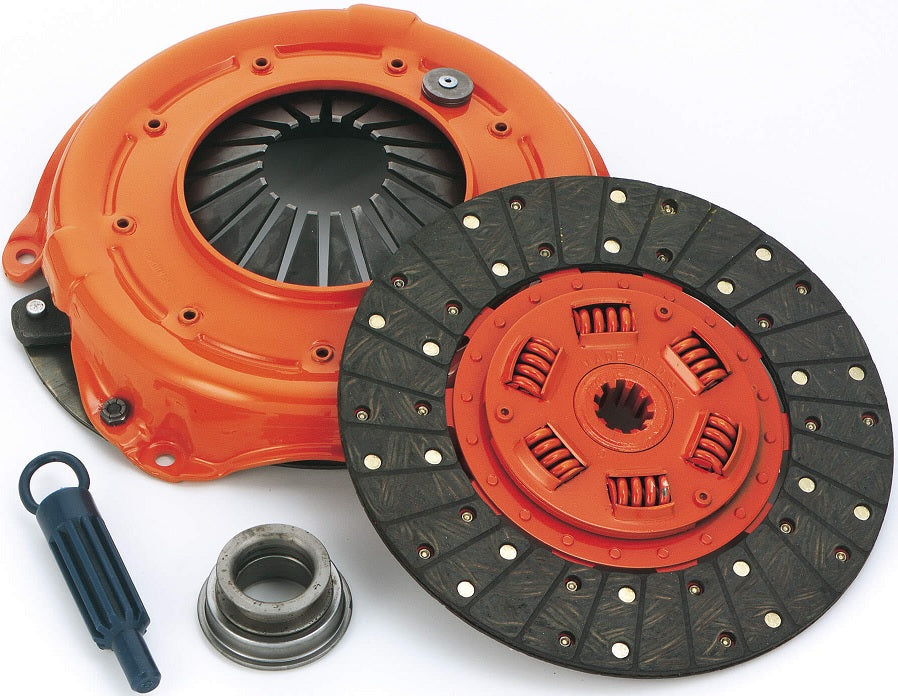

THIS KIT IS COMPATIBLE WITH BUICK, CHEVY AND РONTIAC APPLICATIONS WITH 10.5 IN CLUTCH & 1-1/8 IN 10 SPLINE INPUT SHAFT. THE PRESSURE PLATE IS DIAPHRAGM STYLE, CLUTCH DISK IS ORGANIC SPRUNG HUB. COMES COMPLETE WITH THE THROW OUT BEARING AND ALIGNMENT TOOL.

FEATURES:

• 10.5 INCH DIAPHRAGM
• ORGANIC SPRUNG HUB DISK
• 1-1/8 INCH 10 SPLINE
• THROW OUT BEARING & ALIGNMENT TOOL INCLUDED

SPECS:

• ALIGNMENT TOOL INCLUDED: YES
• APPLICATION: GM
• BRAND: HAYS
• DISC DIAMETER: 10.5"
• DISC STYLE: SPRING HUB
• INPUT SHAFT DIAMETER: 1-1/8 IN.
• INPUT SPLINE: 10
• MAX HORSEPOWER RATING: 442
• MAX TORQUE RATING (FT.-LBS.): 422
• PRESSURE PLATE STYLE: DIAPHRAGM
• PRODUCT TYPE: CLUTCH KIT
• THROWOUT BEARING INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CLUTCH KIT HERE.
