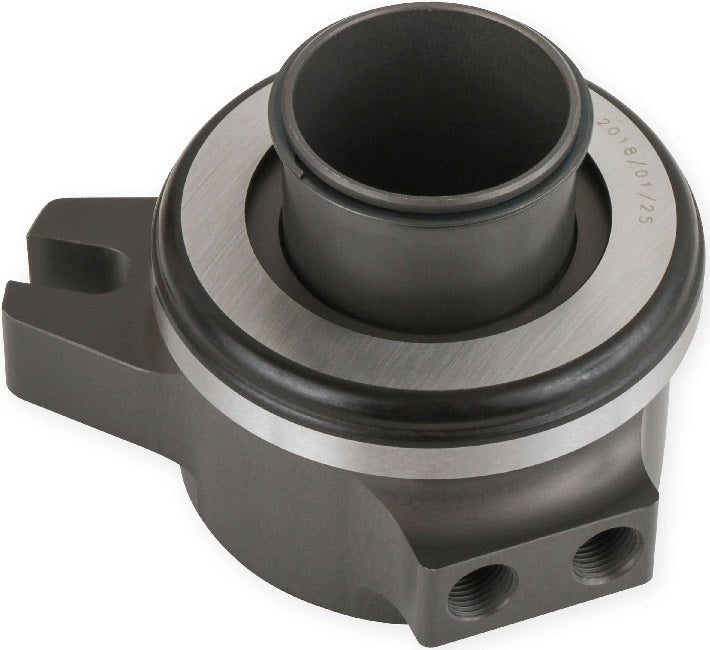

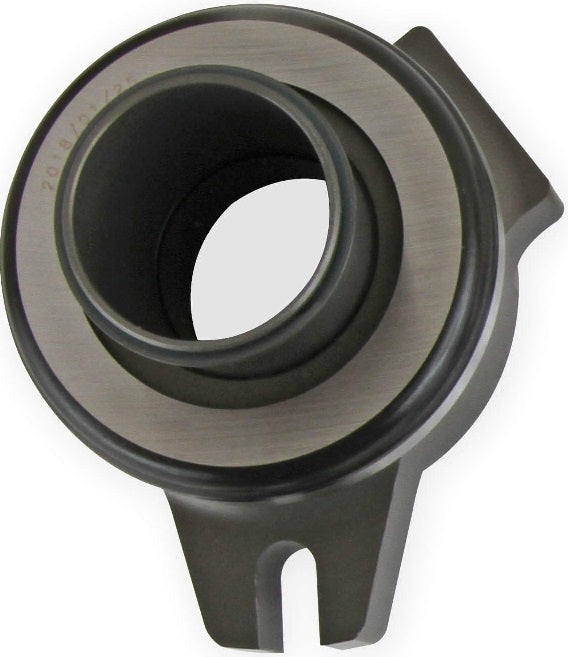

HYDRAULIC RELEASE BEARING KIT,GM MUNCIE,SAGINAW

BRAND NEW HAYS HYDRAULIC RELEASE BEARING KIT, 1.375" COLLAR SIZE, 3AN FITTING, COMPATIBLE WITH GM MUNCIE, SАGINAW, Т10 & Т-5 TRANSMISSIONS

HAYS OFFERS UPGRADED RELEASE BEARING KITS FOR YOUR FAVORITE FACTORY HYDRAULIC EQUIPPED CAR ALONG WITH APPLICATIONS TO CONVERT FROM A MECHANICAL-STYLE TO HYDRAULIC-STYLE RELEASE BEARING. TYPICALLY, THIS HYDRAULIC CONVERSION OFFERS EASIER PEDAL EFFORT OVER A MECHANICAL RELEASE BEARING. THIS KIT OFFERS FULL ADJUSTABILITY, PROVIDING AN EASY SETUP WITH MOST SINGLE OR DUAL DISC CLUTCHES ALONG WITH REDUCED PEDAL EFFORT.

FEATURES A FLOATING DESIGN, LARGE O-RINGS & PTFE BACKUP RINGS IN THE GROOVES TO HELP ELIMINATE LEAKAGE & OFFER A LONG SERVICE LIFE. A SNAP RING ON THE FRONT OF THE PISTON PREVENTS OVER TRAVEL AND KEEPS FROM PUSHING THE BEARING OFF THE SLEEVE. THE SEALED BEARING SNAPS IN PLACE AND IS EASILY SERVICEABLE.

NOTE: INCLUDED SHIMS ARE FOLLOWING THICKNESSES: SILVER = .065" | BLACK = .040"

FEATURES:

• OFFERS IMPROVED CLUTCH ENGAGEMENT & DISENGAGEMENT
• ADJUSTABLE DESIGN PROVIDES INCREASED TRAVEL OVER STOCK RELEASE BEARING
• DESIGNED TO FIT VARIOUS MANUAL TRANSMISSIONS
• RETROFIT KITS OFFER AN SIMPLE WAY TO ADD EASY EFFORT HYDRAULIC CLUTCH ACTUATION
• WORKS WITH SINGLE OR DUAL DISC CLUTCHES
• FLOATING DESIGN BEARING WITH LARGE O-RINGS AND PTFE BACKUP RINGS TO ELIMINATED FLUID LEAKAGE

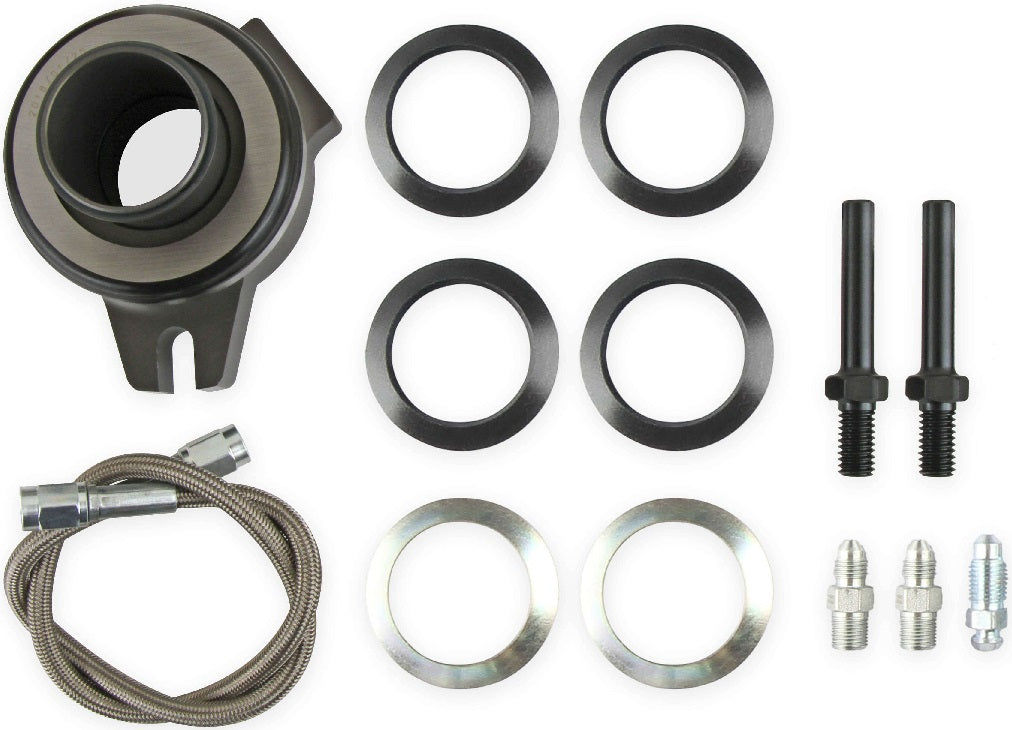

• INCLUDES BEARING ASSEMBLY, BEARING RETAINER (WHERE REQUIRED), MOUNTING HARDWARE, ADJUSTMENT SHIMS, AND -3AN FEED LINE

SPECS:

• AMOUNT OF TRAVEL: 0.700
• BEARING RETAINER INCLUDED: NO
• BEARING STYLE: HYDRAULIC
• BRAND: HAYS
• COMPRESSED LENGTH: 1.75"
• FITTING SIZE: 3AN
• FITTINGS INCLUDED: YES
• PRODUCT TYPE: HYDRAULIC RELEASE BEARING KIT
• SHIMS INCLUDED: YES
• TRANSMISSION COLLAR SIZE: 1.375"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS BEARING KIT HERE.
