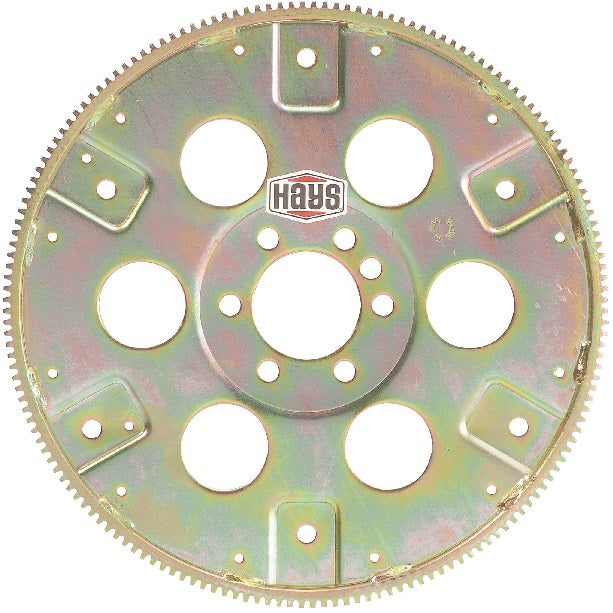

FLEXPLATE,CHEVY V-8,55-85,168TOOTH

BRAND NEW HAYS STEEL SFI CERTIFIED FLEXPLATE, 168 TOOTH, INTERNAL BALANCED, DUAL TORQUE CONVERTER BOLT PATTERN, COMPATIBLE WITH 1965-1970 396-427 BIG BLOCK CHEVROLET & 1957-1985 SMALL BLOCK CHEVROLET

HAYS HEAVY DUTY FLEXPLATE FOR HIGH PERFORMANCE COMPETITION CHEVROLET ENGINES ARE CONSTRUCTED OF A THICKER THAN STOCK STEEL PLATE. THIS ENABLES THEM TO WITHSTAND THE STRESS OF HIGH-STALL TORQUE CONVERTERS AND HIGH-RPM ENGINES.

THESE FLEXPLATES ARE SUPPLIED WITH A RING GEAR THAT IS SECURELY WELDED IN PLACE AND FEATURE A DUAL BOLT PATTERN FOR USE WITH A POWERGLIDE OR TURBO STYLE TORQUE CONVERTER. THIS FLEXPLATE HAS A 168 TOOTH RING GEAR AND FITS THE INTERNAL BALANCE CHEVROLET V8 ENGINES. IT IS S.F.I. 29.1 CERTIFIED & ZINC DICHROMATE PLATED TO RESIST CORROSION.

NOTE: THIS IS FOR 396, 402 & 427 BIG BLOCK ENGINES. 454 & LARGER BIG BLOCKS WERE EXTERNALLY BALANCED FROM THE FACTORY.

FEATURES:

• S.F.I. 29.1 CERTIFIED
• INTERNAL BALANCE FOR 396, 402 & 427 ENGINES
• 168 TOOTH RING GEAR
• ZINC DICHROMATE PLATED
• HEAVY DUTY DESIGN IS 0.030" THICKER THAN STOCK FLEXPLATE

SPECS:

• # OF TEETH: 168
• APPLICATION: BIG & SMALL BLOCK CHEVROLET
• CENTER BORE (REGISTER DIAMETER): 2.490"
• ENGINE BALANCE: INTERNAL
• MATERIAL: STEEL
• PRODUCT TYPE: FLEXPLATES
