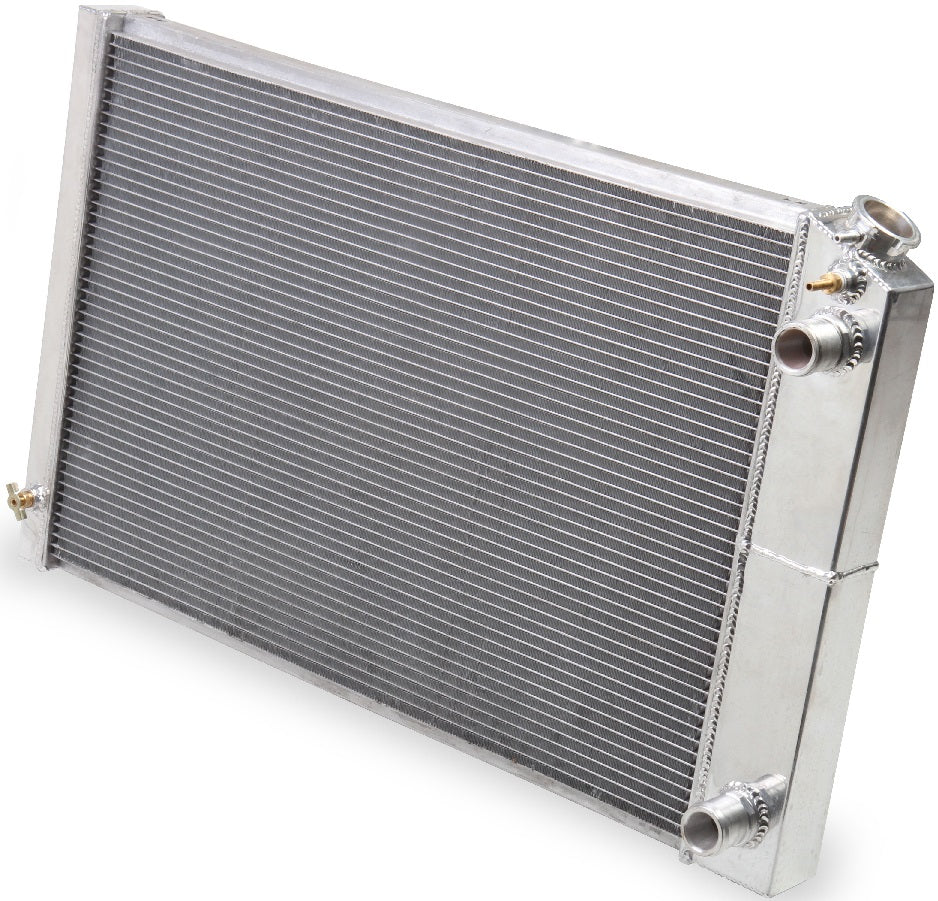

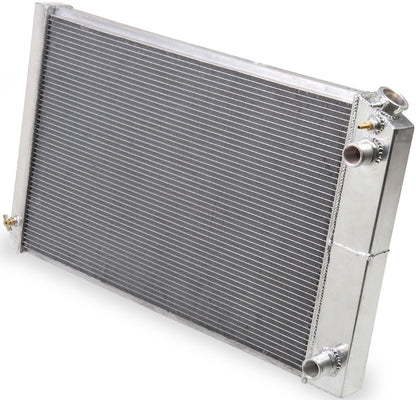

RADIATOR,ALUM,3 ROW,87-93 MUSTANG

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 3 ROW, DUAL PASS FLOW STYLE, 2.20" CORE THICKNESS, COMPATIBLE WITH 79-93 FORD MUSTANG & MERCURY CAPRI GM LS SWAP

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS.

NOTE: INLET & OUTLET HOSE ENDS SHOW ON PHOTO FOR REPRESENTATIVE PURPOSES. FITTINGS MUST BE PURCHASED SEPARATELY.

COMPATIBLE WITH:

• FORD:
• 1979-1993 MUSTANG
• MERCURY:
• 1979-1993 CAPRI

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK & OEM STYLE BRASS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: DUAL
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17" X 24"
• CORE THICKNESS: 2.20"
• FLOW STYLE: DUAL PASS
• HOSE LOCATION INLET: PASSENGER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: AN BUNGS
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: AN BUNGS
• OVERALL DIMENSION: 19-1/8" X 29-1/4"
• PRODUCT TYPE: RADIATOR
• ROWS: 3

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
