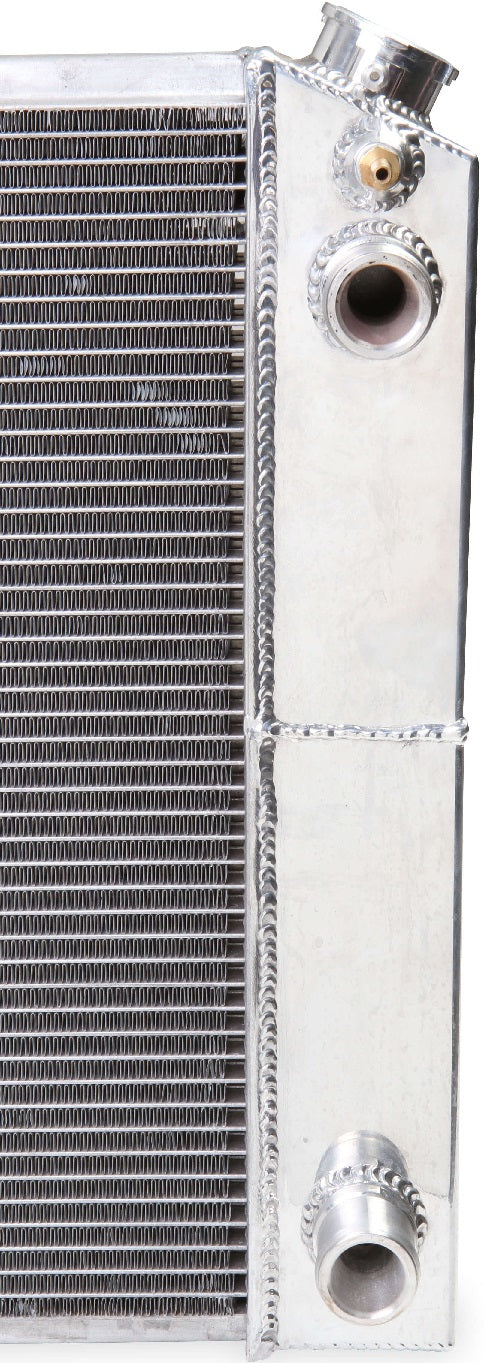

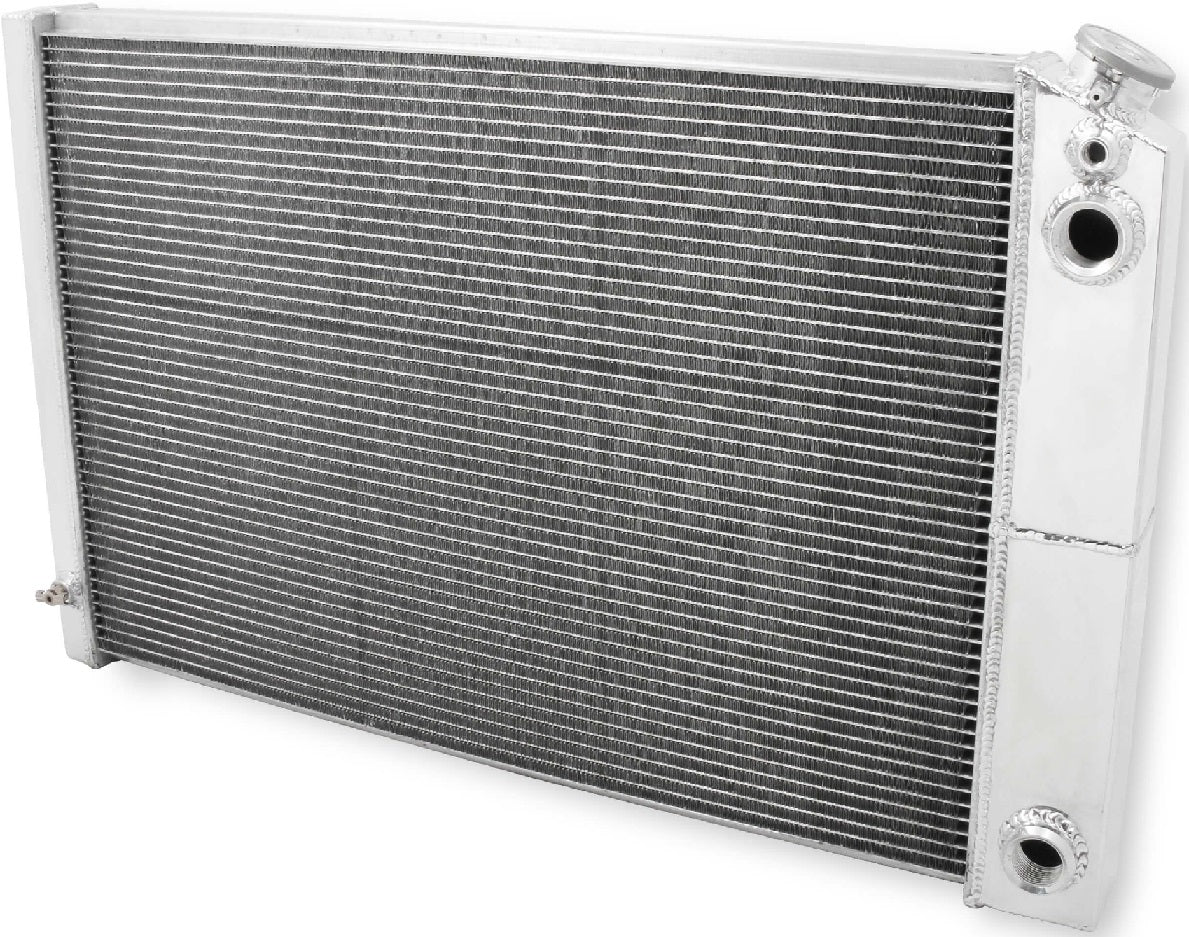

RADIATOR,ALUM,3 ROW,73-87 A-,L

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 3 ROW, 1/4" NPT STEAM PORT FITTING SIZE, COMPATIBLE WITH 1982-1987 C15

HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING, FROSTBITE PERFORMANCE COOLING PRODUCTS. 19" TALL CORE RADIATORS FITS TRUCKS THAT CAME FROM THE FACTORY WITH UPPER MOUNTS THAT BOLT-ON TOP OF THE COWL. COMPATIBLE WITH 1973-1987 CHEVY/GMC C10 TRUCKS WITH GM LS SWAP 4.8/5.3/6.0/6.2/7.0L ENGINES.

NOTE: INLET AND OUTLET HOSE ENDS SHOW ON PHOTO FOR REPRESENTATIVE PURPOSES. FITTINGS MUST BE PURCHASED SEPARATELY.

COMPATIBLE WITH:

• CHEVROLET:
• 1975-1986 C10
• 1973-1974 C10 PICKUP
• 1982-1987 C15
• GMC:
• 1979-1986 C1500
• 1975-1978 C15
• 1973-1974 C15C1500 PICKUP
• 1987 R1500

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)
• DUAL PASS, CROSS FLOW DESIGN TO MAXIMIZE COOLING EFFICIENCY

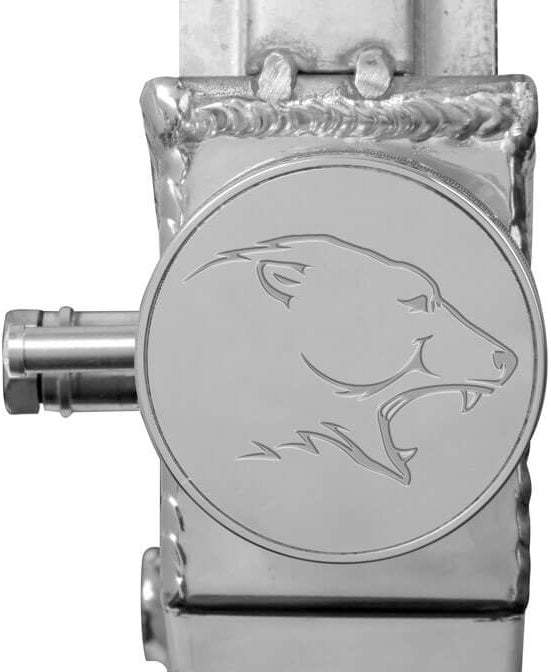

• BILLET ALUMINUM FILLER NECK AND FACTORY STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• 3-ROW RADIATORS SUPPORTING APPLICATIONS WITH 600+ HP

SPECS:

• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 18-3/4 X 28-1/4
• CORE THICKNESS: 2.20"
• FLOW STYLE: DUAL PASS
• HOSE LOCATION INLET/OUTLET: PASSENGER
• INLET / OUTLET SIZE: AN BUNGS
• MOUNTING TYPE: SADDLE MOUNT
• OVERALL DIMENSION: 20-1/4 X 33
• PRODUCT TYPE: RADIATOR
• ROWS: 3

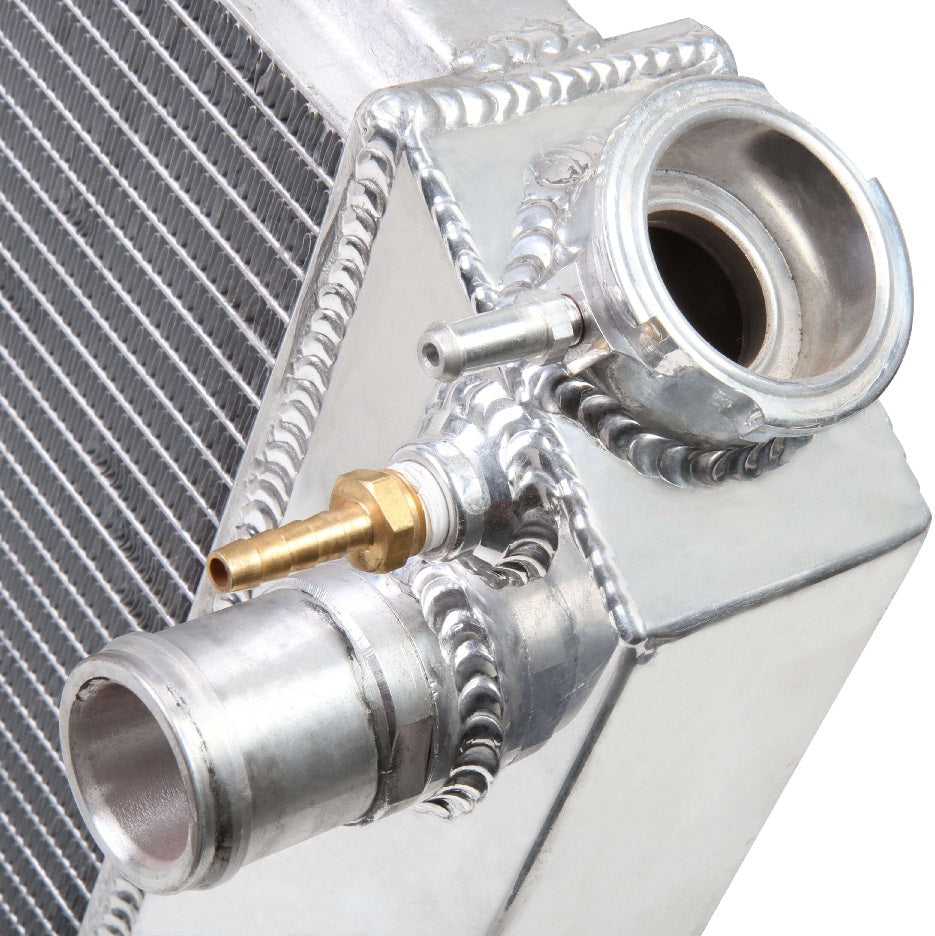

• STEAM PORT FITTING SIZE: 1/4" NPT
• TRANSCOOLER PROVISION: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
