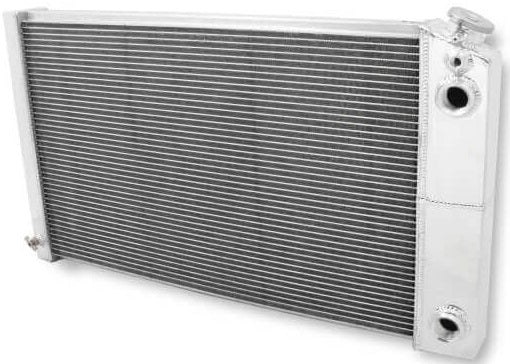

RADIATOR,ALUM,3 ROW,70-81 F,78-88 G,LS SWAP

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 3 ROW, 1/4" NPT STEAM PORT FITTING SIZE, COMPATIBLE WITH 1970-1981 CAMARO

HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING, FROSTBITE PERFORMANCE COOLING PRODUCTS. HIGH-HORSEPOWER STREET CARS AND TRUCK CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGHT LESS THAN OLDER OEM STYLE BRASS UNITS. COMPATIBLE WITH 1978-1987 GM G BODY WITH GM LS SWAP 4.8, 5.3, 6.0, 6.2 & 7.0L ENGINES.

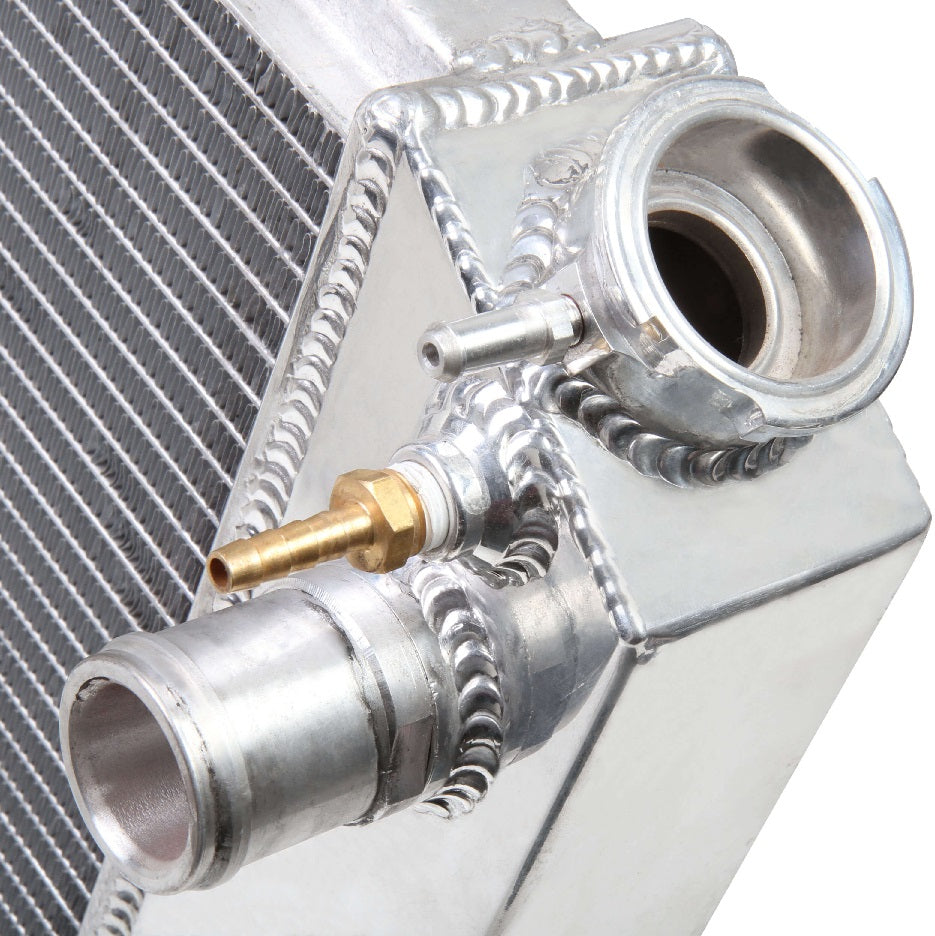

NOTE: INLET AND OUTLET HOSE ENDS SHOW ON PHOTO FOR REPRESENTATIVE PURPOSES. FITTINGS MUST BE PURCHASED SEPARATELY.

COMPATIBLE WITH:

• OLDSMOBILE:
• 1982-1988 CUTLASS CIERA
• 1978-1987 CUTLASS SALON
• 1978-1988 CUTLASS CALAIS
• 1978-1987 CUTLASS SUPREME
• 1978-1981, 1985-1987 CUTLASS
• 1982-1983 CUTLASS CRUISER
• CHEVROLET:
• 1970-1981 CAMARO
• 1978-1987 MONTE CARLO
• 1978-1987 EL CAMINO
• 1978-1983 MALIBU
• GMC:
• 1982-1987 CABALLERO
• PONTIAC:
• 1978-1988 GRAND PRIX
• 1976-1981 FIREBIRD
• 1978-1981, 1988 LEMANS
• 1982-1986 BONNEVILLE
• BUICK:
• 1978-1987 REGAL

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)
• DUAL PASS, CROSS FLOW DESIGN TO MAXIMIZE COOLING EFFICIENCY
• BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS
• 3-ROW RADIATORS SUPPORTING APPLICATIONS WITH 600+ HP

SPECS:

• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17 X 26 1/4
• CORE THICKNESS: 2.20"
• FLOW STYLE: DUAL PASS
• HOSE LOCATION INLET/OUTLET: PASSENGER
• INLET/OUTLET SIZE: AN BUNGS
• MOUNTING TYPE: SADDLE MOUNT
• OVERALL DIMENSION: 18 1/2 X 31
• PRODUCT TYPE: RADIATOR
• ROWS: 3
• STEAM PORT FITTING SIZE: 1/4" NPT
• TRANSCOOLER PROVISION: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
