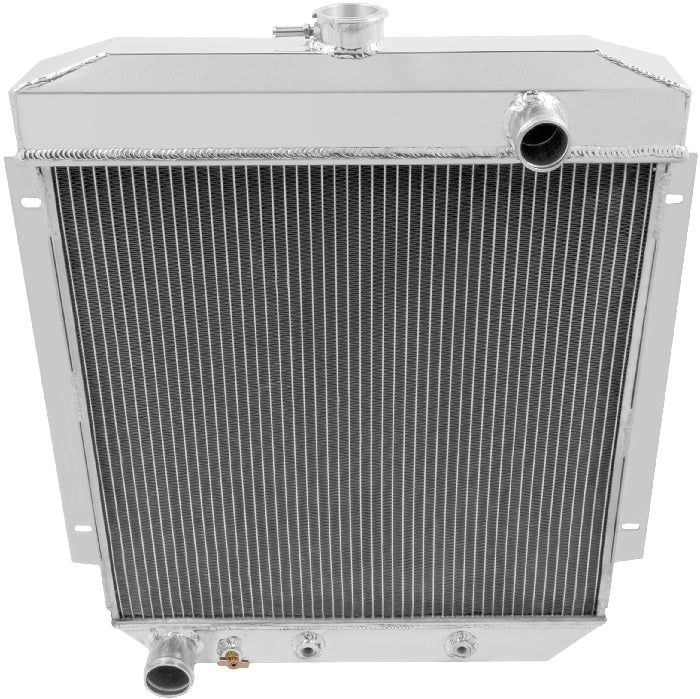

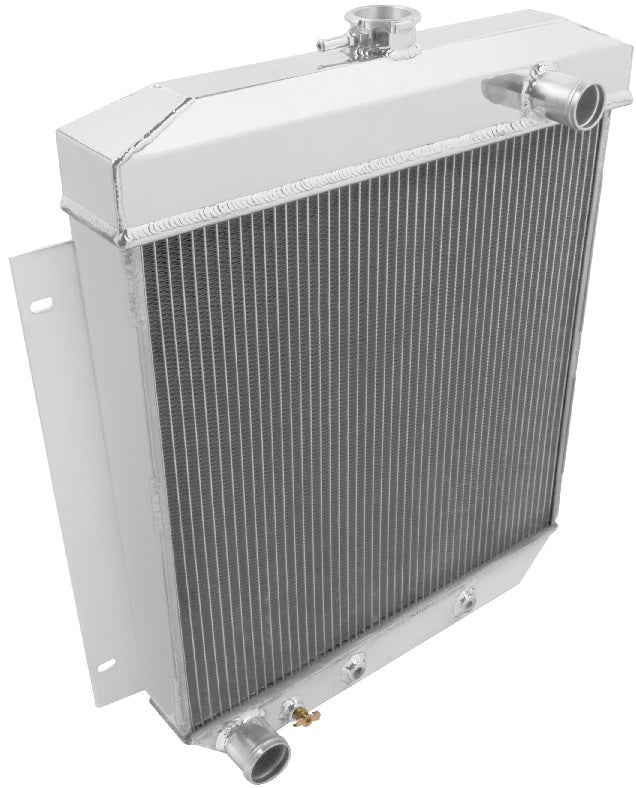

RADIATOR,ALUM,3 ROW,54-56 FORD

RADIATOR,ALUM,3 ROW,54-56 FORD

SKU:FRO FB217

Regular price $448.95
Regular price Sale price $448.95
View full details

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 3 ROW, DOWN FLOW STYLE, 2.20" CORE THICKNESS, COMPATIBLE WITH 1954-1956 FORD PASSENGER VEHICLES

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS.

NOTE: FROSTBITE 3 & 4 ROW RADIATORS WILL BE THICKER THAN STOCK AND CAN EXTEND INTO ENGINE BAY FURTHER INTERFERING WITH SOME STOCK FAN/CLUTCH APPLICATIONS. EXISTING COOLING FAN MODIFICATIONS MAY BE REQUIRED DURING INSTALLATION. ELECTRIC FAN AND SHROUD OPTIONS ARE AVAILABLE TO REMOVE STOCK CLUTCH/FAN.

COMPATIBLE WITH:

  • FORD:
    • 1957-1959 FAIRLANE
    • 1957-1958 RANCHERO

FEATURES:

  • 100% TIG WELDED (BRAZED) SEAMS
  • AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
  • BILLET ALUMINUM FILLER NECK & OEM STYLE BRASS PETCOCK
  • MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
  • CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
  • POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
  • APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

  • # OF PASSES: SINGLE
  • BRAND: FROSTBITE
  • COOLING ROW DIAMETER: 11/16"
  • CORE DIMENSION: 18-1/2" X 18-3/4"
  • CORE THICKNESS: 2.20"
  • FLOW STYLE: DOWN FLOW
  • HOSE LOCATION INLET: PASSENGER
  • HOSE LOCATION OUTLET: DRIVER
  • INLET SIZE: 1-1/2"
  • MOUNTING TYPE: BRACKET MOUNT
  • OUTLET SIZE: 1-3/4"
  • OVERALL DIMENSION: 25-1/8" X 22-5/8"
  • PRODUCT TYPE: RADIATOR
  • ROWS: 3

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
