RADIATOR,ALUM,4 ROW,42-52 FORD TRUCK,V-8

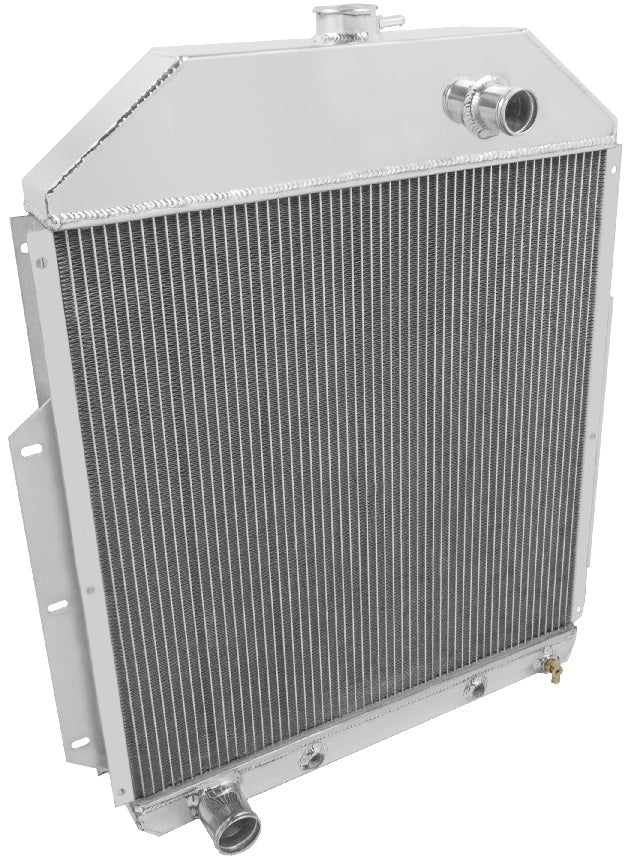

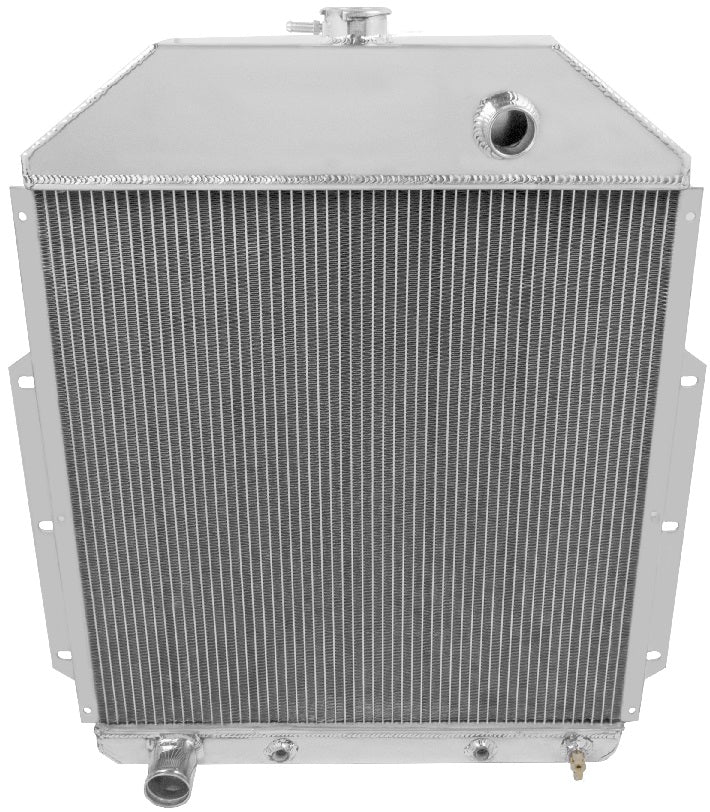

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 4 ROW, DOWN FLOW STYLE, 2.76" CORE THICKNESS, COMPATIBLE WITH 1942-1952 FORD 1/2-1 TON PICKUP WITH FORD V8

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS.

NOTE: FROSTBITE 3 & 4 ROW RADIATORS WILL BE THICKER THAN STOCK AND CAN EXTEND INTO ENGINE BAY FURTHER INTERFERING WITH SOME STOCK FAN/CLUTCH APPLICATIONS. EXISTING COOLING FAN MODIFICATIONS MAY BE REQUIRED DURING INSTALLATION. ELECTRIC FAN AND SHROUD OPTIONS ARE AVAILABLE TO REMOVE STOCK CLUTCH/FAN.

COMPATIBLE WITH:

• FORD:
• 1942-1947 1 TON PICKUP
• 1942-1947 1/2 TON PICKUP
• 1942-1947 3/4 TON PICKUP
• 1948-1952 F1
• 1948-1952 F2
• 1948-1952 F3
• 1948-1952 F4

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK & OEM STYLE BRASS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: SINGLE
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 21-1/2" X 20-7/8"
• CORE THICKNESS: 2.76"
• FLOW STYLE: DOWN FLOW
• HOSE LOCATION INLET: PASSENGER
• HOSE LOCATION OUTLET: DRIVER
• INLET DIAMETER: 1-1/2"
• INLET LOCATION: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: BRACKET MOUNT
• OUTLET DIAMETER: 1-3/4"
• OUTLET LOCATION: DRIVER
• OUTLET SIZE: 1-3/4"
• OVERALL DIMENSION: 28-1/2" X 25"
• PRODUCT TYPE: RADIATOR
• ROWS: 4
• TRANSCOOLER PROVISION: 1/8NPT
• TRANSMISSION OIL COOLER INCLUDED: 1/8NPT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
