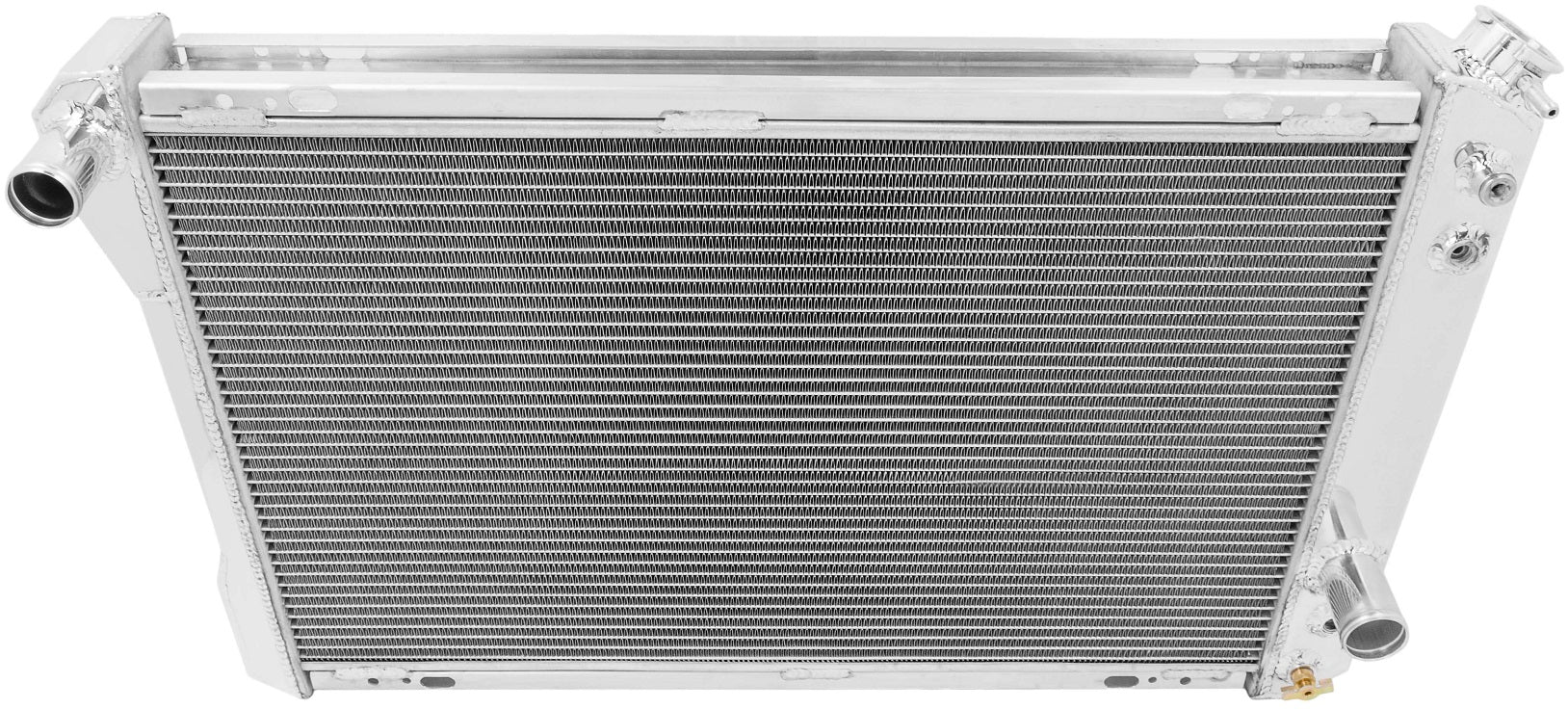

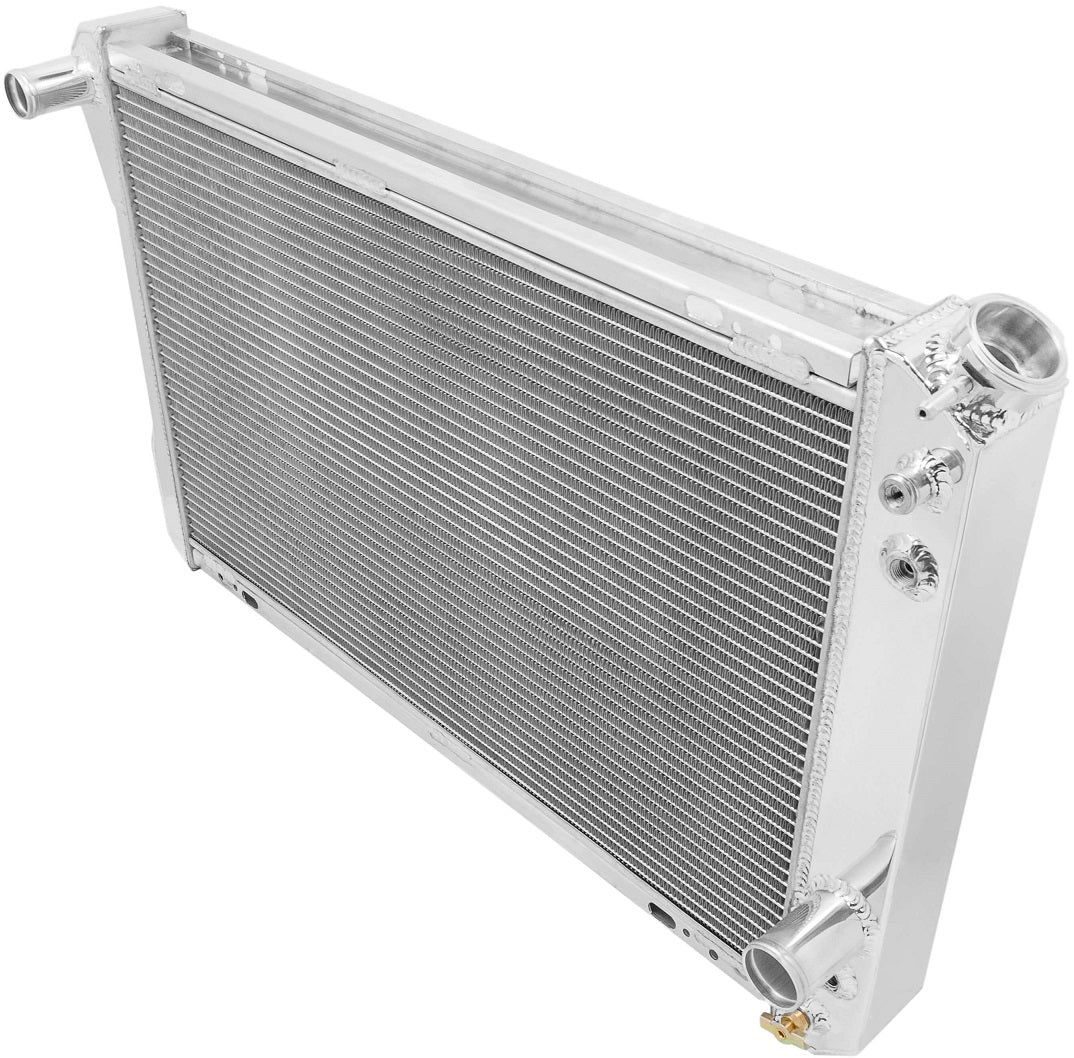

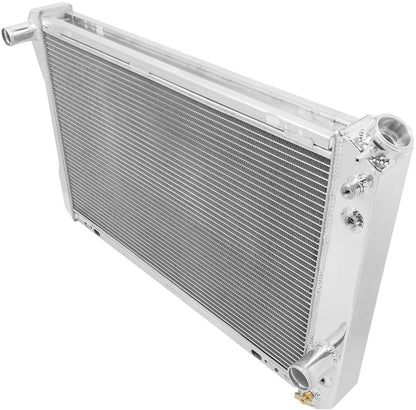

RADIATOR,ALUM,4 ROW,82-92 CAMARO

BRAND NEW FROSTBITE ALUMINUM RADIATOR (4 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB190).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

• CHEVROLET:
• 1982-1992 CAMARO
• PONTIAC:
• 1982-1992 FIREBIRD
• *FITS APPLICATIONS EQUIPPED WITH 17-1/4" WIDE CORE*

SPECS:

• # OF PASSES: SINGLE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17-1/4" x 26-1/4"
• CORE THICKNESS: 2.76"
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-3/8"
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: 1-5/8"
• OVERALL DIMENSION: 20" X 32"
• ROWS: 4
• TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• 4-ROW RADIATORS SUPPORTING APPLICATIONS W/ 450-750 HP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
