RADIATOR,ALUM,3 ROW,87-06 JEEP,CHEVY V-8

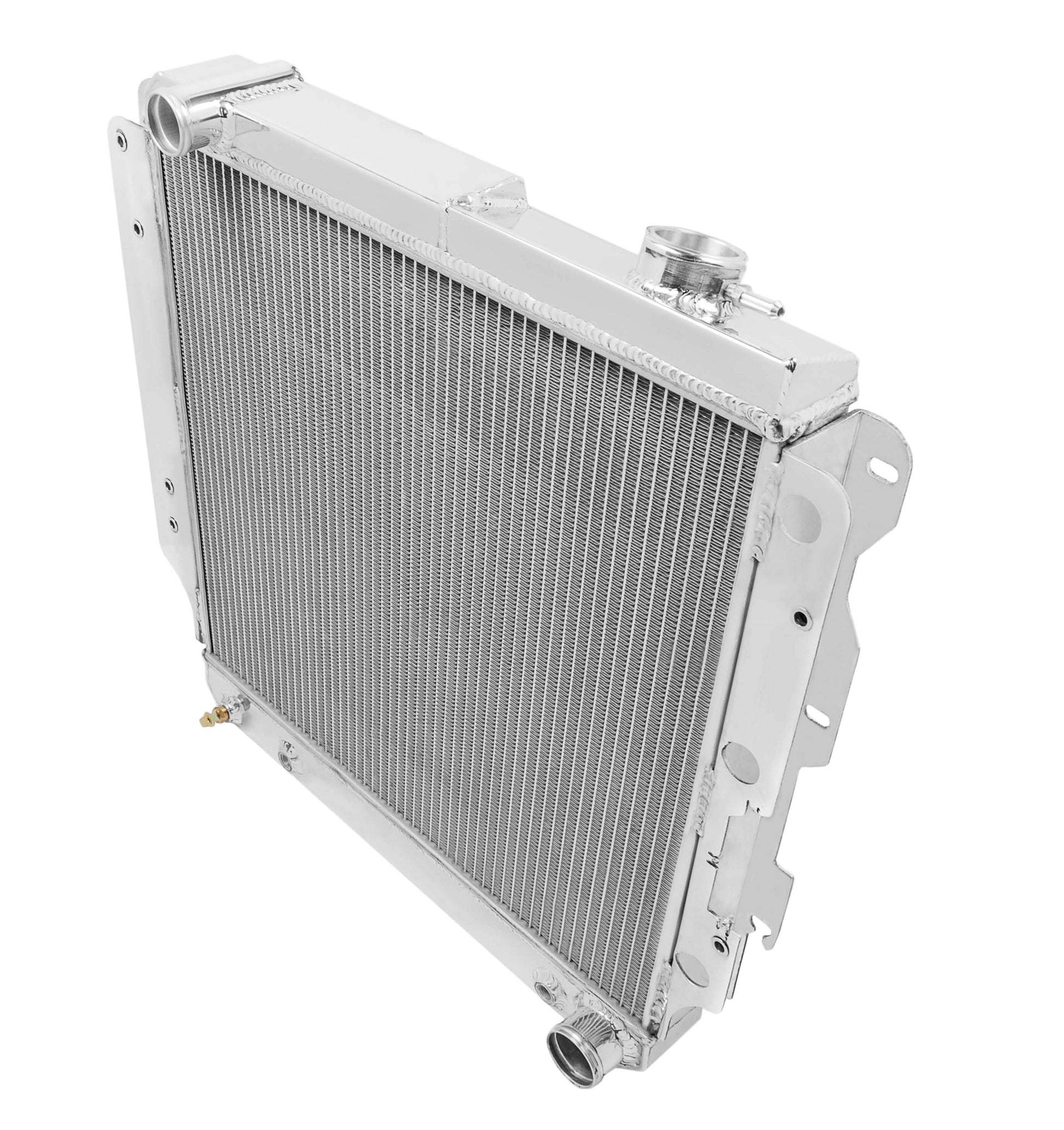

BRAND NEW FROSTBITE ALUMINUM RADIATOR (3 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB171).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

JEEP:

• 1987-2006 WRANGLER

*FITS APPLICATIONS WITH CHEVROLET V8 ENGINE (265/283/305/307/327/350)*

SPECS:

# OF PASSES: SINGLE

COOLING ROW DIAMETER: 11/16"

CORE DIMENSION: 18-1/8" X 20-1/4"

CORE THICKNESS: 2.20"

FLOW STYLE: DOWN FLOW

HOSE LOCATION INLET: DRIVER

HOSE LOCATION OUTLET: PASSENGER

INLET SIZE: 1-1/2"

OUTLET SIZE: 1-3/4"

MOUNTING TYPE: BRACKET MOUNT

OVERALL DIMENSION: 22" X 24-1/8"

ROWS: 3

TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

100% TIG WELDED (BRAZED) SEAMS

AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)

BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK

MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING

CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP

POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE

MANUFACTURERS 1-YEAR LIMITED WARRANTY

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
