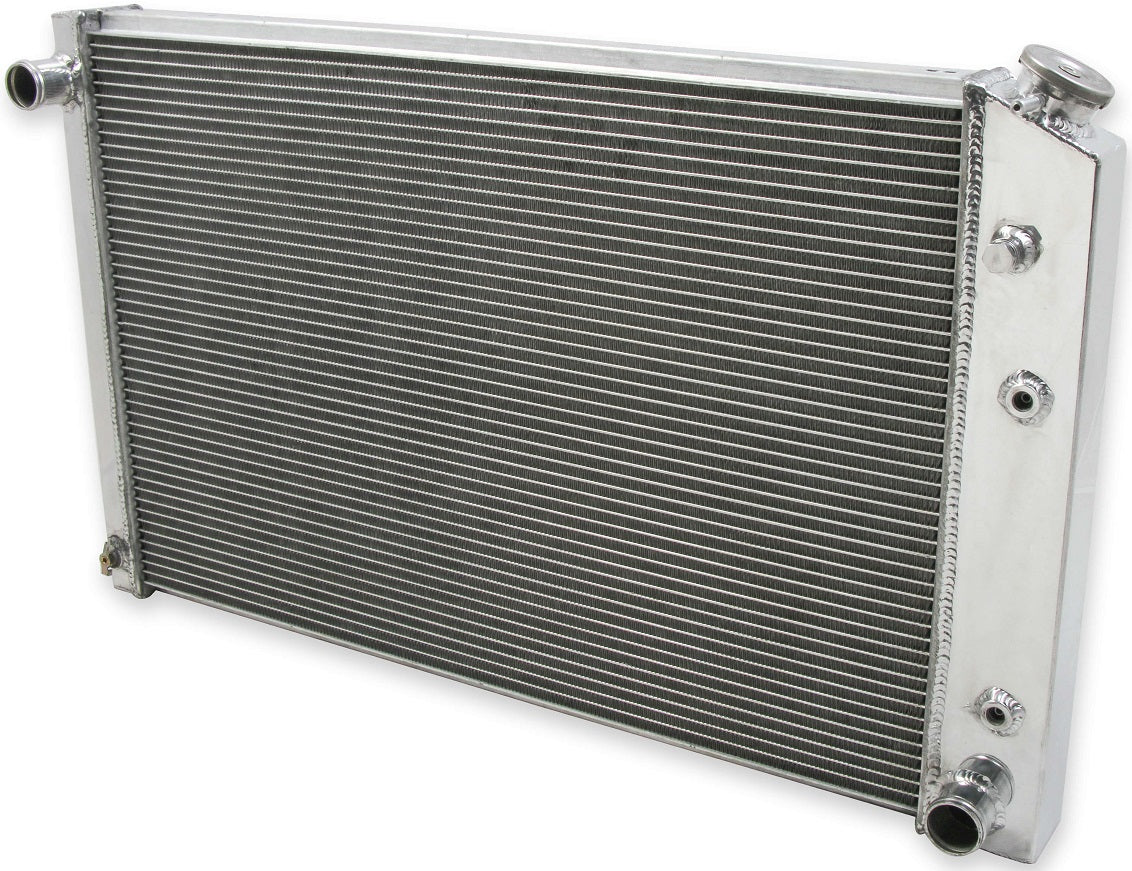

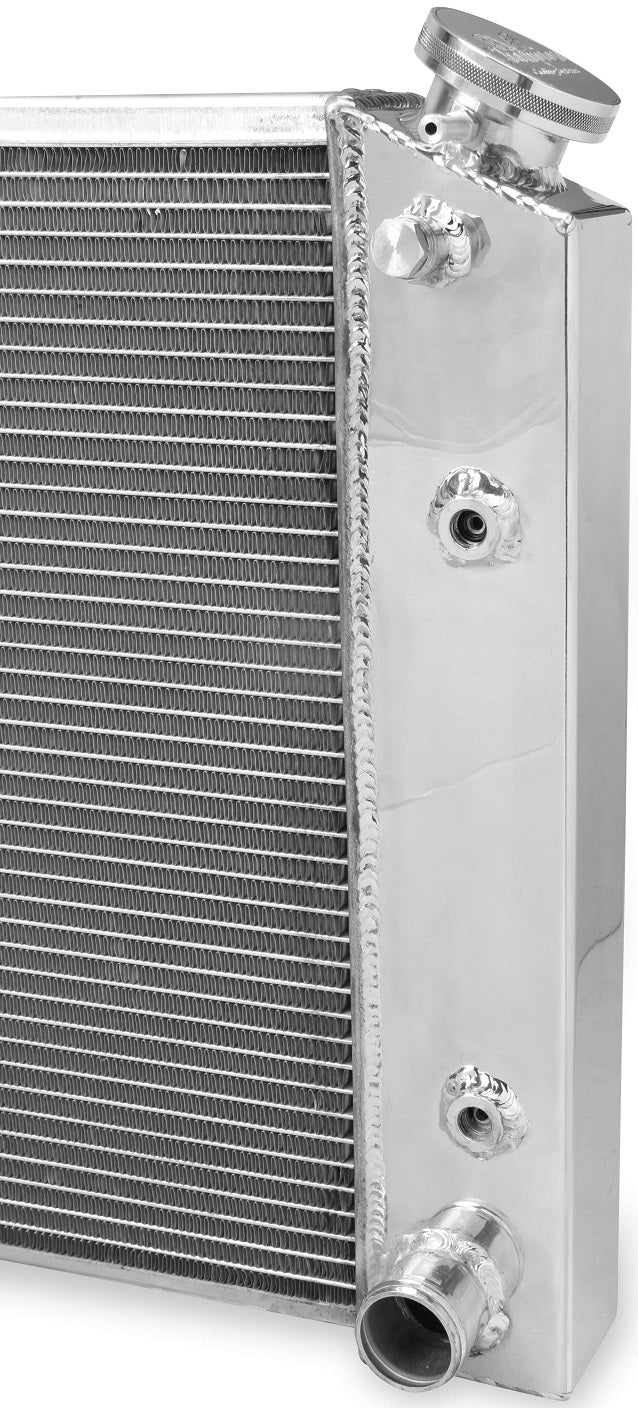

RADIATOR,ALUM,3 ROW,73-91 GM TRUCK

BRAND NEW FROSTBITE ALUMINUM RADIATOR (3 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB166).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

• CHEVROLET:
• 1973-1986 C10/C20/C30
• 1973-1986 K10/K20
• 1973-1974, 1977-1986 K30
• 1973-1986 K10/K20 SUBURBAN
• 1973-1987 C10/C20 SUBURBAN
• 1975-1986 K5 BLAZER
• 1973-1991 BLAZER
• 1987-1988 R10/R20 SUBURBAN
• 1987-1988 V10/V20 SUBURBAN
• GMC:
• 1973-1991 C15/C1500/C25/C2500/C35/C3500
• 1973-1991 K15/K1500/K25/K2500
• 1973-1974, 1977-1991 K35/K3500
• 1975-1986 C15/C1500/C25/C2500 SUBURBAN
• 1973-1986 K15/K1500/K25/K2500 SUBURBAN
• 1973-1974 K35/K3500 SUBURBAN
• 1973-1991 JIMMY
• 1987-1991 R1500/R2500 SUBURBAN
• 1987-1991 V1500/V2500 SUBURBAN
• 1991 C3500HD
• *FITS APPLICATIONS WITH V8 ENGINE (307/350/400/454) EQUIPPED W/ 19" TALL CORE*

SPECS:

• # OF PASSES: SINGLE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 18-3/4" X 28-1/4"
• CORE THICKNESS: 2.20"
• FLOW STYLE: CROSS FLOW
• HEATER RETURN PORT SIZE: 1/8" NPT
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: 1-1/2"
• OVERALL DIMENSION: 20-1/4" X 33"
• ROWS: 3

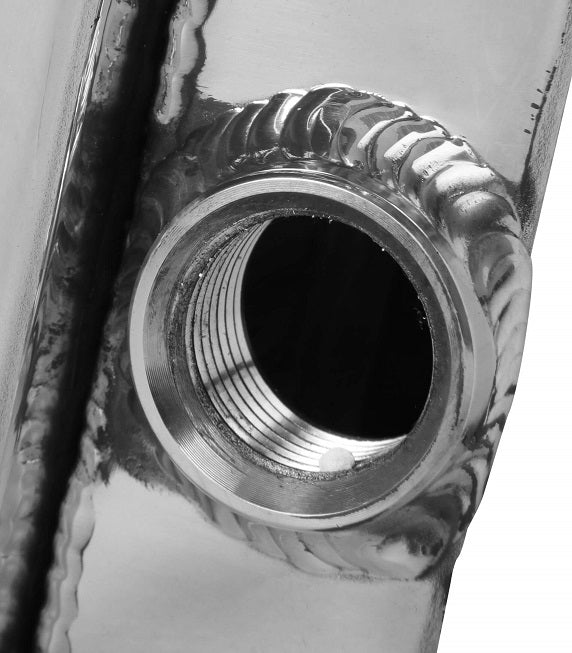

• TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• 3-ROW RADIATORS SUPPORTING APPLICATIONS W/ 450-750 HP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
