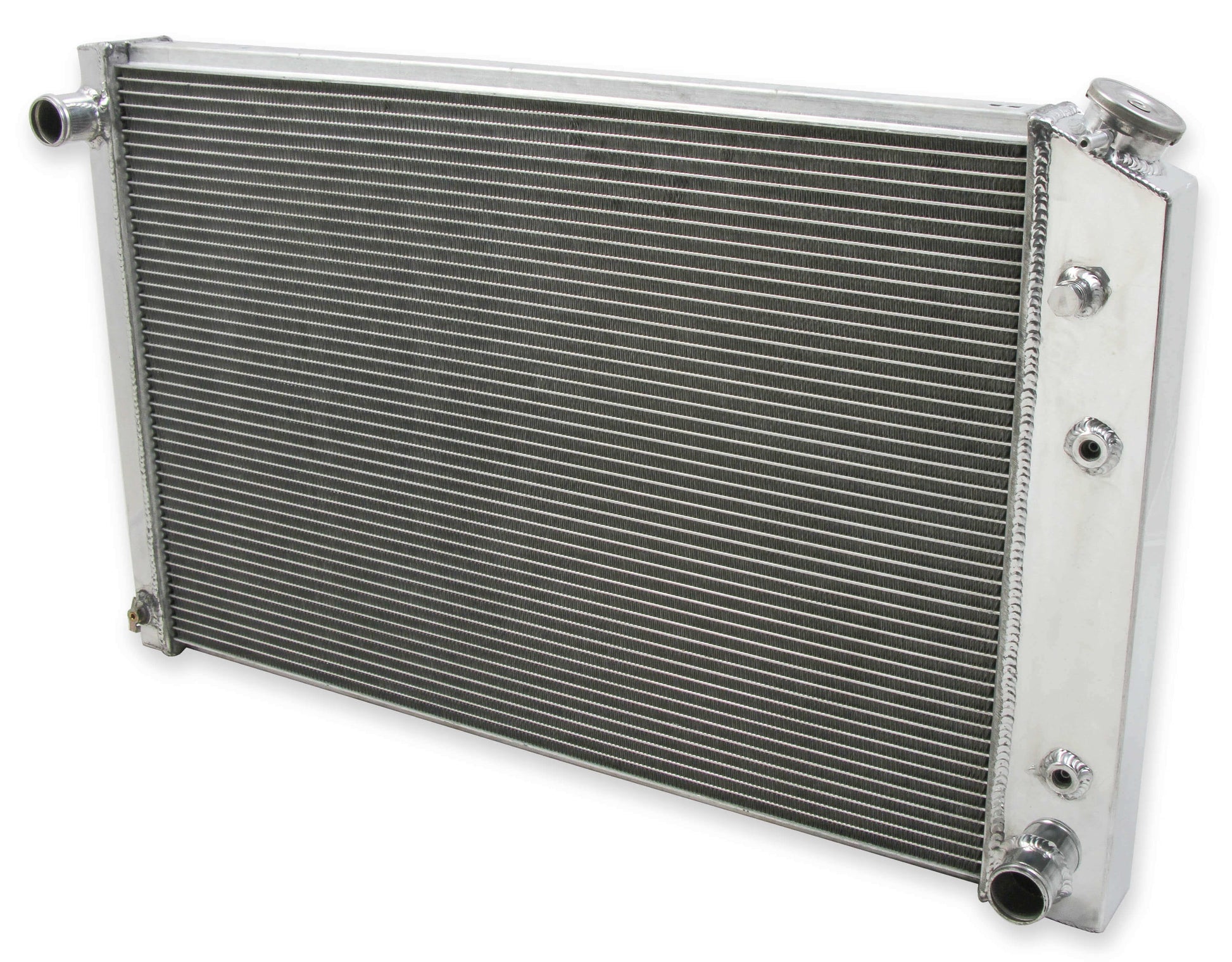

RADIATOR,ALUM,2 ROW,73-91 GM TRUCK

BRAND NEW FROSTBITE ALUMINUM RADIATOR (2 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB165).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

CHEVROLET:

• 1973-1986 C10/C20/C30
• 1973-1986 K10/K20
• 1973-1974, 1977-1986 K30
• 1973-1986 K10/K20 SUBURBAN
• 1973-1987 C10/C20 SUBURBAN
• 1975-1986 K5 BLAZER
• 1973-1991 BLAZER
• 1987-1988 R10/R20 SUBURBAN
• 1987-1988 V10/V20 SUBURBAN

GMC:

• 1973-1991 C15/C1500/C25/C2500/C35/C3500
• 1973-1991 K15/K1500/K25/K2500
• 1973-1974, 1977-1991 K35/K3500
• 1975-1986 C15/C1500/C25/C2500 SUBURBAN
• 1973-1986 K15/K1500/K25/K2500 SUBURBAN
• 1973-1974 K35/K3500 SUBURBAN
• 1973-1991 JIMMY
• 1987-1991 R1500/R2500 SUBURBAN
• 1987-1991 V1500/V2500 SUBURBAN
• 1991 C3500HD

*FITS APPLICATIONS WITH V8 ENGINE (307/350/400/454) EQUIPPED WITH 19" TALL CORE*

SPECS:

# OF PASSES: SINGLE

COOLING ROW DIAMETER: 3/4"

CORE DIMENSION: 18-3/4" X 28-1/4"

CORE THICKNESS: 1.57"

FLOW STYLE: CROSS FLOW

HOSE LOCATION INLET: DRIVER

HOSE LOCATION OUTLET: PASSENGER

INLET SIZE: 1-1/2"

OUTLET SIZE: 1-1/2"

MOUNTING TYPE: SADDLE MOUNT

OVERALL DIMENSION: 20-1/4" X 33"

ROWS: 2

TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

100% TIG WELDED (BRAZED) SEAMS

AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)

BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK

MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING

CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP

POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE

MANUFACTURERS 1-YEAR LIMITED WARRANTY

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
