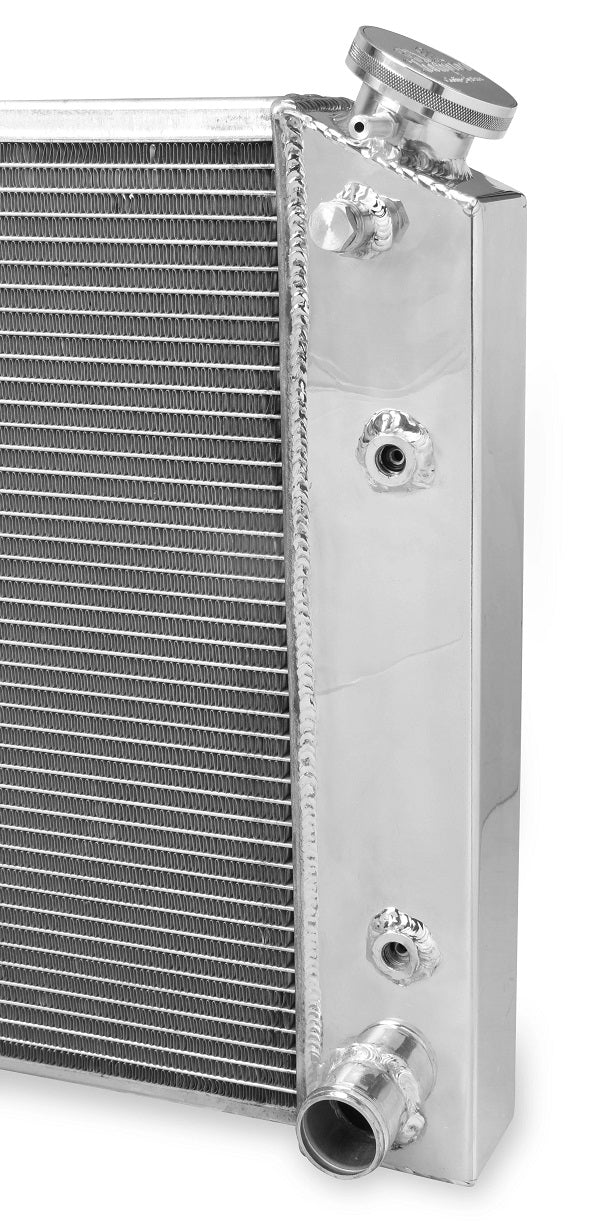

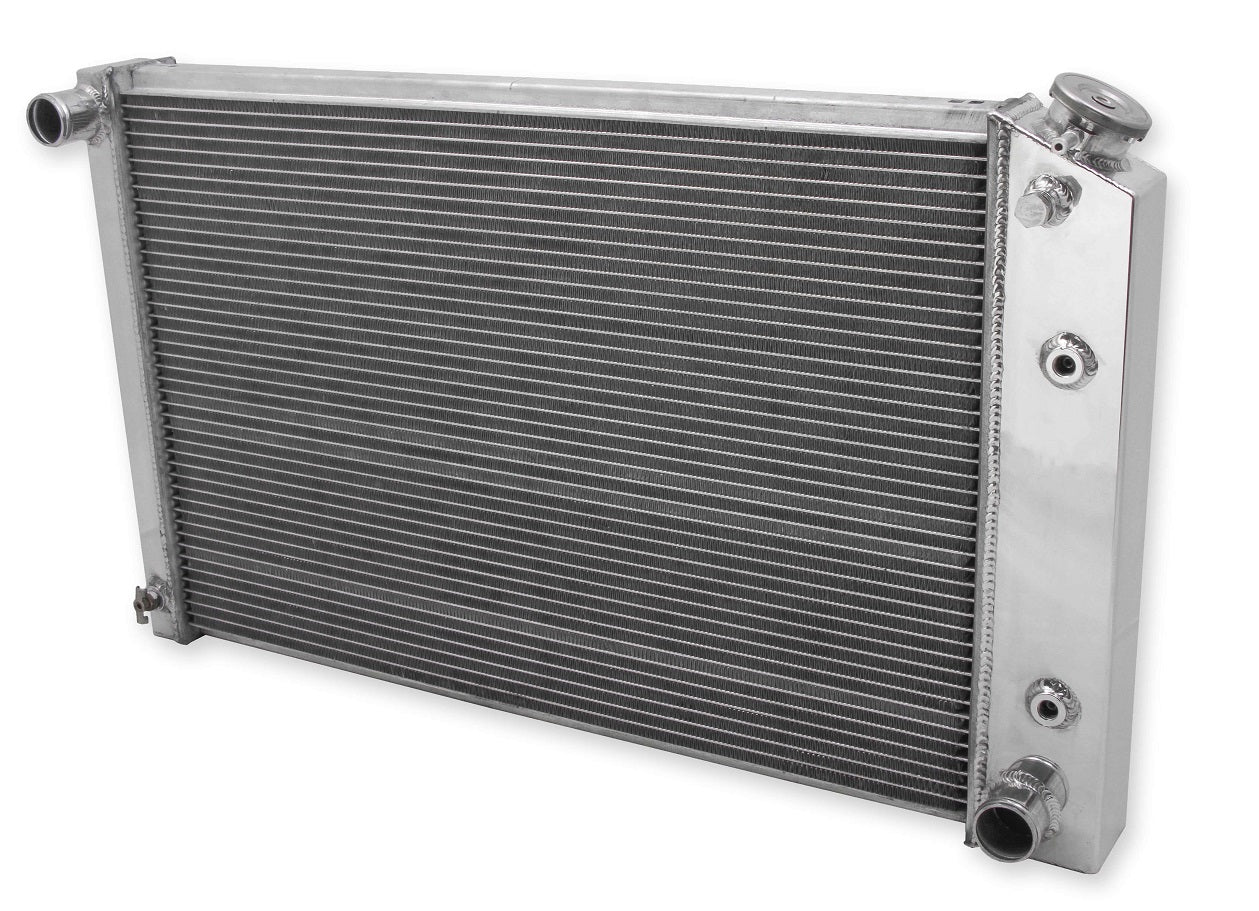

RADIATOR,ALUM,4 ROW,70-87 GM

BRAND NEW FROSTBITE ALUMINUM RADIATOR (4 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB164).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

• BUICK:
• 1975 APOLLO
• 1977-1981 CENTURY
• 1975-1979 SKYLARK
• 1980 LESABRE
• 1978-1987 REGAL
• CADILLAC:
• 1976-1979 SEVILLE
• CHEVROLET:
• 1970-1981 CAMARO
• 1980-1985 IMPALA
• 1980-1986 CAPRICE
• 1973-1974 BLAZER
• 1975-1979 NOVA
• 1978-1983 MALIBU
• 1978-1987 EL CAMINO
• 1978-1987 MONTE CARLO
• 1973-1980 C10/C20/C30 PICKUP
• 1973-1980 G10/G20/G30V
• 1973-1974 K10/K20/K30 PICKUP
• 1973-1974 P10/P30 VAN
• 1973-1980 C10/C20 SUBURBAN
• 1973-1980 K10/K20 SUBURBAN
• 1975-1980 K10/K20 PICKUP
• 1977-1980 K30 PICKUP
• 1975-1980 K5 BLAZER
• 1980 C50/C60 PICKUP
• 1975-1980 P10/P20/P30 PANEL TRUCK
• 1979-1980 P40 PANEL TRUCK
• GMC:
• 1973-1980 C15/C1500/C25/C2500/C35/C3500 PICKUP
• 1973-1980 C15/C1500/C25/C2500 SUBURBAN
• 1973-1980 G15/G1500/G25/G2500/G35/G3500 VAN
• 1973-1980 K15/K1500/K25/K2500 SUBURBAN
• 1973-1978 P15/P1500/P25/P2500/P35/P3500 PANEL VAN
• 1975-1978 K15/K25 PICKUP
• 1977-1978 K35 PICKUP
• 1973-1980 JIMMY
• 1978-1987 CABALLERO
• 1979-1980 K1500/K2500/K3500 PICKUP
• 1979-1980 P1500/P2500/P3500/P4500 PANEL VAN
• 1980 GMC C5000/C6000 PICKUP
• OLDSMOBILE:
• 1975-1979 OMEGA
• 1977-1980 98
• 1980 DELTA 88
• 1980-1983 CUTLASS CRUISER
• 1978-1984 CUTLASS CALIAS
• 1978-1987 CUTLASS
• 1978-1988 CUTLASS SUPREME
• PONTIAC:
• 1975-1977 VENTURA
• 1965-1981 CATALINA
• 1975-1980 GRAND LEMANS
• 1978-1979 PHOENIX
• 1978-1980 GRAND AM
• 1978-1981 LE MANS
• 1978-1986 GRAND PRIX
• 1980-1986 BONNEVILLE
• 1984-1986 PARISIENNE
• *FITS APPLICATIONS EQUIPPED WITH 26" WIDE CORE*

SPECS:

• # OF PASSES: SINGLE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17" X 26 1/4"
• CORE THICKNESS: 2.76"
• FLOW STYLE: CROSS FLOW
• HEATER RETURN PORT SIZE: 1/8" NPT
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: 1-1/2"
• OVERALL DIMENSION: 18 1/2" X 31"
• ROWS: 4
• TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)

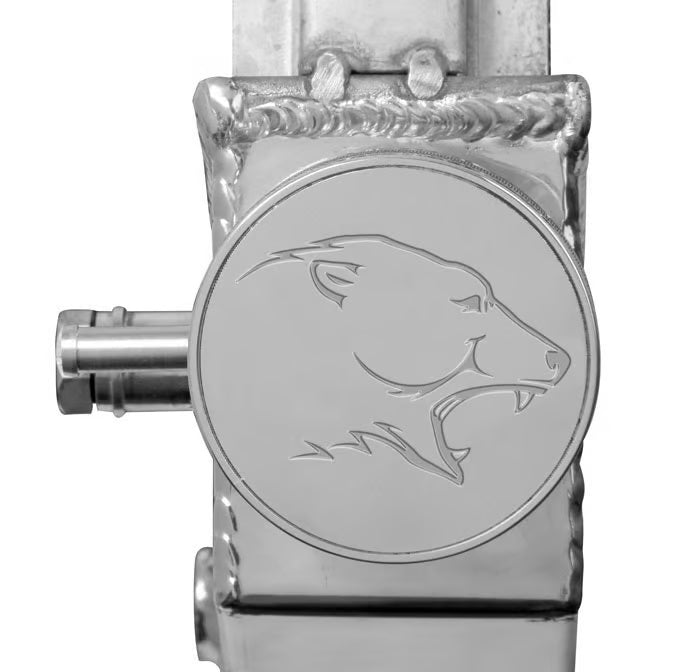

• BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• 4-ROW RADIATORS SUPPORTING APPLICATIONS W/ 450-750 HP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
