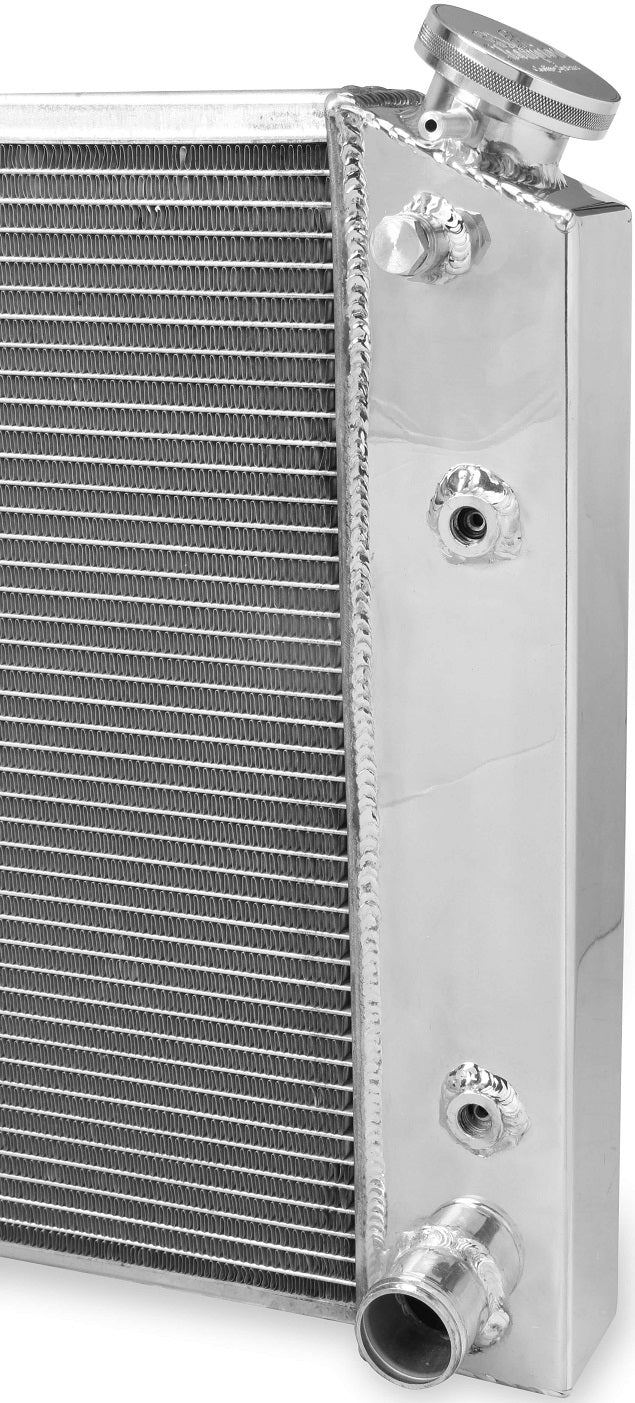

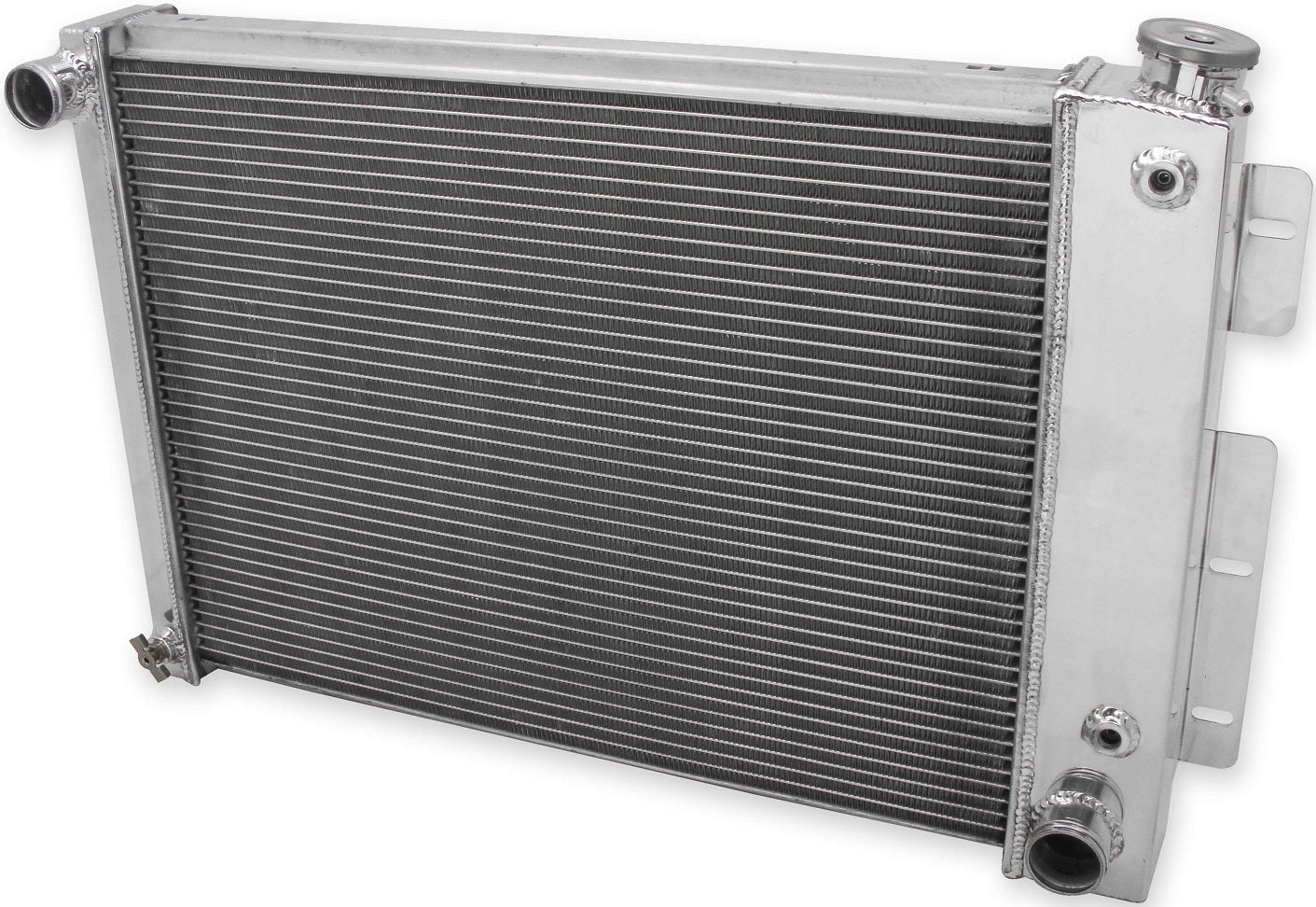

RADIATOR,ALUM,3 ROW,67-69 CAMARO,V-8

BRAND NEW FROSTBITE ALUMINUM RADIATOR (3 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB148).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

• CHEVROLET:
• 1967-1969 CAMARO
• PONTIAC:
• 1967-1969 FIREBIRD
• *FITS APPLICATIONS EQUIPPED WITH 23" WIDE CORE*

SPECS:

• # OF PASSES: SINGLE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17" X 23"
• CORE THICKNESS: 2.20"
• FLOW STYLE: CROSS FLOW
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: BRACKET MOUNT
• OUTLET SIZE: 1-3/4"
• OVERALL DIMENSION: 18-1/2" X 27-1/2"
• ROWS: 3
• TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• 3-ROW RADIATORS SUPPORTING APPLICATIONS W/ 450-750 HP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
