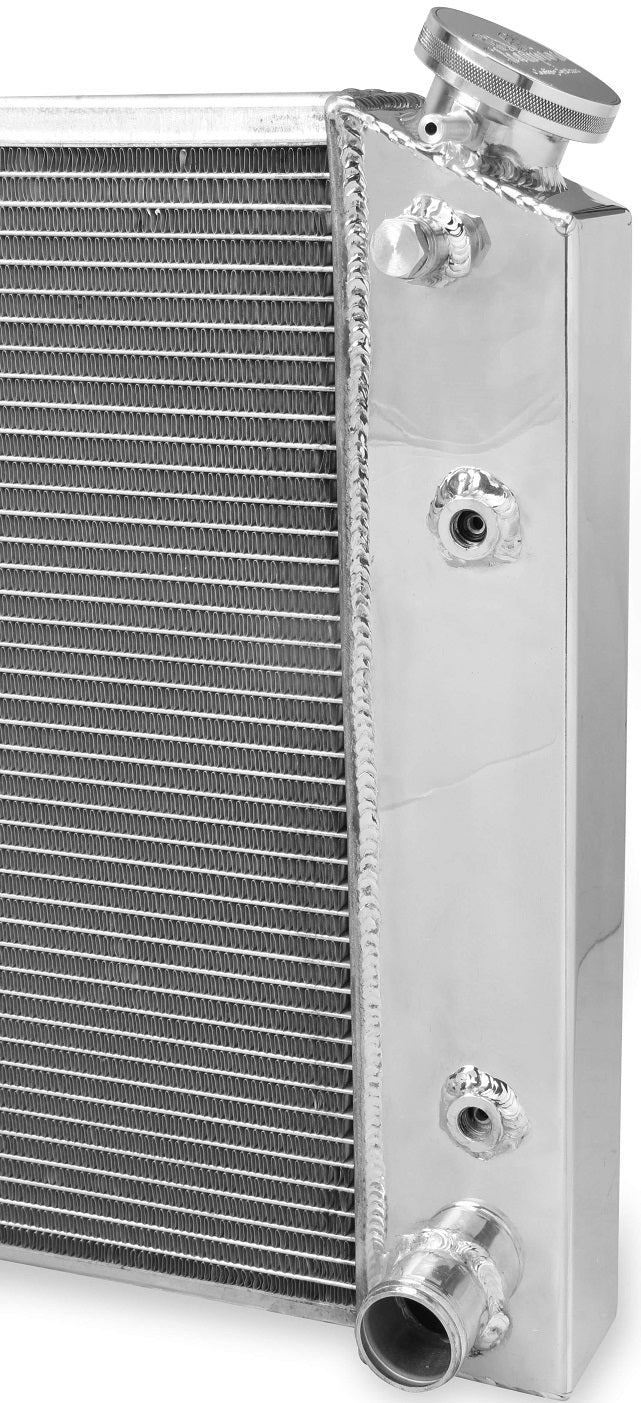

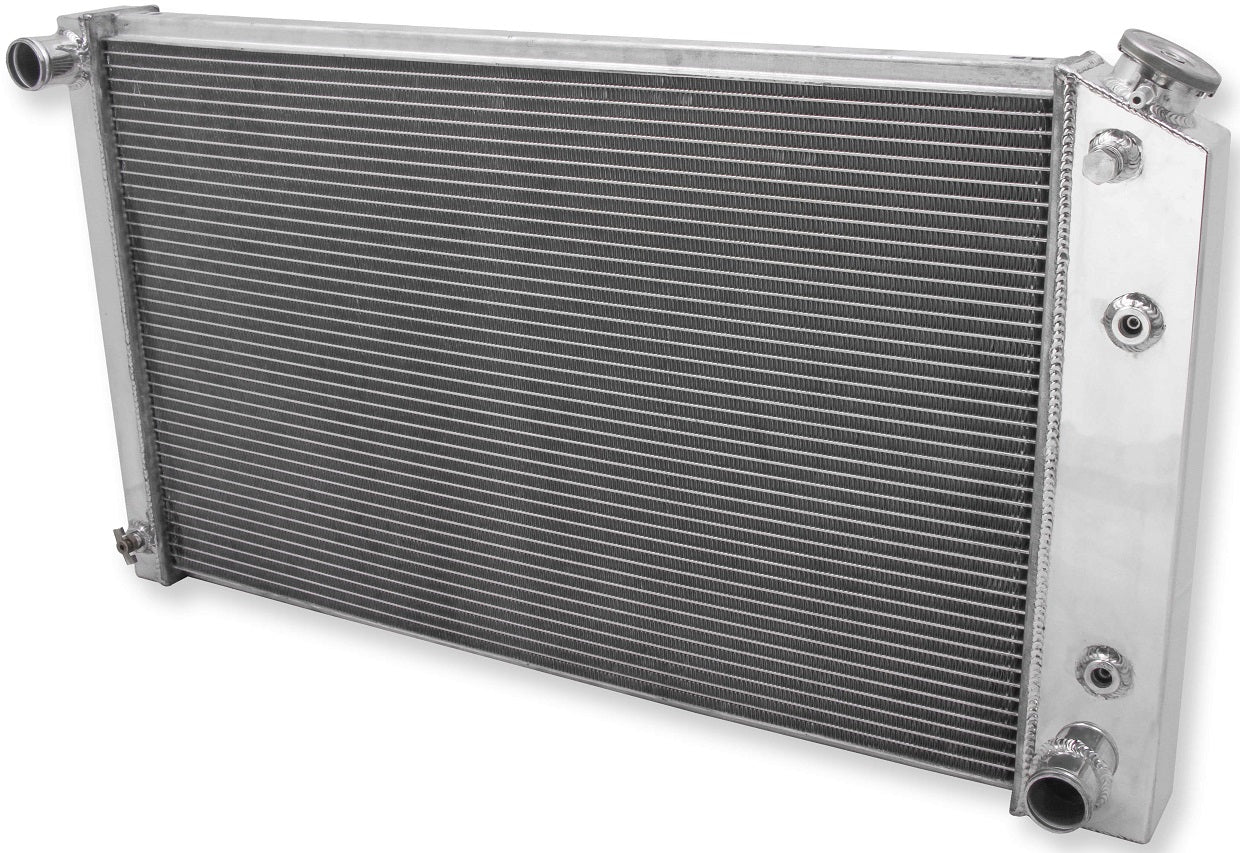

RADIATOR,ALUM,3 ROW,63-77 GM,17" TALL

BRAND NEW FROSTBITE ALUMINUM RADIATOR (3 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB133).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

• BUICK:
• 1963-1970 WILDCAT
• 1965-1990 LESABRE
• 1967-1972 SKYLARK
• 1967-1985 RIVIERA
• 1968-1984 ELECTRA
• 1970-1979 ESTATE WAGON
• 1973 CENTURION
• 1973-1976 CENTURY
• 1973-1977 REGAL
• CADILLAC:
• 1965-1974 CALAIS
• 1965-1974 DEVILLE
• 1965-1974 FLEETWOOD
• 1965-1982 ELDORADO
• 1980-1982 SEVILLE
• CHEVROLET:
• 1968-1973 CHEVELLE
• 1968-1977 EL CAMINO
• 1970-1977 MONTE CARLO
• 1971-1972 BISCAYNE
• 1971-1972 BROOKWOOD
• 1971-1972 KINGSWOOD
• 1971-1974 BEL AIR
• 1971-1979 IMPALA
• 1971-1990 CAPRICE
• 1973-1977 MALIBU
• 1973-1980 C10/C20 SUBURBAN
• 1973-1980 K10/K20 SUBURBAN
• 1972-1978 G10/G20/G30 VAN
• 1973-1974 BLAZER
• 1973-1978 C10/C20/C30 PICKUP
• 1973-1980 K10/K20 PICKUP
• 1973-1974, 1977-1980 K30 PICKUP
• 1975-1980 K5 BLAZER
• 1975-1980 P10/P20/P30 PANEL TRUCK
• 1976 LAGUNA
• GMC:
• 1972-1980 G15/G25/G35/G1500/G2500/G3500 VAN
• 1973-1980 C15/1500/C25/2500/C35/3500 PICKUP
• 1973-1980 C15/1500/C25/2500 SUBURBAN
• 1973-1978 C35/3500 SUBURBAN
• 1973-1980 K15/1500/K25/2500 PICKUP
• 1973-1974, 1977-1980 K35 PICKUP
• 1973-1980 P15/P25/P35/P1500/P2500/P3500 PANEL TRUCK
• 1975-1980 K15/K25 SUBURBAN
• 1973-1980 JIMMY
• OLDSMOBILE:
• 1966-1977 CUTLASS
• 1968-1978 DELTA 88
• 1968-1984 98
• 1972-1977 CUTLASS SUPREME
• 1974-1990 CUSTOM CRUISER
• 1980-1985 TORONADO
• PONTIAC:
• 1973-1975 GRAND AMV
• 1967-1977 GRAND PRIX
• 1967-1981 BONNEVILLE
• 1967-1981 CATALINA
• 1968-1970 TEMPEST
• 1968-1973 GTO
• 1968-1977 LE MANS
• *FITS L6/V8 APPLICATIONS WITH 17" TALL CORE*

SPECS:

• # OF PASSES: SINGLE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17" X 28 1/4"
• CORE THICKNESS: 2.20"
• FLOW STYLE: CROSS FLOW
• HEATER RETURN PORT SIZE: 1/8" NPT
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: 1-1/2"
• OVERALL DIMENSION: 18-1/2" X 33"
• ROWS: 3
• TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• 3-ROW RADIATORS SUPPORTING APPLICATIONS W/ 450-750 HP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
